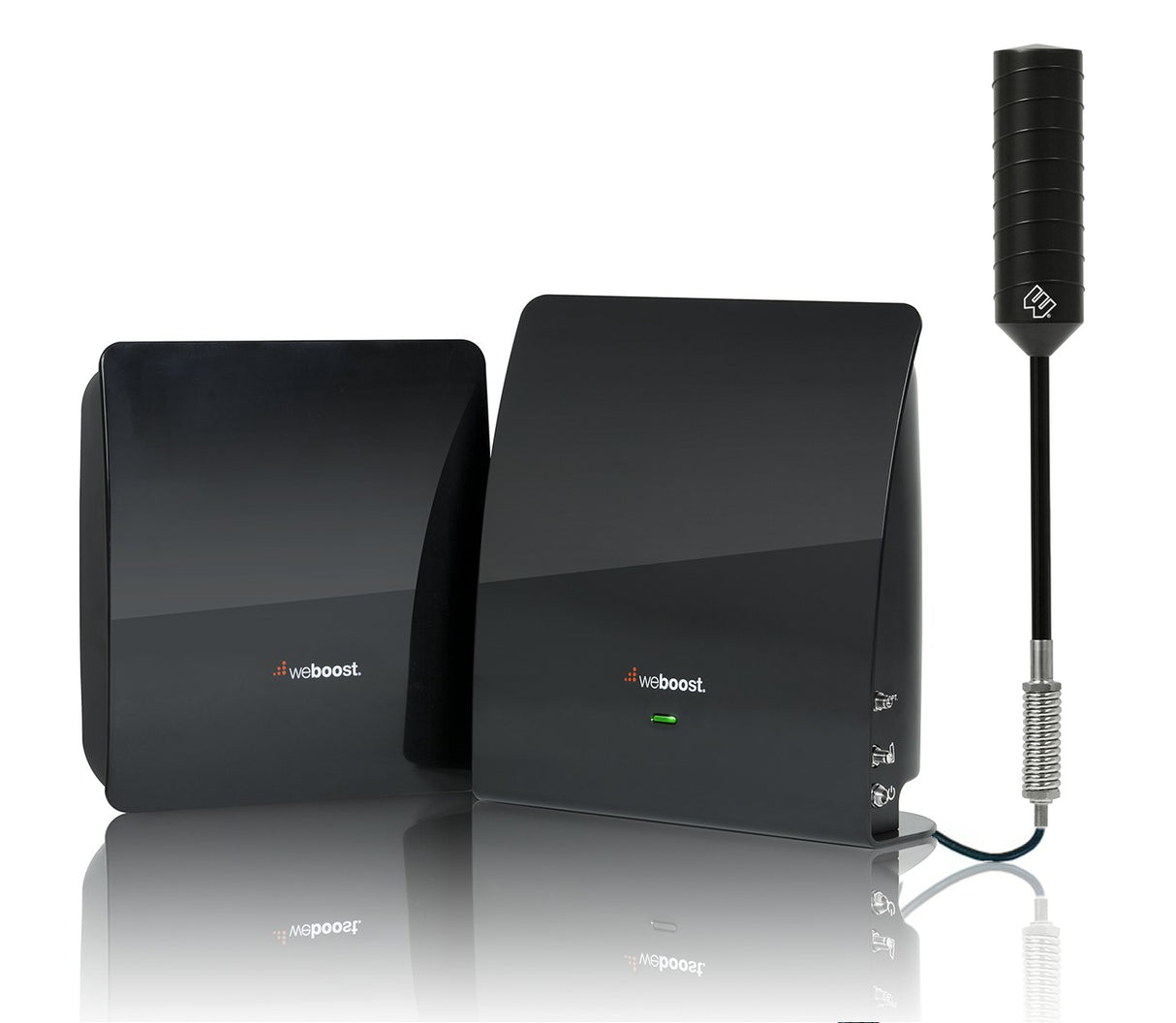

eqo RV Signal Booster Kit
Availability: In stock
- Boosts: Talk, text & 4G LTE data
- Works for: All Phones and All Carriers
- Supports: Multiple devices/users
- Gain: 65 dB
The eqo RV Signal Booster kit is the ideal signal booster to use in your RV or other large vehicle while you're parked or stopped. It uses the newest 4G spring mount external antenna to receive the signal from the cell towers, and then passes that to the weBoost eqo system in the RV. The eqo is a plug and play booster, so you simply need to plug it in and connect the cables, and it will adjust and create the best possible coverage area inside of your RV.
If you're looking for the largest possible coverage area in your RV while the vehicle is stopped, and want to boost the 2G, 3G and 4G LTE networks for all of the major carriers in the US and Canada (except for Sprint 4G LTE), then this is the kit for you.
Please note: The weBoost eqo booster is classified by the FCC as a building system and is more powerful than a mobile signal booster, so it may not be used while a vehicle is in motion.
Many variables impact the total coverage area of a signal booster system. The following are estimates only and may not be accurate in any individual situation.
- If you have an existing strong 5-bar outside signal, you may cover the entire RV with boosted signal**
- If you have an existing 3 to 4-bar (-90 dB) outside signal, you may cover part of the RV with boosted signal**
- If you have an existing 1 to 2-bar (-100 dB) outside signal, you may receive coverage a few feet from the inside antenna**
- If you have no existing outside signal, you likely will not get any coverage from the booster
The eqo RV Signal Booster kit supports the 2G, 3G, and 4G LTE networks from virtually all carriers in the United States and Canada. For other locations, please consult the frequencies listed below to see if this product will work for you.
Here is a more detailed breakdown of the carriers, networks and frequencies boosted by this kit:
- AT&T 2G, 3G, 4G HSPA+ & 4G LTE
- Verizon 2G, 3G, 4G LTE & XLTE
- Sprint 2G & 3G
- T-Mobile 2G, 3G, 4G HSPA+ & 4G LTE
- US Cellular 2G, 3G & 4G LTE
- All other carriers using 700 MHz, 800 MHz, 1900 MHz, and AWS 1700/2100 MHz frequencies
Please Note: This signal booster kit will not work in most European, Asian, and African countries because the frequencies used there are different than those boosted by this equipment.

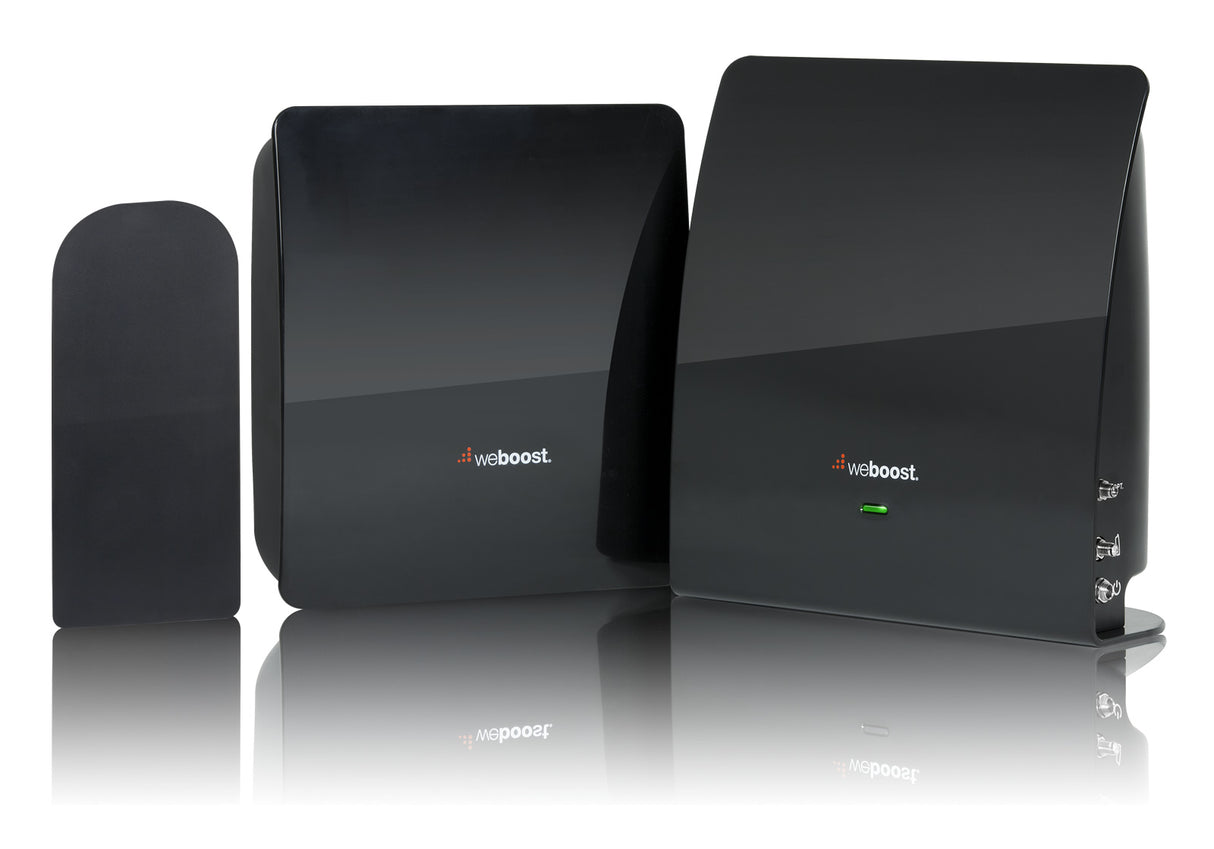

- weBoost 473120 eqo Amplifier
- weBoost 473120 eqo Inside Coverage Unit
- 25 ft of RG174 cable

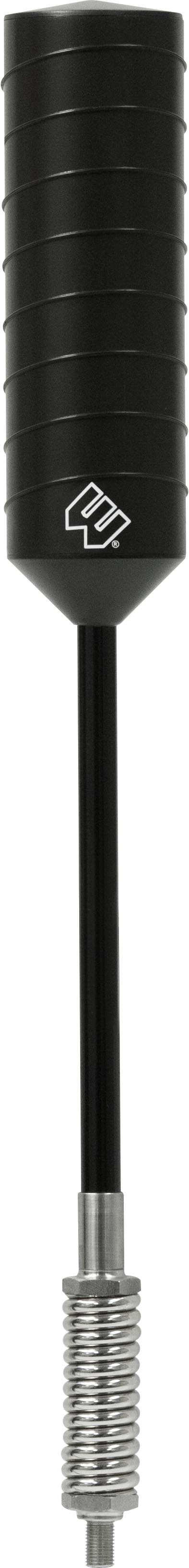

- weBoost 304415 RV & Trucker 4G Spring Mount Antenna with Mount and 14 ft of cable
- AC Power Supply
Please Note: A DC power supply is not included with this kit. You should purchase the weBoost 859113 5V/2.5A DC Power Supply if you need a DC power supply for this kit.
The installation of the eqo RV Signal Booster kit is very easy and can be completed in just a few minutes. Just follow these steps and you should be boosting signal in no time:

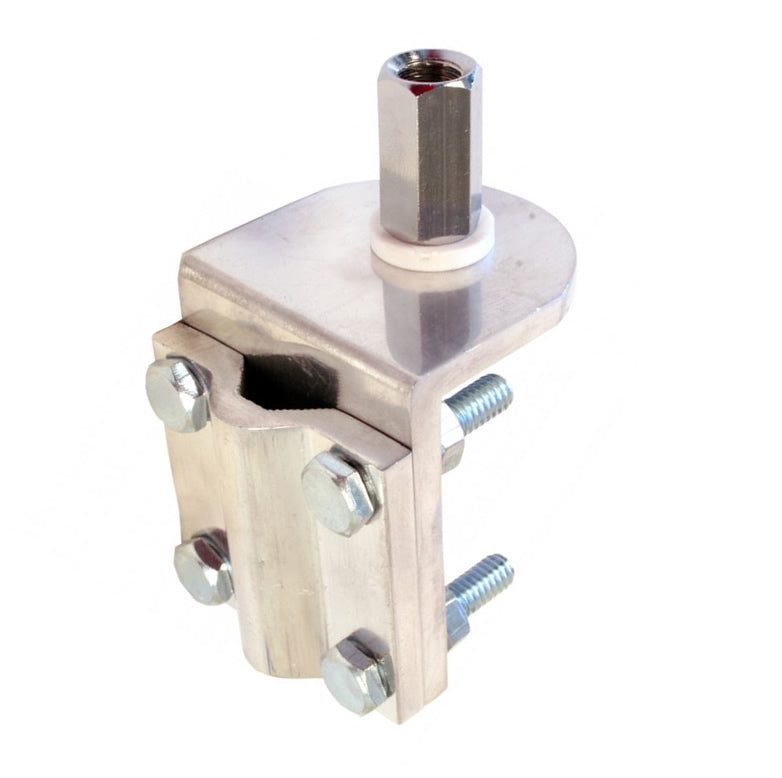

- First, mount the Spring Mount Antenna on the ladder on the back of the RV using the included 3-way mount.
- Run the attached antenna cable into the RV and connect it to the outside antenna port on the eqo amplifier.
- Connect the 25 ft cable to the inside antenna port on the eqo and run to the location where you want to locate the internal coverage unit.
- Power on the amplifier and you should immediately start to receive better signal inside of the RV.
If you run into any questions or issues, feel free to contact us for help.
** The actual coverage area of a signal booster is dependent on many factors including existing outside signal strength, obstructions between you and the cell tower, the materials used in your home or office, the layout of the area you need to cover with a boosted signal, and other factors. The approximate coverage areas listed above are estimates. Actual coverage area will vary based on these and other factors. If you're not sure if a system will be powerful enough for your needs, contact us to find out.
|Max Coverage Area||6 Foot Radius|
|Frequency||700MHz, 800MHz, 900MHz, 1900MHz, 1700/2100MHz|
|Specific Frequency (Up/Down)||698 - 716 MHz / 728 - 746 MHz, 776 - 787 MHz / 746 - 757 MHz, 824 - 849 MHz / 869 - 894 MHz, 1850 - 1910 MHz / 1930 - 1990 MHz, 1710 - 1755 MHz / 2110 - 2155 MHz|
|Gain||65dB / 70dB|
This is a CONSUMER device.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider's consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider. WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device.
Please note, the four largest carriers - AT&T, T-Mobile, Verizon and Sprint - and more than 90 regional carriers have given blanket consent for use of all boosters certified to the new FCC standards.
