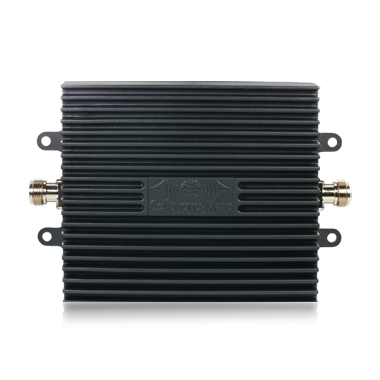

The SureCall CM2000-WL 20dB 25 dB in-line amplifier by Cellphone-Mat is designed to be used in large signal booster systems to boost a signal that has been lost because of splitters and long cable runs. It features a 25 dB gain on the 1900 MHz band and a 20 dB gain on the 800 MHz band. The amplifier features oscillation detection and has N-Female connectors.
|Max Coverage Area||Direct Connect|
|Power Requirements||Input AC110V,60Hz; Output DC 6V|
|Specific Frequency (Up/Down)||824 - 849 MHz / 869 - 894 MHz, 1850 - 1910 MHz / 1930 - 1990 MHz|
|Max Output Power||3 Watts EIRP|
|Linear Output Power (Up/Down)||No|
|Dimensions||7” x 5” x 2”|
