The SureCall Fusion2Go 4G Extreme Mobile Signal Booster Kit is the strongest mobile signal booster allowed by the FCC. This means that the Fusion2Go can give you a usable cell signal in places where all other mobile signal boosters stop working. The Fusion2Go boosts the 2G, 3G, and 4G LTE networks from all major carriers in North America, giving you fewer dropped calls, increased call clarity and the fastest 4G LTE download speeds possible. Unlike other types of signal boosters, the Fusion2Go communicates with your phone wirelessly. It does not require a direct connection to your phone or for your phone to sit in a cradle to receive boosted signal, so it can support multiple phones and data devices at the same time.
The SureCall Fusion2Go 4G Extreme's inside coverage area will depend on your existing outside signal strength. In areas where you get a moderate existing outside signal, the Fusion2Go will fill a normal vehicle with boosted coverage. As the outside signal gets weaker, you may have to keep your phone within about 18 inches from the inside antenna in order to take advantage of the boosted signal.

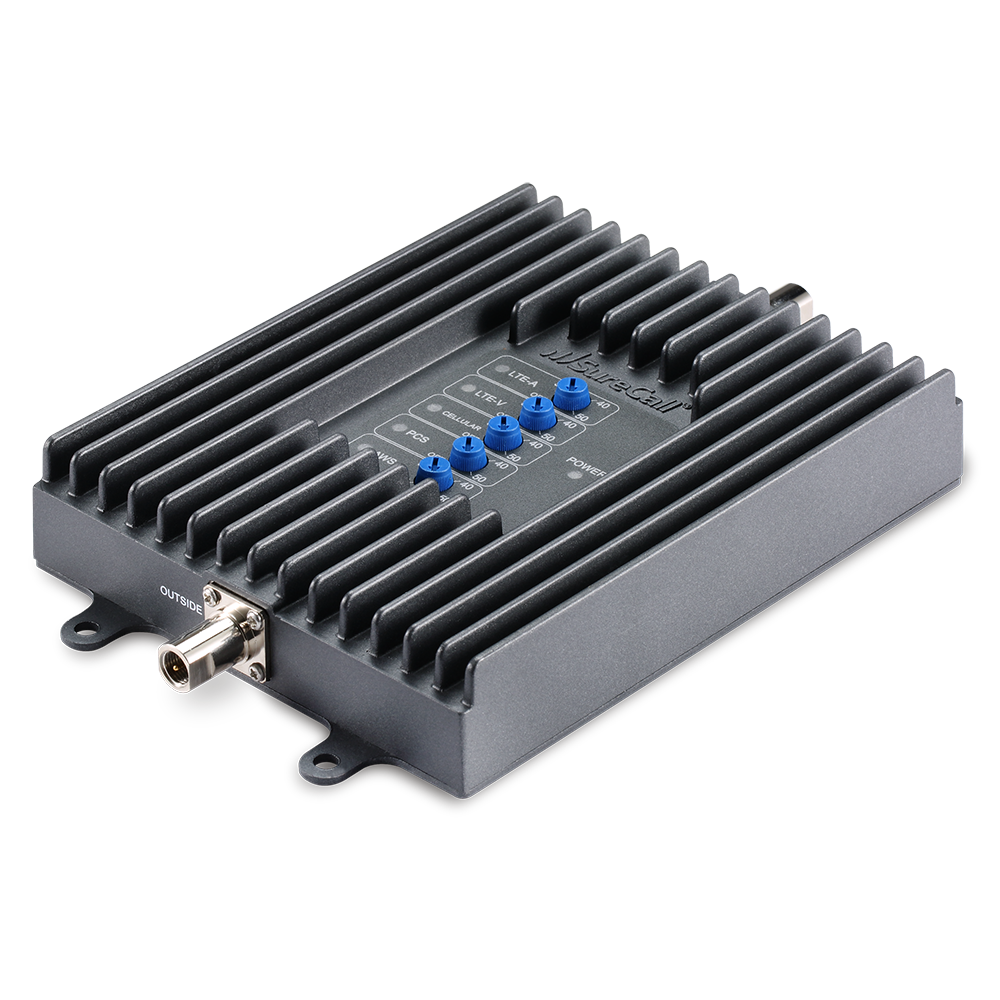

For added durability, the Fusion2Go amplifier is housed in an aluminum case, giving it extra protection while located under a seat, in the trunk, or in other location within the vehicle.
The SureCall Fusion2Go 4G Extreme Kit The SureCall Fusion5s supports the 2G, 3G, and 4G LTE networks from virtually all carriers in the United States and Canada:
- AT&T 2G, 3G, 4G HSPA+ & 4G LTE
- Verizon 2G, 3G, 4G LTE & XLTE
- Sprint 2G, 3G & 4G LTE
- T-Mobile 2G, 3G, 4G HSPA+ & 4G LTE
- US Cellular 2G, 3G & 4G LTE
- All other carriers using 700 MHz, 800 MHz, 1900 MHz, and AWS 1700/2100 MHz frequencies

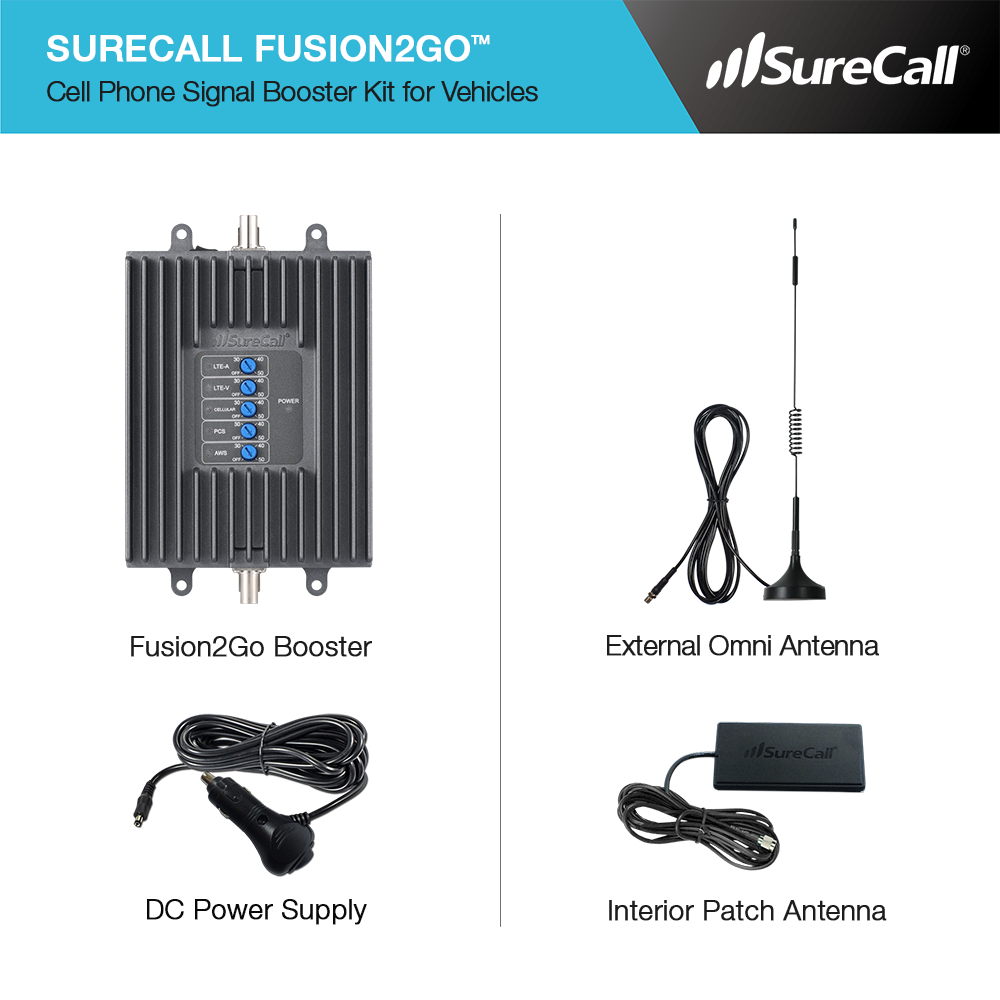

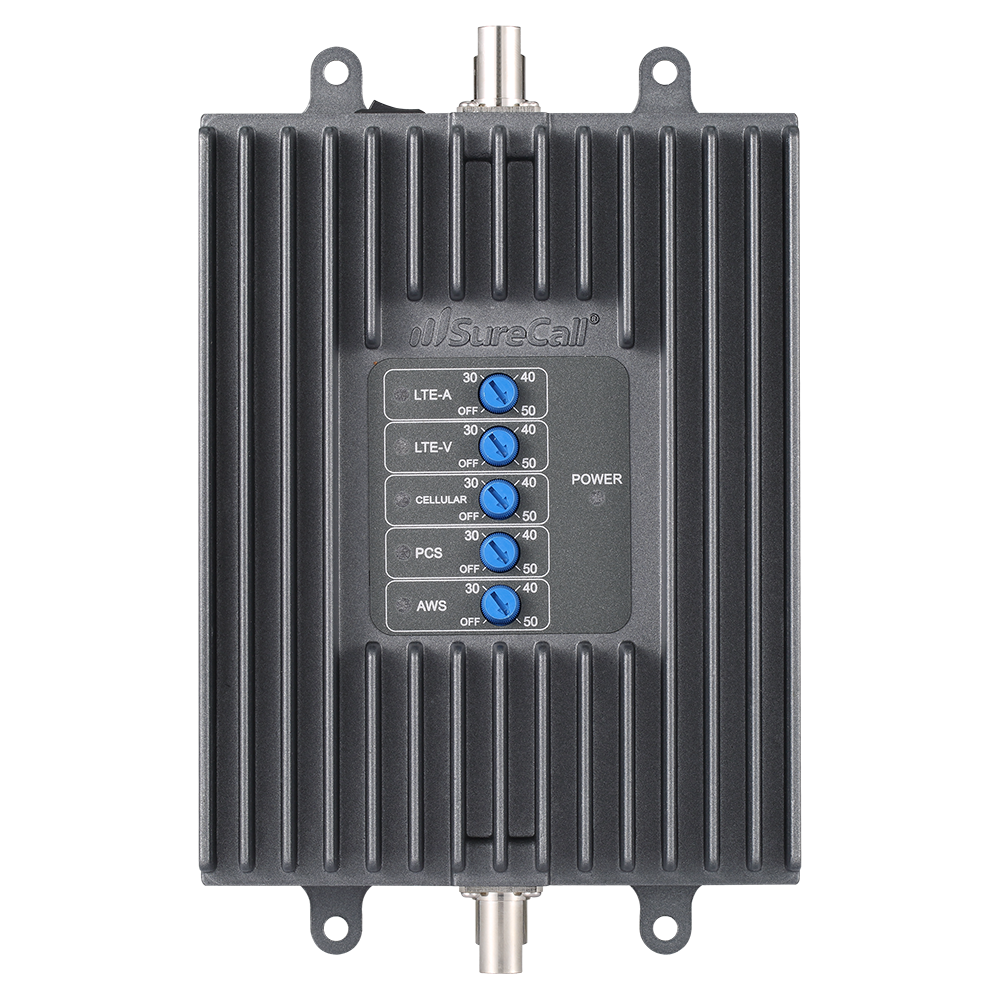

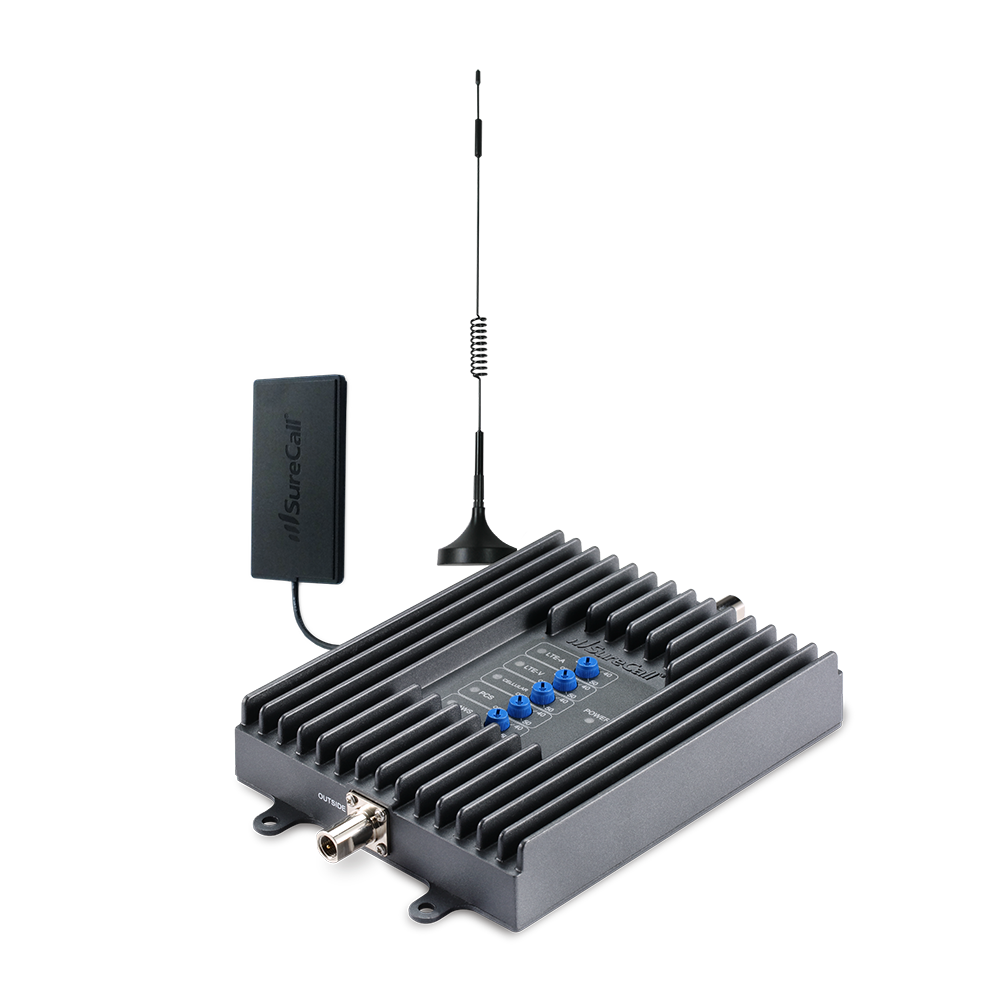

- SureCall 50 dB Fusion2Go Extreme Mobile Amplifier

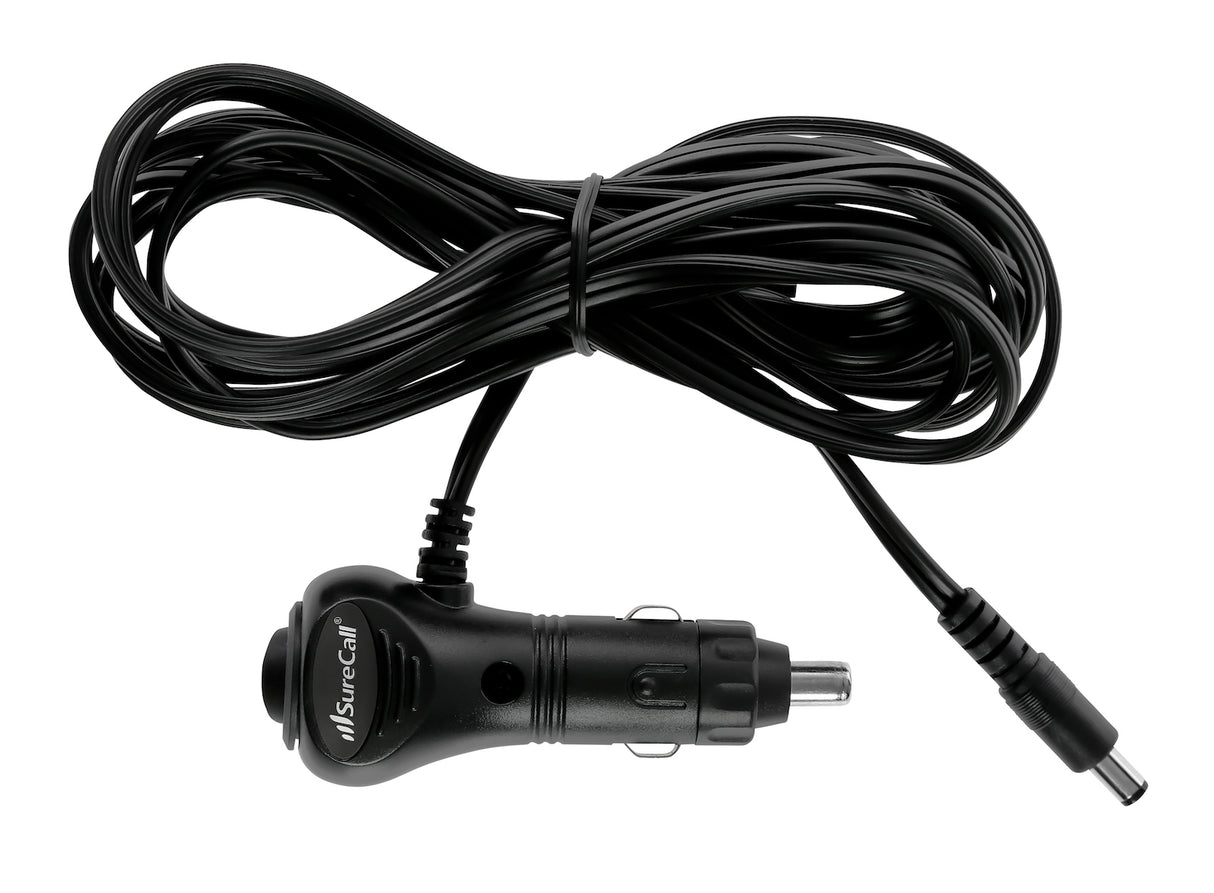

- DC Power Adapter with 6' cable

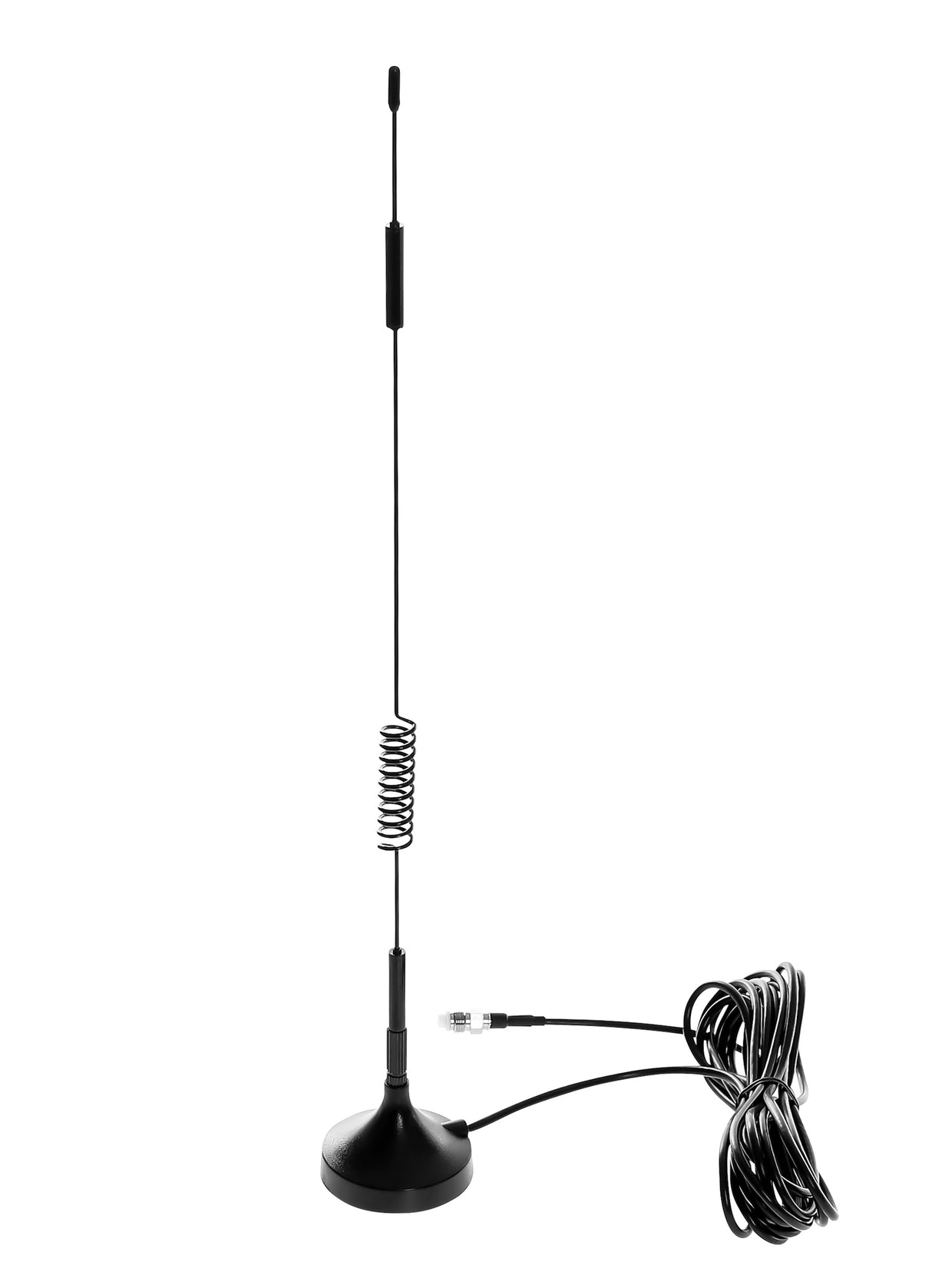

- Outside 5 dBi Magnetic Mount Antenna with 10' Cable

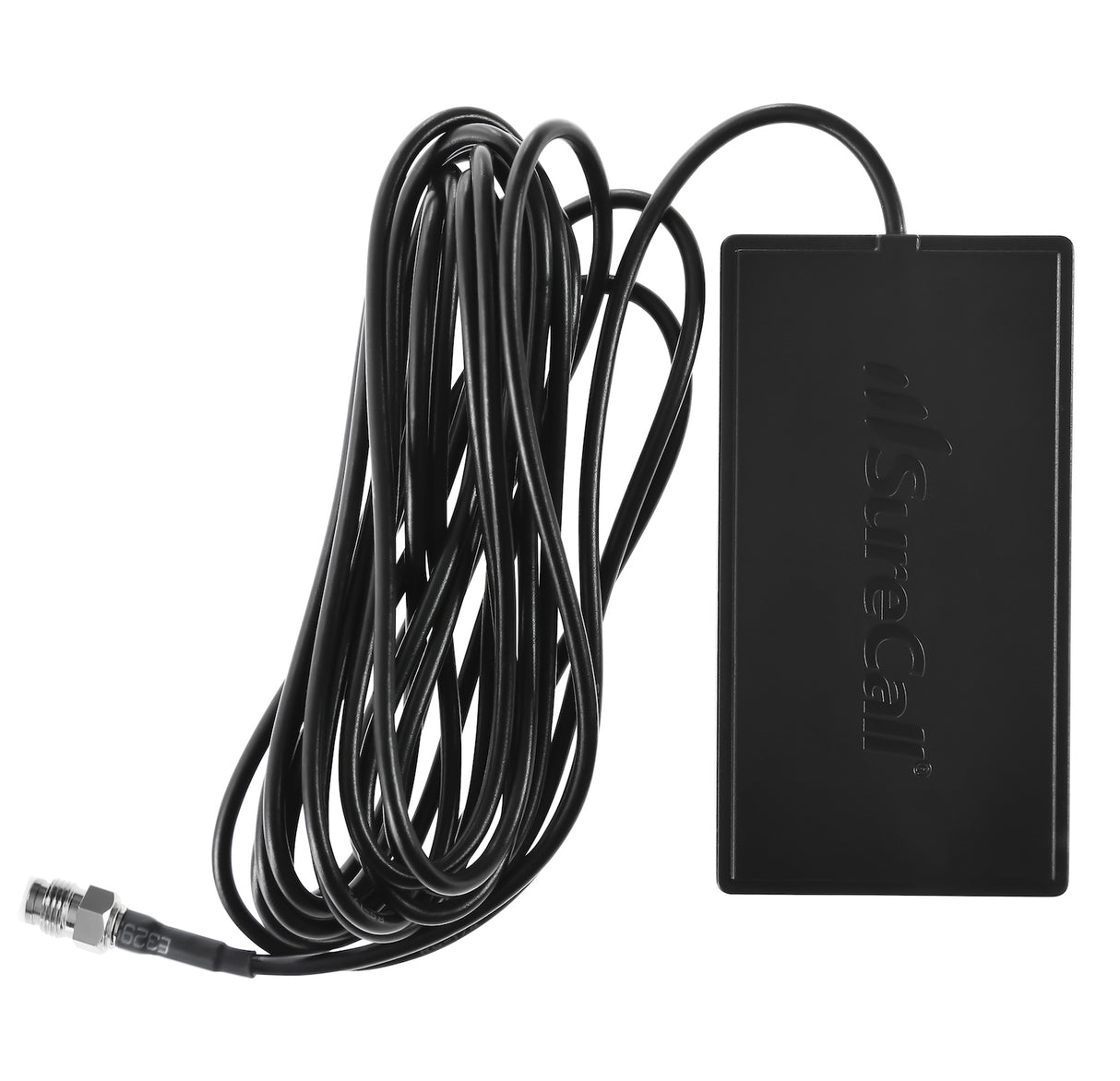

- Inside Low-Profile Patch Antenna with 10' Cable
The Fusion2Go can be outfitted with additional accessories to help with installation and operation. For use in larger vehicles, the optional SureCall CM288W Wide Band Omni Antenna and SureCall 20 ft. White 240 type cable. If you have any questions regarding which outside antenna may work best for you, feel free to contact us for help.
Installing the SureCall Fusion2Go 4G Extreme Mobile Signal Booster Kit is very easy and can usually be done in just a few minutes. Since the installation is not permanent, the kit can be transferred to another vehicle as needed.

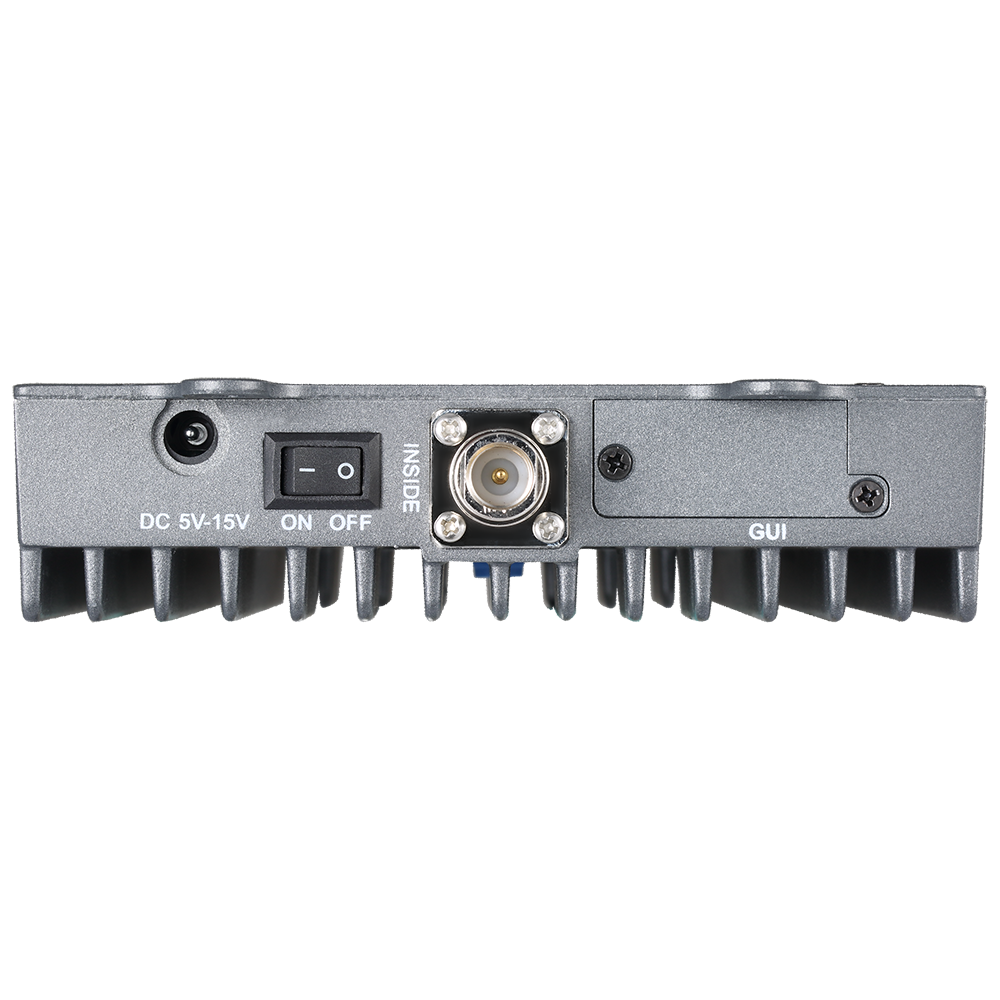

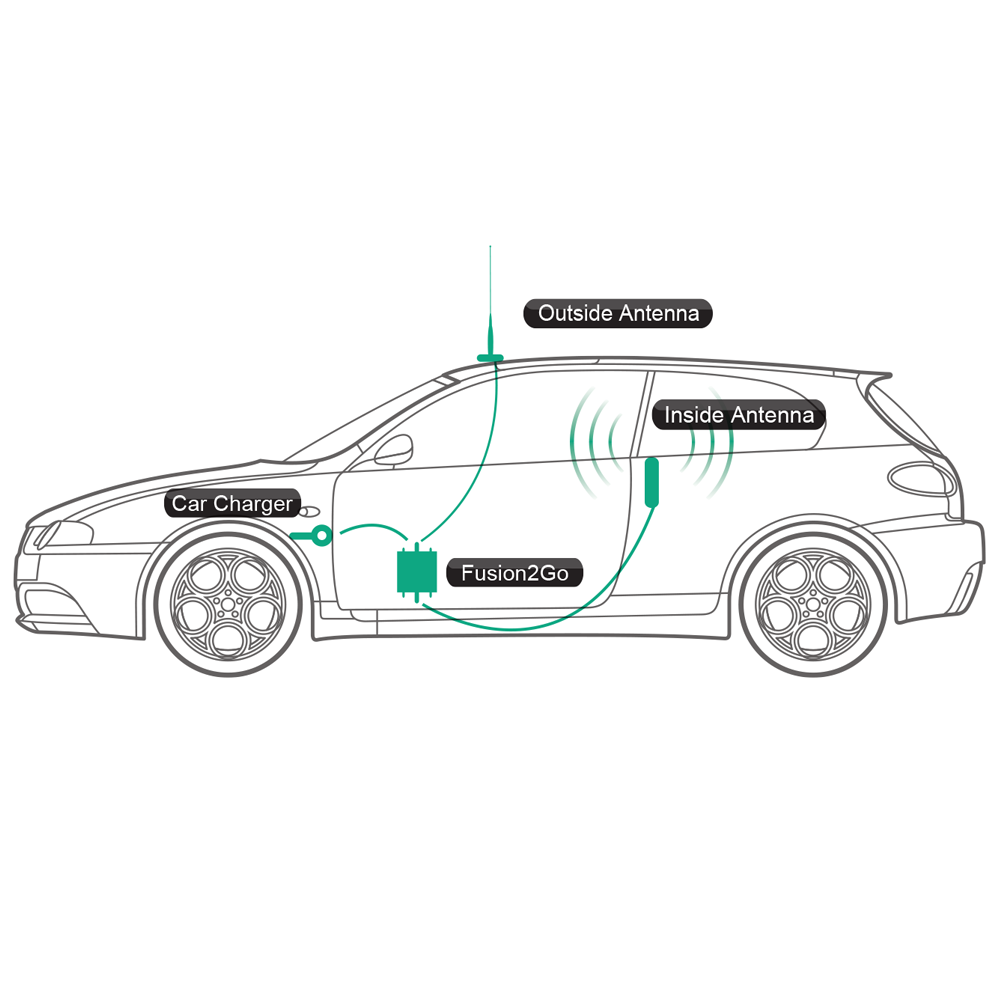

To start, mount the mini-mag antenna on the roof of the vehicle. The antenna must be stuck to a metal surface. If you have a sunroof, position the antenna well behind the sunroof to increase the separation between the inside and outside antennas. Run the cable in through a door opening, under the door weather stripping to protect the cable. Connect the cable to the amplifier's Outside Antenna port. To the inside connect the inside antenna cable. Locate the inside antenna near where you'll typically be using the phone, for example, in the center console or on the side of the driver's seat. Ensure that the cables and amplifier won't be damaged if the front seats are adjusted. Keep inside antenna at least 8 inches for any person and approximately 18 inches from where you typically use your phone. Power on the booster and you should immediately start receiving boosted signal from the internal antenna.
|Max Coverage Area||6 Foot Radius|
|Frequency||700MHz, 800MHz, 1900MHz, 1700/2100MHz|
|Specific Frequency (Up/Down)||698 - 716 MHz / 728 - 746 MHz, 776 - 787 MHz / 746 - 757 MHz, 824 - 849 MHz / 869 - 894 MHz, 1710 - 1755 MHz / 2110 - 2155 MHz, 1850 - 1915 MHz / 1930 - 1995 MHz|
|Gain||50dB / 50dB|
|Product Specifications||Product Specs|
|Power Requirements||DC 5-15V|
This is a CONSUMER device.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider's consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider. WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device.
Please note, the four largest carriers - AT&T, T-Mobile, Verizon and Sprint - and more than 90 regional carriers have given blanket consent for use of all boosters certified to the new FCC standards.
