The weBoost 470106 Drive 3G-S Cradle Signal Booster Kit is the next generation of the Wilson 460106 Sleek Dual-Band Cradle Signal Booster. The Drive 3G-S boosts the 2G & 3G networks from all major carriers in the United States and Canada, giving you fewer dropped calls, increased call clarity and reliable 3G downloads.
The weBoost Drive 3G-S uses the following setup for optimal operation. A small, 4-inch magnetic antenna with a 10 ft cable is mounted to the roof of your vehicle, and the cable is run into the car through a door opening and connected to the Drive 3G-S Cradle. The antenna on the roof receives the existing cell signals in the area and sends them via the cable to the cradle's built in amplifier. The amplifier then boosts the 2G & 3G networks that it received and passes them directly to the phone or data device sitting in the cradle. The entire process also works in reverse giving you strong 2-way communication between your phone and the tower.
Unlike most boosters, the Drive 3G-S does not create a wireless coverage area where you can freely use your phone. Instead, your phone must stay sitting in the Drive 3G-S cradle at all times to receive the boosted signal. There are no direct connections between your phone and the cradle, just sitting in it is enough for the phone to take advantage of the boosted signal.
The weBoost 470106 Drive 3G-S will boost the 2G & 3G networks from virtually all carriers in the United States and Canada. For other locations, please consult the frequencies listed below to see if this product will work for you. This kit will not boost the 4G LTE networks from any carrier.
Here is a more detailed breakdown of the carriers, networks and frequencies boosted by this kit:
- AT&T 2G, 3G & 4G HSPA+
- Verizon 2G & 3G
- Sprint 2G& 3G
- T-Mobile 2G & 3G
- US Cellular 2G & 3G
- All other carriers using 800 MHz & 1900 MHz
Please Note: This signal booster kit will not work in most European, Asian, and African countries because the frequencies used there are different than those boosted by this equipment.
Included in the Box

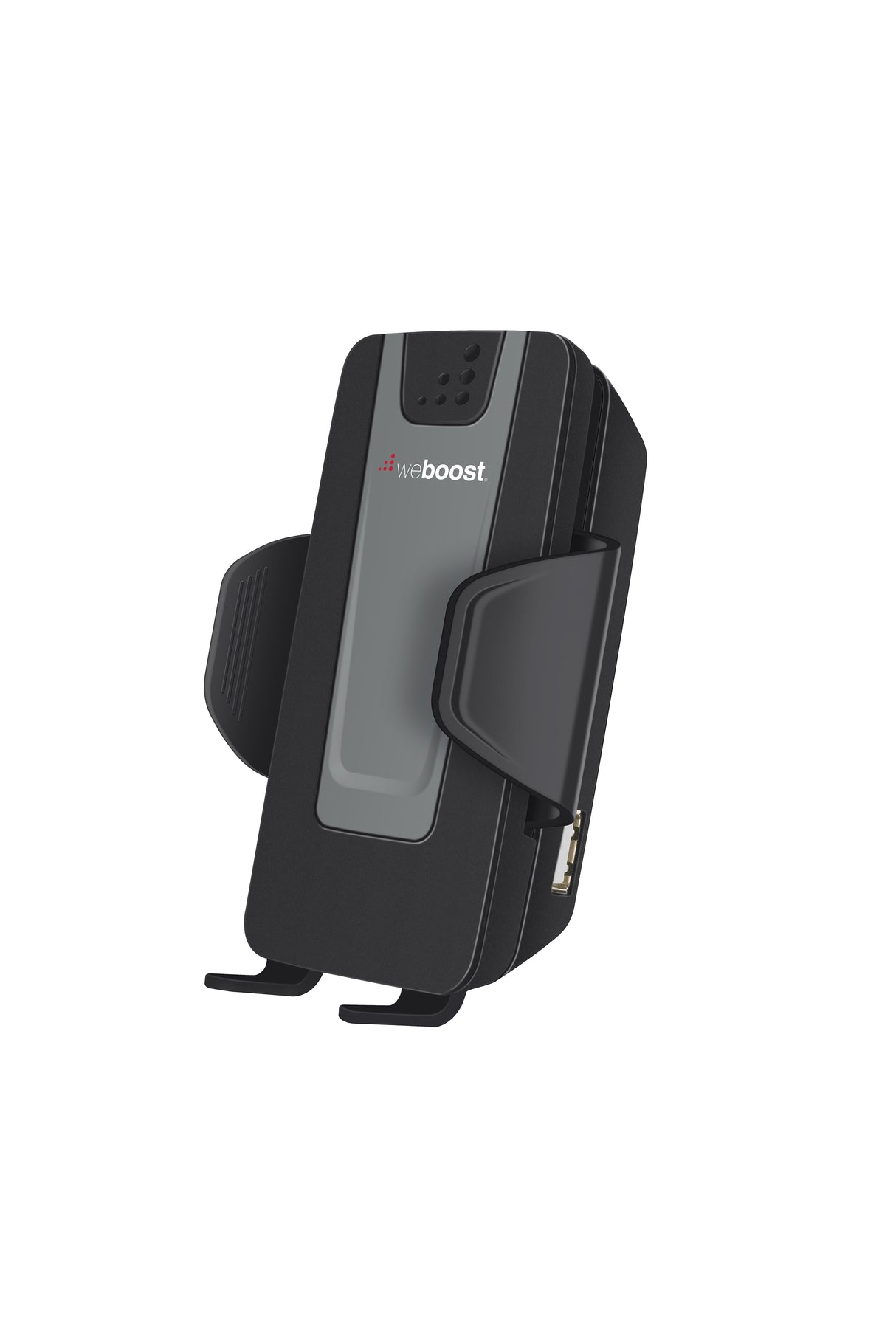

- weBoost Drive 3G-S Cradle with built-in Amplifier
- weBoost 4 in. Magnet-Mount External Antenna
- Cigarette lighter power adapter and cable
- Vehicle dash adhesive mounting bracket
- Instruction Manual with Installation Directions
The Drive 3G-S installs in minutes and includes everything that you need to setup and use the mobile signal booster right out of the box. There are no special tools or parts required. Just mount the included magnetic antenna on the roof of the vehicle and run the attached cable into the vehicle through the door to the Drive 3G-S amplifier. The included power adapter plugs into your vehicle’s power port or cigarette lighter and supplies enough electricity to power the Drive 3G-S and to charge your phone if connected to the charging port. Finally, because the setup is so simple, you can easily move it from one vehicle to another as needed.
Installation Video (Previous Version)
|Max Coverage Area||Cradle|
|Specific Frequency (Up/Down)||824 - 849 MHz / 869 - 894 MHz, 1850 - 1910 MHz / 1930 - 1990 MHz|
This is a CONSUMER device.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider's consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider. WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device.
Please note, the four largest carriers - AT&T, T-Mobile, Verizon and Sprint - and more than 90 regional carriers have given blanket consent for use of all boosters certified to the new FCC standards.
