Wi-Ex zBoost Metro (YX540) [Discontinued]

3 4

There is a New Version of this Product

The zBoost YX540 has been discontinued and replaced by the new and improved
zBoost SOHO ZB545 Dual Band Signal Booster

Go to the new zBoost ZB545

Availability: Out of stock


Get it Faster!

Orders placed by 4pm EST typically ship the same day.

Questions? We're here to help:

(800) 590-3564



The Wi-Ex zBoost Metro kit is designed for use in small homes, apartments and condos that require an internally mounted antenna (not mounted outside of the home). The kit includes a suction cup antenna for mounting on a window which receives the best cell phone signal, which results in a kit which can be installed in minutes with no special tools or extra effort. If you have a small home, condo or apartment that has poor cell phone reception and need a quick and easy fix, then this is the kit for you.

For best performance, we recommend upgrading from the included cable to a Low Loss RG6 Coax Cable.

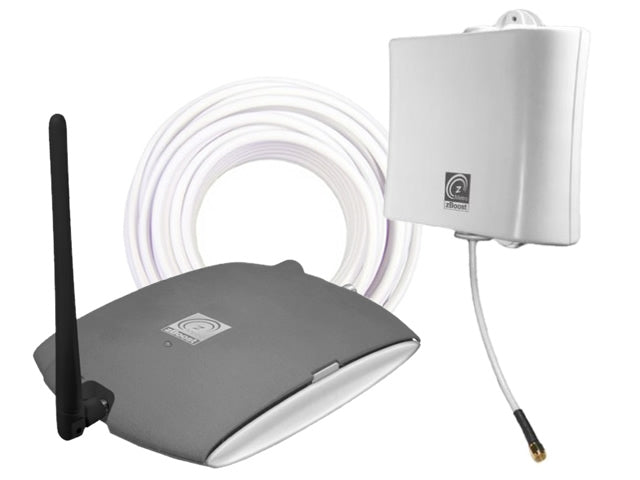

Kit Includes

  • zBoost Metro YX540 amplifier
  • Window mount signal antenna
  • 50' RG59-mini coaxial cable
  • Base unit antenna
  • Mounting hardware
  • AC Power Adapter (110V - 240V AC)
  • Instruction manual with Installation directions

YX540 Metro Set-Up Video

Additional Info

Additional Info

Max Coverage Area Up to 1,500 sq ft
Frequency 800MHz, 1900MHz
Specific Frequency (Up/Down) No
Gain 55dB / 55dB
Impedance No
Product Manual zBoost YX540 Metro Manual
zBoost YX540 Metro Setup Overview
Product Specifications zBoost YX540 Metro Spec Sheet
Power Requirements 100-240VAC 50-60 Hz ; 5.0VDC; 3W standby; 7W max signal; 2.0A Max
FCC Notice
This is a CONSUMER device.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider's consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider. WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device.

Please note, the four largest carriers - AT&T, T-Mobile, Verizon and Sprint - and more than 90 regional carriers have given blanket consent for use of all boosters certified to the new FCC standards.
