Wilson 803670 AG Pro Quint 5-Band Configurable Signal Booster Kit [Discontinued]
Availability: Out of stock
As low as: $0.00
Price as configured: $0.00
The Wilson 803670 AG Pro Quint 5-Band Configurable Signal Booster Kit has been discontinued and is being replaced by the new Wilson 461104 AG Pro Quint 70dB Signal Booster Kit - Voice, 3G & 4G LTE for all Carriers.
The Wilson 803670 AG Pro Quint 5-Band Configurable Signal Booster Kit features a powerful 75 dB 5-Band amplifier designed to provide up to 40,000 sq ft or more of coverage or more depending on the strength of the existing outside signal. The AG Pro Quint is able to boost multiple carriers simultaneously while supporting 50 or more phones and data devices at the same time. The Quint is ideal for offices and other environments where a large number of people have different cell phone carriers.
The AG Pro Quint boosts 800 MHz, 1900 MHz, AWS and both the AT&T and Verizon 4G LTE networks. These frequencies cover the majority of all cell carriers in North America, including:
- AT&T 2G, 3G, 4G HSPA+ and 4G LTE
- Verizon 2G, 3G and 4G LTE
- Sprint 2G & 3G
- T-Mobile 2G, 3G, 4G HSPA+ and 4G LTE
- US Cellular 2G, 3G, and 4G LTE
- Canadian Carriers
- Other carriers including Alltel, US Cellular, Boost Mobile, Virgin Mobile, and more!
Like all cell phone signal boosters, the Wilson AG Pro Quint's coverage area is dependent on the existing outside signal strength. With a strong 4 or 5 bar signal outside, the Quint will cover up to 40,000 sq ft.
The Quint is designed to boost multiple carriers simultaneously. When planning for installation, be sure to measure the signal strength of each carrier you want to support.
More Wilson 803670 AG PRO-Quint Kit Options
This kit is ideal for locations with a strong outside signal or that need to support multiple carriers simultaneously. The included omnidirectional antenna is less powerful than a directional, but it can cover multiple carriers with towers in all directions.
This kit is best for locations where the existing signal strength outside is 3 or fewer bars. The included directional antenna must be aimed so this kit can only cover the carriers with towers in a single general direction. If you have carriers with towers in multiple directions, an additional outside antenna can be added, contact us for more information.
If you already have the cables and antennas and only need the amplifier, then this is the best option for you.
Designed for professional installation to provide signal coverage in buildings up to 40,000 square feet, the Wilson AG Pro-Quint (803670) boosts signals on 800 MHz, 1900MHz, AWS and both AT&T and Verizon 700 MHz 4G LTE networks. The AG Pro-Quint is the most affordable five-band booster available. Wilson's compact, integrated design is about the size of a textbook and weighs less than 3 pounds. The AG Pro Quint’s control knobs allow the installer to optimize the gain on each of the frequency bands.
The AG Pro-Quint delivers up to 75 dB of gain and supports CDMA, GSM, EVDO, LTE, HSPA+ and WCDMA technologies. It can be paired with a variety of Wilson inside and outside antennas to create a custom signal booster system. Like all Wilson signal boosters this unit features cell site protection technologies refined over more than a decade of research and development.
- Boosts 800 MHz, 1900 MHz, AWS and both the AT&T and Verizon 4G LTE network
- Provides up to 40,000 square feet of boosted signal coverage
- Supports CDMA, GSM, EVDO, LTE, HSPA+ and WCDMA technologies
- Most affordable 5-band booster available
- Compact Design, weighs less than three pounds
- Control knobs to easily optimize amplifier gain
- Optimization for each of the five frequency bands
- Cell site protection technology

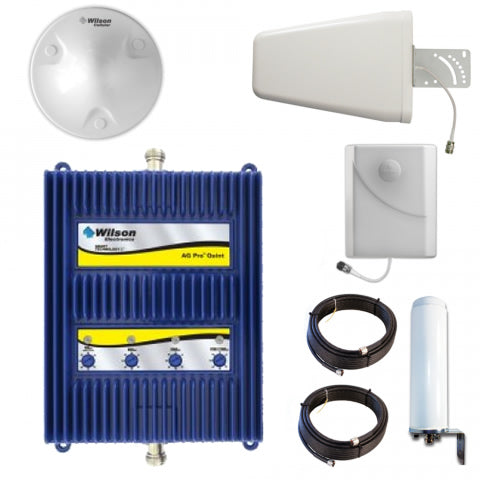

This listing allows you to choose the components you need to create a full signal booster system. If you are not sure what components are needed, give us a call and we can design a system to fit your needs.
|Max Coverage Area||Up to 40,000 sq ft|
|Frequency||700MHz, 800MHz, 1900MHz, 1700/2100MHz|
|Specific Frequency (Up/Down)||698 - 716 MHz / 728 - 746 MHz, 776 - 787 MHz / 746 - 757 MHz, 824 - 849 MHz / 869 - 894 MHz, 1850 - 1910 MHz / 1930 - 1990 MHz, 1710 - 1755 MHz / 2110 - 2155 MHz|
|Gain||75dB / 75dB|
This is a CONSUMER device.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider's consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider. WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device.
Please note, the four largest carriers - AT&T, T-Mobile, Verizon and Sprint - and more than 90 regional carriers have given blanket consent for use of all boosters certified to the new FCC standards.
