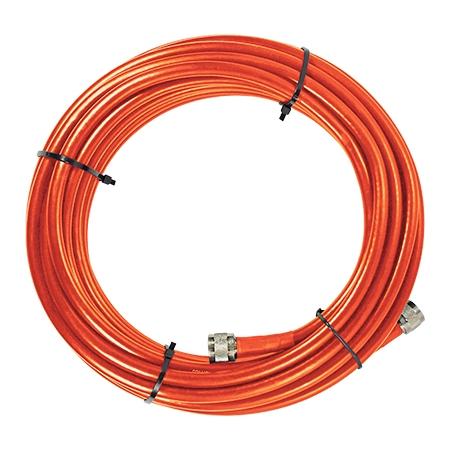

30 ft SC400 Ultra Low Loss Coax Plenum Fire Rated Cable with N-Male connectors - Orange

SureCall  |  SKU: SC-PL-30FT
$219.99

Do You Have a Question?
Our friendly signal experts are ready to help you.
Call us: 1-800-590-3564 or send us a message.

Description

Introducing the 30 ft SC400 Ultra Low Loss Coax Plenum Fire Rated Cable in a striking orange color, designed to ensure optimal signal integrity and safety in sophisticated environments. Crafted with a copper-clad aluminum inner conductor and protected by a high-quality FRPE jacket, this cable is engineered to resist fire hazards and emit low smoke, making it ideal for use in plenum spaces often found in large buildings where air is circulated through the ceiling spaces.

  • Enhanced Shielding: Features an aluminum foil and a tinned copper braid for superior shielding effectiveness over 90 dB, ensuring minimal signal leakage and interference.
  • Low Attenuation: Maintains strong signal quality with attenuation levels from 3.5 dB to 6.8 dB per 100 feet across frequencies from 700 MHz to 2500 MHz.

Electrical characteristics of the cable are robust, with a velocity of propagation at 85%, an impedance of 50 ohms, and a dielectric constant of 1.73. It boasts a shielding effectiveness greater than 90 dB, can withstand up to 2500 volts DC, and has a high tolerance for sparks up to 8000 volts AC. Additionally, the cable is UL approved for plenum rating (CMP), RoHS compliant, and designed to operate effectively in temperatures ranging from -40 to +60 degrees Celsius.

Whether for commercial or high-demand applications, this cable ensures safety, durability, and performance, making it an excellent choice for running through air circulation spaces without compromising on quality and compliance.
