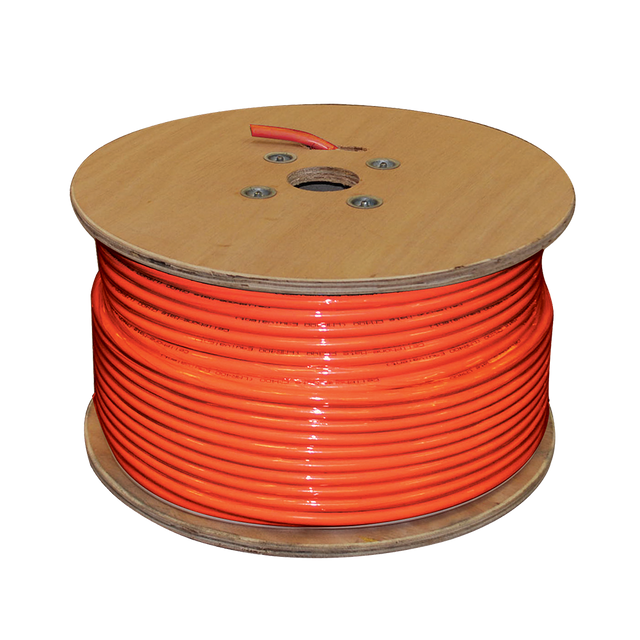

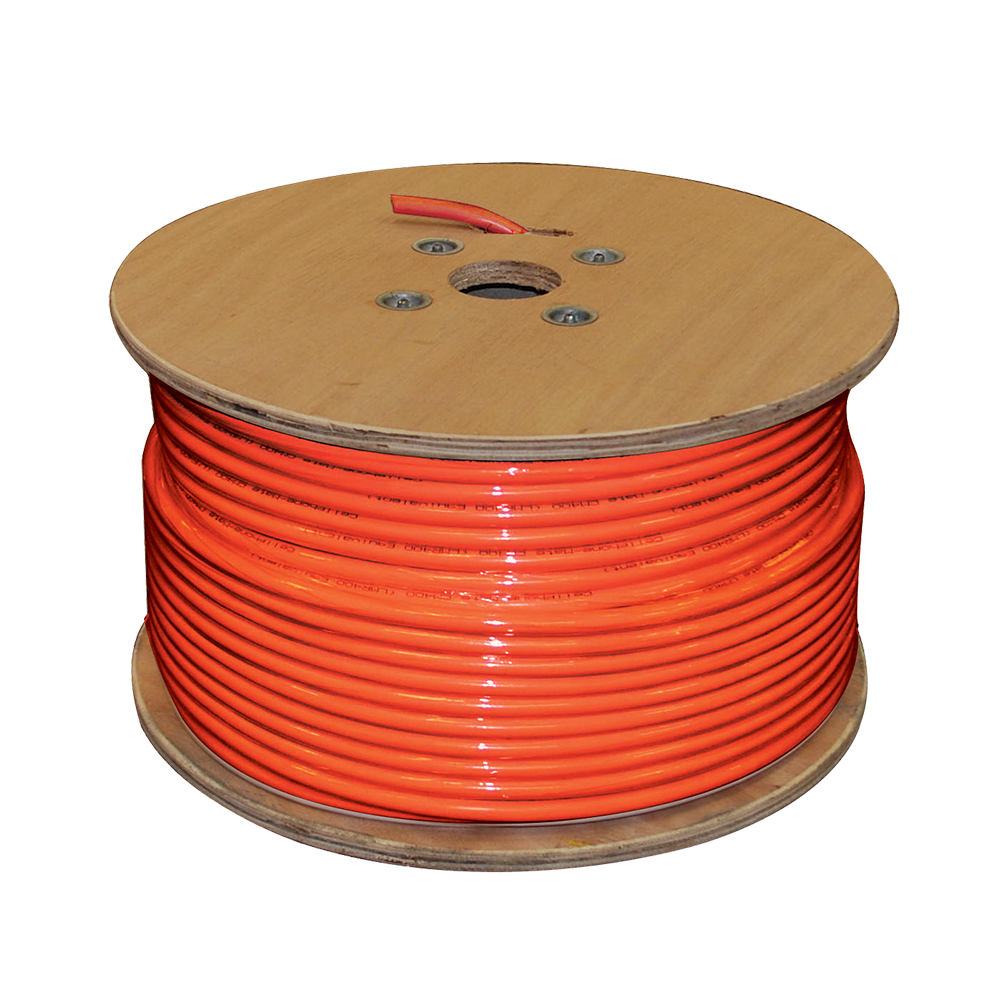

500' SC400 Ultra Low Loss Coax Plenum Fire Rated Cable - Orange

The 500' SC400 Ultra Low Loss Coax Plenum Fire Rated Cable in orange is an ideal solution for installations requiring superior signal quality and strict fire safety standards. Designed for use in plenum spaces, this cable ensures low signal attenuation and is perfect for commercial and residential buildings.

• Low Loss: Features ultra low signal attenuation, ensuring high-quality signal transmission over long distances.
• Fire Rated: Plenum-rated with low smoke and low flame characteristics, complying with safety regulations for plenum spaces.
• Construction: Built with a copper-clad aluminum inner conductor, foam PE dielectric, aluminum foil, and tinned copper braid outer conductor, enclosed in a flame retardant polyethylene (FRPE) jacket.
• Frequency Range: Effective across multiple frequencies including 700 MHz, 800 MHz, 900 MHz, 1900 MHz, 2100 MHz, and 2500 MHz.
• Attenuation: Typical attenuation ranges from 3.5 dB to 6.8 dB per 100 feet, depending on the frequency.
• Impedance: 50 ohms, suitable for various signal transmission applications.
• Durability: Withstands a voltage of 2500 VDC and has a jacket spark rating of 8000 VAC.
• Environment: Operating temperature range from -40℃ to +60℃, making it suitable for diverse environments.
• Compliance: RoHS compliant and UL approved (E473791).

This SC400 coax cable is perfect for installations where both high performance and stringent fire safety are required. Its robust construction and superior electrical characteristics make it a reliable choice for maintaining strong and consistent signal quality.

• SC-Plenum Cable Data Sheet
