Add-On 2 Inside Panel Antenna Kit for 50 Ohm Signal Boosters | 309907-50N

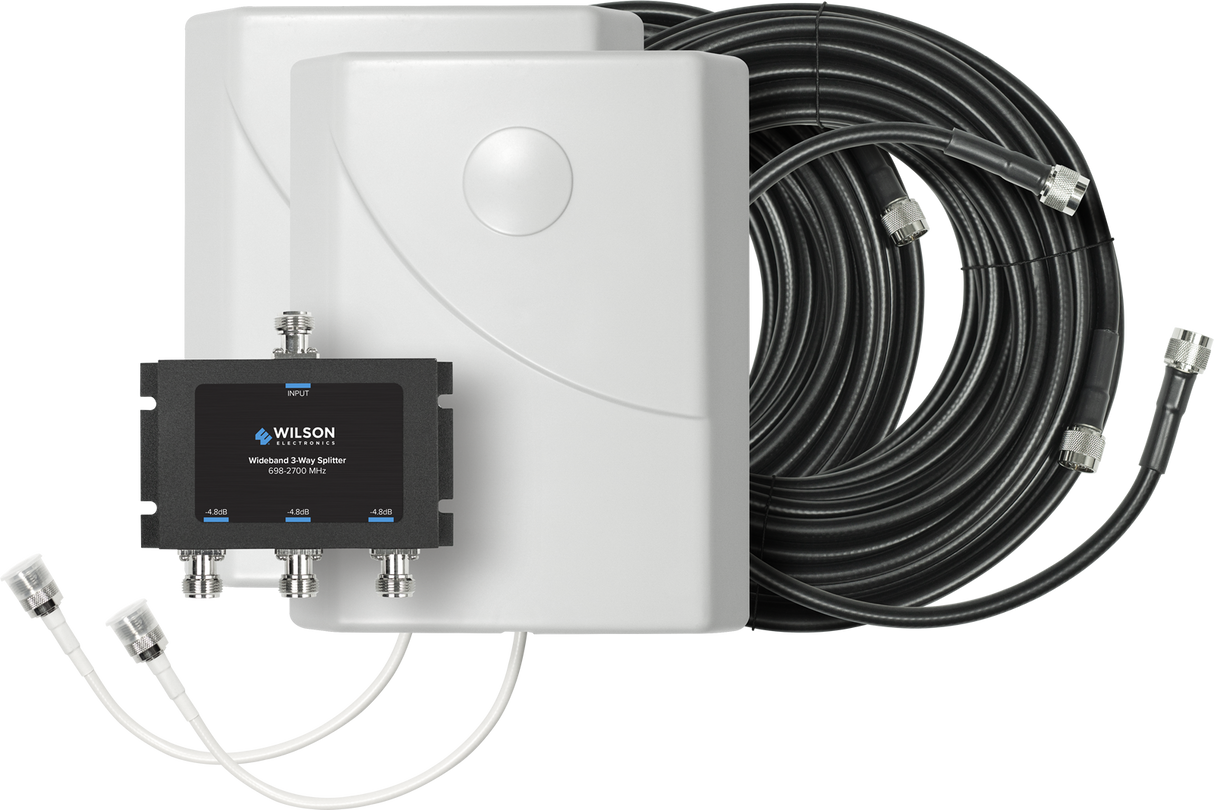

The Add-On 2 Internal Panel Antenna Kit (SKU: 309907-50N) provides everything you need to enhance your 50 ohm signal booster system with two additional antennas, bringing the total to three. This kit is perfect for homes or offices with areas that a single antenna can't adequately cover, such as buildings with "L" shapes or multiple rooms with thick walls.

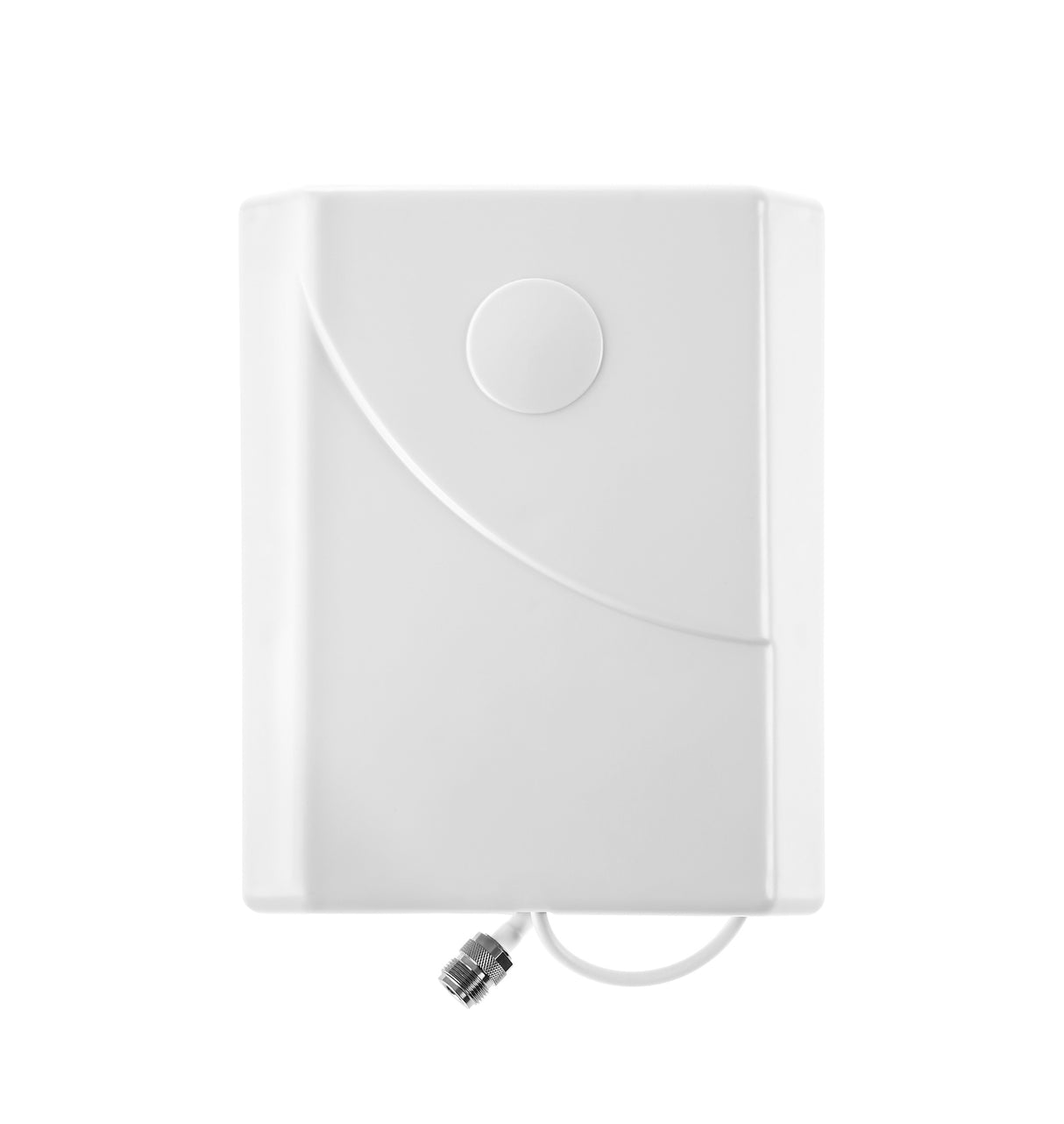

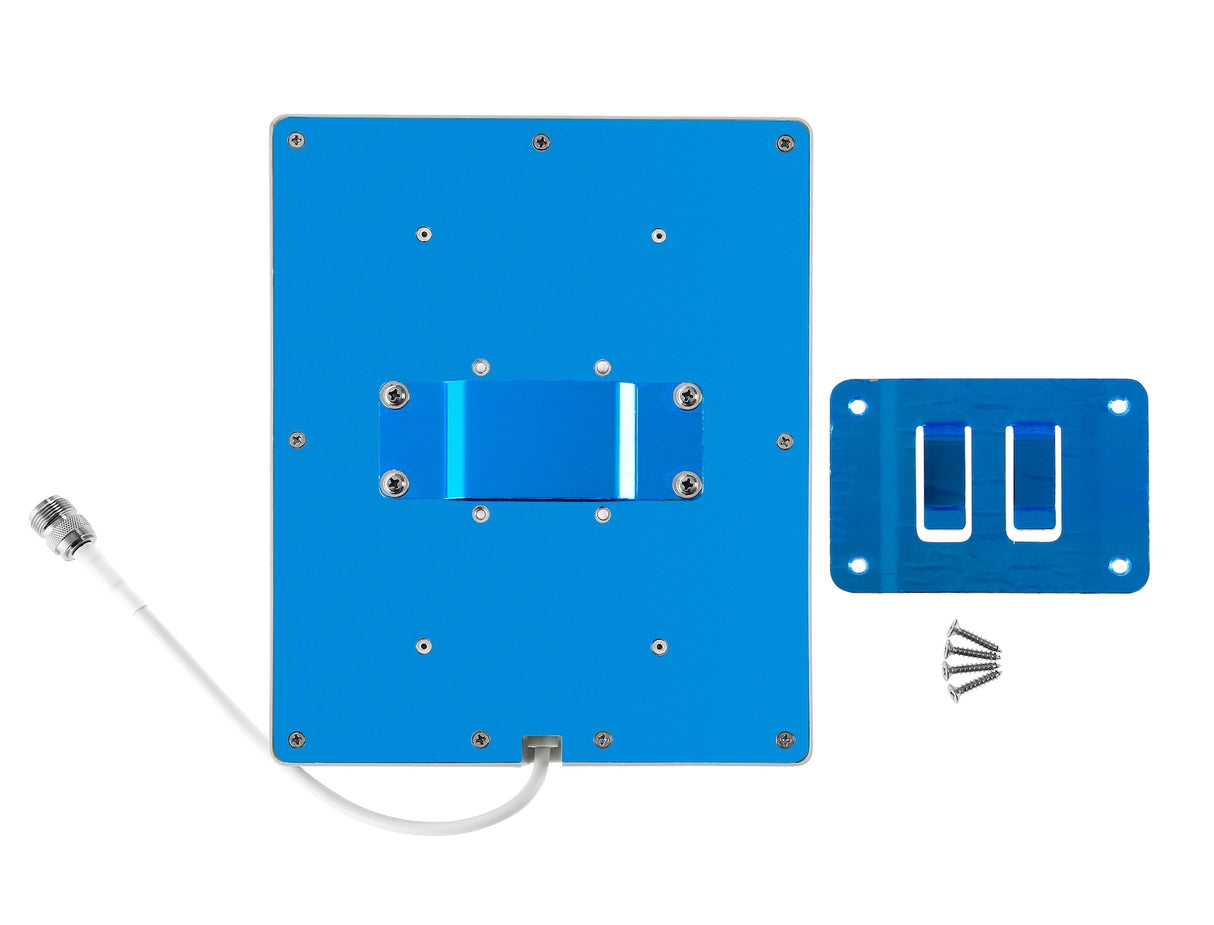

• Two Wilson 50 Ohm Full Band Wall Mount Interior Panel Antennas (311135): These antennas help extend coverage throughout your space.

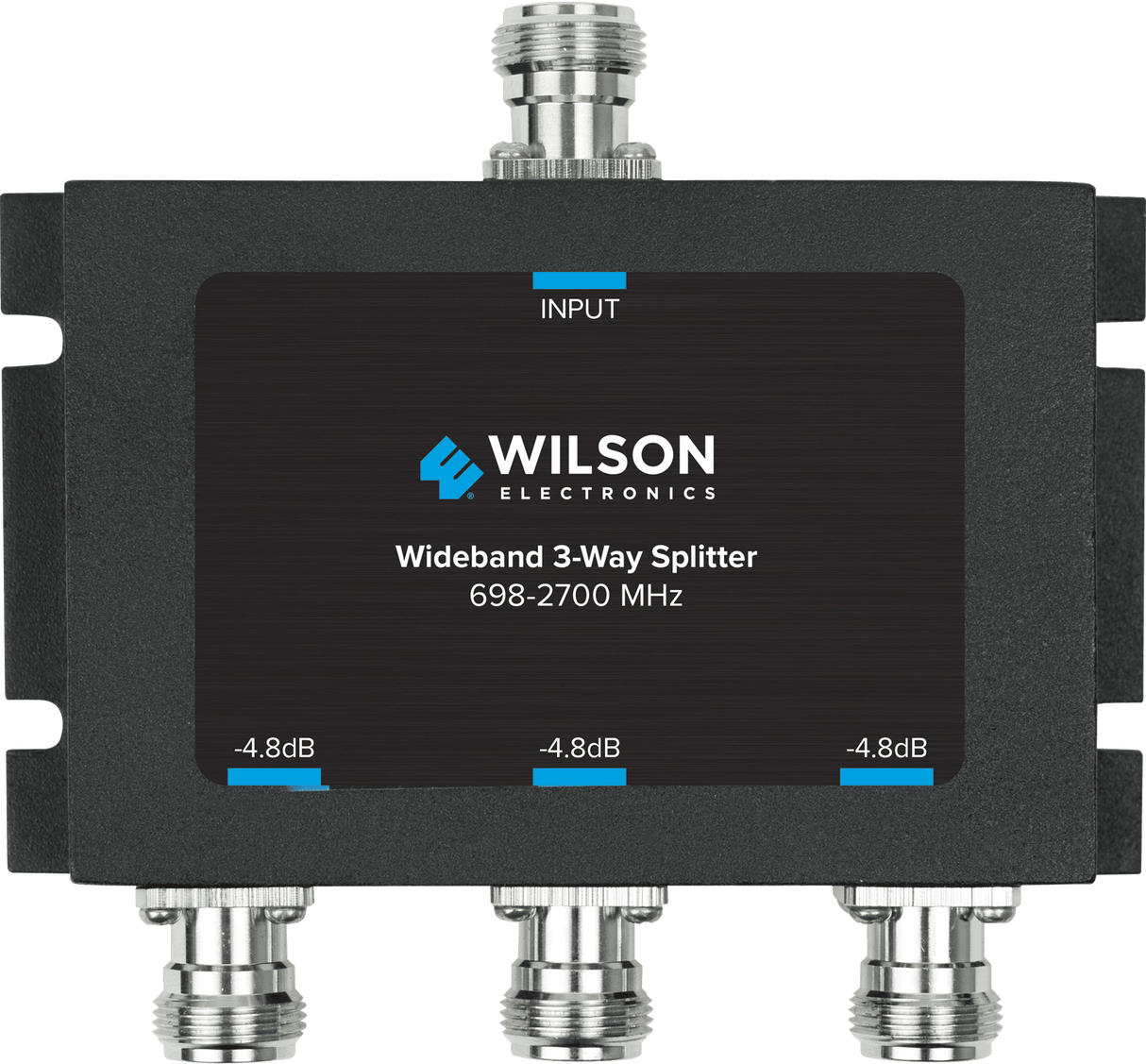

• Wilson 50 Ohm 3-Way Signal Splitter (859980): This splitter allows you to connect multiple antennas to your signal booster system.

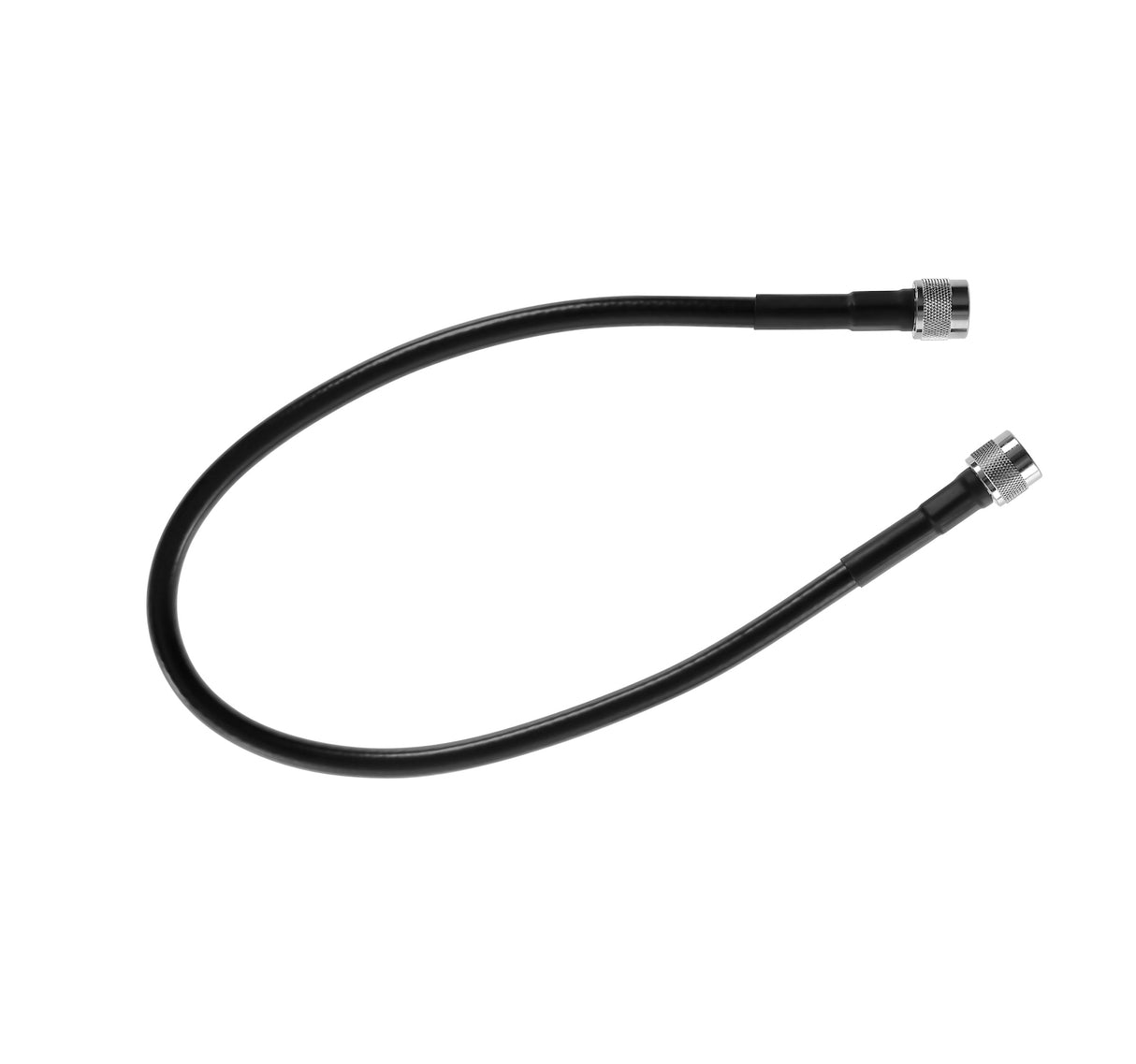

• Wilson 2' Ultra Low Loss Coax Cable (952302): Connects your amplifier to the splitter with minimal signal loss.

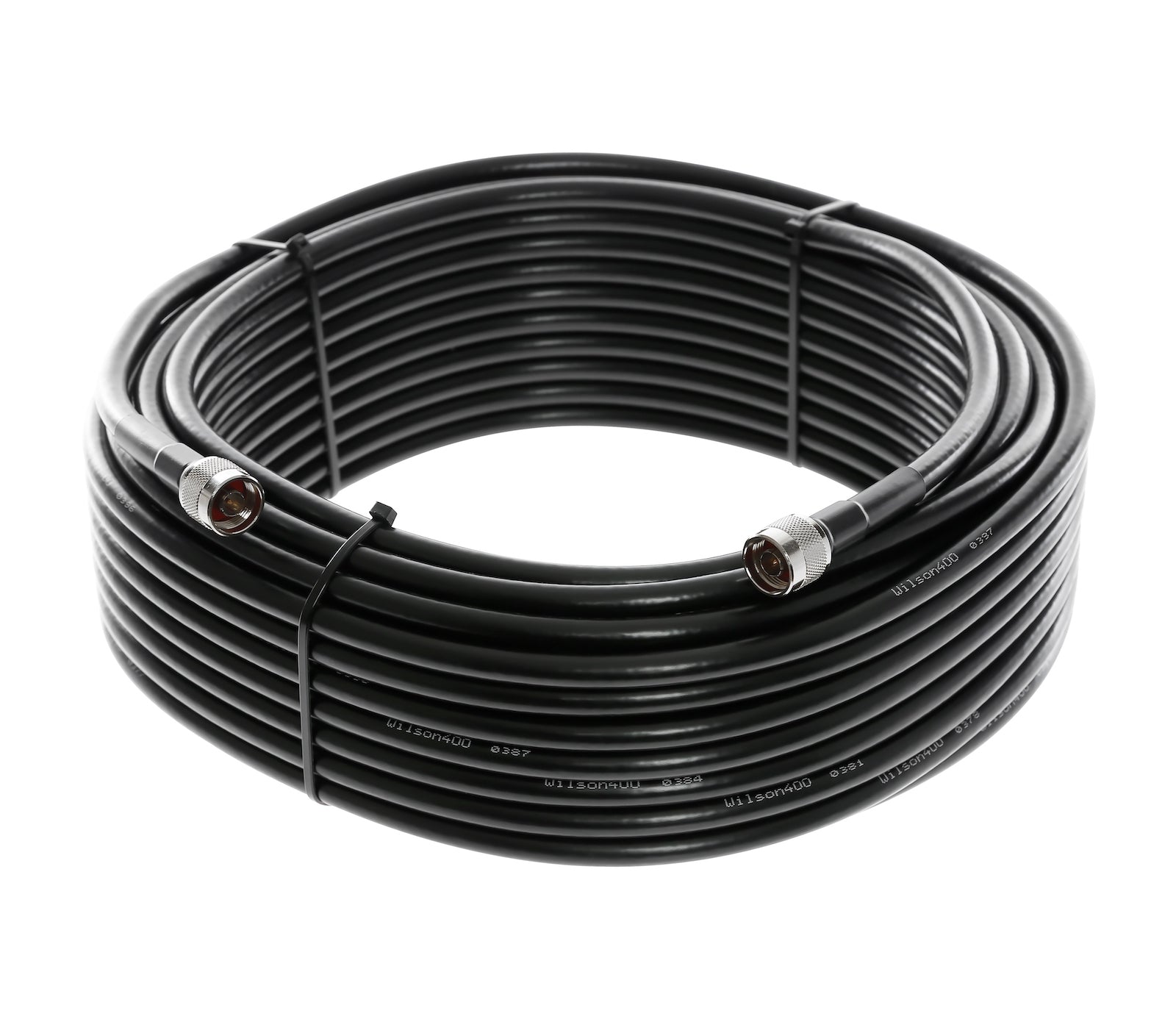

• Two Wilson 60' Ultra Low Loss Coax Cables (952360): Provides flexibility to place your antennas where needed for optimal coverage.

To install, connect the 2-foot coax cable to your amplifier's internal antenna port, then attach the 3-way splitter to the other end. Connect the original antenna to one splitter output, and the two 60-foot coax cables and panel antennas to the other outputs. Temporarily position the antennas to test coverage before permanently mounting them. Adjust as necessary to achieve the best signal strength. For assistance, our technical support team is available to help.
