CEL-FI QUATRA Active DAS Hybrid Signal Booster System
Exclusive Offer: Get Personalized Pricing
This system is part of our exclusive collection that requires personalized consultation. To ensure you get the best solution for your needs, please call us at (800) 590-3564 or click the button below to request your custom pricing.
Product Info
Product Info
The CEL-FI QUATRA is a hybrid Active Distributed Antenna System (DAS) that combines the power and performance of Active DAS with the lower cost and short deployment time of Passive DAS signal booster systems.
There are currently two different versions of the QUATRA system; the QUATRA 1000 and the QUATRA 2000. Using these systems, we can boost a single carrier (AT&T or Verizon) or multiple carriers (AT&T & Verizon and/or Sprint & T-Mobile).
The unique design of the QUATRA system puts it under a different FCC designation than wide band signal booster systems, which allows the QUATRA to support up to 100 dB of gain, or 1,000 times as much amplifying power as a comparable wide-band signal booster system.
The QUATRA system is configured and remotely monitored using the best-in-class CEL-FI WAVE platform. WAVE is a hosted portal that initially helps with system commissioning and carrier registration. Once the system is commissioned, the WAVE portal can provide real-time monitoring of system health and proactive alerts to ensure that a QUATRA system remains online. Many potential issues can be diagnosed remotely to get you back online quickly, often without having to send a technician on site.
Why the CEL-FI QUATRA?
- More amplifying power than traditional wide-band signal boosters for maximum coverage even with a weak outside signal.
- CEL-FI WAVE Portal makes it easy to remotely monitor the system and troubleshoot any issues as necessary.
- MIMO in the Quatra 1000 gives you maximum capacity and throughput for fastest LTE data speeds.
- Cat5e or better cable means it’s easier to install and long runs no longer decrease performance.
- Works wirelessly. No physical connection to your phone required.
- Built for the enterprise with maximum simultaneous user capacity and large coverage areas.
- Fewer dropped calls
- Faster Internet data speeds
- Better voice quality
- Texts that send quickly
- Longer battery life
The CEL-FI QUATRA is covered by our 60-day money-back guarantee and backed by our friendly, US-based technical support team who is standing by to assist with any questions you may have. The QUATRA is also covered by a 2-year manufacturer warranty, for extra peace of mind.
Quatra 1000 vs 2000
The QUATRA 1000 and 2000 have many similarities, but the following differences will help you decide which system will best meet your needs:
QUATRA 1000 | QUATRA 2000 | |
---|---|---|
Carriers Supported |
One carrier. (Either Verizon or AT&T) |
Two carriers simultaneously (Either Verizon/AT&T or T-Mobile/Sprint) |
Networks Supported |
Four networks for one carrier (For higher capacity & aggregation data speeds) |
Two networks for each carrier (For connectivity to the primary network in the area) |
Input/Output |
MIMO (multiple-input and multiple-output) (For maximum capacity and data speeds) |
SISO (single-input and single-output) (Similar to a standard signal booster) |
Signal Source | Can use a donor antenna or a small cell signal source. | Can only use a donor antenna. |
Recommended For
The CEL-FI QUATRA is the best solution for any large building where you only need to provide coverage for one or two carriers inside. All four major US carriers can be supported by installing multiple QUATRA systems, if needed.
The QUATRA system is ideal for clients who require a fast installation time at a reasonable cost. Running Ethernet cable is less expensive and much faster than thick coax cables. In many offices, there may already be pre-run Ethernet cables that can be used. This dramatically decreases the installation time and cost, making the QUATRA system nearly plug-and-play.
The CEL-FI QUATRA is also the best solution for situations where the outside donor signal is unusable requiring a small cell signal source. Although the QUATRA has up to 100 dB of gain, you still need a usable outside signal for the QUATRA to run in off-air mode. A small cell can generate its own signal which the QUATRA can then amplify and distribute throughout a larger space.
How it Works

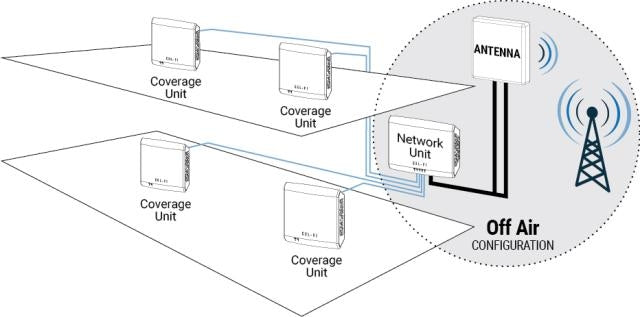

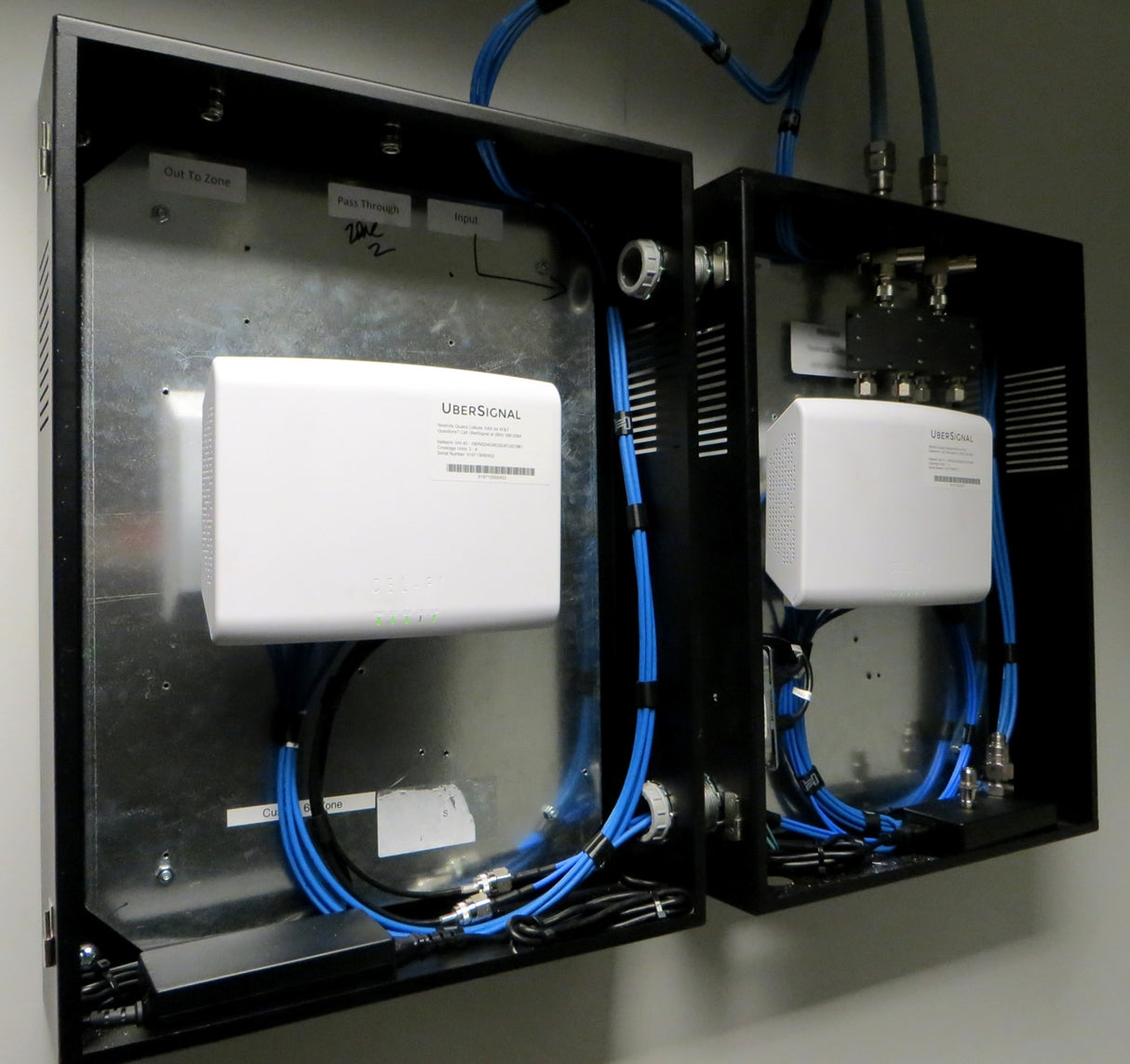

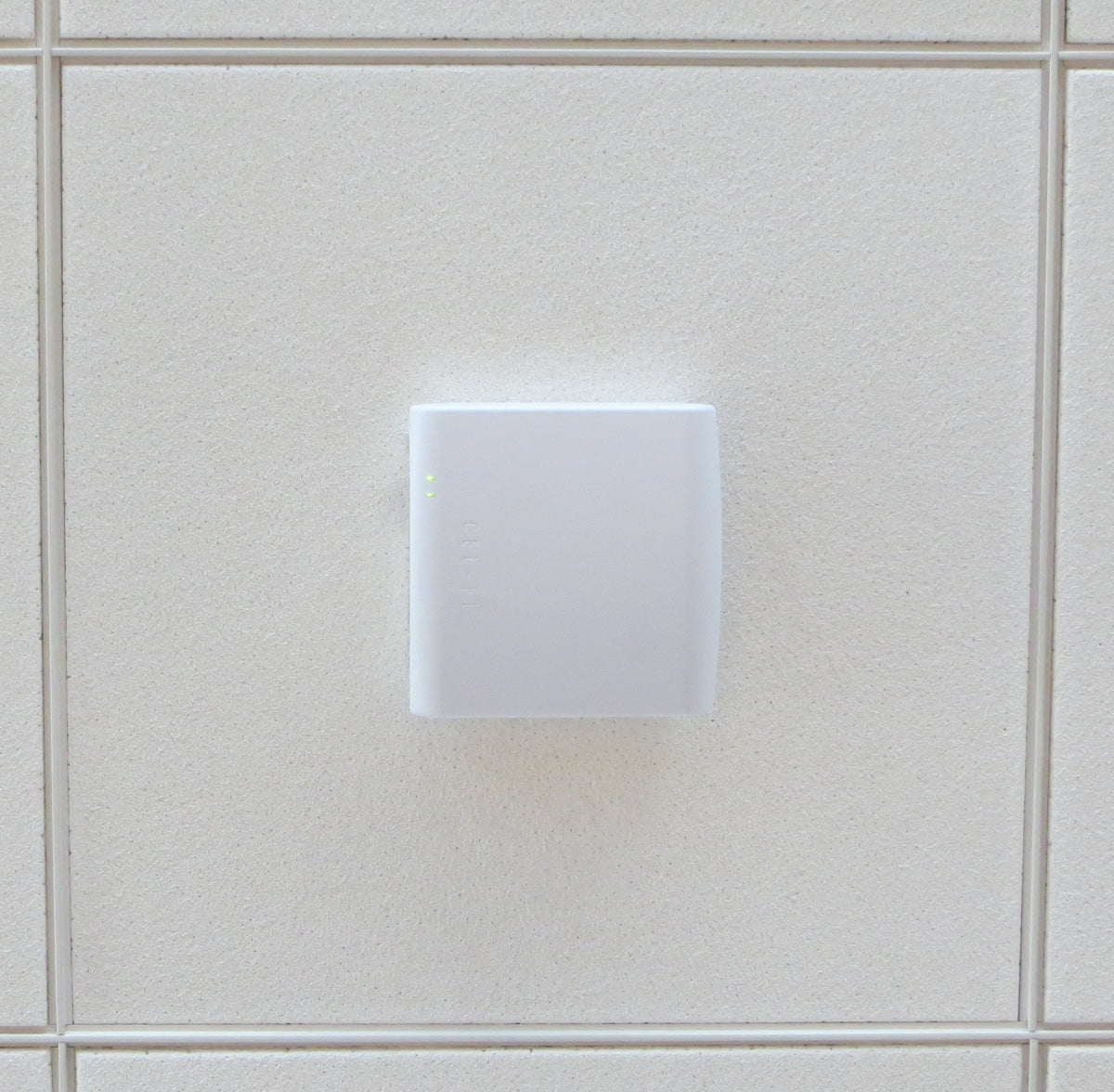

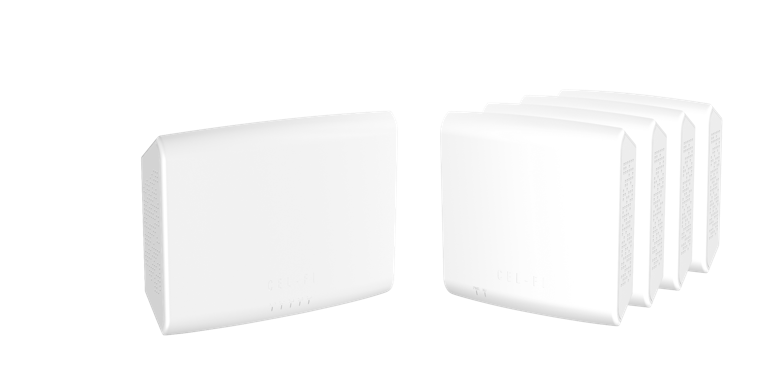

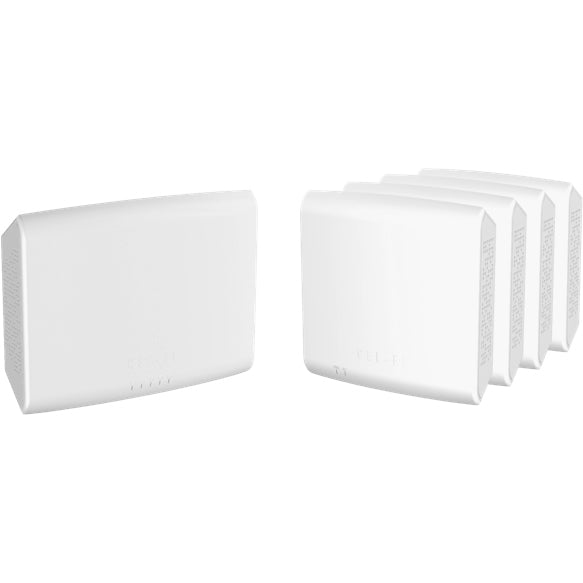

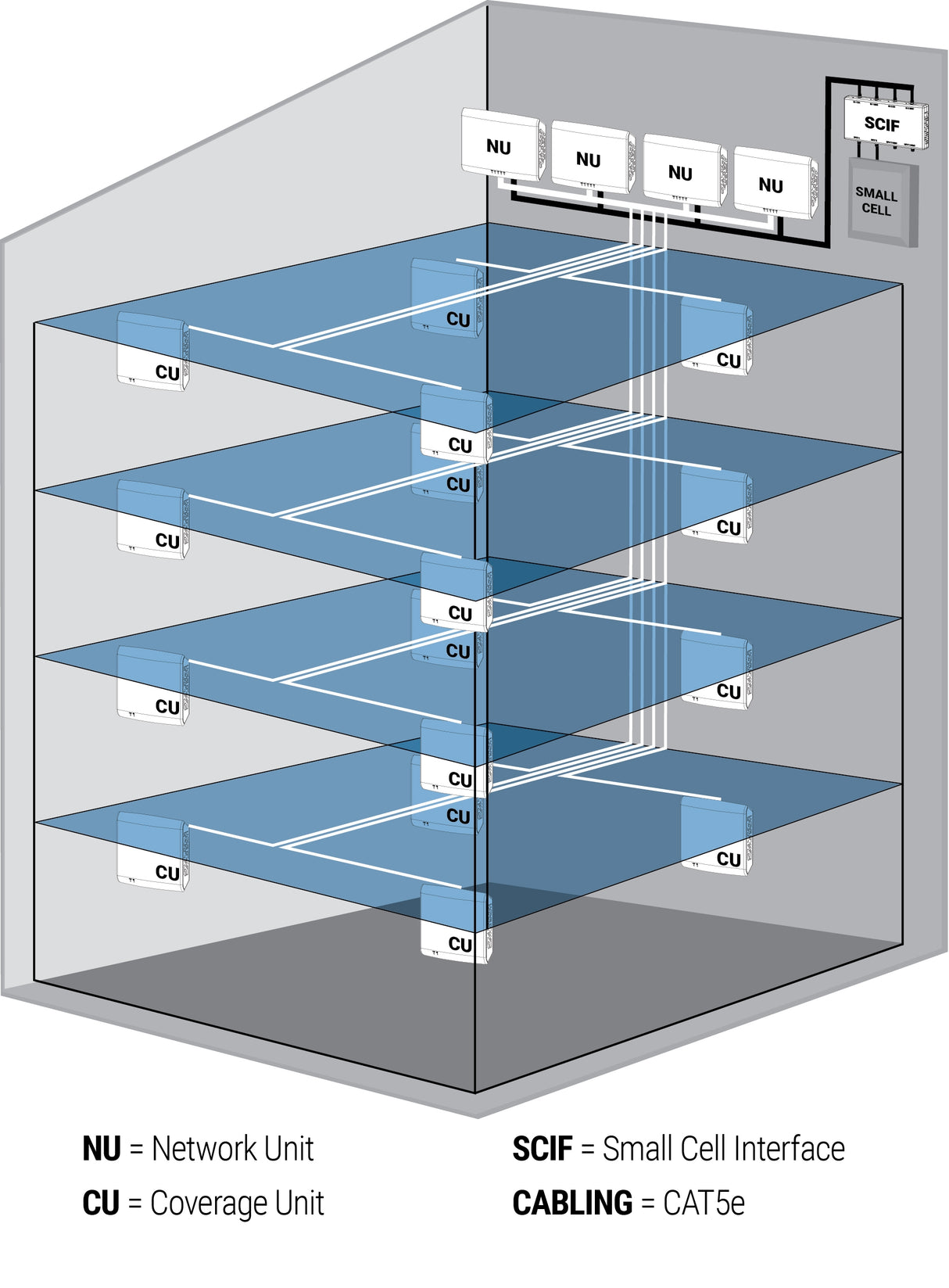

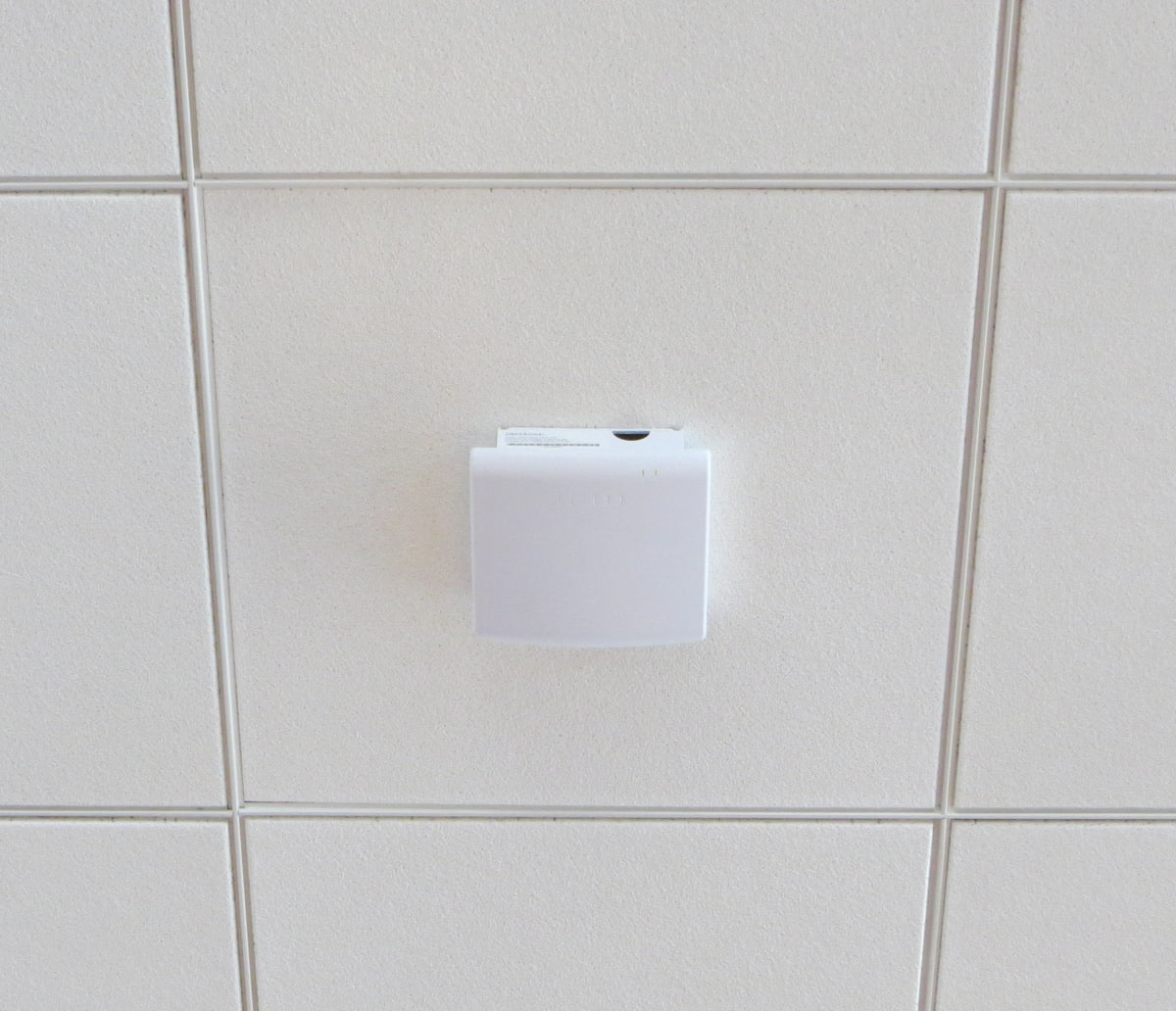

The CEL-FI QUATRA is a modular system. It starts with the Network Unit (NU), which is the core or head-end of the system. Each NU can support up to four Coverage Units (CU). Each CU contains a full-power amplifier and a built-in coverage antenna.
Traditional Passive DAS and signal booster systems use coaxial cable to pass analog signals. In these systems, the longer the cable, the greater the loss and the worse the system performance. With QUATRA, the CUs connect to the NU using Cat5e or better Ethernet cable sending a digital signal. This allows up to 325 ft between the CU and NU or 650 ft using a QUATRA Range Extender with no impact on performance. This makes the QUATRA an ideal solution for covering very large spaces. Multiple QUATRA systems can be combined to cover spaces up to 500,000 sq ft or larger.

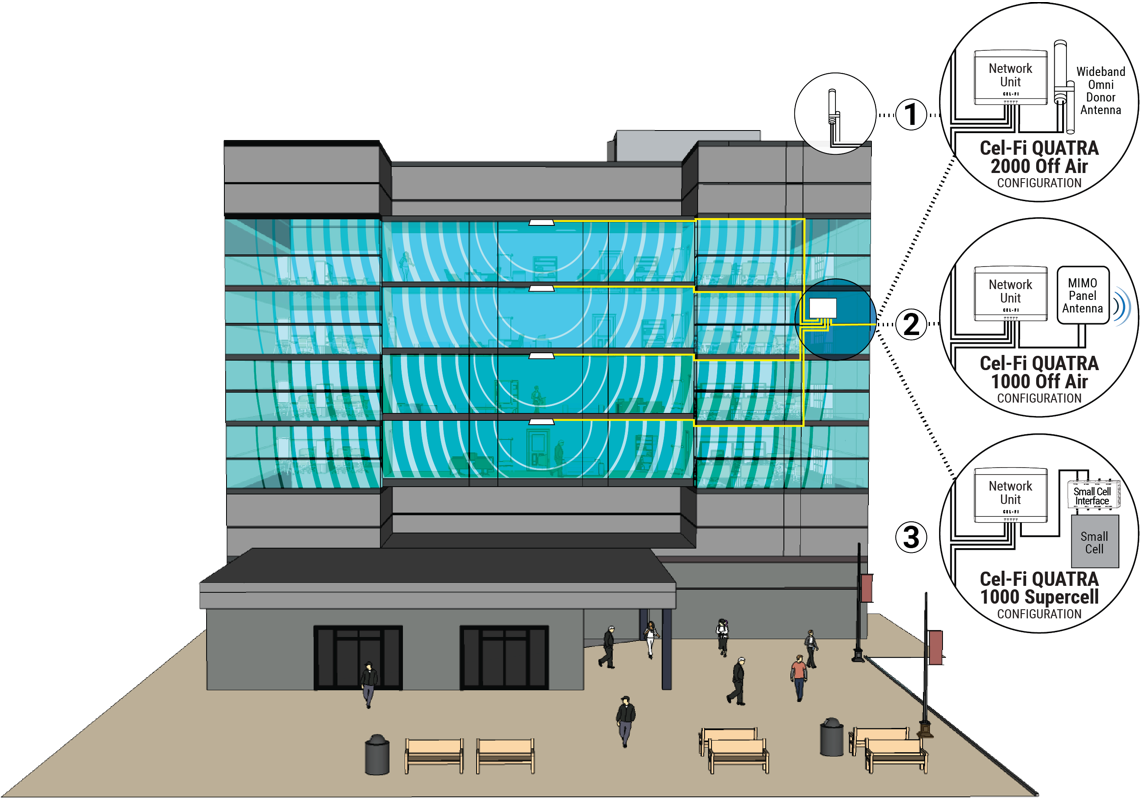

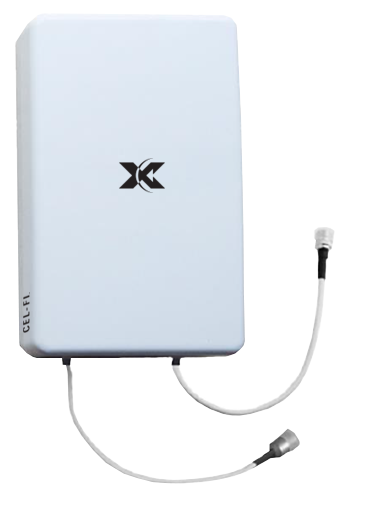

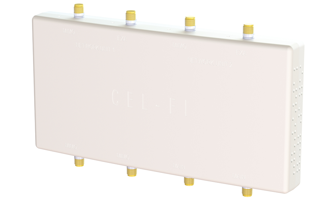

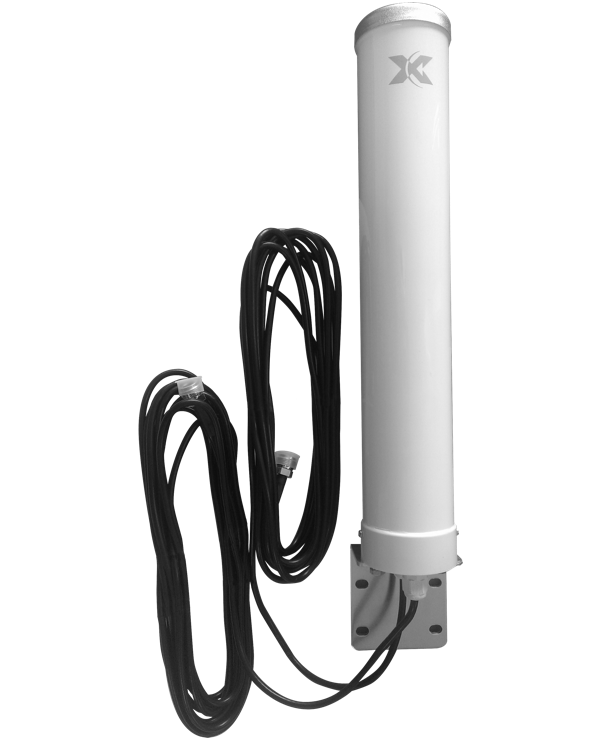

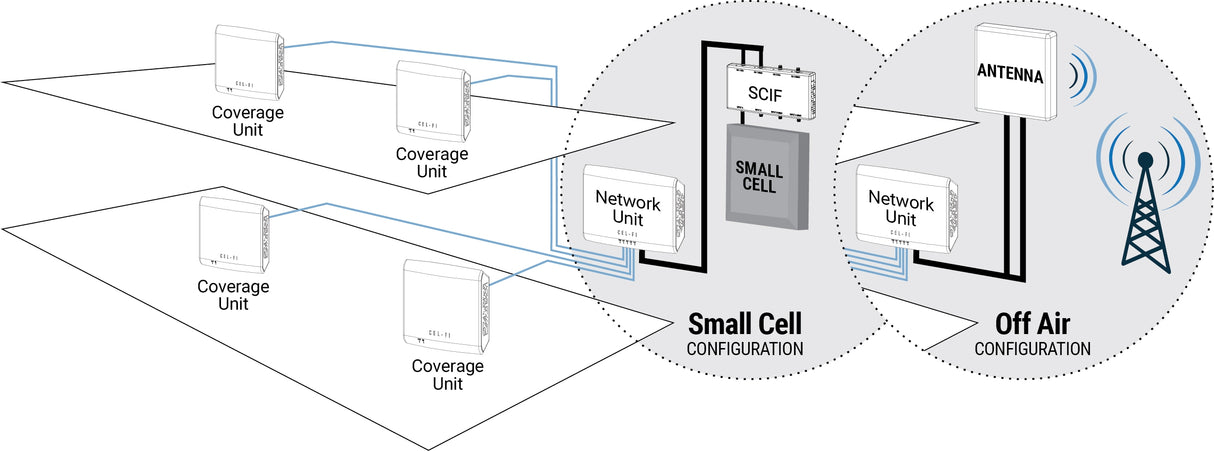

To get a boosted signal out of a DAS system, you first need to start with a signal source that can be amplified. Like traditional signal booster systems, the QUATRA can use an outside donor antenna to pull in the existing outside signal from the carrier’s macro network (existing cell towers). But unlike signal boosters, the QUATRA 1000 is unique in that you can also use a Small Cell as a signal source, allowing you to provide coverage in areas where the existing macro network either doesn’t exist (building is in a dead zone) or of poor quality (too many people using overloaded towers) to adequately support a booster system. When we pair a QUATRA 1000 with a small cell, we can create a distributed Supercell that can cover very large areas with a high-quality cell signal.
Custom System Design
At UberSignal, our RF system engineers can design a DAS solution to cover any space. Our team has over two decades of experience with signal boosters and DAS and we put that experience into every system we design and install.
If you’re interested in a DAS solution, including QUATRA, please fill out our Custom System Design Form. With the information you provide, we’ll create a system design and send you an estimate for the cost of the equipment plus installation. The next step is to schedule a site survey, where a member of our team comes out to look at the building, take signal readings, and validate the system design. Following the site survey, we’ll revise the estimate and provide you with a complete proposal.
Estimated Inside Coverage
Because the QUATRA supports up to 100 dB of gain, it is not nearly as susceptible to weak outside signals as traditional signal boosters. As long as you have a 2 to 3 bar or better outside signal, the QUATRA will be able to provide the maximum output power for the system giving you full coverage.
Instead, the coverage for a QUATRA system depends primarily on things like walls and other obstructions inside. The table below gives some guidelines for how much coverage to expect from a QUATRA system.
Small Cell Mode | Donor Antenna (Mounted Outdoors) |
Donor Antenna (Mounted Indoors) |
|
---|---|---|---|
Open Area Wide open like a warehouse |
17,500 sq ft per CU (75 ft radius) |
17,500 sq ft per CU (75 ft radius) |
13,000 sq ft per CU (65 ft radius) |
Open Area + Cubicles | 13,000 sq ft per CU (65 ft radius) |
13,000 sq ft per CU (65 ft radius) |
8,000 sq ft per CU (50 ft radius) |
Offices with Drywall Walls | 8,000 sq ft per CU (50 ft radius) |
8,000 sq ft per CU (50 ft radius) |
6,000 sq ft per CU (43 ft radius) |
Offices with some Masonry Walls | 5,000 sq ft per CU (40 ft radius) |
5,000 sq ft per CU (40 ft radius) |
3,000 sq ft per CU (30 ft radius) |
The table above is provided to help estimate coverage areas. Actual coverage will vary depending on the construction and layout of the building, locations of the Coverage Units (CU), coverage overlap between CUs, isolation between the CU and NU, isolation between the donor antenna and the CUs (in off-air mode), the quality of the signal source, and other factors.
Please contact UberSignal for a custom-designed solution for your space to ensure that you get sufficient coverage in the areas that are important to you.
Will this Work for my Phone and Carrier?
The CEL-FI QUATRA comes in different versions that can boost one or multiple carriers.
Carrier | AT&T (including carriers that use AT&T’s network like Cricket) |
---|---|
Supported Phones | All AT&T Cell Phones, Hotspots, and any Devices that use Cellular Data |
Networks | 3G, 4G & 4G LTE |
Frequencies | 700, 800, 1900, 1700/2100 MHz |
Carrier | Verizon |
---|---|
Supported Phones | All Verizon Cell Phones, Hotspots, and devices that support 4G LTE. |
Networks | 4G LTE Only (No support for 2G or 3G). Your phone must support VoLTE calling to make calls through this system. |
Frequencies | 700, 1900, 1700/2100 MHz |
Carrier | T-Mobile |
---|---|
Supported Phones | All T-Mobile Cell Phones, Hotspots, and any Devices that use Cellular Data |
Networks | 3G, 4G & 4G LTE |
Frequencies | 700, 800, 1900, 1700/2100 MHz |
Carrier | Sprint |
---|---|
Supported Phones | All Sprint Cell Phones, Hotspots, and any Devices that use Cellular Data |
Networks | 3G & 4G LTE |
Frequencies | 1900 MHz |
In the Box

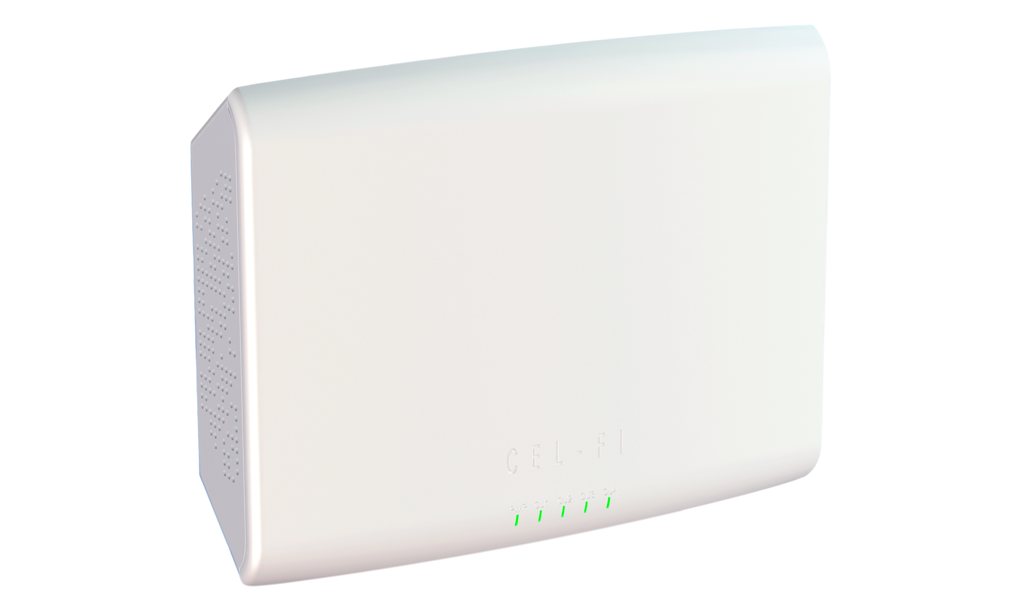

- CEL-FI QUATRA Network Unit (NU)
- CEL-FI QUATRA Coverage Units (CU) (up to 4 per system)

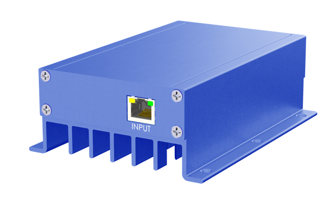

- CEL-FI QUATRA Range Extender (optional)

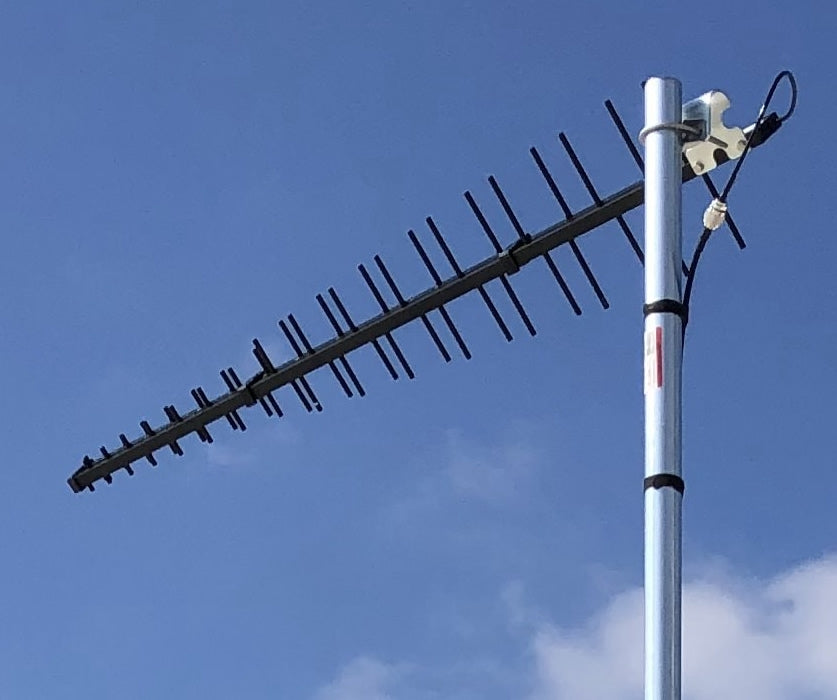

- CEL-FI QUATRA Donor Antenna (optional)

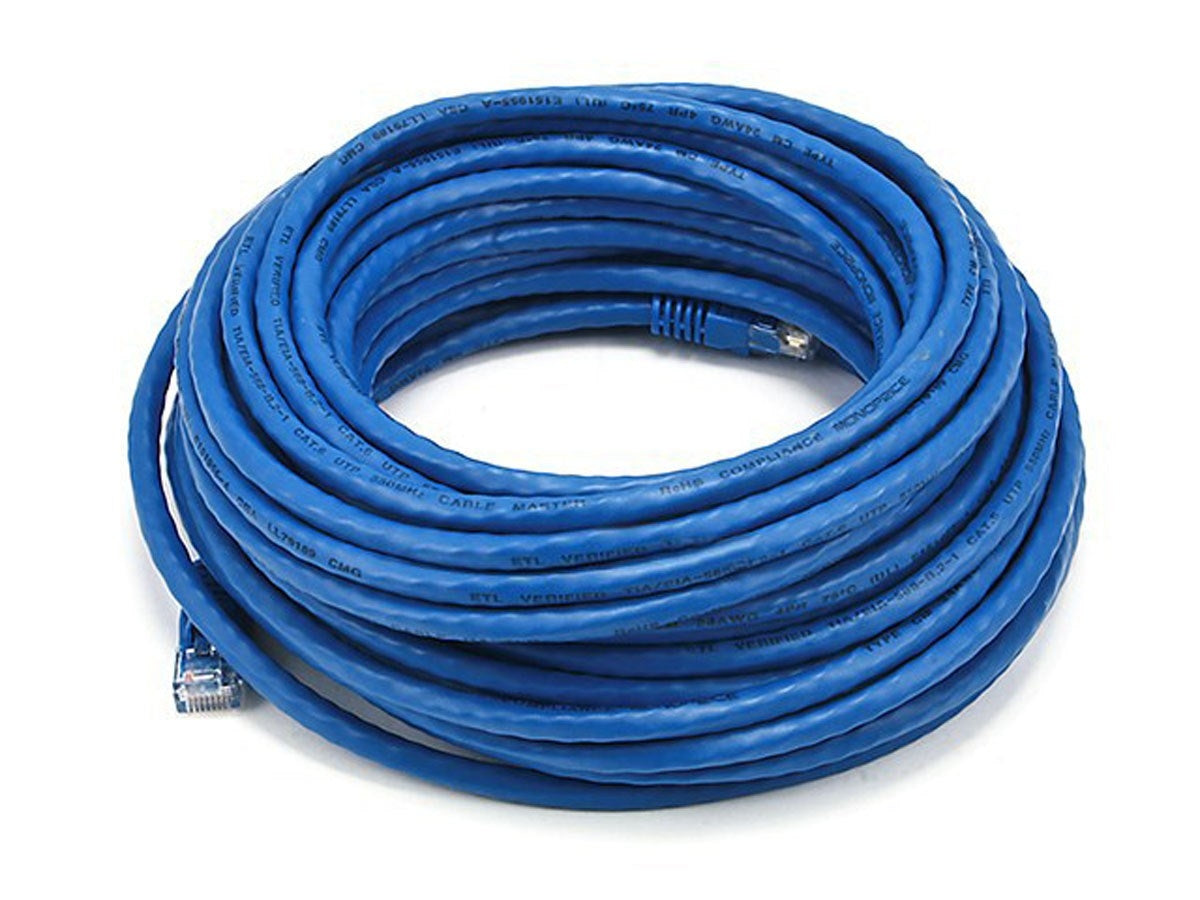

- Cat5e or better Ethernet cables
- Power supply
Specifications
Specifications
-
Warranty Length
Regulatory Advisories
Regulatory Advisories
This is a CONSUMER device.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider's consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider. WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device.
Please note, the four largest carriers - AT&T, T-Mobile, Verizon and Sprint - and more than 90 regional carriers have given blanket consent for use of all boosters certified to the new FCC standards.
