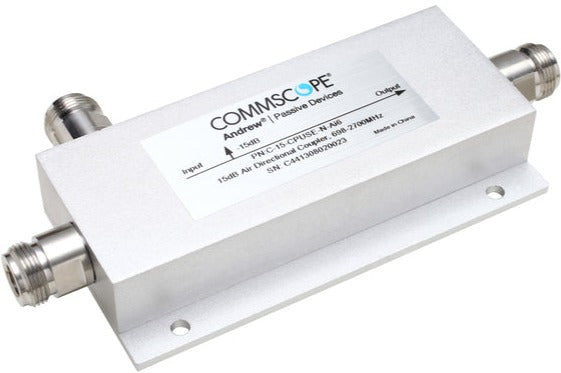

Commscope 15dB Low-PIM Directional Coupler (C-15-CPUSE-N-Ai6) [Discontinued]

The Commscope 15dB Low-PIM Directional Coupler (C-15-CPUSE-N-Ai6) is a versatile device designed for both indoor and outdoor applications. With its silver color and N Female interface, this coupler features silver inner contact plating and trimetal outer contact plating for enhanced durability. It provides reliable performance with low passive intermodulation, achieving a 3rd Order IMD of -160 dBc, tested with two +43 dBm carriers. Operating within a frequency band of 555 to 2700 MHz, it maintains an insertion loss of 0.4 dB and a return loss of at least 20.8 dB.

• Device Type: Coupler
• Average Power, maximum: 200 W
• Coupling: 15 dB
• Coupling Tolerance: ±1.0dB @ 698–2700 MHz | ±2.0dB @ 555–698 MHz
• Impedance: 50 ohm
• Isolation at Frequency Band: 35 dB @ 555–2700 MHz
• Peak Power, maximum: 1 kW
• VSWR: 1.2
• Operating Temperature: -35 °C to +85 °C (-31 °F to +185 °F)
• Relative Humidity: Up to 100%

This coupler's robust design ensures durability and consistent performance in demanding environments. It can handle a peak power of up to 1 kW and reflected power of up to 200 W. With an ingress protection rating of IP65, it is suitable for use in harsh conditions, maintaining functionality from -35 °C to +85 °C with up to 100% relative humidity. Its coupling nut proof torque is 4.5 N-m, ensuring a secure and stable connection.
