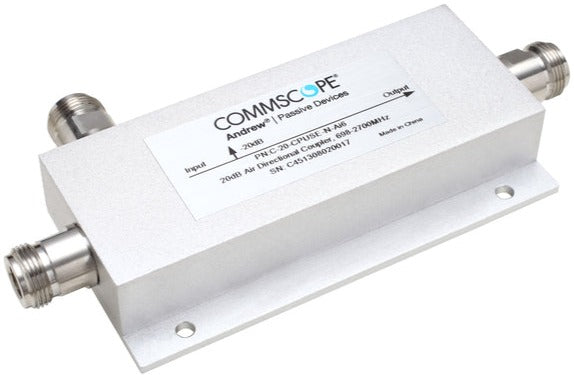

Commscope 20dB Low-PIM Directional Coupler (C-20-CPUSE-N-Ai6) [Discontinued]

The CommScope 20dB Low-PIM Directional Coupler (C-20-CPUSE-N-Ai6) is designed for both indoor and outdoor applications, ensuring reliable performance across a wide frequency range. With a robust construction featuring silver inner contact plating and a trimetal outer contact plating, this coupler supports optimal signal distribution with minimal interference. The N Female interface ensures compatibility with various systems.

• Device Type: Coupler
• Application: Indoor/Outdoor
• Color: Silver
• Insertion Loss at Frequency Band: 0.2 dB @ 555–2700 MHz
• Average Power, maximum: 200 W
• Operating Frequency Band: 555 – 2700 MHz
• Peak Power, maximum: 1 kW
• VSWR: 1.2
• Operating Temperature: -35 °C to +85 °C (-31 °F to +185 °F)
• Ingress Protection: IP65

This coupler provides a coupling factor of 20 dB with a tolerance of ±1.0dB at 698–2700 MHz, ensuring consistent performance. It also boasts a return loss of 20.8 dB and isolation of 40 dB at 555–2700 MHz, which significantly reduces signal degradation. The product is capable of handling a maximum reflected power of 200 W and supports a relative humidity of up to 100%. Measuring 22 mm in height, 75 mm in width, and 155 mm in length, the CommScope C-20-CPUSE-N-Ai6 is a compact yet powerful solution for your signal management needs.
