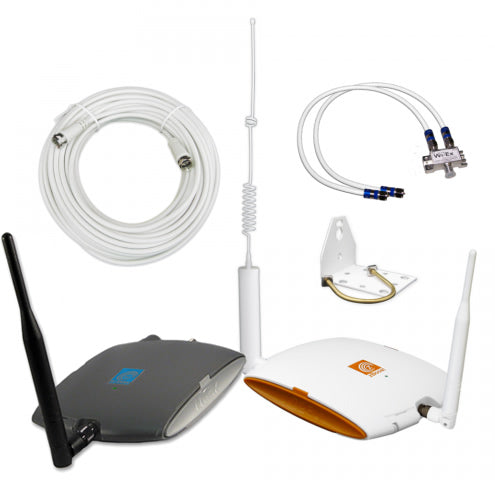

Dual zBoost YX545 & YX550-ALTE-AWS for 3G, AT&T & US Cellular 4G LTE and AWS [Discontinued]

SKU: YX545-YX550-ALTE-AWS

Product Info

The zBoost dual YX545 & YX550-ALTE-AWS kit is a quad-band signal boosting system that will amplify the signals used by all major carrier's 2G and 3G networks in North America plus AT&T and US Cellular's lightning fast 4G LTE network and all networks using the AWS frequency including T-Mobile's 3G and 4G network, MetroPCS, and Cricket Wireless. This system will cover an area of up to 1500 to 2500 sq ft depending on existing signal strength and the installation method (see the installation instructions section for more information). AT&T and US Cellular Customers: AT&T and US Cellular's new 4G LTE networks are incredibly fast and makes browsing the Internet much more enjoyable where available. However, 4G LTE is only currently used for data connections and not phone calls. With this dual-amplifier kit, you can boost both the 4G LTE signal for maximum Internet speeds while also boosting the 3G networks so you get clear conversations with no dropped calls. T-Mobile Customers: T-Mobile is in the process of deploying their new 4G LTE network and when they do, they plan to migrate their 3G network to a different frequency. While the new 4G LTE network will give you fast data, it won't support voice calls, so you'll still need a boosted 3G signal as well. This kit gives you both the dual-band booster to support clear conversations with no dropped calls as well as the AWS booster to give you fast 4G LTE and HSPA+ access. Kit Includes The zBoost dual YX545 & YX550-VLTE-AWS kit is a combination of two separate kits. Wi-Ex zBoost YX545 SOHO Dual Band Repeater Kit zBoost YX545 dual band amplifier base unit External Omni-directional Antenna and mounting bracket Internal base unit antenna 50' RG-59-mini coaxial cable AC Power Adapter (110V - 240V AC) User Guide with Installation directions zBoost SOHO DataBlast YX550-ALTE-AWS-UPGRADE for AT&T & US Cellular 4G LTE & AWS Networks zBoost YX550-ALTE-AWS amplifier base unit External Omni-directional Antenna and mounting bracket Internal base unit antenna Signal Combiner and 2 ft. Coax Cables AC Power Adapter (110V - 240V AC) User Guide with Installation Instructions Installation Instructions The zBoost dual YX545 & YX550-ALTE-AWS kit has two installation methods using either one or two outside antennas. Using a single outside antenna makes installation easier, but will result in a signal that is half as strong being fed into each amplifier, so it it not recommended in situations with a weak existing signal. Using a single outside antenna will give you up to 1500 sq ft of coverage area inside, depending on the existing outside signal strength. The other option when installing this system is to use two outside antennas. For this installation method, you need an additional coax cable (sold separately). The advantage is that each amplifier will get 100% of the signal available resulting in a coverage area of up to 2500 sq ft, depending on the existing outside signal strength. Single Antenna Installation: To install this kit using a single outside antenna, start with the antenna that was included with the YX550, not the one that came with the YX545. Mount the YX550 antenna in the area where you get the best signal, typically high on or above your roof. Keep in mind, if your best signal is 1 bar, your coverage will be limited to one small room. The zBoost amplifiers require at least 15 ft. of vertical separation between the outside antenna and the inside unit. Increasing the distance, up to 40 ft, can help improve performance. Run the included RG-59-Mini cable from the antenna down and into the middle of the space where you need the boosted signal. For best results, we recommend replacing the included RG-59-Mini cable with a Low Loss RG-6 coax cable. Attach the signal splitter to the other end of the cable and then attach each amplifier to one side of the splitter using the included jumper cables. Attach the inside antennas to the front of the amplifiers and then plug in each amplifier using the included AC adapters. Dual Antenna Installation: To install the system using two outside antennas, you'll need one additional coax cable, sold separately. We recommend the Wi-Ex 50 ft. Low Loss RG-6 Coax Cable. For best results, get two RG-6 cables so that you can also replace the included RG-59-Mini cable which will give you a larger coverage area and stronger signal inside. Even though the outside antennas that come which each amplifier look similar, they are in fact different so do not mix them up! Mount both antennas in the area where you get the best signal, typically high on or above your roof. Keep in mind, if your best signal is 1 bar, your coverage will be limited to one small room. The zBoost amplifiers require at least 15 ft. of vertical separation between the outside antenna and the inside unit. Increasing the distance, up to 40 ft, can help improve performance. Run the coax cables from each antenna down and into the middle of the space where you need the boosted signal. Attach each cable to the correct amplifier. Attach the inside antennas to the front of the amplifiers and then plug in each amplifier using the included AC adapters.

Dual zBoost YX545 & YX550-ALTE-AWS for 3G, AT&T & US Cellular 4G LTE and AWS [Discontinued]

$549.95

What You Should Know

N/A

Uplink Frequency Ranges (MHz)

N/A

Downlink Frequency Ranges (MHz)

N/A

Max Gain

N/A

Max Uplink Power

N/A

Impedance

N/A

Cable Type

N/A

Color

N/A

Plenum Rating

N/A

RF Connectors

N/A

Antenna Type

N/A

Power Supply

N/A

Frequency Range

N/A

Includes Connectors

N/A

Output Ports

N/A

Output Voltage

N/A

Outside Antenna Options

N/A

Inside Antenna Options

N/A

Number of Inside Antennas

N/A
