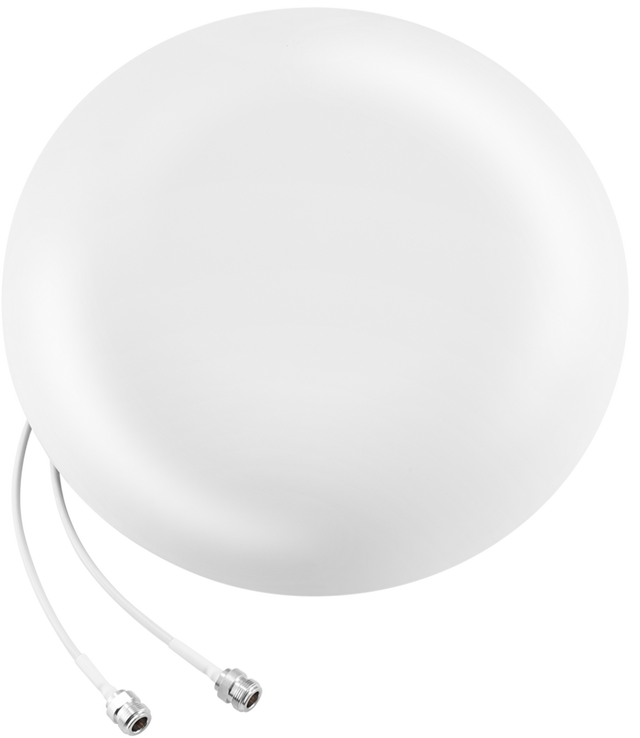

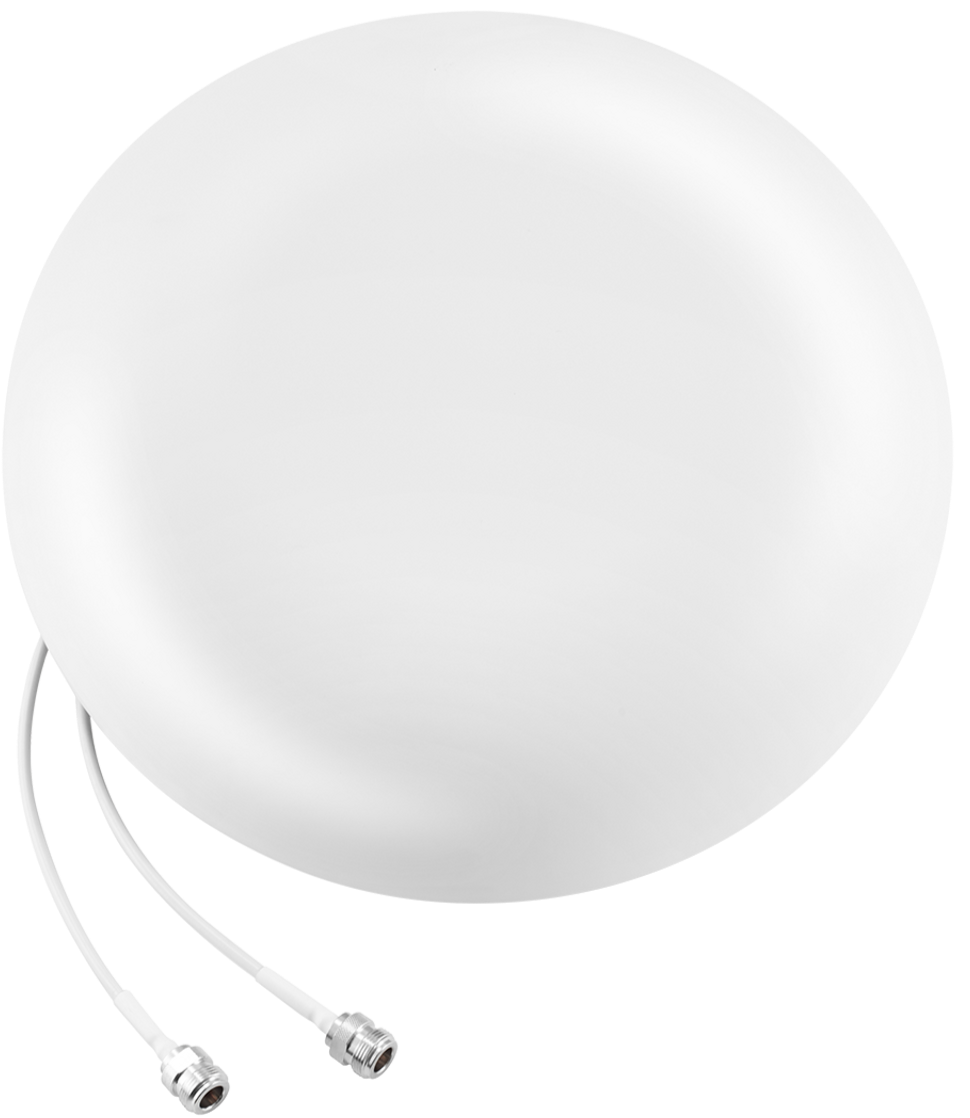

SureCall C-Band MIMO Indoor Ultra-Wideband Ultra-Thin Dome Antenna (SC-628CBM)

Product Highlights:

• Covers a wide frequency range from 617 to 4000 MHz, including C-band and low-band 5G
• Omni-directional indoor MIMO antenna provides 360-degree signal coverage
• Compatible with 50-ohm booster systems using N-Female connectors
• Works with SC-400 cable (sold separately)
• Mounts directly into ceiling tiles or hard ceilings with included hardware
• Supports all major North American cellular bands: Cellular, PCS, AWS, LTE, and 5G
• Low-profile housing: 12.2 inches in diameter, only 2.1 inches tall

Top Benefits:

• Discreet design blends into office or retail ceilings without standing out
• Strong signal distribution for high-traffic areas with multiple devices
• Ready for future 5G deployments, including C-band upgrades
• Simple to install with or without attic or crawl space access
• Reliable performance in a wide range of indoor environments, including warehouses

• SureCall C-Band MIMO Ultra-Thin Dome Antenna (Model SC-628CBM)
• Ceiling mounting bracket with keyhole slots
• Threaded fixing nut for crawl-space installations
• Mounting screws and anchors for hard ceiling installs
• Metal mounting plate for no-access installs

Note: SC-400 cable is required and sold separately.

Supported Devices: All phones, hotspots, and cellular-connected devices

Supported Networks: 4G LTE and 5G (on FCC-approved bands)

Frequencies Boosted: 617 to 4000 MHz

Carriers: Works with Verizon, AT&T, T-Mobile, and UScellular

Also compatible with many regional carriers and MVNOs using the same frequency bands

This antenna is designed for ceiling mounting and comes with two installation options, depending on whether you have access to the space above the ceiling.

If you have crawl space or attic access:
Drill a 20 mm hole in the ceiling, then feed the antenna’s cable through. From above, thread the included fixing nut onto the antenna’s base to secure it in place. Connect the N-Female connector to your SC-400 cable and route it to the booster’s “Inside” port.

If crawl space access isn’t available:
Drill the same 20 mm hole for the cable, then use the included mounting plate. Mark and drill holes for the provided anchors, then attach the metal bracket to the ceiling. Push the antenna into place, aligning its keyhole mounts with the pegs on the bracket, and twist to lock. Connect your SC-400 cable and route it to your booster.

Installer tips:

• Keep at least 20 feet of vertical or horizontal separation between this inside antenna and your outdoor antenna
• Avoid placing the antenna near large metal objects, HVAC ducts, or thick walls
• Do not coil excess cable near the booster — lay out cable runs cleanly

This antenna is rated for indoor use and performs well in offices, warehouses, and commercial spaces, even in challenging environments with heat or humidity.
