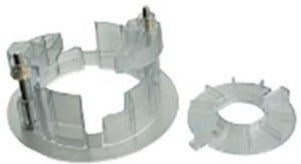

Pulse/Larsen Hard Ceiling Mount

Other  |  SKU: DASCLINSERT
$19.99

Do You Have a Question?
Our friendly signal experts are ready to help you.
Call us: 1-800-590-3564 or send us a message.

Description



This specialized accessory is designed for a streamlined, secure installation of Clarity Family ultra-thin ceiling mount antennas, ideal for environments where above-ceiling access is limited.

Key Features:

  • One-sided Installation: Allows for installations without access above the ceiling, simplifying the setup process.
  • Low Passive Intermodulation (PIM): Does not introduce PIM into the system, maintaining signal integrity.
  • Near Flush Mount: Provides a clean and unobtrusive installation that does not disrupt ceiling aesthetics.
  • Easy Installation and Removal: Features a snap-in antenna assembly that minimizes cable torque for quick changes.
  • Compatibility: Designed for the Clarity Family of ultra-thin ceiling mount antennas, suitable for both Carrier and Public Safety DAS installations.

Installation Process:

  1. Preparation: Drill or cut a hole approximately 3 to 3.1 inches in diameter in the ceiling material, with two small tab cutouts for mounting.
  2. Clamp Adjustment: Adjust the clamps to swing freely to fit the ceiling's thickness.
  3. Mounting Sleeve Insertion: Insert the mounting sleeve into the prepared hole and tighten the screws until the assembly is secure.
  4. Antenna Installation: Attach the tab ring to the antenna, align it with the sleeve's slots, insert, and twist to lock in place.

Specifications:

  • Material: Durable plastic construction for longevity and resistance to environmental factors.
  • Weight: Lightweight design at only 42 grams, reducing structural load.
  • Operating Temperature: Functional in temperatures ranging from -40 to 85°C, suitable for diverse environments.

This ceiling mount is ideal for modern commercial buildings and public safety applications where aesthetic integration and signal efficiency are paramount.
