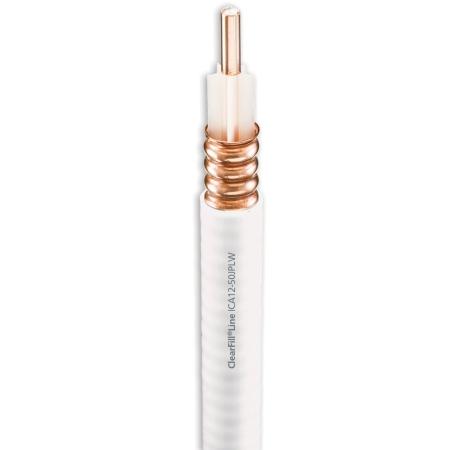

RFS 1/2" Ultra Low Loss Plenum Air Cable - White - Bulk Per Foot (ICA12-50JPLW)
Product Info
Product Info
The RFS 1/2" Ultra Low Loss Plenum Air Cable is a high-performance, plenum-rated coaxial cable designed for a wide range of applications, including in-building and public safety systems. With its white jacket and superior construction, this cable provides excellent shielding and minimal signal loss, ensuring reliable performance in demanding environments.
- Supports Multiple RF Signals: Yes
- Complete Shielding: Solid outer conductor for continuous RFI/EMI shield
- Outstanding Intermodulation Performance: Solid inner and outer conductors
- Applications: Suitable for plenum in-building/public safety or outdoor usage
- Cable Type: Air-Dielectric, Corrugated
- Size: 1/2"
- Inner Conductor: 4.8 mm (0.19 in) Copper-Clad Aluminum Wire
- Dielectric: 11.8 mm (0.464 in) Extruded Polyethylene
- Outer Conductor: 13.8 mm (0.54 in) Corrugated Copper
- Jacket: 15.93 mm (0.627 in) Plenum Rated, UV rated to ASTM G155
- Impedance: 50 ± 1 ohms
- Maximum Frequency: 6.0 GHz
- Velocity: 91%
- Capacitance: 76 pF/m (23.2 pF/ft)
- Inductance: 0.19 µH/m (0.058 µH/ft)
- Peak Power Rating: 40.0 kW
- RF Peak Voltage: 2000 Volts
- Jacket Spark Volt RMS: 8000 Volts
- Inner Conductor dc Resistance: 1.48 Ω/1000 m (0.45 Ω/1000 ft)
- Outer Conductor dc Resistance: 1.9 Ω/1000 m (0.58 Ω/1000 ft)
- Return Loss (VSWR) Performance: 24.3 (1.13) @ 698-960 MHz, 24.3 (1.13) @ 1700-2155 MHz, 18 (1.29) @ 4400-5900 MHz
- Cable Weight: 0.37 kg/m (0.25 lb/ft)
- Minimum Bending Radius, Single Bend: 125 mm (5 in)
- Minimum Bending Radius, Repeated Bends: 254 mm (10 in)
- Bending Moment: 4.1 Nm (lb*ft)
- Tensile Strength: 1112 N (250 lb)
- Recommended / Maximum Clamp Spacing: 0.5 / 0.9 m (1.8 / 3 ft)
- Fire Performance: Flame Retardant, Plenum Rated
- Installation Temperature: -20 to 60°C (-4 to 140°F)
- Storage Temperature: -40 to 85°C (-40 to 185°F)
- Operation Temperature: -40 to 85°C (-40 to 185°F)
This cable is engineered to meet stringent fire safety standards, including the Steiner Tunnel Test Method UL 910 and NFPA-262, making it ideal for indoor installations in occupied buildings. Its robust design also allows for outdoor use, providing flexibility and reliability in various environments.
