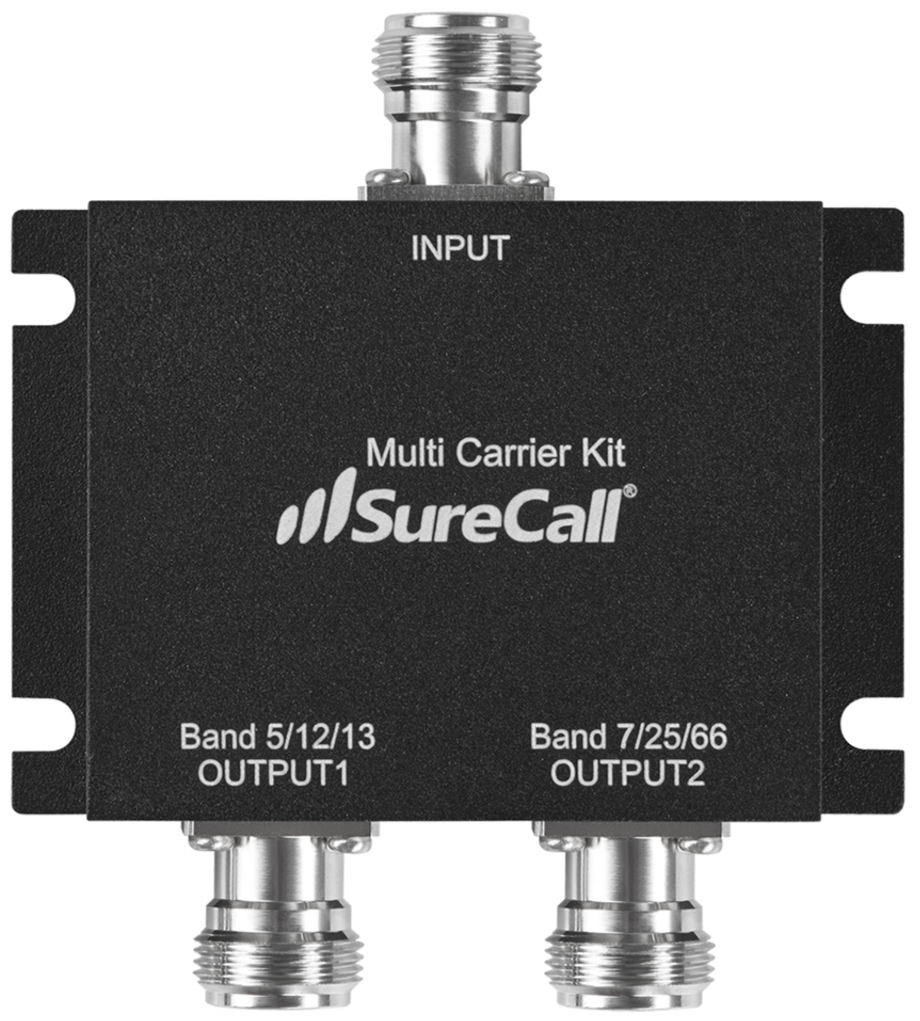

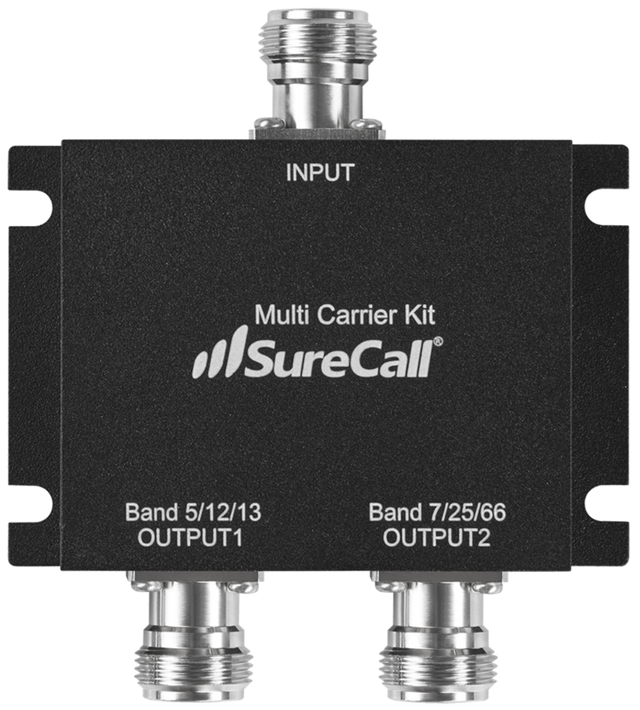

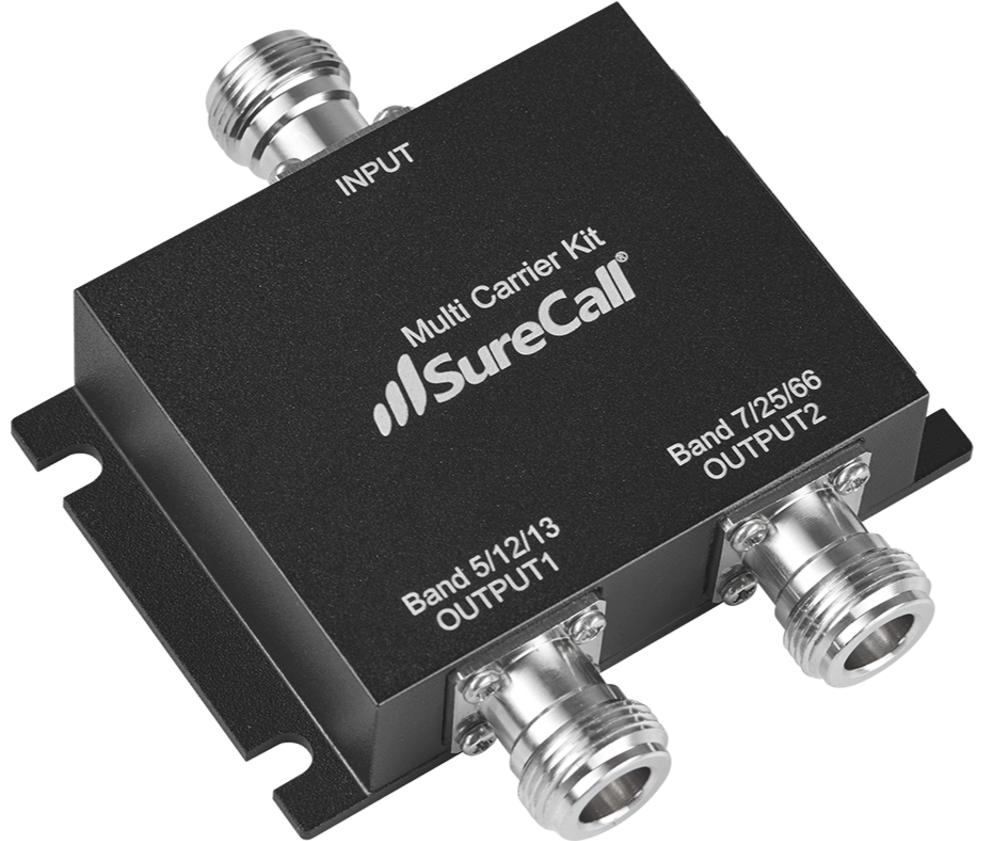

SureCall 2-Way Diplexer with N-Female Connectors

The SureCall 2-Way Diplexer SC-DPLX-5G is a two-way diplexer built for use in cellular booster systems and other RF setups that need to separate or combine different frequency bands. It splits the signal path between low and high cellular bands, letting each travel cleanly through its own channel before merging into a single feed line.

This is especially useful in multi-band systems where interference between low-band and mid-band frequencies can cause performance issues. By isolating these bands, the SC-DPLX-5G helps maintain stronger signal quality, improves system efficiency, and prevents cross-band noise.

Installers typically use diplexers like this when running a single cable to a rooftop antenna that needs to serve two amplifiers tuned to different frequencies—or the reverse, when combining two outputs into one antenna. It also plays a role in system design when building custom repeater kits or integrating enterprise boosters in larger buildings.

The SC-DPLX-5G supports all major US 4G and 5G frequency bands from 617 to 3900 MHz. With waterproof N-Female connectors, IP66-rated housing, and minimal signal loss, it’s built for both indoor and outdoor use in residential, commercial, and industrial installs.
