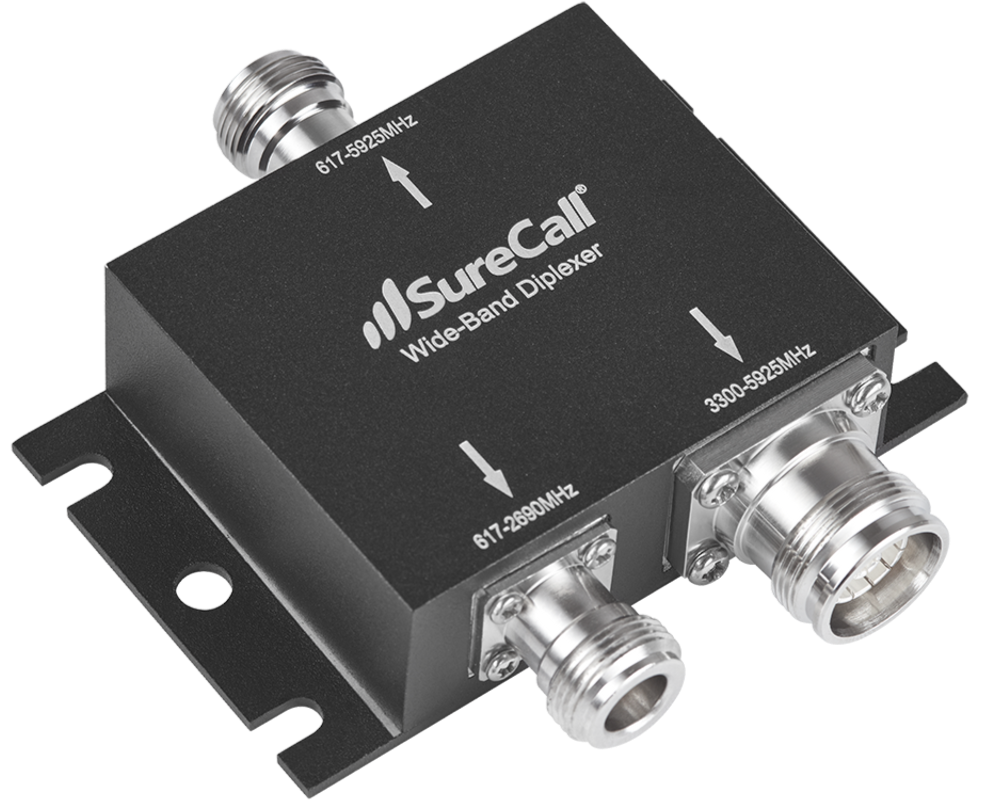

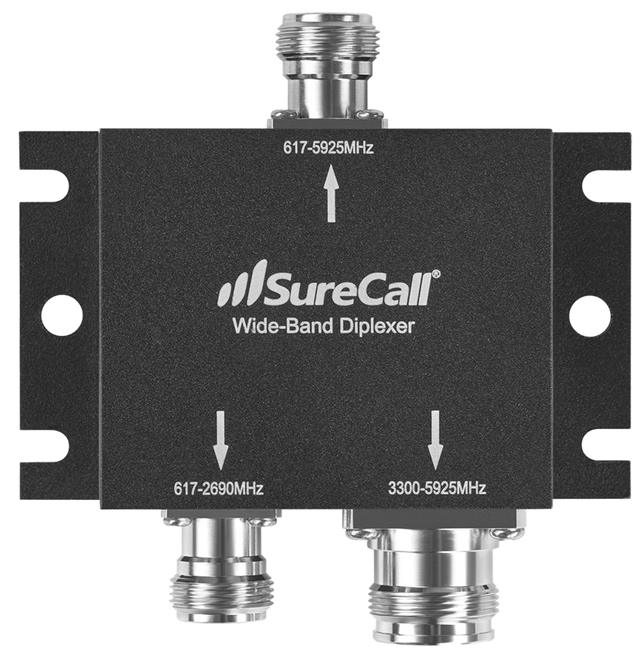

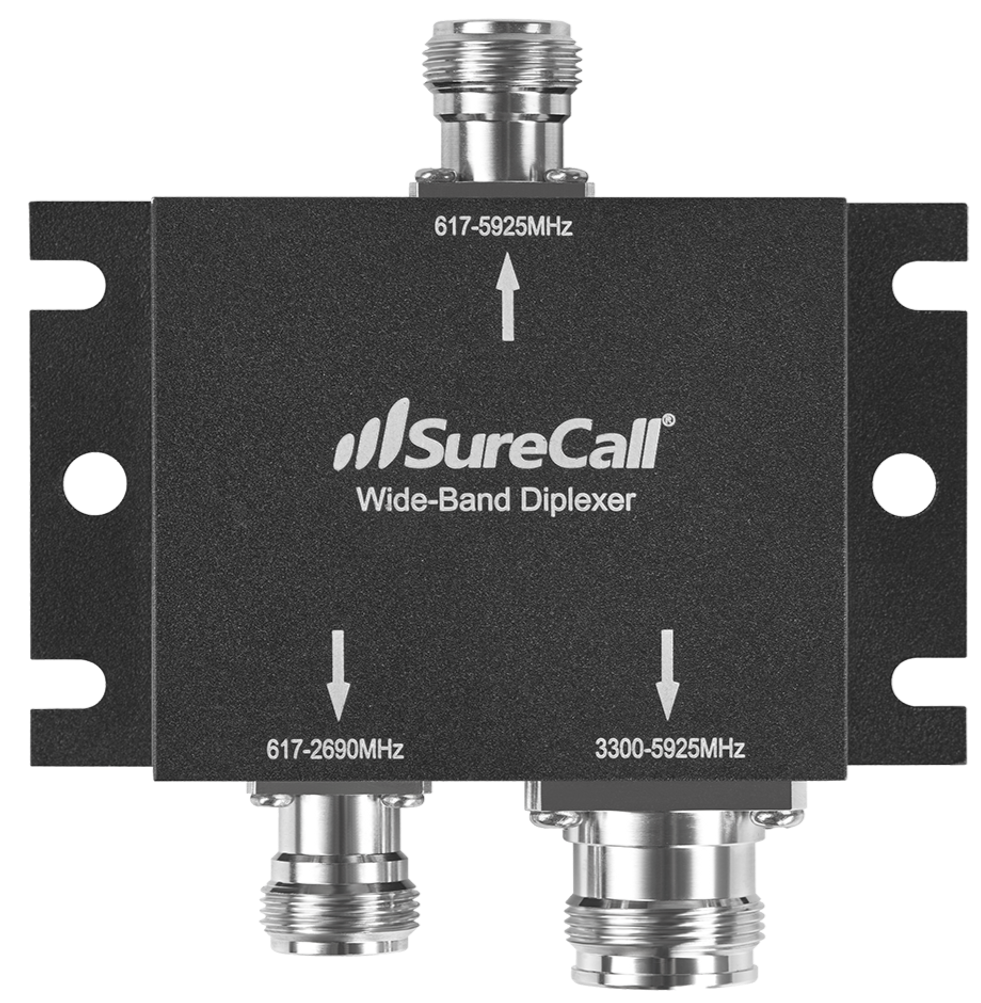

SureCall 2-Way UWB Diplexer DC Bypass with 4.3-10 Female and N-Female

The SureCall 2-Way UWB Diplexer DC Bypass with 4.3-10 Female and N-Female is designed to split or combine two cellular frequency ranges — 617 to 2690 MHz and 3300 to 5925 MHz — into a single coaxial run. It’s built for installers and integrators who need to support both LTE and 5G C-band signals without adding extra cable paths or hardware.

This diplexer is a practical tool for DAS systems, multi-band booster setups, and signal distribution builds where clean frequency separation matters. It lets you combine or separate low and high bands, routing them through a shared line while keeping signals isolated for better performance.

The unit uses one 4.3-10 Female and one N-Female port on the frequency branches, with a weatherproof common port for shared coax. Its IP66-rated enclosure is ready for rooftop or equipment-room installs, and the internal design minimizes insertion loss while maintaining strong isolation between bands.

If you're adding 5G mid-band coverage or planning for future upgrades, the SureCall 2-Way UWB Diplexer helps simplify your layout while keeping signal paths clean and organized.

• SureCall Diplexer Data Sheet
