SureCall Fusion5s 2.0 72dB Yagi Signal Booster Kit
SureCall Fusion5s 2.0 72dB Yagi Signal Booster Kit
Product Info
Product Info
The SureCall Fusion5s 2.0 is one of our most popular and versatile signal booster kits. With a choice of two different inside antennas, the SureCall Fusion5s 2.0 can be configured to solve most any situation. If you need a solution for a medium to large home, office, or general building, then the SureCall Fusion5s 2.0 Signal Booster is going to be a great option for you.
Why the SureCall Fusion5s?
- Strongest gain (boosting power) allowed by the FCC, for the most coverage inside with a weak to moderate outside signal.
- Multiple inside antenna options.
- Works wirelessly. No physical connection to your phone required.
- Supports multiple phones and all carriers at the same time.
- Everything you need is included in the kit.
- Fewer dropped calls
- Faster Internet data speeds
- Better voice quality
- Texts that send quickly
- Longer battery life
Your purchase is covered by our 60-day money back guarantee, so you can try it risk-free, and our friendly, US-based technical support team is standing by to assist with anything you need. Your equipment is also covered by a 3-year manufacturer warranty, for extra peace of mind.
Recommended For
The SureCall Fusion5s 2.0 is an ideal solution for large homes and medium-sized offices, as well as mobile homes with a weak outside signal, cabins, cottages, etc. The different inside antenna options allow the system to be customized to your specific situation, so you can maximize the effectiveness and minimize the installation issues.
How it Works
The SureCall Fusion5s 2.0 signal booster uses a yagi directional outside antenna, and either a panel or dome inside antenna, so while the operation of the booster system is the same, there will be slight differences in the installation based on the type of inside antennas that you choose.

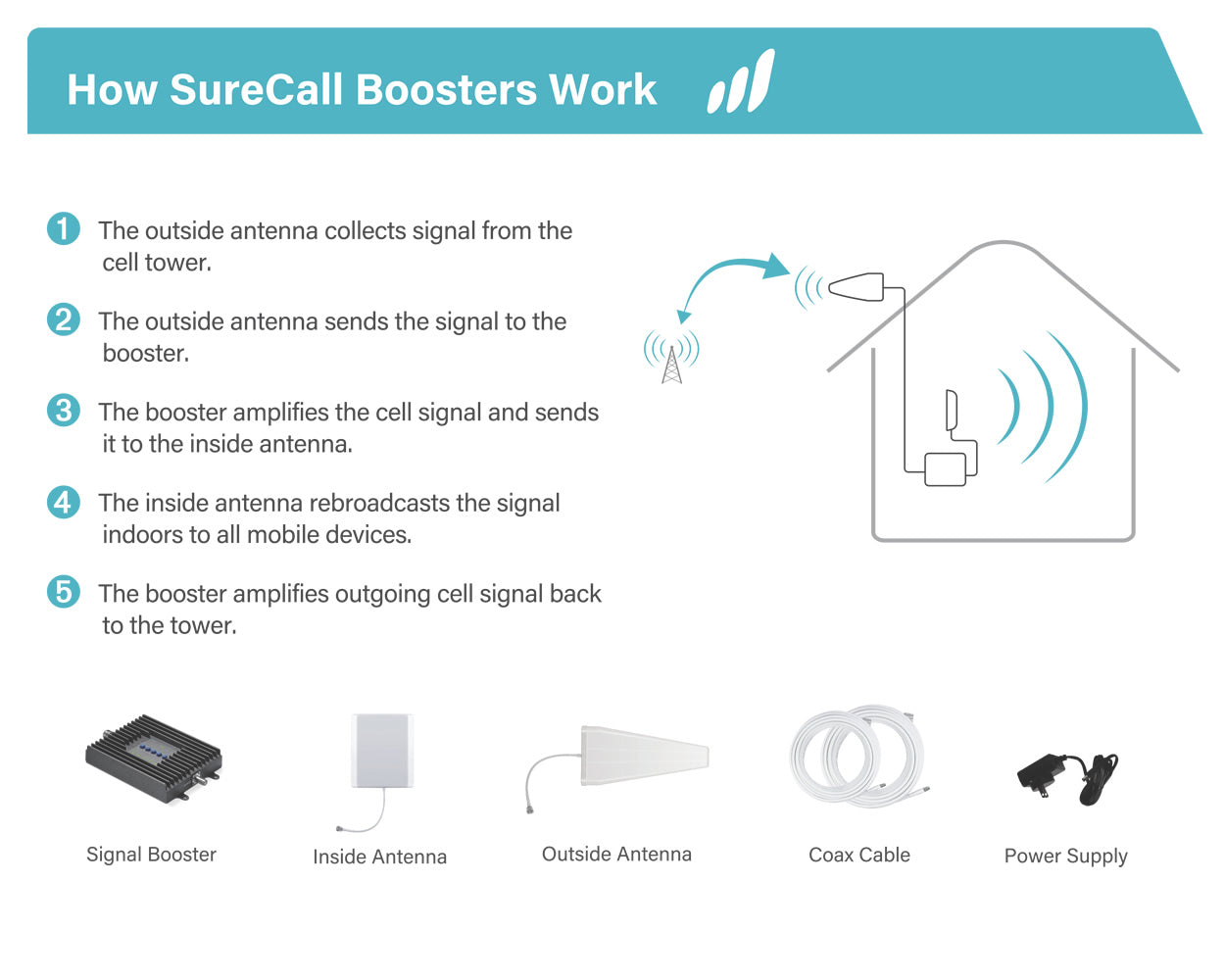

The general way that the SureCall Fusion5s 2.0 Yagi works is that the yagi outside antenna is mounted on a pole at or above the roofline of your home or office, in a location where it can pick up the strongest existing outside cell signal. The cell signal is received by the yagi antenna and is sent over a cable into the building, where it is received by the Fusion5s 2.0 amplifier. The amplifier boosts the cell signal significantly, and then sends it over another cable to the inside antenna, which broadcasts the improved signal to the area where it's located. The entire process also works in reverse, so you get a strong and reliable connection back to your carrier.
Inside Antenna Options

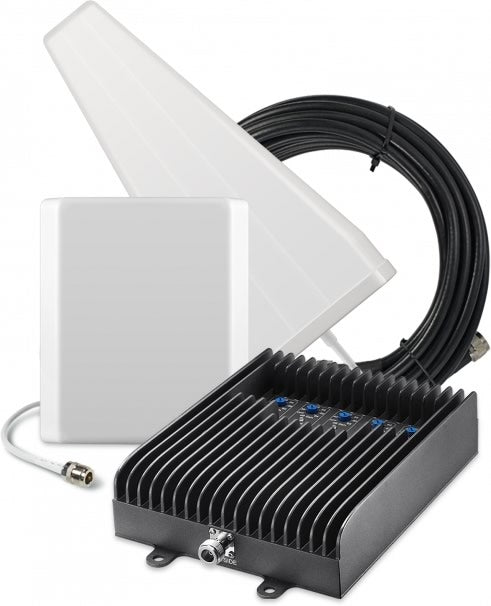

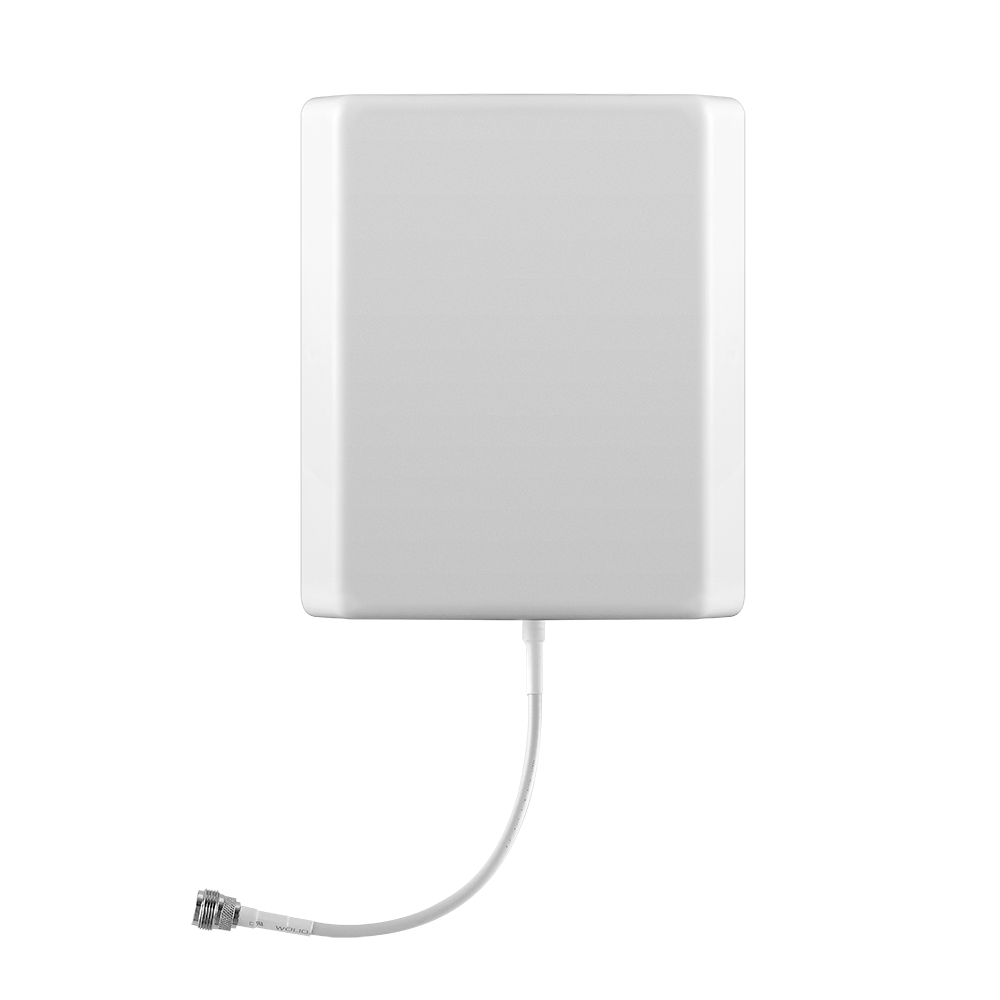

- Panel Inside Antenna: This antenna has 10 dB of gain and is generally mounted on the ceiling aimed downwards in the center of the space that needs boosted signal, but can also be laid face down on the floor of an attic or space above the ceiling, again in the center of the space that needs boosted signal, and it will broadcast boosted signal through the floor to the space below. Finally, panel antennas can be mounted on a wall and broadcast boosted signal across a space.

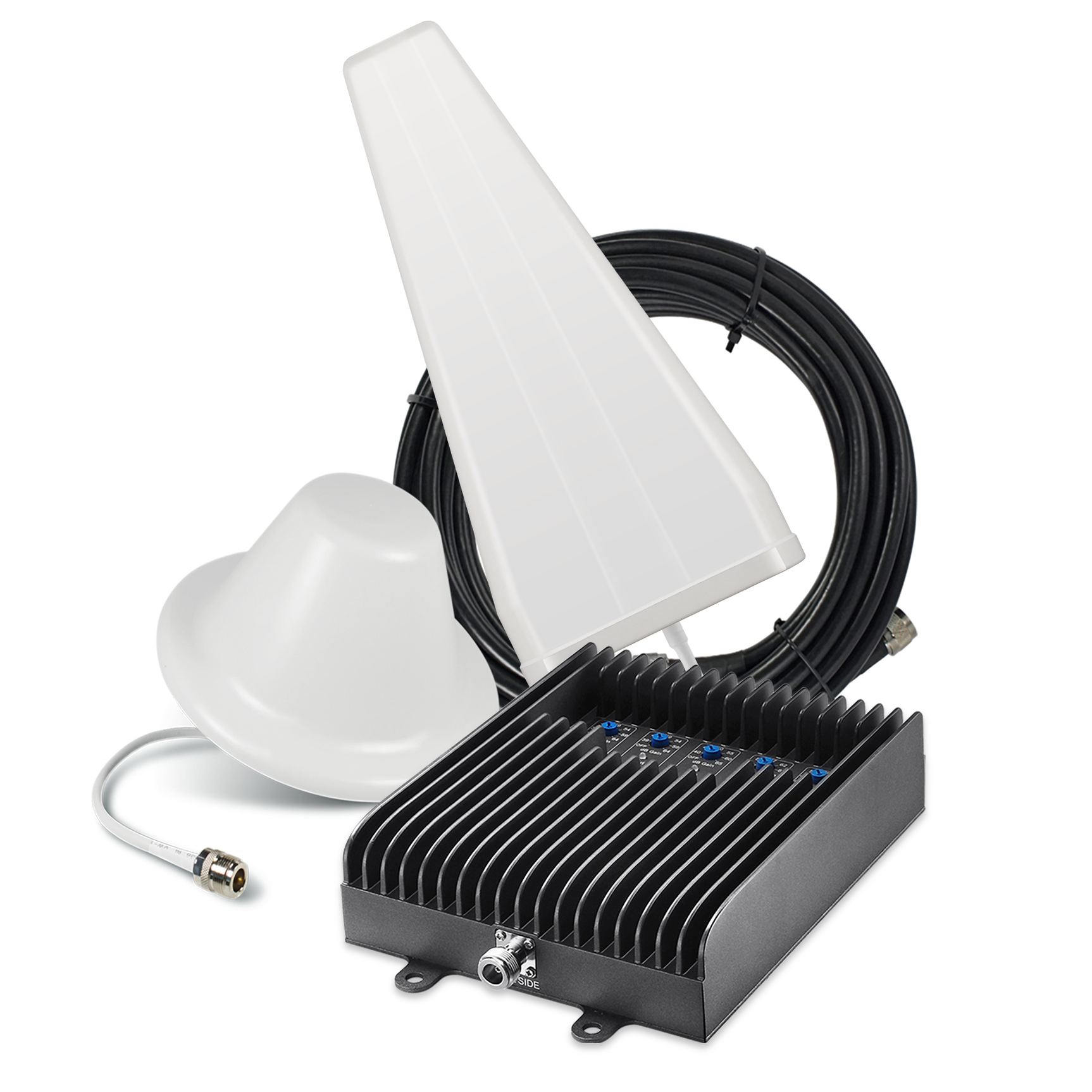

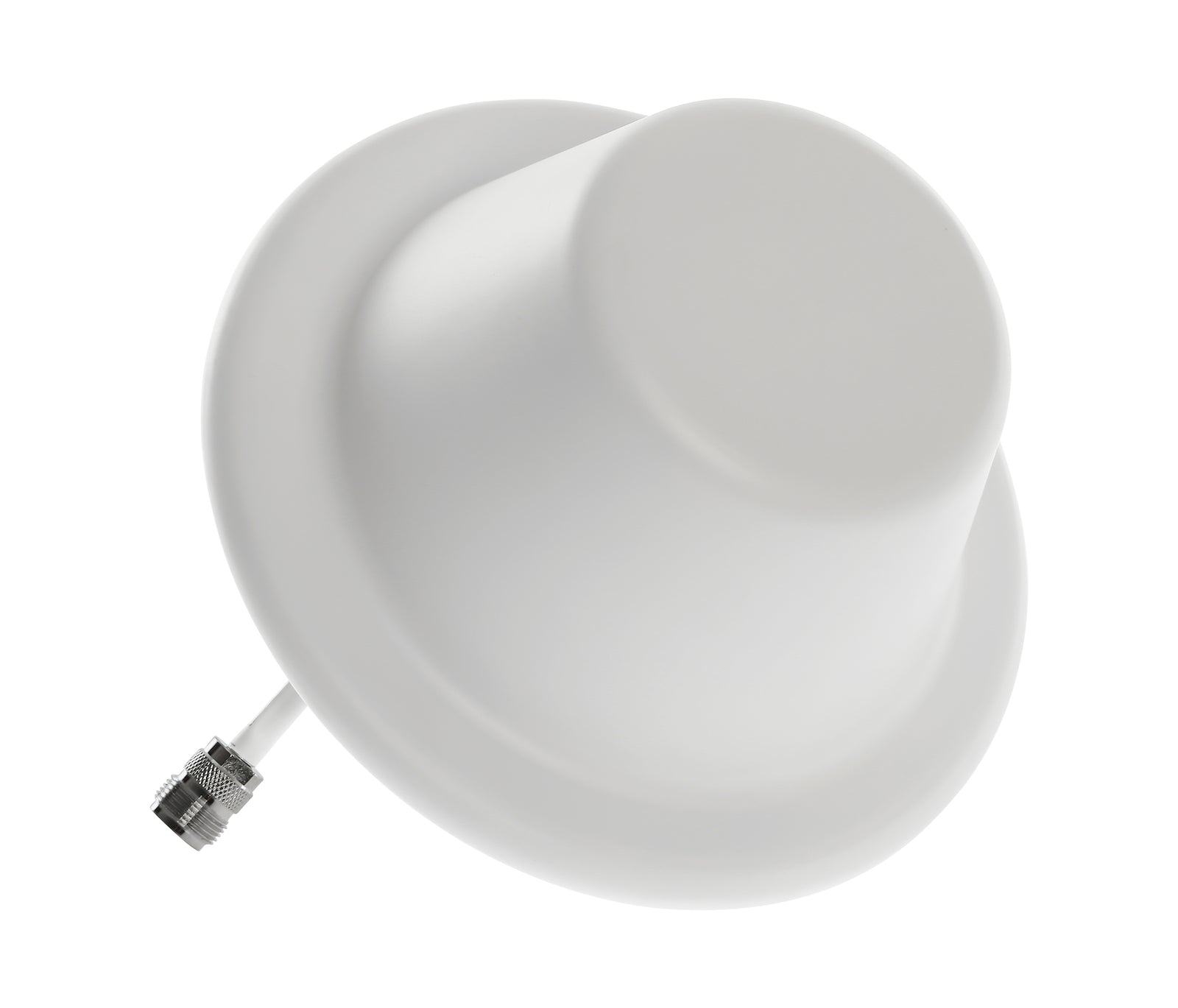

- Dome Inside Antenna: This antenna has 5 dB of gain and can only be mounted to a ceiling and you must have access to the backside of the ceiling in order to run a cable to it, so it's best for drop ceilings or locations where there is an attic above the ceiling. Dome antennas work best for single floors but can possibly cover multiple floors depending on the floor construction.
Estimated Inside Coverage
The strength of your existing outside signal, measured in the location where you plan to mount the outside antenna, has a direct impact on the amount of inside coverage you'll get from a signal booster. The table below shows how much coverage you may get depending on your outside signal strength:
| Existing Outside Signal Strength | Estimated Inside Coverage |
|---|---|
| Strong (5 Bars) | Up to 7,500 sq ft |
| Medium (3-4 Bars) | Up to 4,000 sq ft |
| Weak (1-2 Bars) | Up to 2,000 sq ft |
| None (0 Bars) | No Coverage |
Please Note: It is important to remember that there are many factors that impact the size of the inside coverage area, so actual results may vary from these estimates.
Additional Coverage
If you need more coverage than one system will provide due to a weak outside signal, you can install multiple SureCall Fusion5s 2.0 systems in your home or business. Please contact us for assistance with mapping out the ideal location for each system.
If you have a strong existing outside signal and need more inside coverage than the SureCall Fusion5s 2.0 provides, then the SureCall Fusion5X Signal Booster is going to be a better option for you. The Fusion5X has a greater threshold for handling a strong outside signal, so it’s able to convert that into significantly more coverage inside of the building. Please contact us if you have any questions or would like more information about this system.
Will this Work for my Phone and Carrier?
The SureCall Fusion5s 2.0 has been designed to work with all cell phones and all carriers in the United States, Canada and Mexico, as well as carriers from some other countries in Latin America, South America and Australia.
| Supported Phones | All Cell Phones, Hotspots, and any Devices that use Cellular Data |
|---|---|
| Networks | 2G, 3G, 4G & 4G LTE |
| Frequencies | 700, 800, 1900, 1700/2100 MHz |
| Carriers | Works for all Carriers in North America, including: |
Please Note: This signal booster will not work in most European, Asian, and African countries, as the frequencies used there are different than those boosted by this equipment.

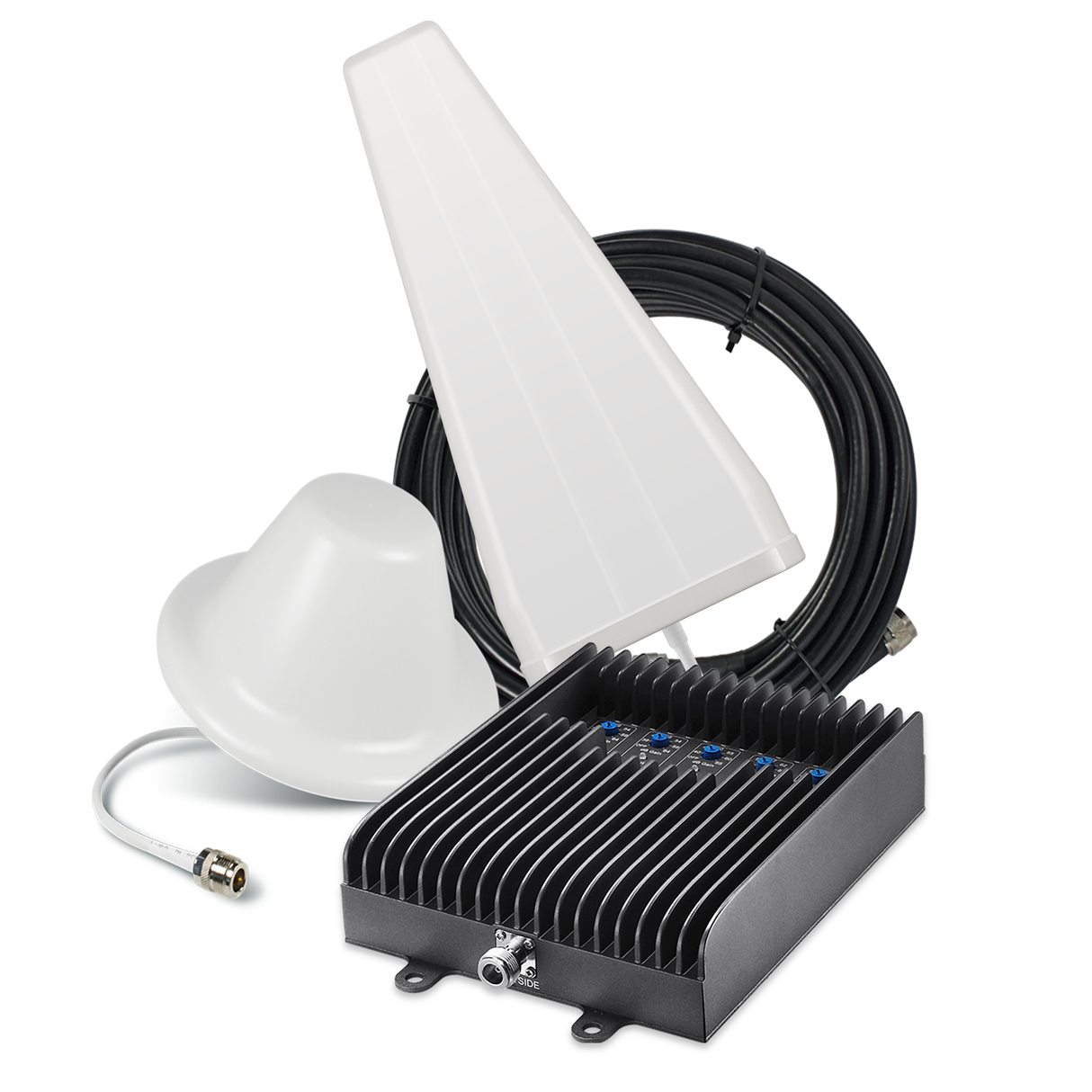

In the Box

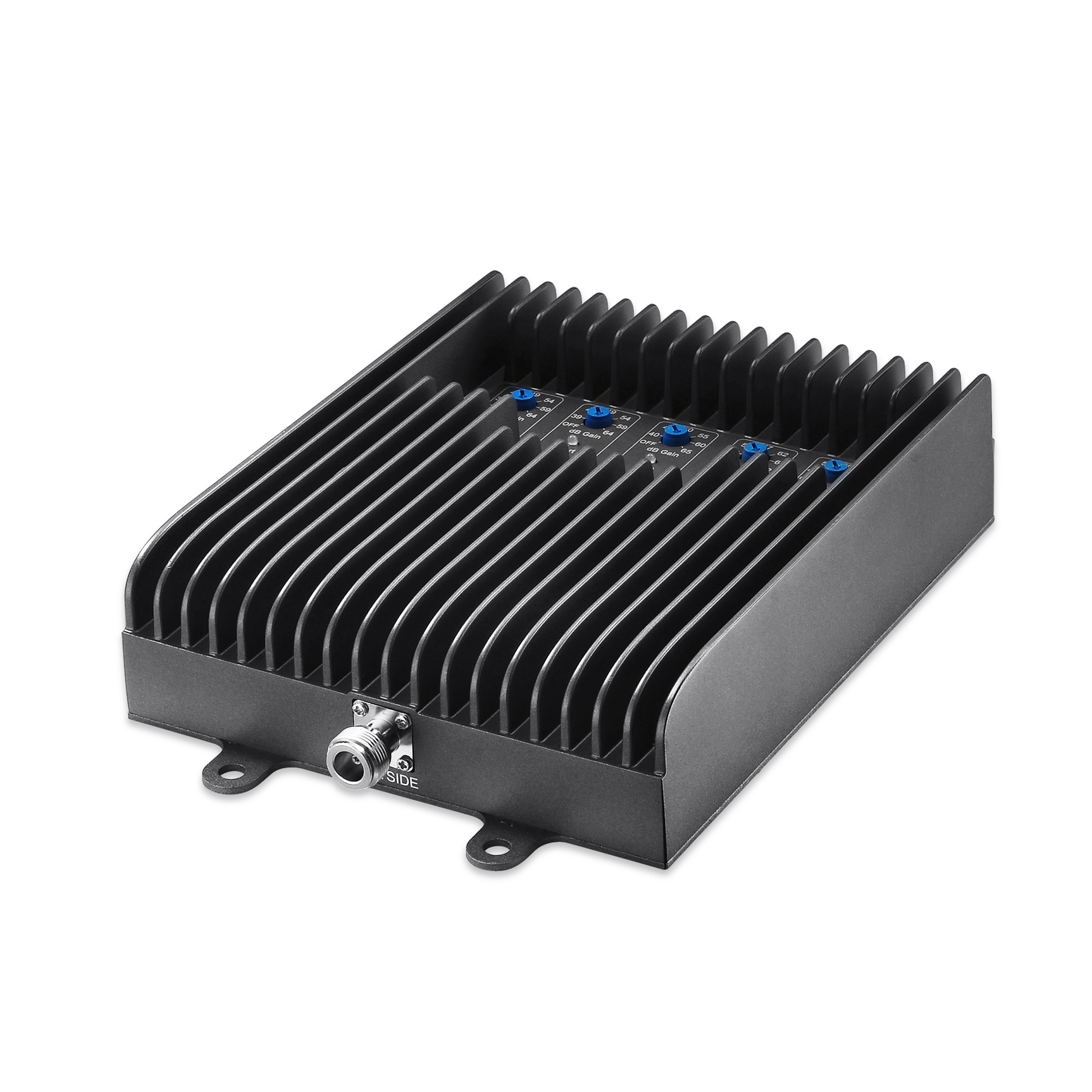

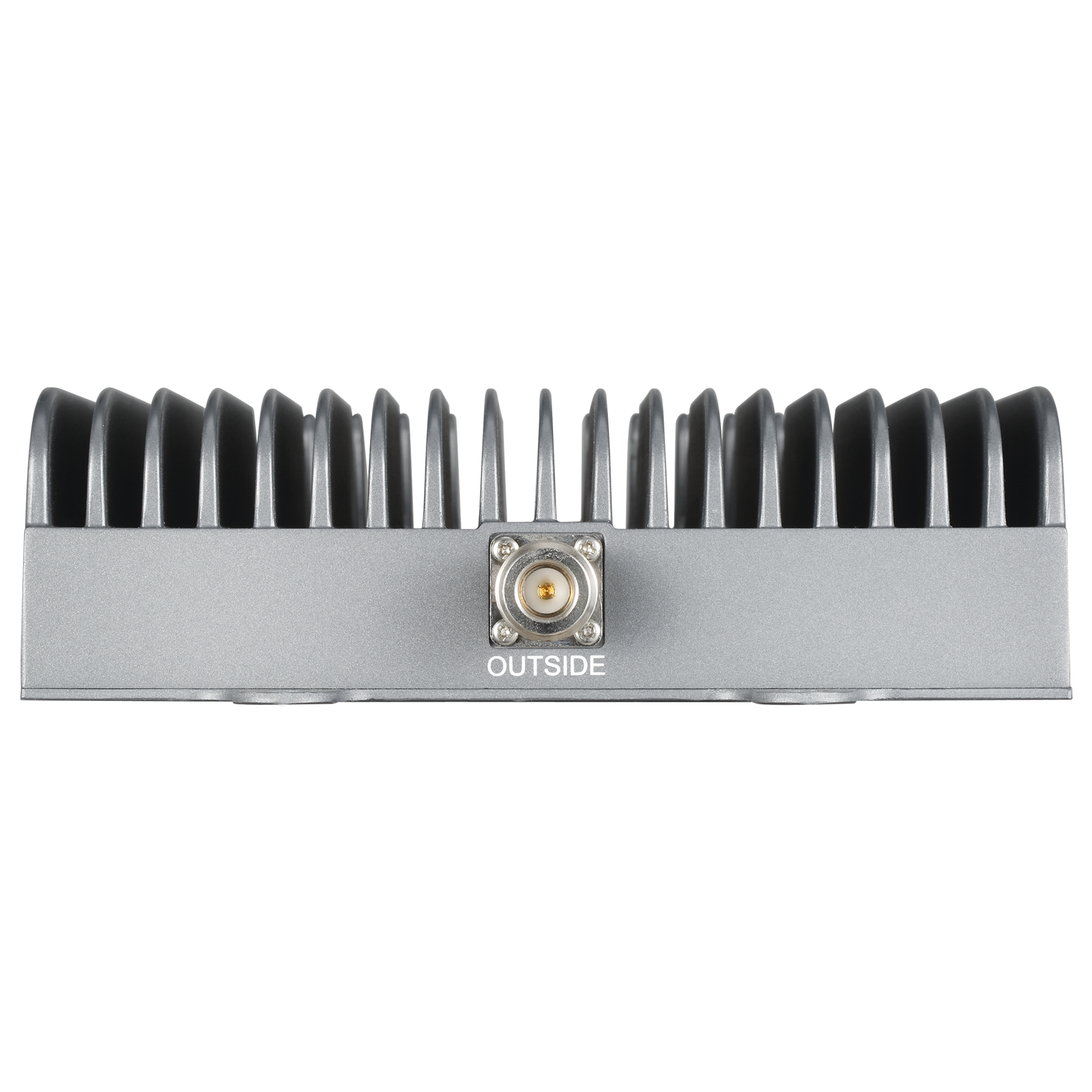

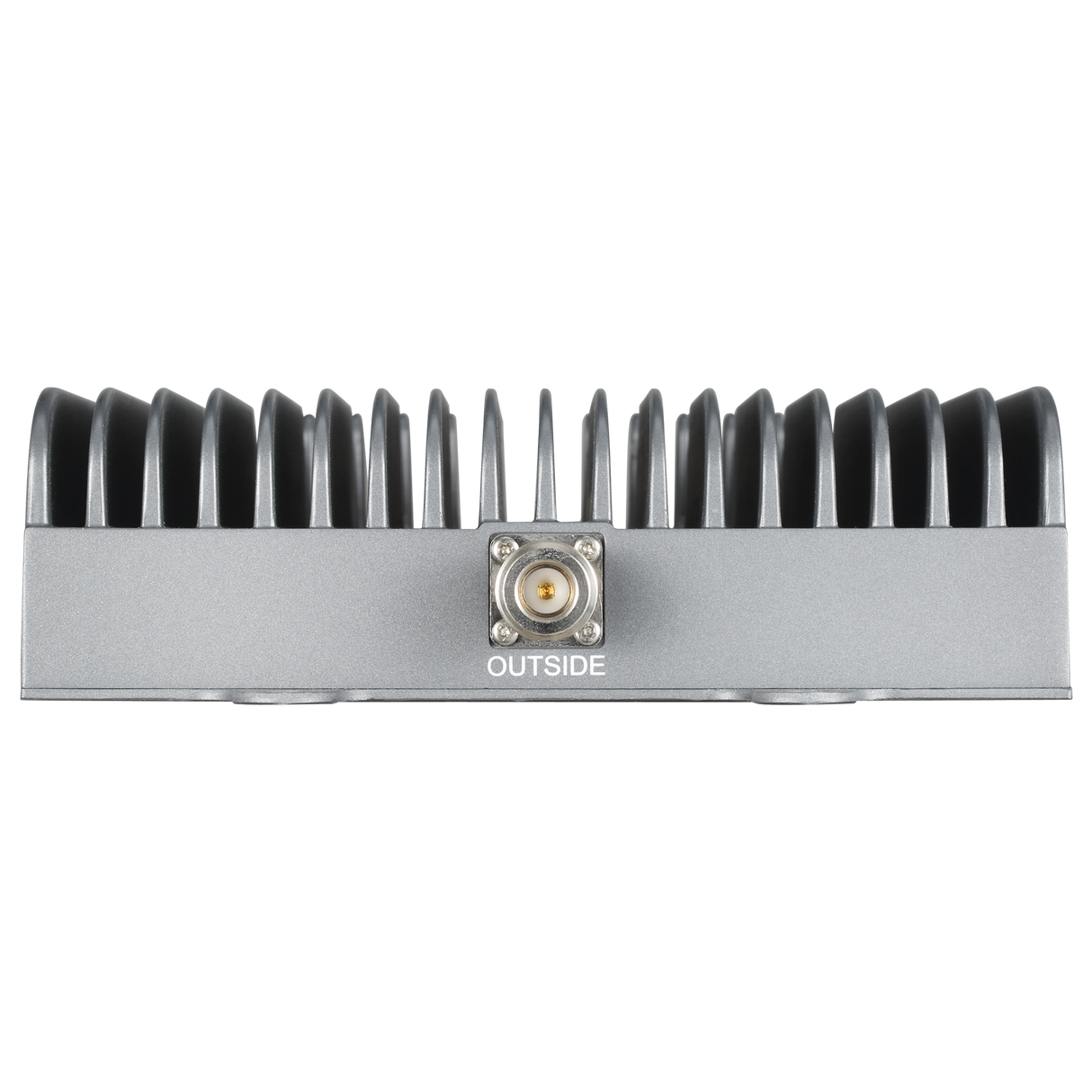

- SureCall Fusion5s 2.0 Amplifier

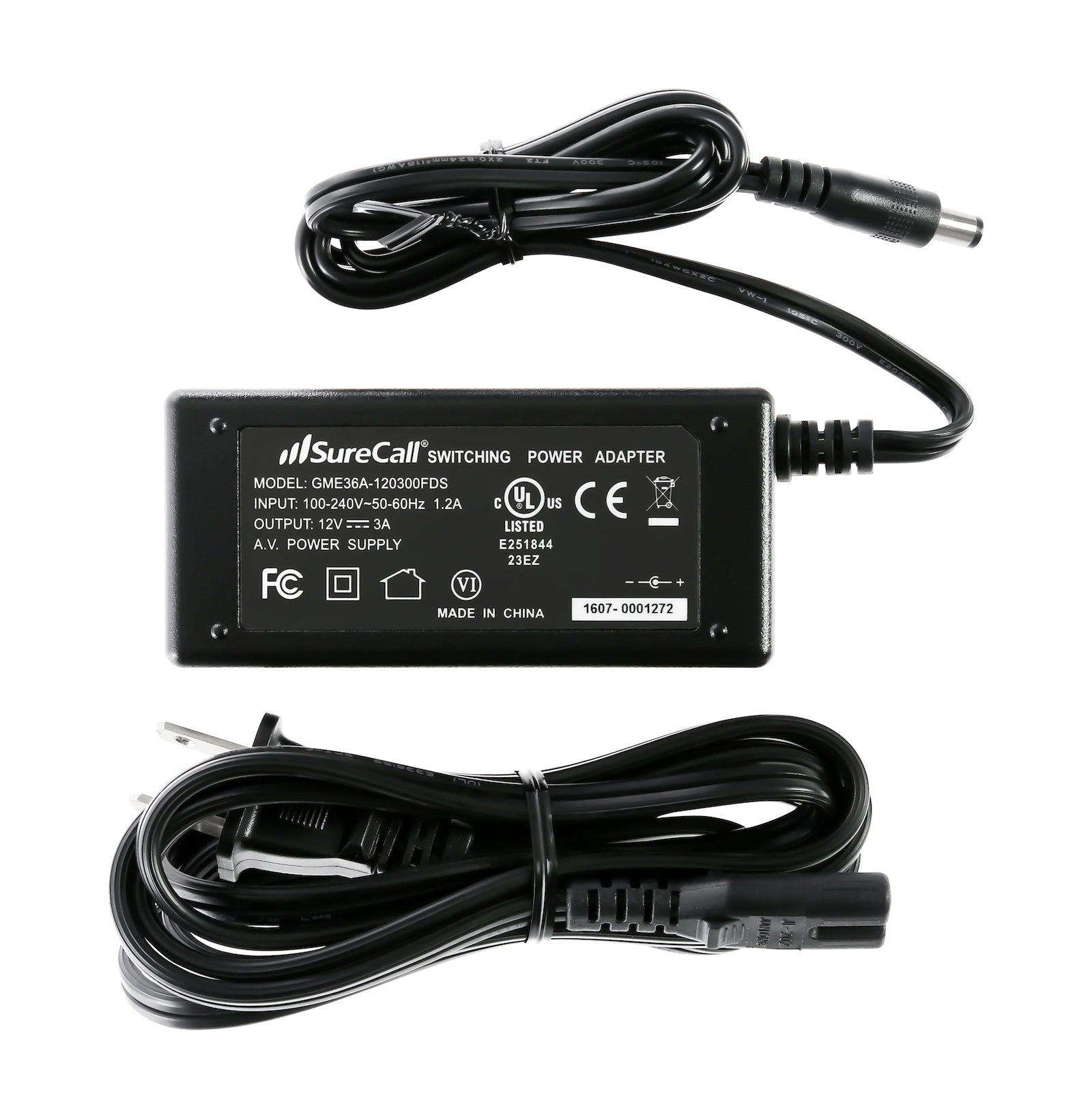

- SureCall Power Supply

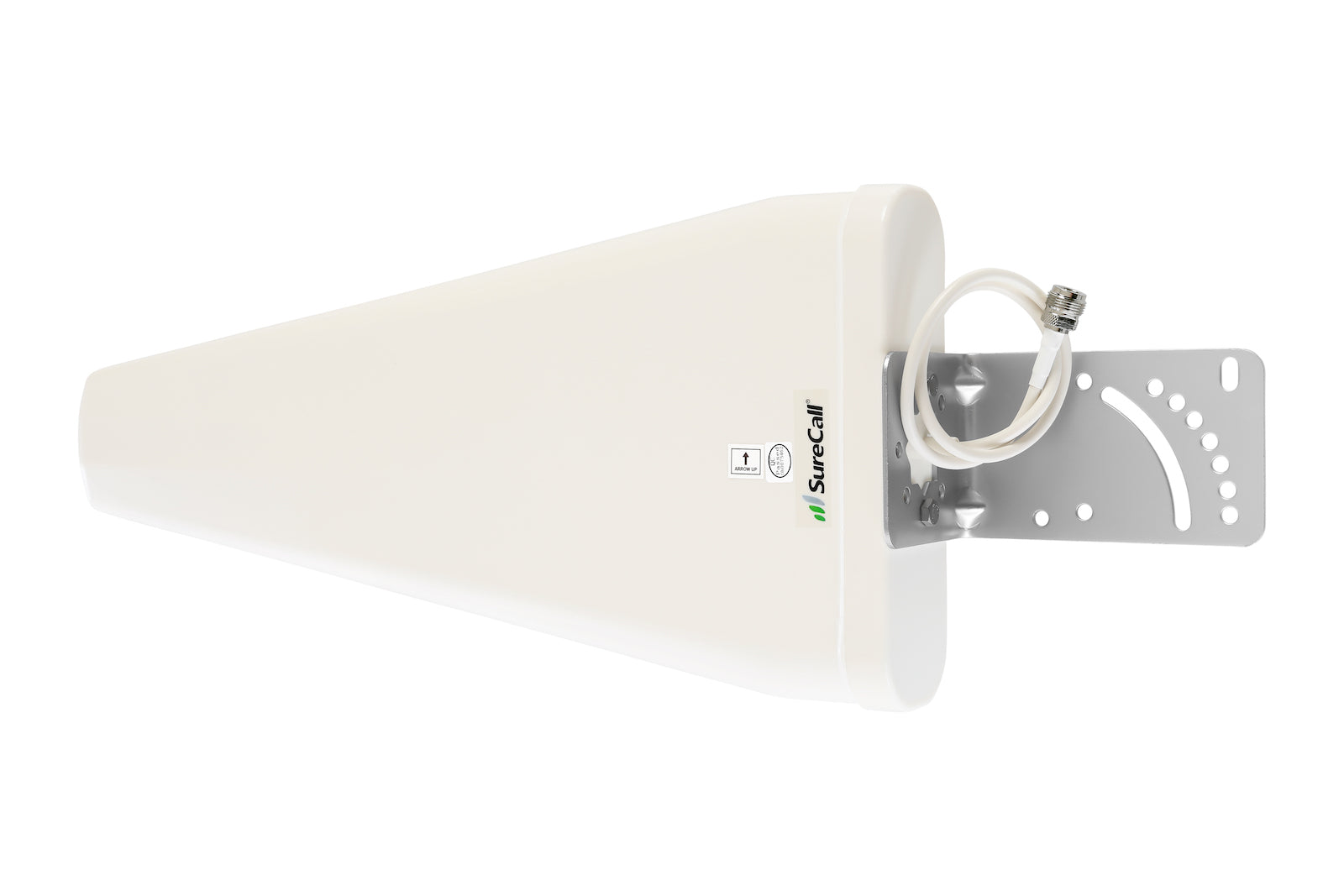

- SureCall Yagi Outside Antenna Option
- SureCall Panel Inside Antenna Option
- SureCall Dome Inside Antenna Option

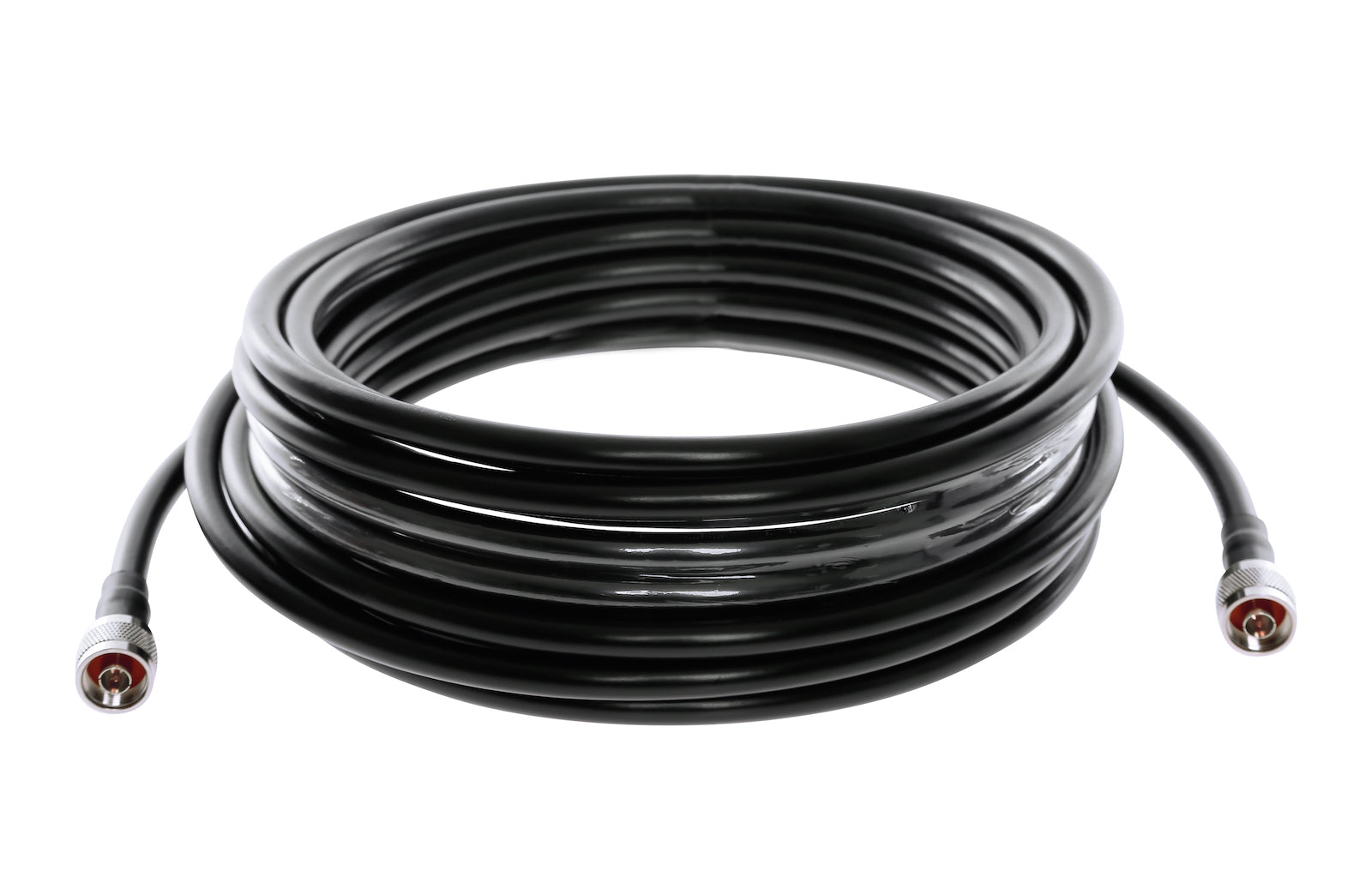

- 30 ft of SureCall LMR400 Cable
- 75 ft of SureCall LMR400 Cable
