SureCall Fusion5X 1.0 Signal Booster Kit with 1 Antenna [Discontinued]

SKU: SC-Poly5X-72-OD-Kit

Description

The SureCall Fusion5X Kit with 1 inside antenna is an ideal signal booster for situations where you have a strong signal outside and need to ensure that your booster is not overloaded with too much signal, while still covering a small to medium area inside of the building. You have the choice of a panel or dome inside antennas, so you can customize the kit to fit the inside ceiling type.

Why the SureCall Fusion5X?

  • Able to handle a very strong outside signal (+12 dBm) and turn that into a significant amount of coverage inside.
  • Strongest gain (boosting power) allowed by the FCC, for the most coverage inside with a strong outside signal.
  • Multiple inside antennas provide greater coverage than a single antenna kit.
  • Works wirelessly. No physical connection to your phone required.
  • Supports multiple phones and all carriers at the same time.
  • Everything you need is included in the kit.
  • Fewer dropped calls
  • Faster Internet data speeds
  • Better voice quality
  • Texts that send quickly
  • Longer battery life

Your purchase is covered by our 30-day money back guarantee, so you can try it risk free, and our friendly, US-based technical support team is standing by to assist with anything you need. Your equipment is also covered by a 3-year manufacturer warranty, for extra peace of mind.

Recommended For

The SureCall Fusion5X Kit with 1 Inside Antenna is an ideal solution for small to medium size buildings with a strong outside signal. The increased downlink capacity means the amplifier can handle a very strong outside signal that would overload most other amplifiers. The different inside antenna options allow the system to customized to your specific situation, so you can maximize the effectiveness and minimize the installation issues.

How it Works

How the SureCall Fusion5X Signal Booster works

The SureCall Fusion5X signal booster with 1 inside antenna uses an omnidirectional outside antenna (sends and receives in all directions), and either a panel or a dome inside antenna, so while the operation of the booster system is the same, there will be slight differences in the installation based on the inside antenna type that you choose.

The general way that the SureCall Fusion5X works is that the outside antenna is mounted at or above the roofline of your home or office, in a location where it can pick up the strongest existing outside cell signal. The cell signal is received by the omni antenna and is sent over a cable into the building, where it is received by the Fusion5X amplifier. The amplifier boosts the cell signal significantly, and then sends it over another cable to the inside antenna. The inside antenna then broadcasts the improved signal to the area where it's located. The entire process also works in reverse, so you get a strong and reliable connection back to your carrier.

Inside Antenna Options

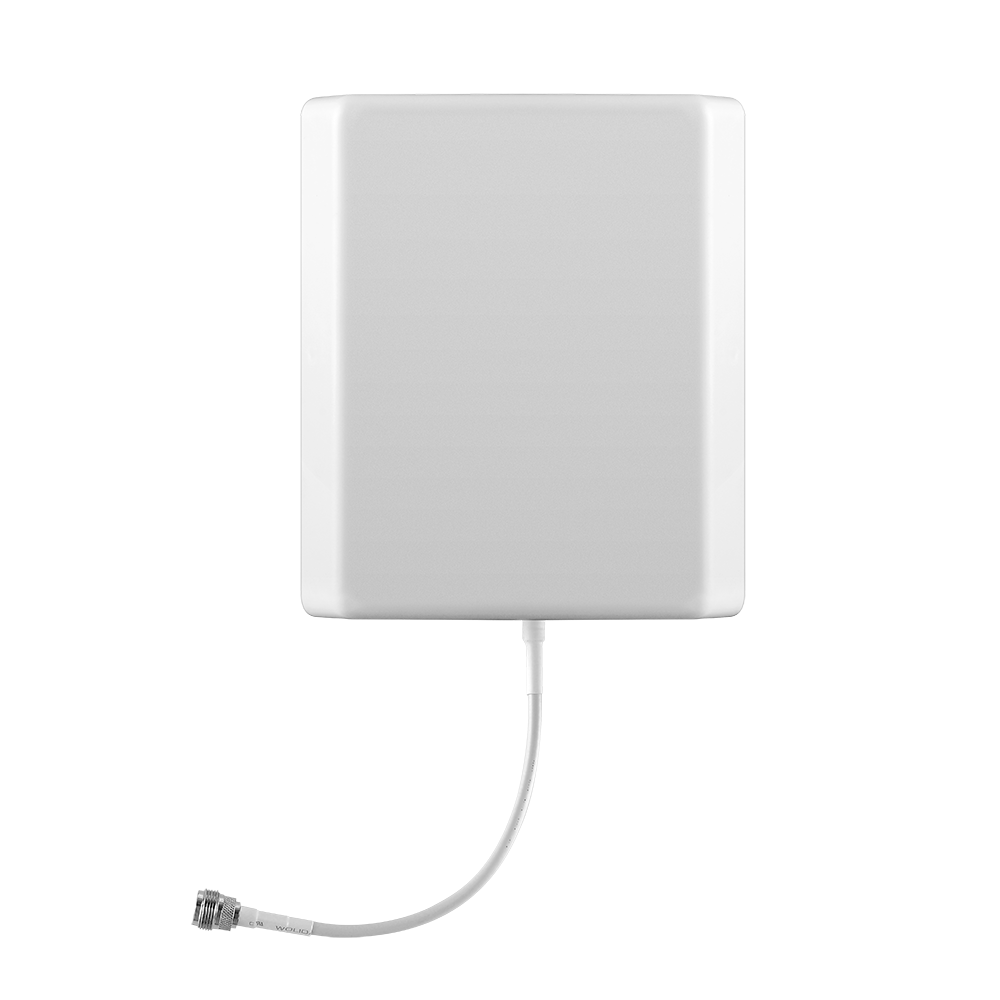

  • Panel Inside Antenna: This antenna type has 10 dB of gain and is generally mounted on the ceiling aimed downwards in the center of the space that needs boosted signal, but can also be laid face down on the floor of an attic or space above the ceiling, again in the center of the space that needs boosted signal, and it will broadcast boosted signal through the floor to the space below. Finally, panel antennas can be mounted on a wall and broadcast boosted signal across a space.
  • Dome Inside Antenna: This antenna type has 5 dB of gain and can only be mounted to a ceiling and you must have access to the backside of the ceiling in order to run a cable to it, so it's best for drop ceilings or locations where there is an attic above the ceiling. Dome antennas work best for single floors but can possibly cover multiple floors depending on the floor construction.

Estimated Inside Coverage

The strength of your existing outside signal, measured in the location where you plan to mount the outside antenna, has a direct impact on the amount of inside coverage you'll get from a signal booster. The table below shows how much coverage you may get depending on your outside signal strength:

Existing Outside Signal Strength Estimated Inside Coverage
Strong (5 Bars) Up to 10,000 sq ft
Medium (3-4 Bars) Up to 3,000 sq ft
Weak (1-2 Bars) Up to 1,000 sq ft
None (0 Bars) No Coverage

Please Note: It is important to remember that there are many factors that impact the size of the inside coverage area, so actual results may vary from these estimates.

Additional Coverage

If you need more coverage than one system will provide due to a weak outside signal, you can install multiple SureCall Fusion5X systems in your home or business. Please contact us for assistance with mapping out the ideal location for each system.

If you have a strong existing outside signal and need more inside coverage than the SureCall Fusion5X with 1 antenna provides, then the SureCall Fusion5X Signal Booster with 2 or 4 inside antennas may be a better option for you. If you need an even stronger option than that, you would want the Force5 2.0 Enterprise Signal Booster, and you would most likely want some assistance with designing a system to maximize the effectiveness of that amplifier. Please contact us if you have any questions or would like more information about this system.

Will this Work for my Phone and Carrier?

The SureCall Fusion5X has been designed to work with all cell phones and all carriers in the United States, Canada and Mexico, as well as carriers from some other countries in Latin America, South America and Australia.

Supported Phones All Cell Phones, Hotspots, and any Devices that use Cellular Data
Networks 2G, 3G, 4G & 4G LTE
Frequencies 700, 800, 1900, 1700/2100 MHz
Carriers Works for all Carriers in North America, including:
  • AT&T

Please Note: This signal booster will not work in most European, Asian, and African countries, as the frequencies used there are different than those boosted by this equipment.

Kit Includes

The following components are included with the SureCall Fusion5X kit:

Recommended Accessories

While the SureCall Fusion5X Signal Booster Kit includes everything you need to install the system and start having great cell signal, the following recommended accessories may simplify the installation and help protect the system going forward:

SureCall Fusion5X 1.0 Signal Booster Kit with 1 Antenna [Discontinued]

$1,399.00

Inside Antenna (Configurable)

  • Dome Antenna - Best for single floors
  • Panel Antenna - Best for multiple floors or long & narrow spaces

What You Should Know

N/A

Uplink Frequency Ranges (MHz)

N/A

Downlink Frequency Ranges (MHz)

N/A

Max Gain

N/A

Max Uplink Power

N/A

Impedance

N/A

Cable Type

N/A

Color

N/A

Plenum Rating

N/A

RF Connectors

N/A

Antenna Type

N/A

Power Supply

N/A

Frequency Range

N/A

Includes Connectors

N/A

Output Ports

N/A

Output Voltage

N/A

Outside Antenna Options

N/A

Inside Antenna Options

N/A

Number of Inside Antennas

N/A
