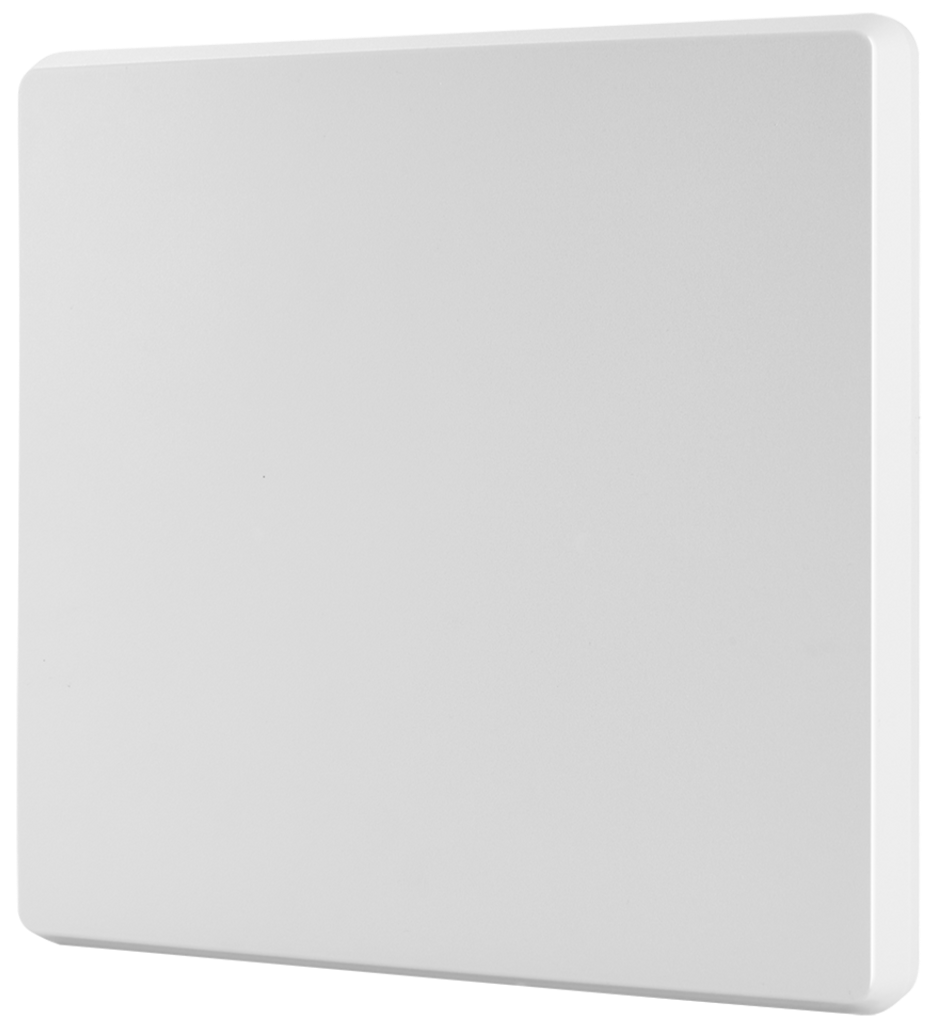

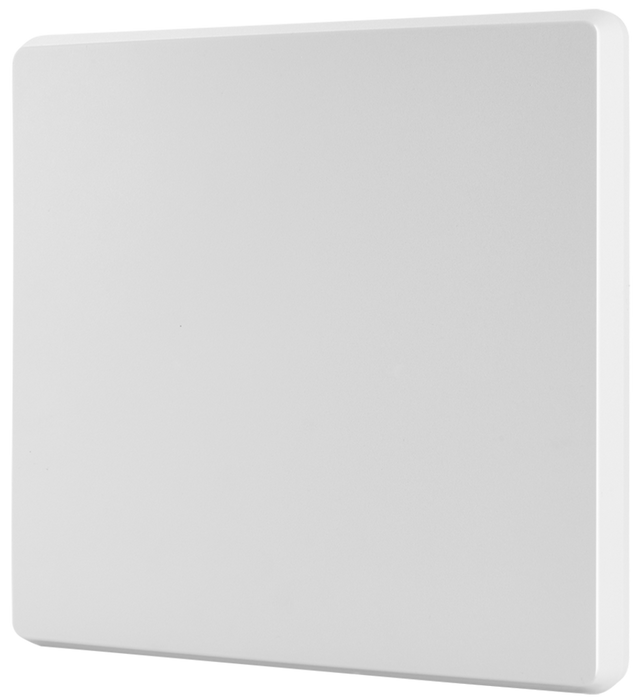

SureCall Outdoor Panel Antenna MIMO C-Band 3500-4000 MHz

Product Highlights

• Covers 3500 to 4000 MHz C-band frequencies for 5G and CBRS applications
• MIMO design with dual polarization (vertical and horizontal) for multiple data streams
• Delivers up to 19 dBi directional gain for long-range signal capture
• Narrow 15° beamwidth helps isolate signal from a specific tower
• Rated IP66 for outdoor use in harsh weather
• Built-in mechanical tilt adjustment from -15° to +15°
• Mounts to any 1.2 to 2 inch diameter pole or mast
• Includes heavy-duty mounting bracket and hardware

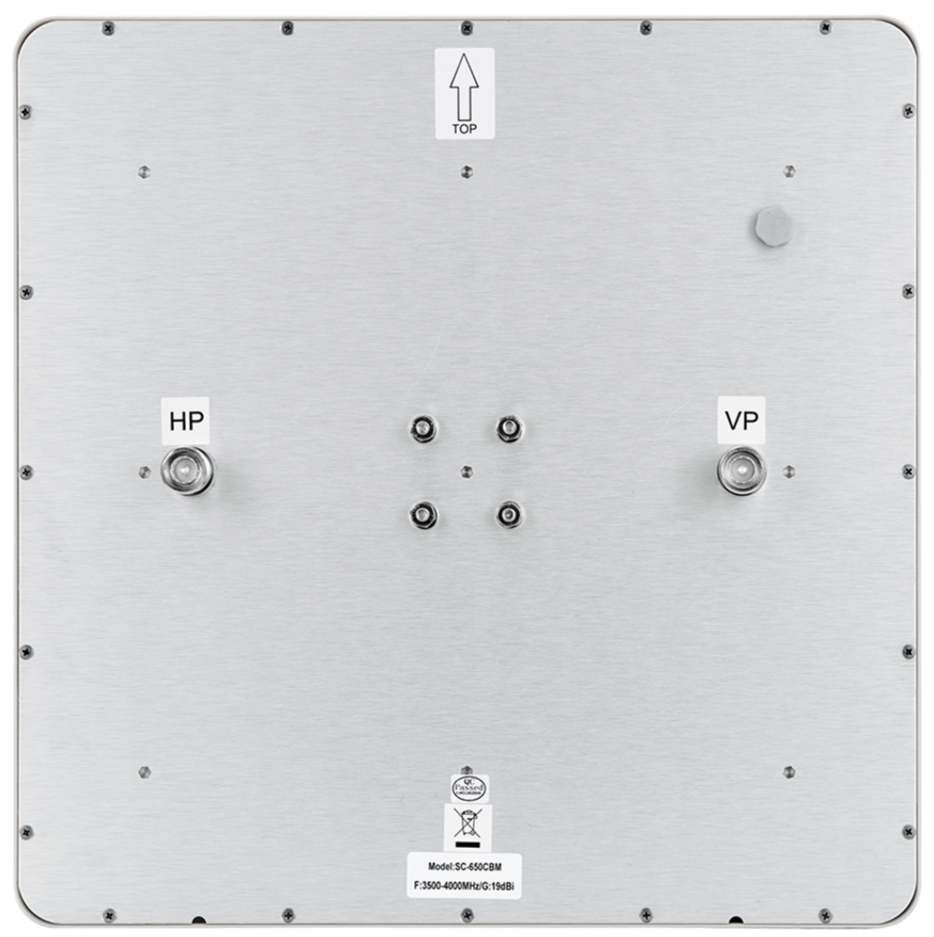

• Uses 4.3-10 Female connectors (50 ohm) for high-performance installs

Top Benefits

• Improves reach in weak signal areas by focusing on a single tower with high directional gain
• Supports high-speed 5G data when used with compatible routers or booster systems
• Works in rugged environments with weather-sealed construction and high wind resistance
• Optimized for real MIMO performance with strong isolation and cross-polarization specs

Reliable fit for pro installers looking for consistent gear in enterprise or fixed wireless setups

• SureCall Outdoor Panel Antenna (MIMO, 3500–4000 MHz)

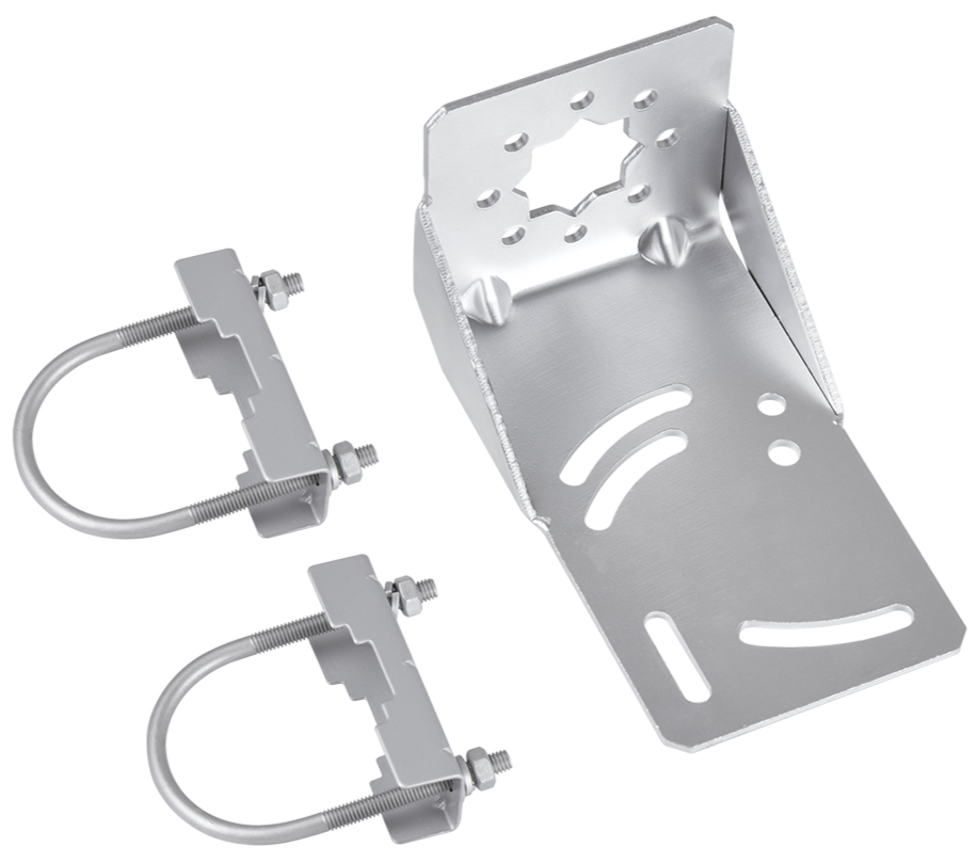

• Mounting bracket with mechanical tilt adjustment
• U-bolts, washers, and nuts for securing to pole or mast (1.2 to 2 inch diameter)

Supported Frequencies:
This antenna is specifically designed for the C-band range: 3500 to 4000 MHz

Supported Devices:
Works with routers, modems, boosters, and other equipment that support C-band MIMO input

Supported Networks:
Supports 5G and private wireless networks operating in the 3500–4000 MHz range, including:

• Verizon 5G (including some Ultra Wideband deployments)
• AT&T and T-Mobile 5G (in limited areas using C-band)
• CBRS or private 5G networks using Band 48 or similar ranges

Note: This antenna does not support LTE, low-band 5G, or 3G bands. It also may not work with carriers or equipment outside North America due to different frequency allocations.

This antenna is designed for fixed outdoor mounting and should be aimed toward the nearest C-band tower for best results. It installs on a vertical pole or mast between 1.2 and 2 inches in diameter and includes all necessary mounting hardware.

Steps at a glance:

1. Mount the bracket to the pole using the included U-bolts, washers, and nuts.
2. Attach the antenna to the bracket, adjusting for your desired height and direction.
3. Use the tilt adjustment if needed to fine-tune vertical aim (range of -15° to +15°).
4. Point the antenna toward the signal source, using a signal strength app or device for guidance.
5. Connect coaxial cables (not included) from the antenna’s 4.3-10 Female connectors to your equipment.
6. Seal all outdoor connections with weatherproof tape or boots to prevent moisture damage.

Installer tips:

• Make sure the antenna is vertically aligned, with the drip hole at the bottom
• Keep the antenna as high and unobstructed as possible for better line of sight
• If you’re using two coax cables (for MIMO), run both cleanly and avoid sharp bends
• Don’t coil excess cable near the antenna or booster
• Always ground your system according to local electrical codes

This antenna does not come with coaxial cable or adapters, so make sure your cable run matches the 4.3-10 connector type and 50-ohm impedance.
