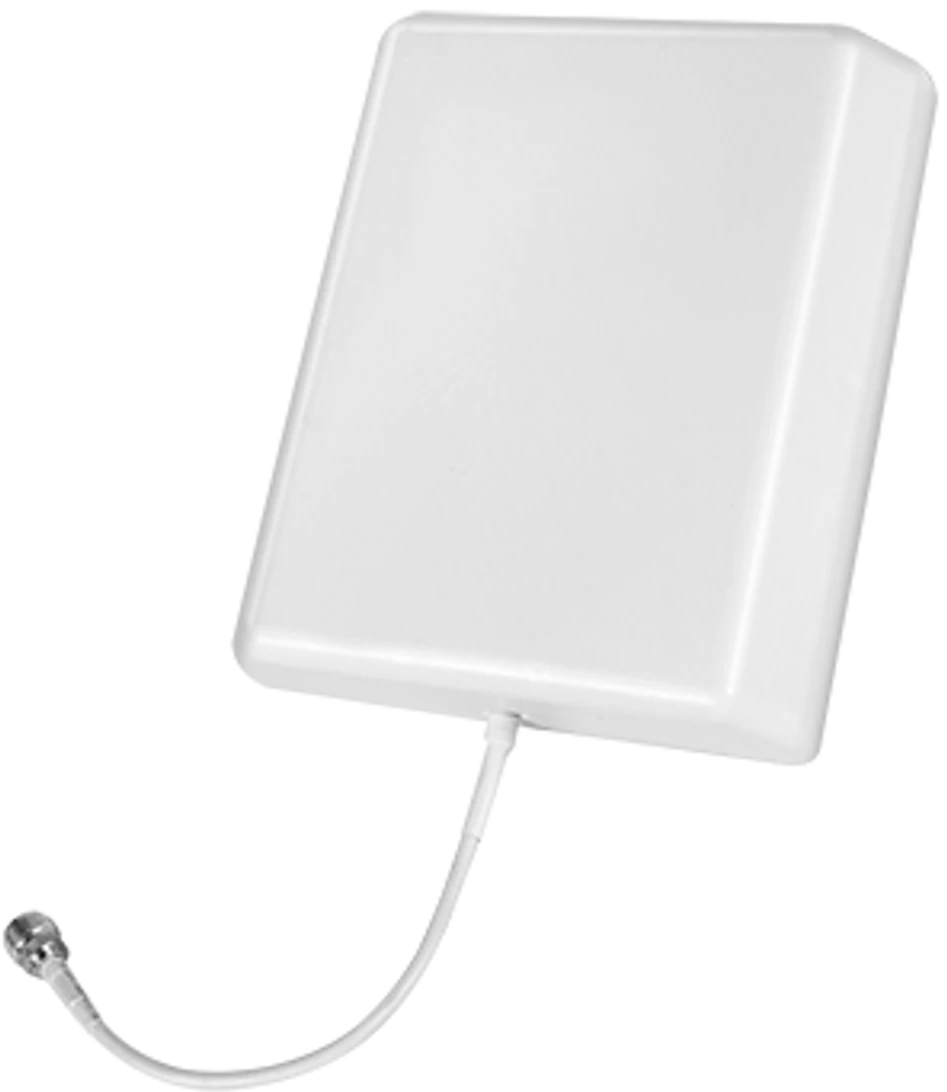

SureCall SC-548W Ultra-Wideband Panel Antenna (617-2700 MHz)


$74.99

90-Day Returns Free Shipping $100+ 3-Year Warranty

Overview

The Ultra-Wideband Wall-Mount Panel Antenna is designed for extensive indoor signal coverage, spanning frequencies from 617 to 2700 MHz. This high-gain antenna focuses on enhancing signal reception and transmission over 2G, 3G, 4G, and 5G networks, as well as WLAN systems. It's an ideal choice for boosting cellular, PCS, AWS, and LTE frequencies within indoor environments.

  • Gain: Offers maximum gains of 5.5, 6, and 8 dBi, ensuring robust signal enhancement across the covered frequency bands.
  • Beamwidth: Features a 120° beam width for targeted area coverage, making it highly effective in distributing signal directionally.
  • Connector: Equipped with an N-Female connector (50 Ω), suitable for connecting with a variety of signal boosters and accessories.
  • Installation: Includes necessary hardware for wall mounting, promoting a straightforward installation process. The antenna is mounted using a slide-on plate for easy and secure placement.
  • Compatibility: Perfectly pairs with all SureCall 2G-5G home and industrial in-building signal boosters. It connects to the booster using an SC-400 cable, which is sold separately.

This panel antenna is encased in a durable ABS material and designed to operate under a wide range of temperatures, from -22°F to +140°F, making it resilient in varying indoor climates. Its vertical polarization and directional radiation pattern ensure that the signal is broadcast effectively where it is most needed.

Product Documents

Specifications

  • SKU
    SC-548W
  • UPC
    854328008428
  • Condition
    New
  • Impedance
    50 ohm
  • Antenna Connector
    N-Female
  • Antenna Polarization
    Vertical
  • Antenna Beamwidth - Horizontal
    60 to 70 degrees
  • Antenna Coax Cable
    No Included
  • Antenna Ground Plane
    Built-In Ground Plane
  • Antenna Max Power
    50 watts
  • Antenna Mount
    Wall or Ceiling Mount Included
  • Antenna Signal Pattern
    Directional
  • Antenna VSWR
    ≤2.0/≤1.5
  • Material
    ABS Plastic
