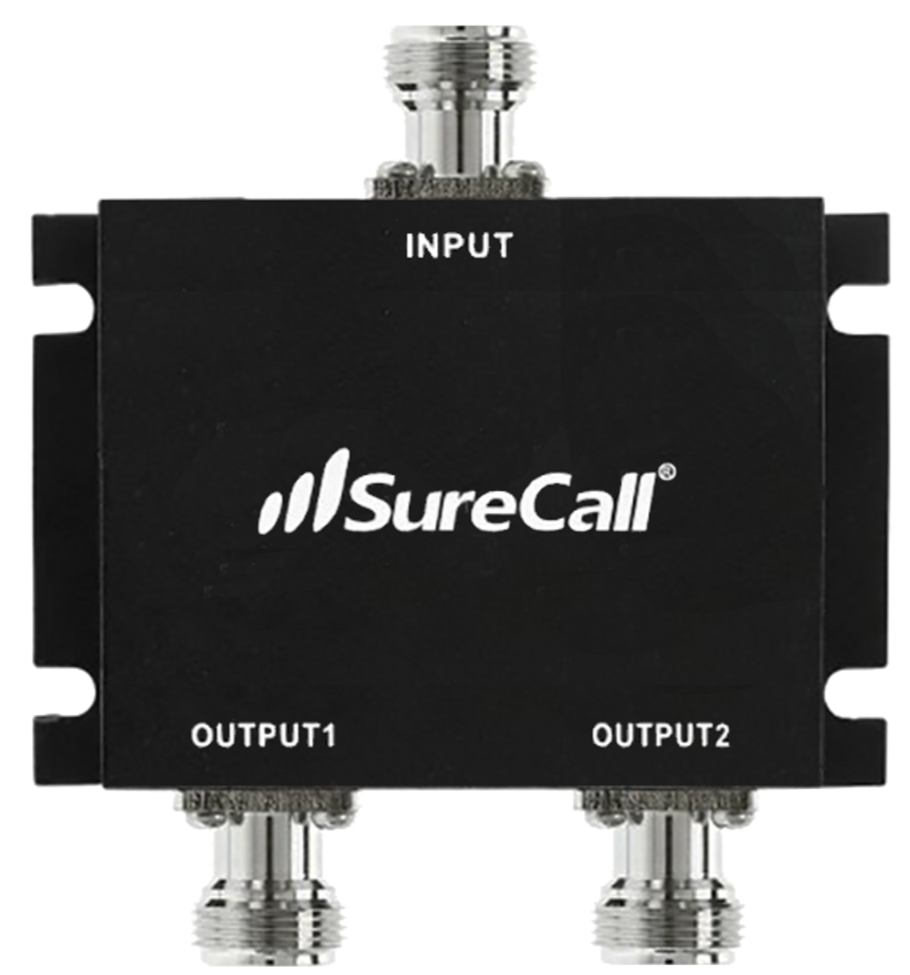

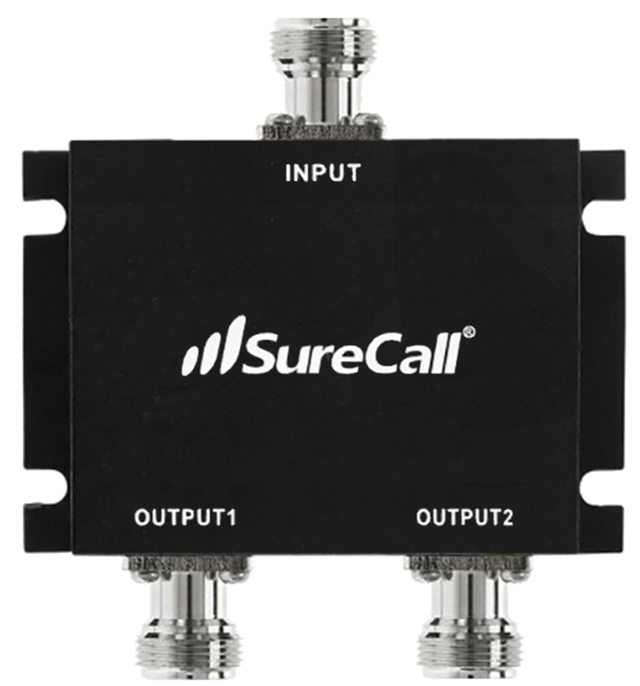

SureCall SC-WS-2-5G 50 Ohm Ultra-Wideband Two-Way Signal Splitter (617-2700 MHz)

The SureCall SC-WS-2-5G is a robust two-way signal splitter designed to operate across a frequency range of 600 MHz to 2700 MHz. This device is ideal for evenly splitting signal strength between two indoor antennas, supporting extensive applications in 2G, 3G, 4G, and 5G networks.

Key Features:

• Operating Frequency: 600 MHz to 2700 MHz, suitable for a wide range of cellular applications.
• Distribution Loss: 3.0 dB, efficiently splitting the signal with minimal loss.
• Insertion Loss: Less than or equal to 0.5 dB, ensuring minimal reduction in signal quality.
• SWR (Standing Wave Ratio): ≤1.25 : 1, indicative of efficient power transmission and reduced signal reflection.
• Isolation: Greater than or equal to 20 dB, maintaining clear separation between the split signals.

Technical Specifications:

• Impedance: 50 Ohms, ideal for standard RF communication systems.
• Power Capability: Can handle up to 50 Watts, suitable for high-power requirements.
• Connector: Features N-Female connectors for secure and reliable connections.
• Dimensions: Measures 3.78 inches by 3.47 inches by 0.83 inches (96 x 88 x 21 mm).
• Weight: Weighs 7.8 ounces, providing a light yet durable construction.
• Operating Temperature: Functional between -31°F and +140°F, capable of operating in diverse environmental conditions.

This two-way splitter is perfect for scenarios where a single amplifier needs to support multiple antennas, ensuring an even distribution of signal strength across different areas of a building or installation site.

• SC-WS Ultra Wide Band 5G Splitter Data Sheet.pdf
