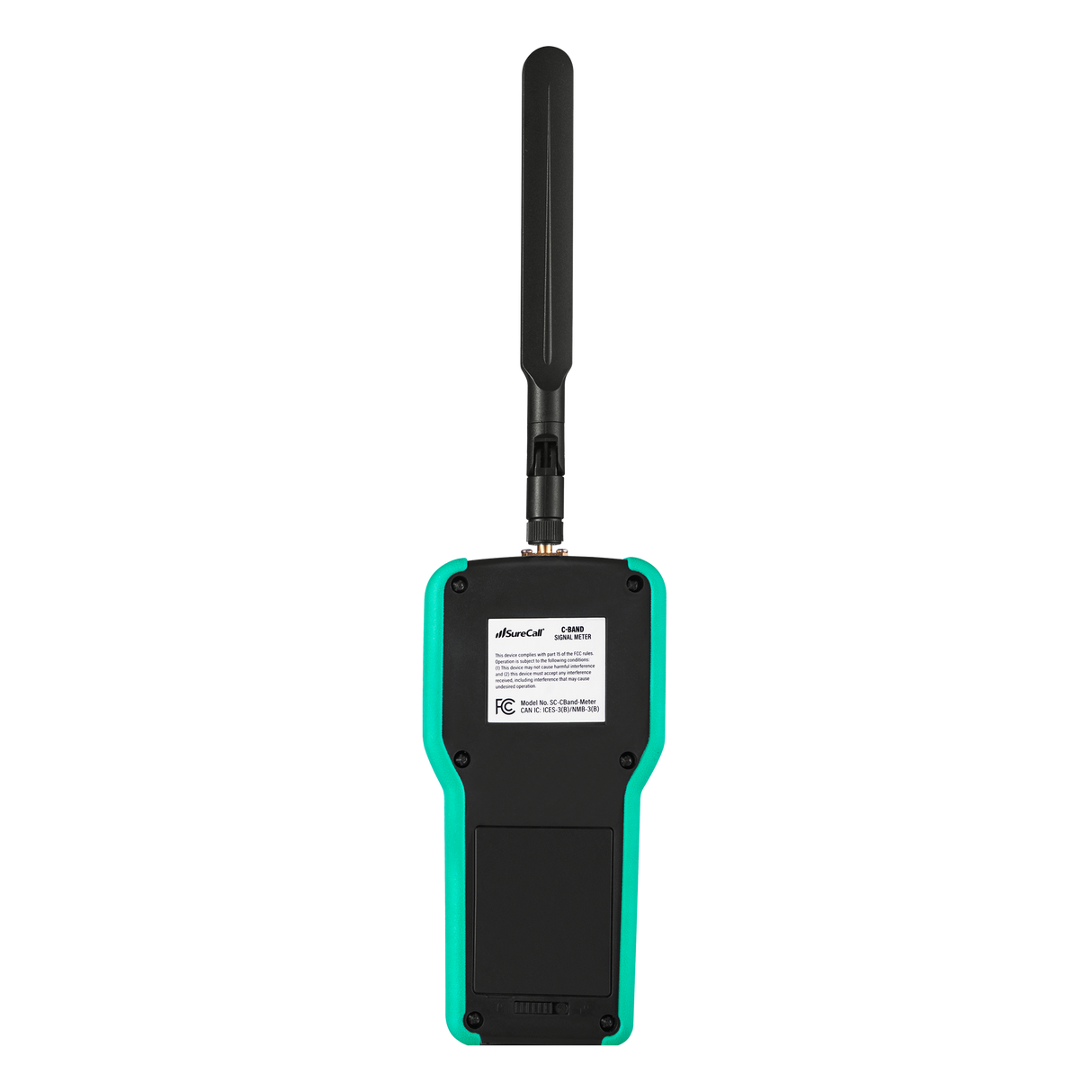

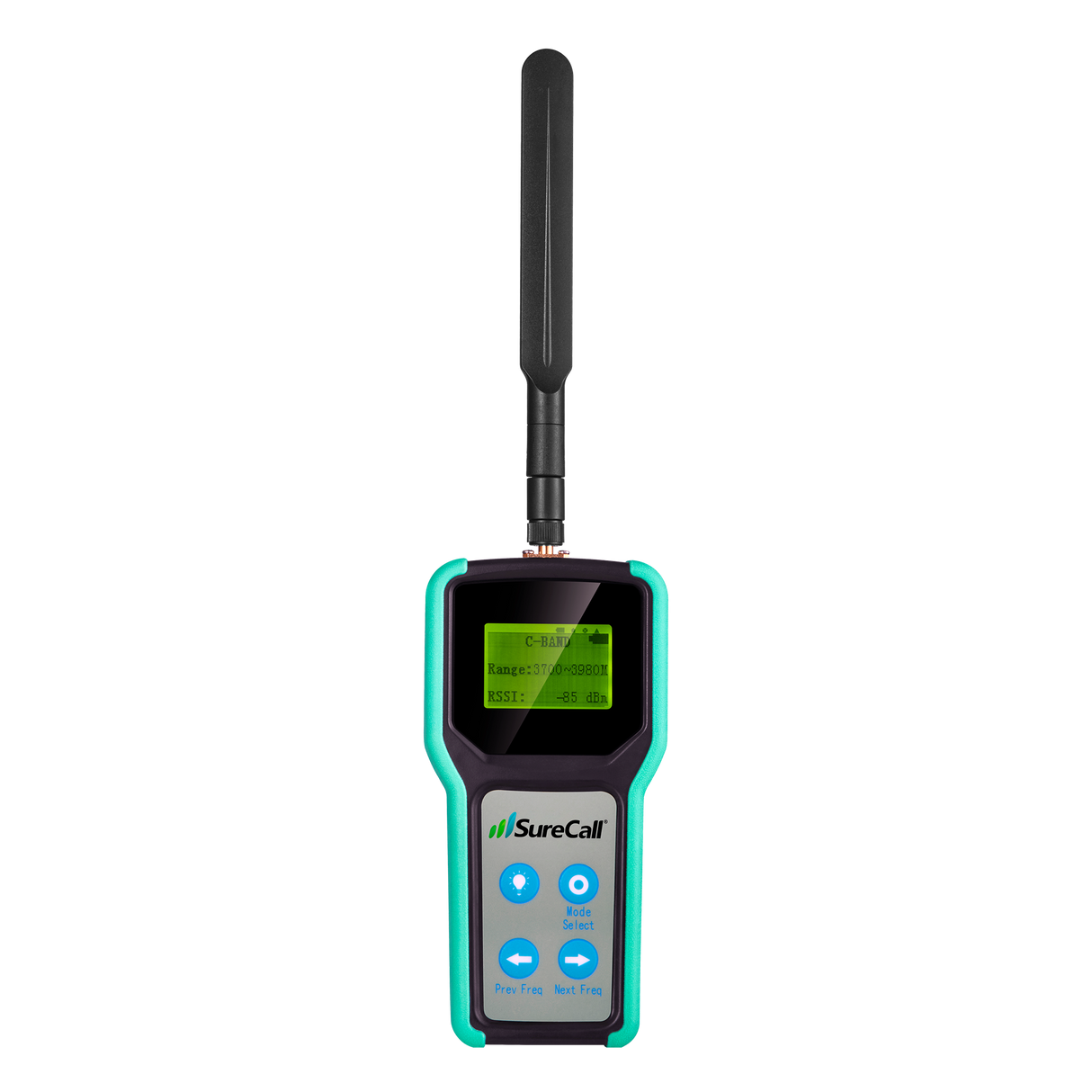

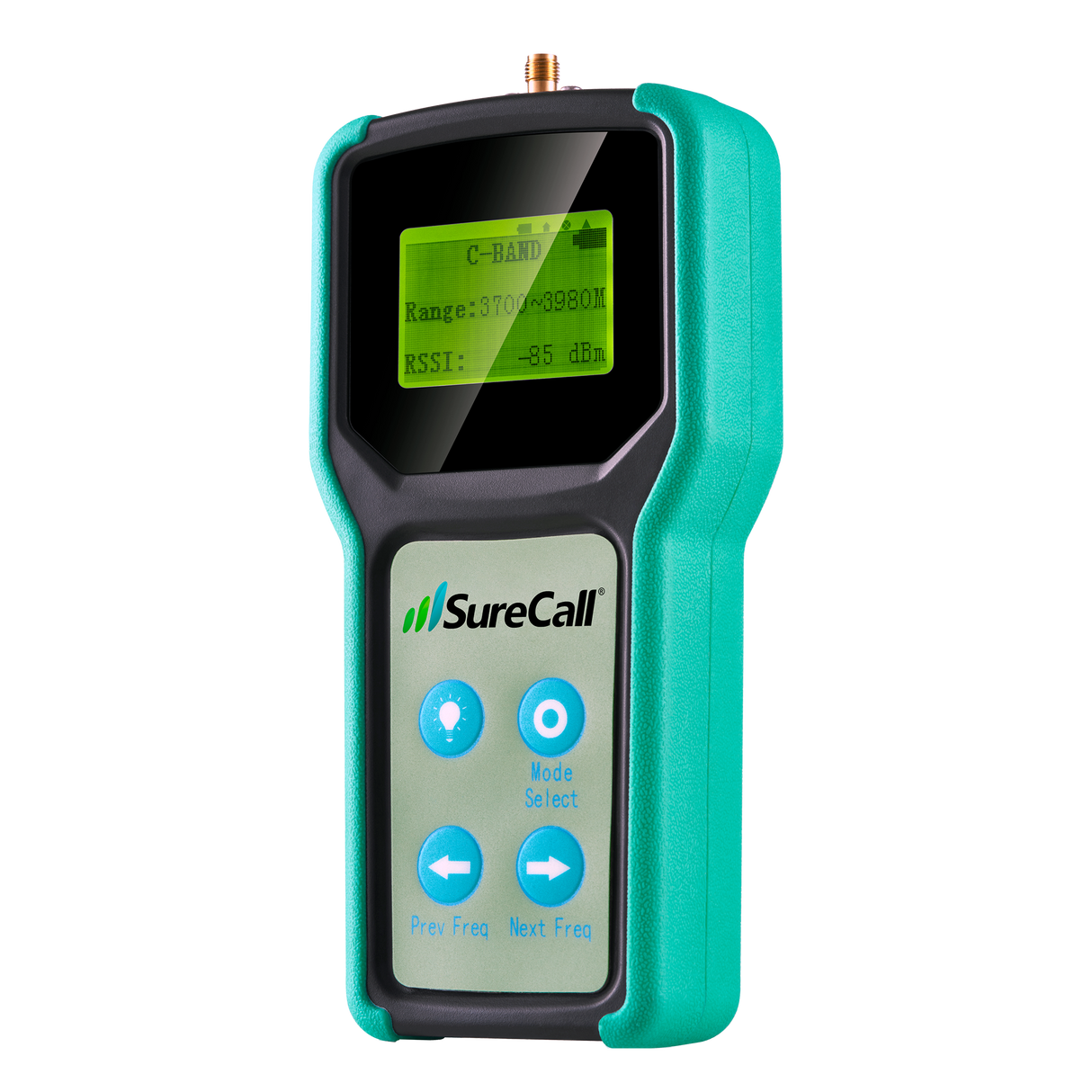

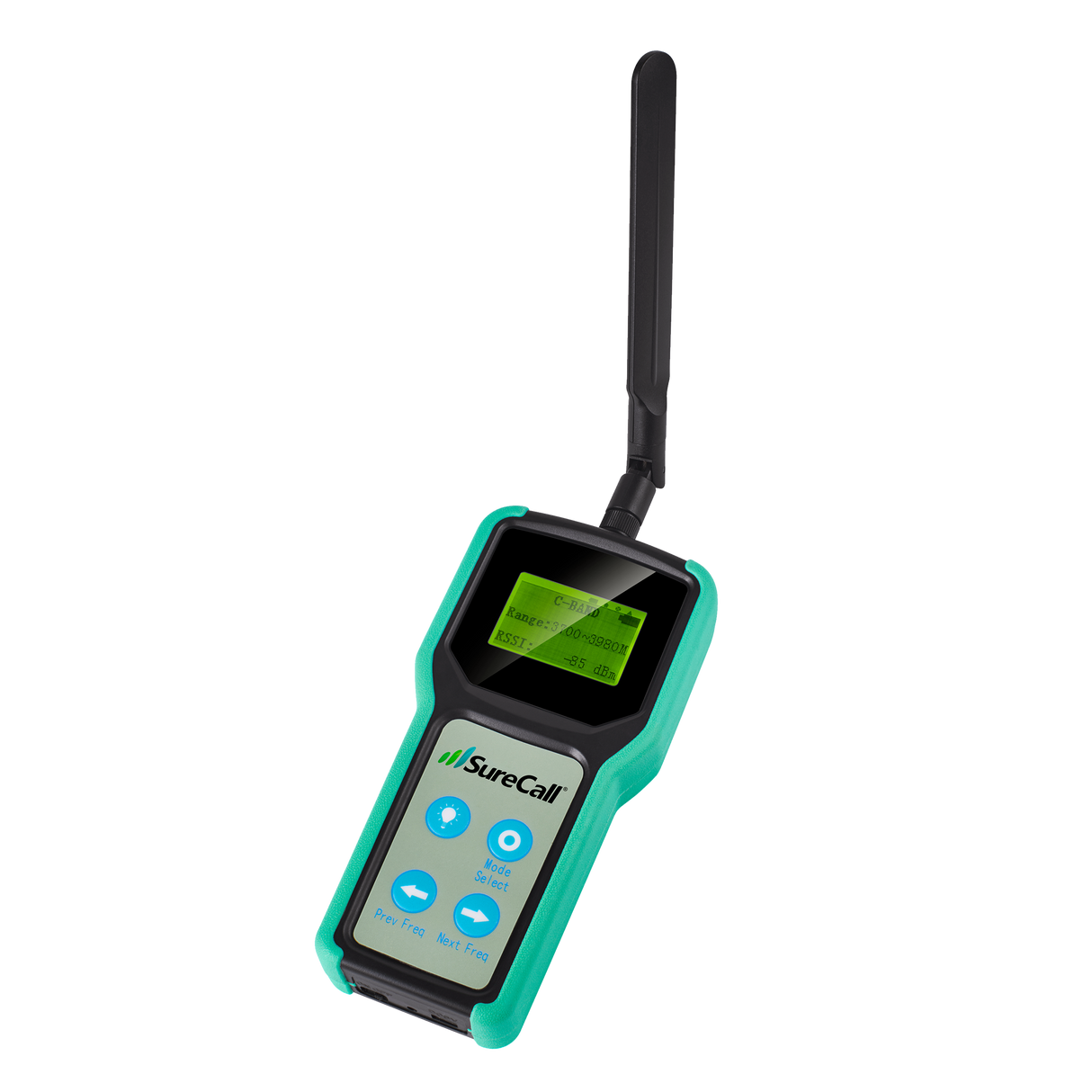

SureCall SignalFinder 5G C-Band Signal Meter

The SureCall SignalFinder 5G C-Band Signal Meter is an indispensable device for those setting up or fine-tuning a C-Band signal booster. It’s designed to measure signal quality and strength within the 3700-3980 MHz frequency range, helping users find the ideal spot and orientation for their donor antenna to achieve the best performance.

Main Features:

• Precise Signal Measurements: Reads both signal strength (RSSI) and signal quality (RSRP) for carriers such as Verizon, AT&T, and others operating on C-Band frequencies.
• Multiple Measurement Modes:
  • Mode I: Captures RSRP and RSSI for Verizon and AT&T.
  • Mode II: Allows users to select and analyze specific C-Band frequency blocks for a detailed signal check.
  • Mode III: Measures the RSSI across the entire C-Band frequency range from 3700 to 3980 MHz.
• Compact and Lightweight Design: Weighing just 7.3 oz, it offers up to 2 hours of continuous use on rechargeable AAA batteries.
• Antenna Connection Capability: Equipped with several adapters and cables, it easily connects to donor antennas to assist in finding the optimal installation point.

What’s Included:

• C-Band Signal Meter
• Flat right-angle antenna with SMA-Male connector
• Adapter cables including SMA-Male to N-Male, N-Female to F-Male, and N-Female to 4.3-10 connectors
• AC power adapter
• Rechargeable AAA batteries

Technical Specifications:

• Frequency Range: 3700-3980 MHz
• Receive Sensitivity: -95 dBm
• Power Source: Four AAA NiMH rechargeable batteries or 110V AC power adapter
• Dimensions: 6.3 x 3.3 x 1.3 inches

The SureCall SignalFinder simplifies the process of finding the best placement for your C-Band signal booster, ensuring maximum signal coverage and reliable performance.
