SureCall SpeedLink 5G C-Band MIMO Signal Booster

Product Highlights

• Verizon-approved C-Band Booster: Certified for immediate use on Verizon’s 5G Ultra Wideband (UWB) network
• Supports 5G Speeds up to 1 Gbps: Delivers ultra-fast data through high-performance 2x2 MIMO system
• Wide C-Band Spectrum Compatibility: Operates from 3.7 to 3.84 GHz with future-ready support for broader C-band use
• Remote Management with SureCall Cloud: Monitor and manage booster performance through cloud-based IoT tools
• Bluetooth Setup with Real-Time Readings: Use the SureCall mobile app to optimize placement and verify signal quality on-site
• Flexible, Scalable Coverage: Provides up to 100,000 square feet of coverage depending on signal strength
• No Fiber Required: Installs without fiber backhaul, making deployment faster and more cost-effective

Top Benefits

• Fills 5G Coverage Gaps Indoors: Overcomes structural interference and delivers reliable 5G where users need it most
• Maximizes Network Capacity: Supports high device density with strong signal quality and continuous uptime
• Simplifies Installation: Quick setup with clear performance feedback and minimal infrastructure changes
• Future-Proofs the Building: Expandable to support other carriers like AT&T with the proper agreement
• US-Based Reliability and Support: Backed by a 3-year warranty and SureCall’s American design and tech service team



The SureCall SpeedLink 5G C-Band includes:

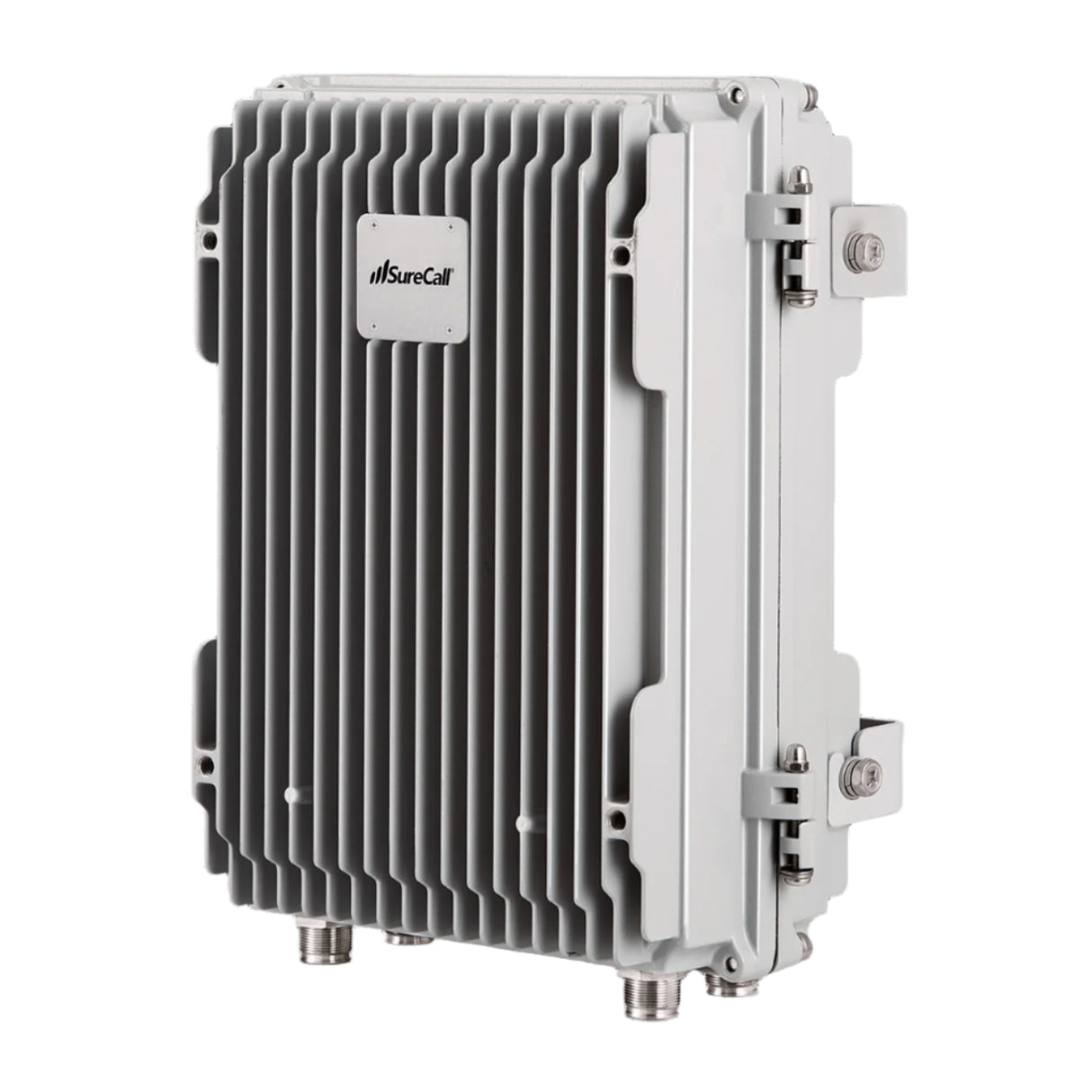

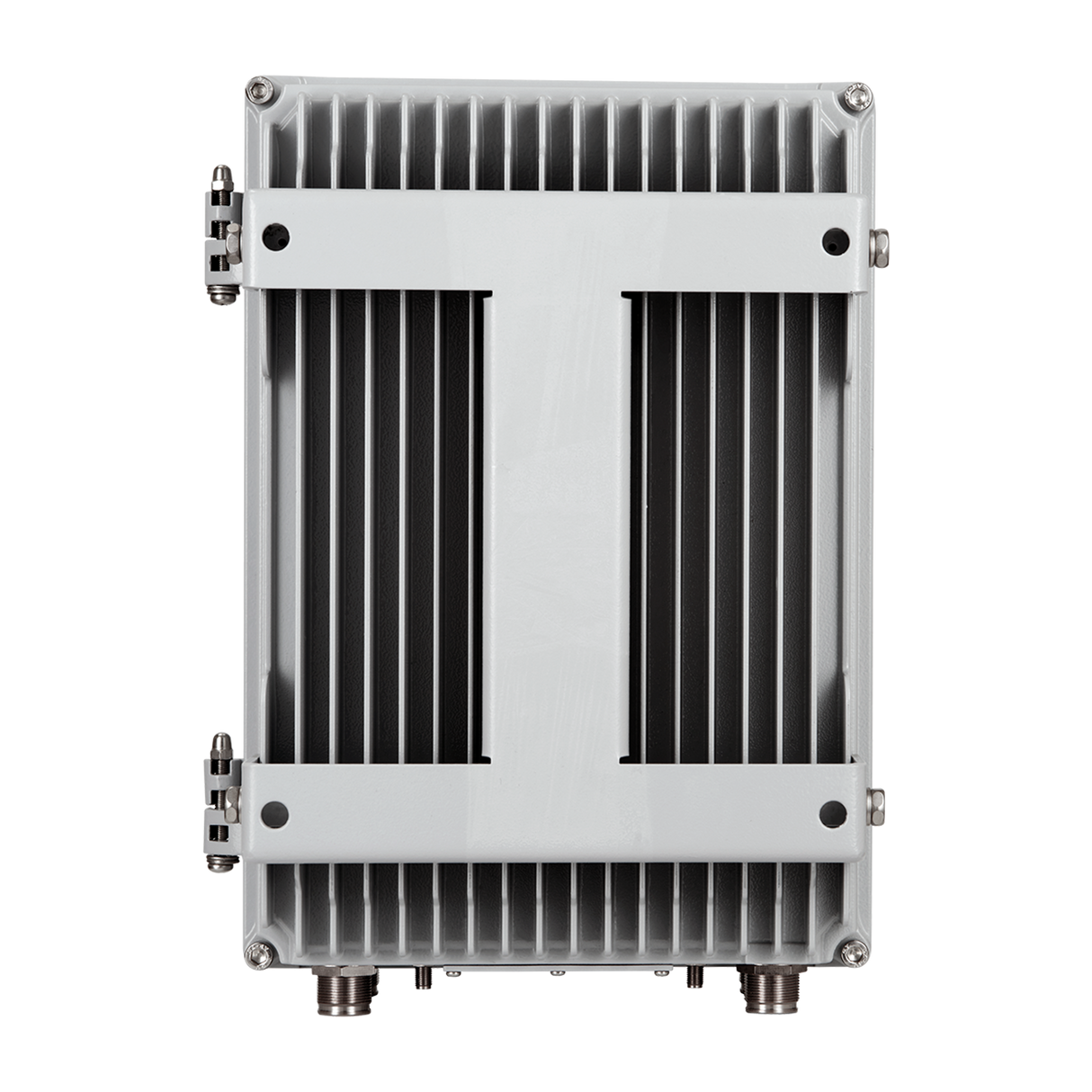

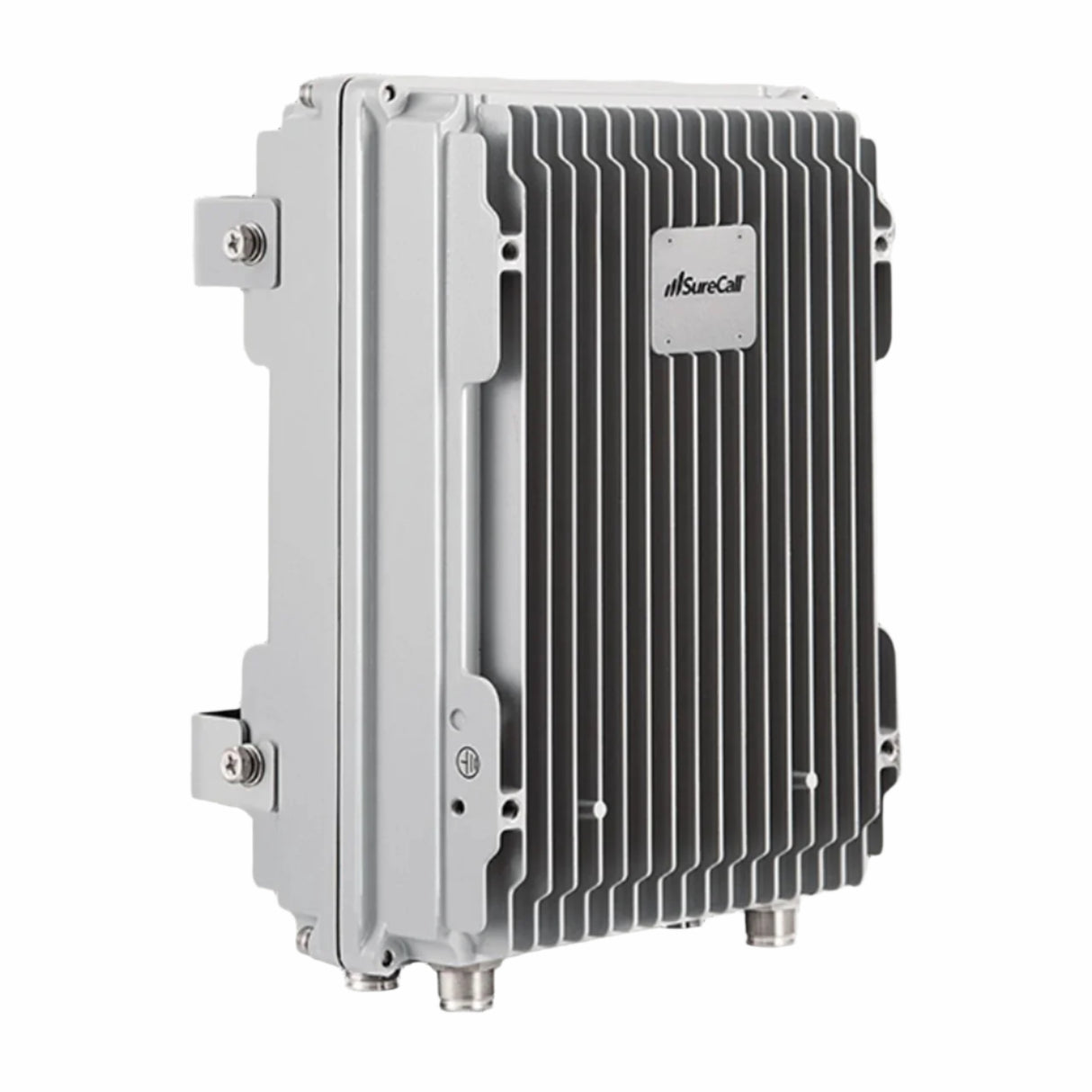

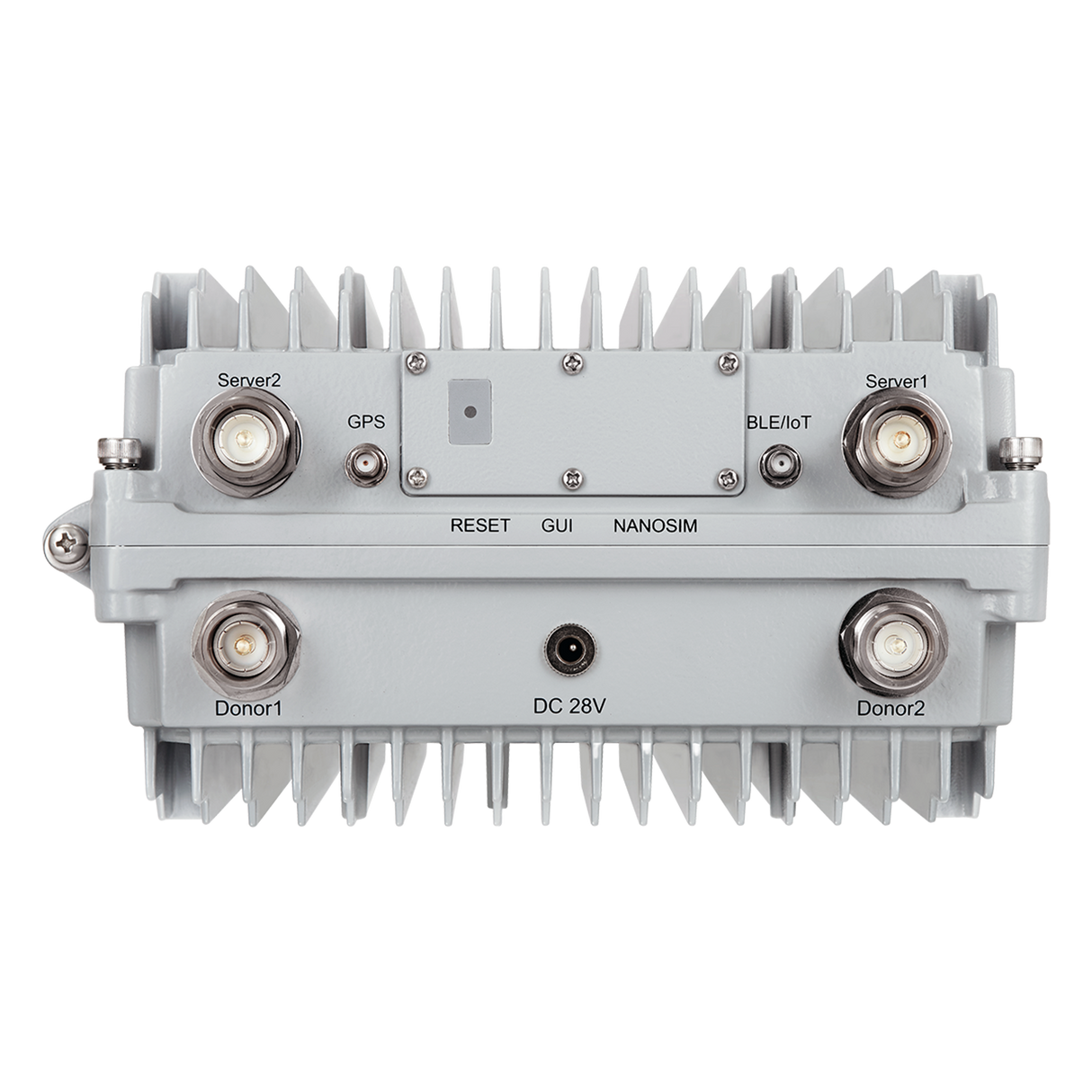

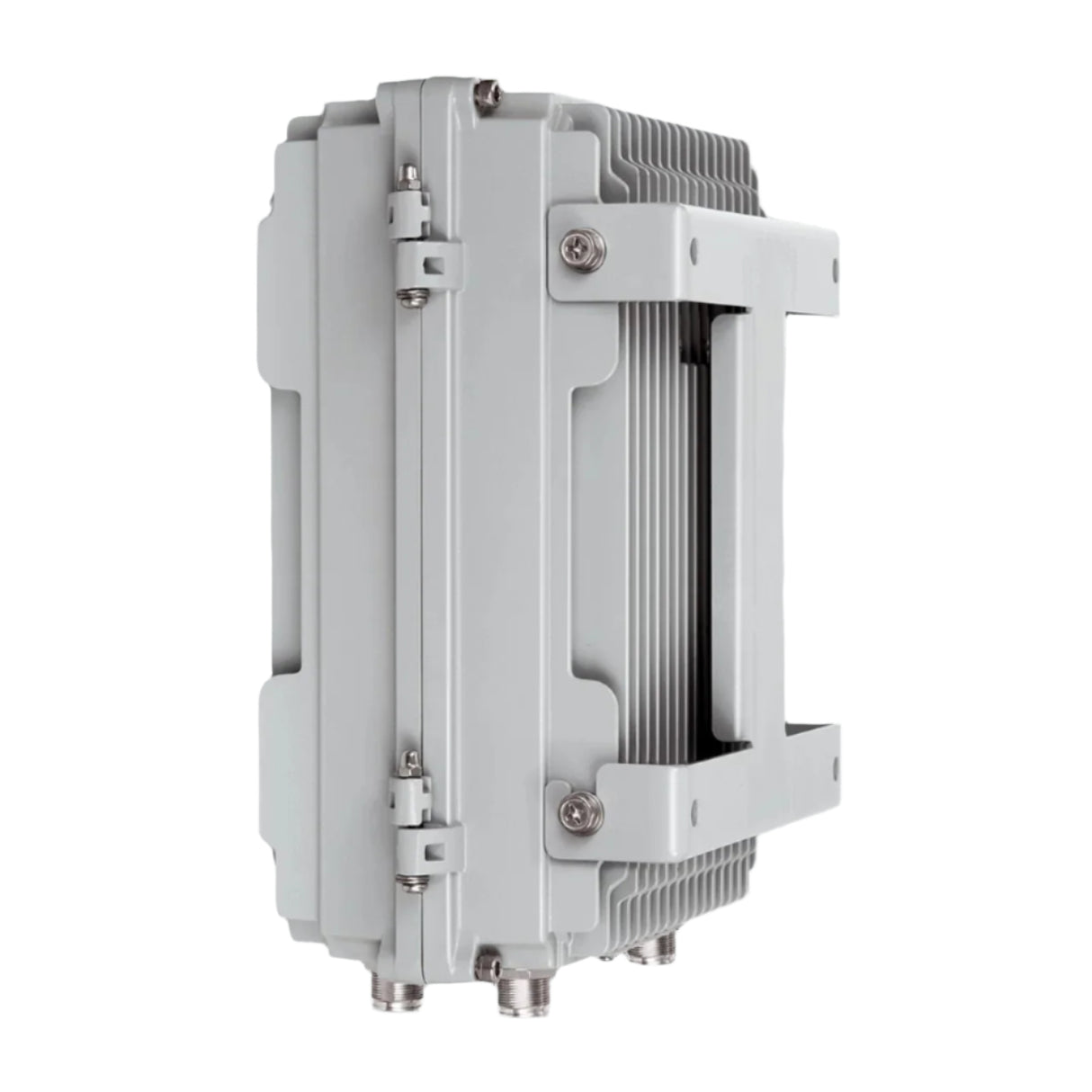

• SureCall SpeedLink 5G Booster Unit

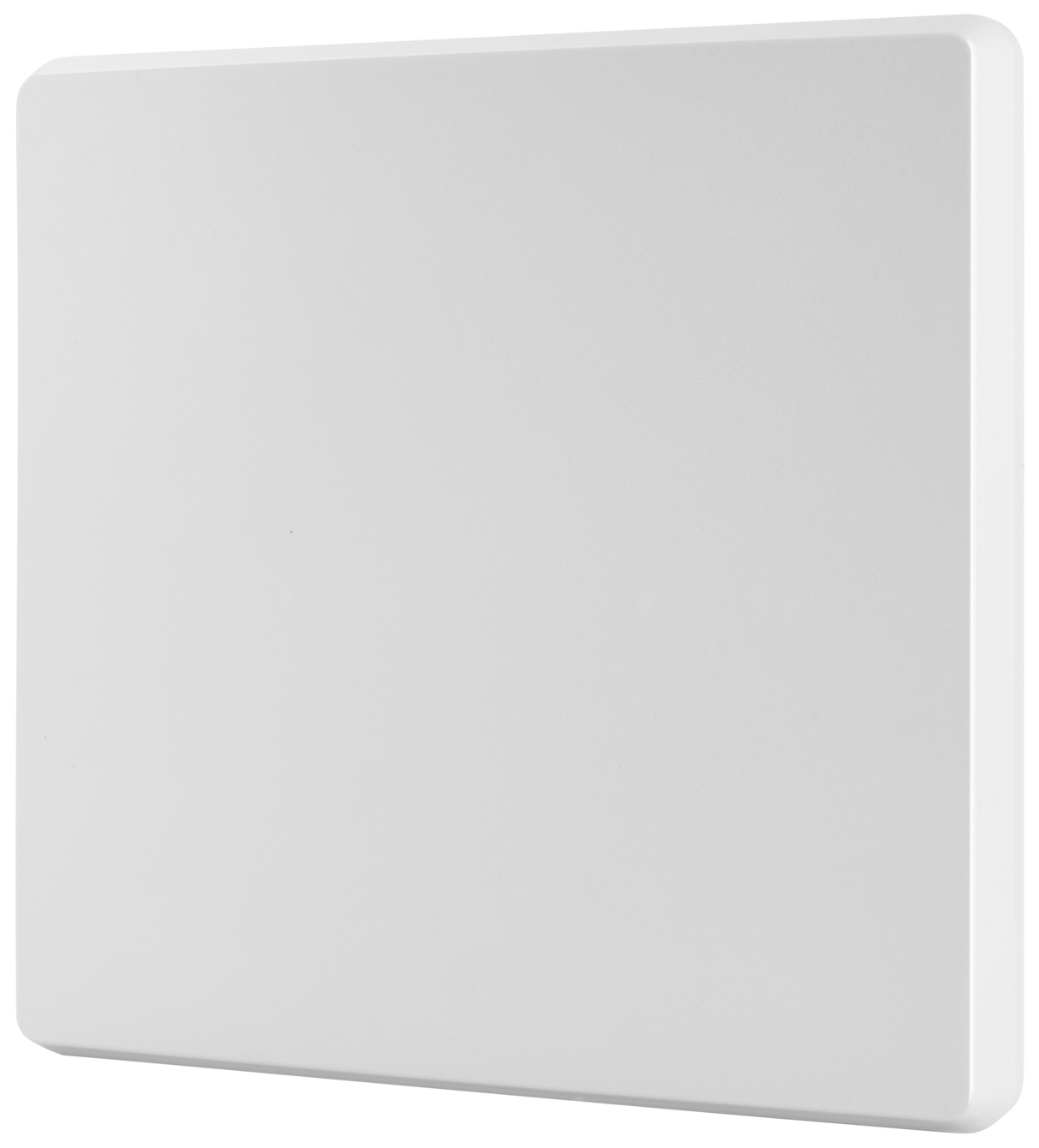

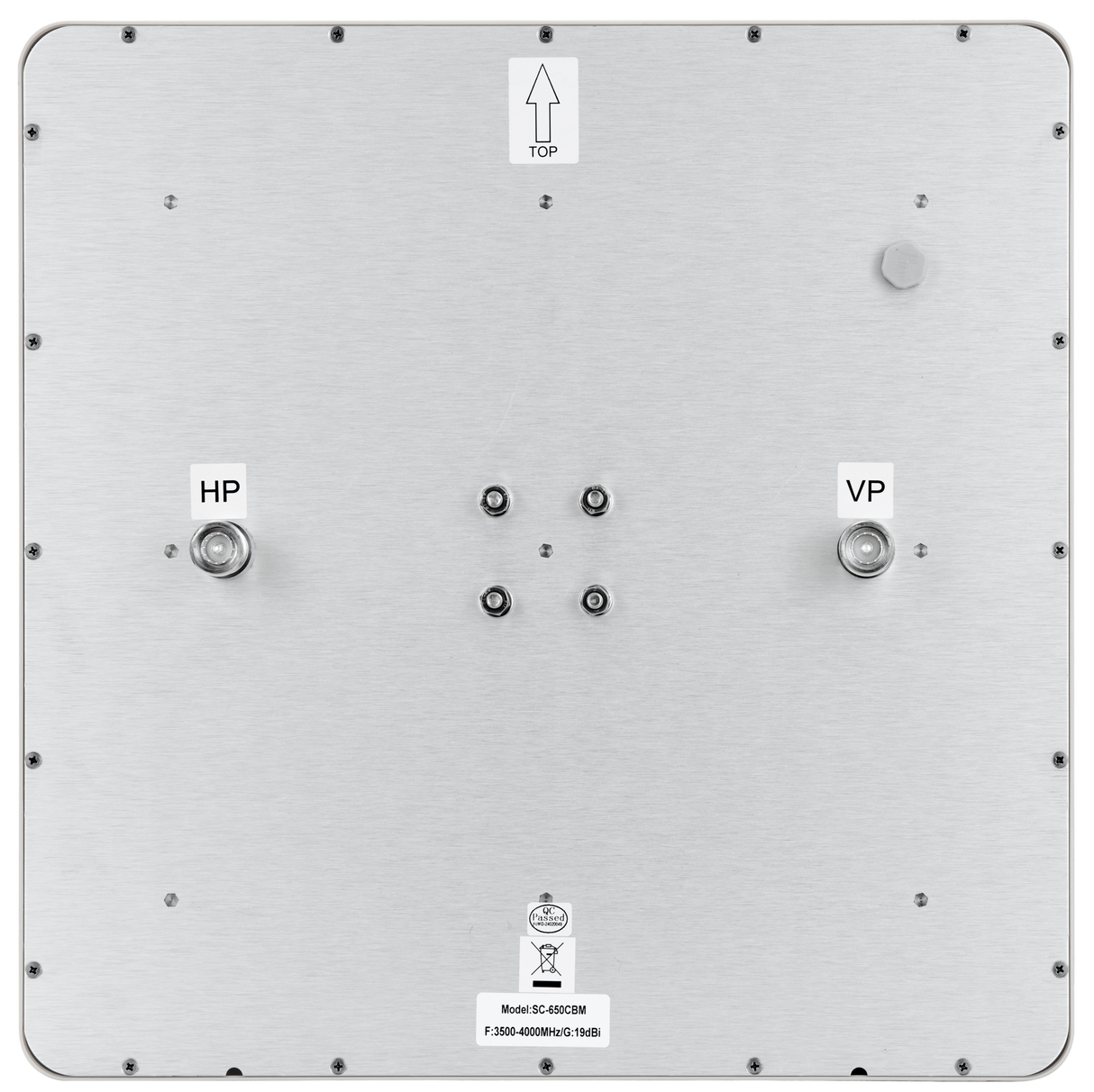

• One Exterior MIMO Panel Antenna

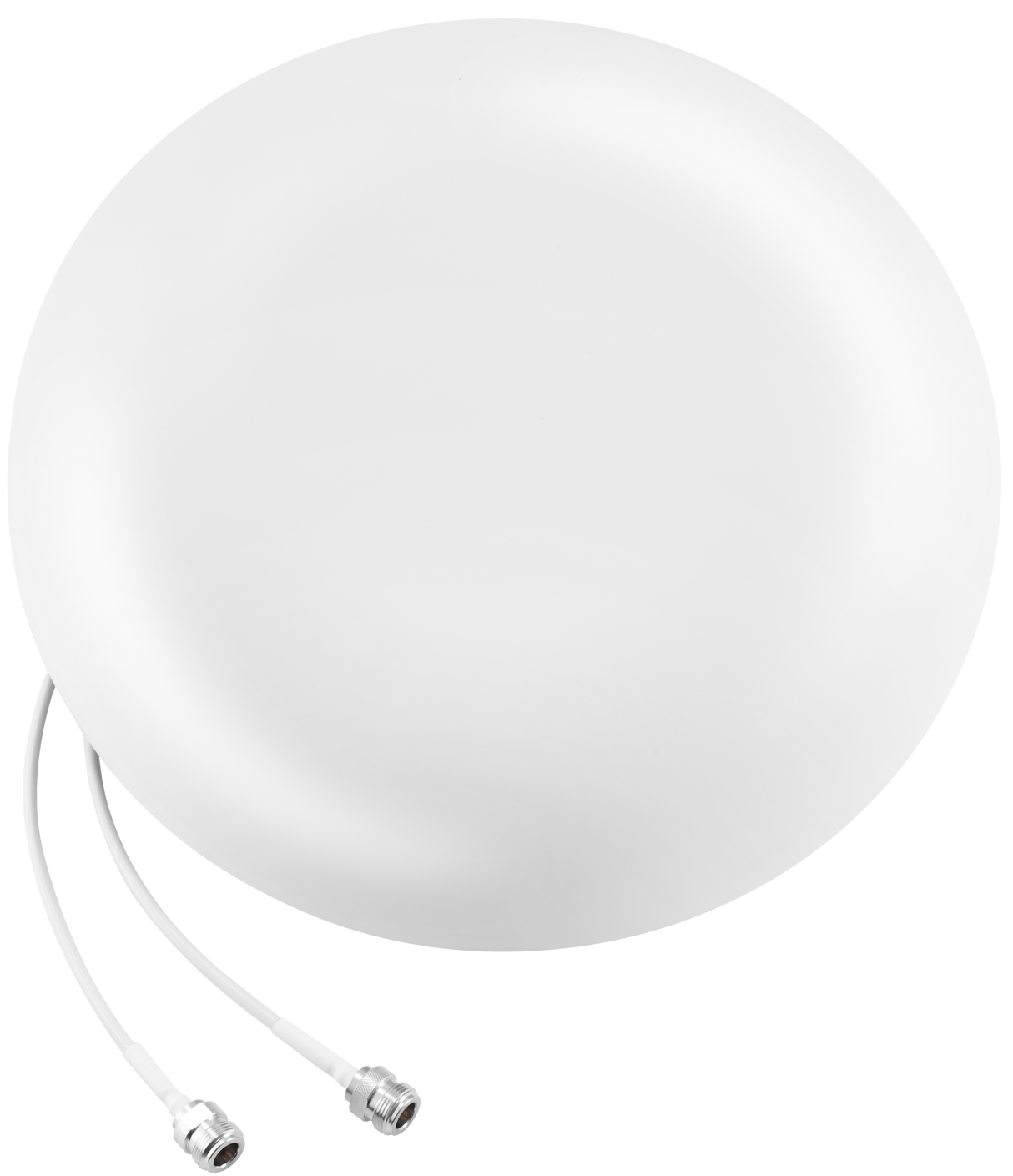

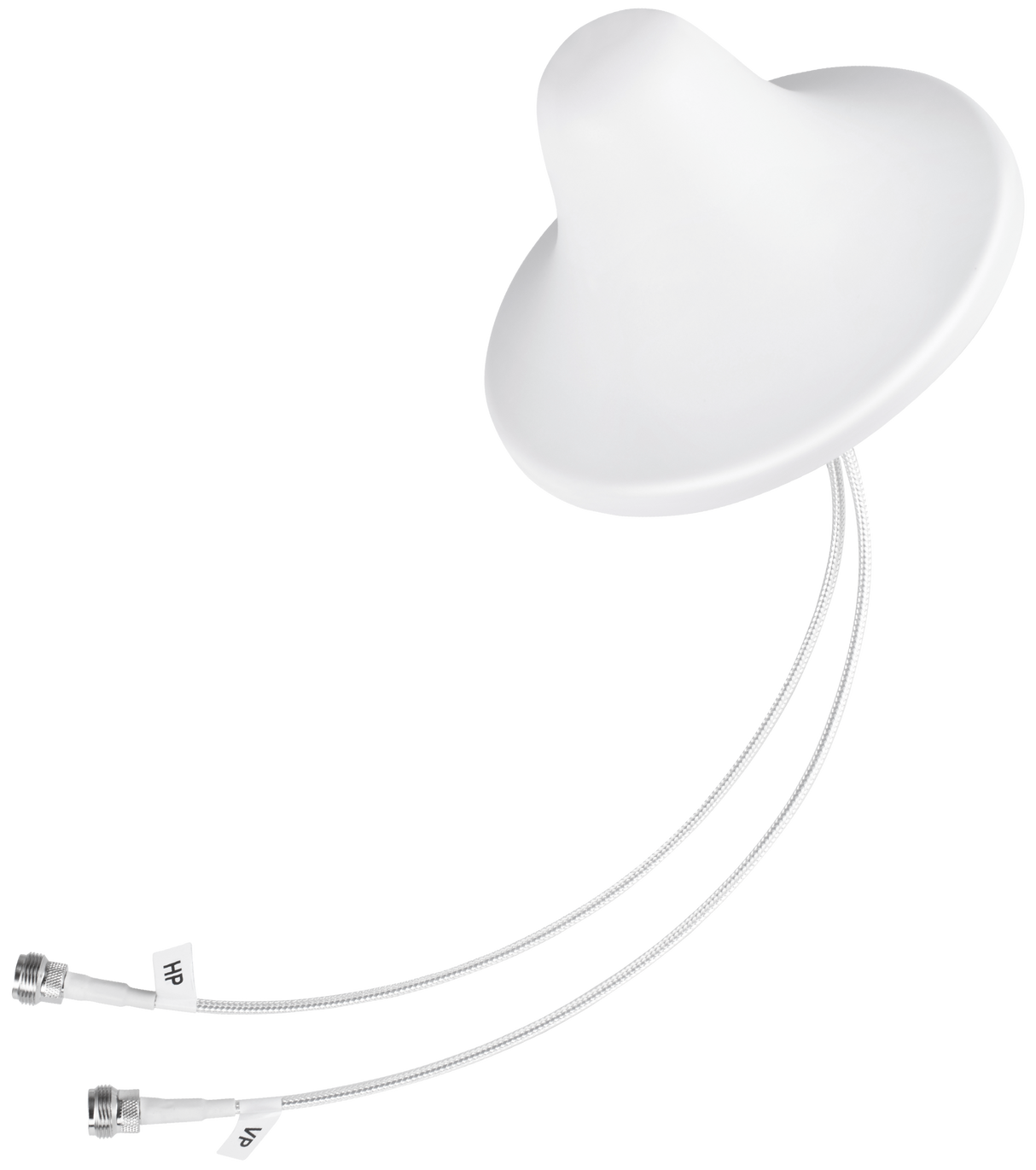

• Four Interior MIMO Ceiling Antennas
• Four C-Band 4.3-10 Male Connector for SC-400 Cable
• Verizon SIM Card (pre-installed)
• Three Years of IoT Remote Monitoring Service via SureCall Cloud


Please note: Installation cables, connectors, and mounting poles for the donor antenna are not included and must be sourced separately.

The strength of your existing outside signal, measured where you plan to mount the outside antenna, has a direct impact on the amount of inside coverage you'll get from a signal booster. The table below provides general estimates based on signal strength:

• Strong (5 Bars): Coverage up to 100,000 square feet
• Medium (3–4 Bars): Up to 37,500 square feet
• Weak (1–2 Bars): Up to 10,000 square feet
• None (0 Bars): No coverage

Please note: Many factors impact the size of the inside coverage area, so actual results may vary from these estimates.

Supported Carriers and Technologies

• Supported Devices: All 5G-compatible phones, hotspots, and connected devices using C-band
• Supported Networks: 5G Ultra Wideband (Verizon), with potential AT&T support if a retransmission agreement is secured
• Frequencies Boosted: 3.7 to 3.84 GHz (C-Band spectrum)
• Carriers: Verizon is fully approved for use. AT&T support is available with proper authorization. The system is designed to support broader C-band use in the future.



Optional Wideband Upgrade

For deployments that require additional carrier support or extended frequency range, the SpeedLink 5G system can be upgraded to boost the wider C-band spectrum. This upgrade provides a pathway to cover multiple carriers and future 5G services as they become available. AT&T compatibility can be activated through a retransmission agreement, making it possible to expand service without replacing hardware. Contact us for more information regarding the Optional WideBand Upgrade.

Please note: This booster may not work in most countries in Europe, Asia, or Africa, as cellular networks in those regions often use different frequency bands.

The SureCall SpeedLink 5G C-Band Signal Booster is designed for fast, flexible installation in large indoor environments. It does not require fiber backhaul, which helps reduce installation time and cost. The system can be deployed in office buildings, hospitals, hotels, warehouses, and other commercial or enterprise settings. Installers can complete setup using existing cable runs (with compatible coax) and standard mounting hardware.

The booster kit includes everything needed to cover up to 50,000 square feet. Additional units or system tuning can expand that coverage up to 100,000 square feet in buildings with strong outdoor signal. The included exterior MIMO panel antenna captures the 5G signal from outside, while four interior MIMO ceiling antennas distribute coverage throughout the indoor space.

To assist with proper placement and tuning, installers can use the SureCall mobile app. It provides real-time signal feedback, helping identify the best antenna locations and confirm system performance during setup. After installation, the SureCall Cloud platform enables remote monitoring, status checks, and diagnostics from anywhere.

Installation Tips

• Choose a strong signal location for the exterior antenna: Mount the panel antenna where the 5G UWB signal is strongest, typically on the roof or an exterior wall.
• Maximize antenna separation: Maintain vertical and horizontal distance between the outdoor and indoor antennas to prevent feedback or oscillation.
• Plan cable routing before install: Ensure clean, protected pathways for coaxial cable runs, especially in drop ceilings or through wall penetrations.
• Use the SureCall app during setup: Real-time readings help fine-tune antenna aim and ensure the system is operating at peak performance.

Secure all connections: Confirm tight, weather-protected connections at each cable junction to ensure long-term reliability.

Every SureCall SpeedLink system includes built-in support for remote monitoring through the SureCall Cloud platform. This cloud-based interface gives installers, IT teams, and building managers the ability to check system status, view historical performance, and make configuration changes without needing to be on-site.

Each booster also includes a Bluetooth IoT antenna and comes with three years of SureCall Cloud service at no additional cost. Activation is completed before shipment, so setup is straightforward once the unit is installed.

The SureCall Cloud platform allows you to:

• Monitor uplink and downlink power levels
• Check antenna separation and alignment
• Review signal quality and booster gain over time
• Receive alerts for alarms or performance issues
• Manage multiple devices under one account

In addition to the web portal, the free SureCall App (available on iOS and Android) helps with antenna aiming, signal strength visualization, and initial setup during installation. The app also verifies antenna separation and helps fine-tune performance before finalizing placement.

Remote management saves time, reduces truck rolls, and ensures that the booster continues operating at peak performance well after installation is complete.
