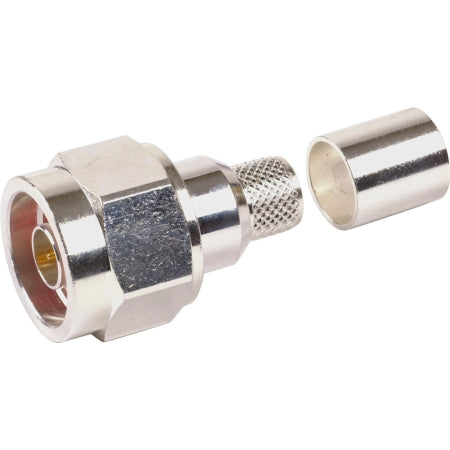

TerraWave Captivated N-Female Crimp-On Connector for 400 Series Cable (CON-06-400-CP)

The TerraWave Captivated N-Female Crimp-On Connector is specifically designed for use with 400 series cable, offering robust performance and a reliable connection. This connector is ideal for applications requiring high-frequency transmission up to 11 GHz.

Key Features:

• RF Connector Type: N Female, ensuring compatibility with devices that require N-type connections.
• Impedance: 50 Ohms, standard for RF applications, providing minimal signal reflection.
• Body Style: Straight connector, designed for easy installation in limited spaces.
• Body Material: Silver plated brass, offering excellent conductivity and resistance to corrosion.
• Center Pin Type: Captivated, ensuring a secure and stable connection.
• Frequency Range: Operates effectively across a broad spectrum from 0 to 11 GHz.

Technical Specifications:

• Insulator Material: PTFE, known for its high resistance to heat and chemical inertness.
• Material (Pin): Beryllium copper gold, providing superior resilience and conductivity.
• Maximum Voltage/Power: Can handle up to 1500V, suitable for high-power applications.
• Crimp Tool Required: Model 316485, ensuring proper installation and secure crimping.

Installation Details:

• Strip Insulation to End: 4.5 mm
• Strip Jacket to End: 17.0 mm
• Strip Shield to End: 12.5 mm
• Installation Tools: Use tools 392320 for the initial step and 313429 for the final step of the installation process.

This connector is an excellent choice for professionals seeking a reliable and durable solution for high-frequency data transmission in complex RF systems.
