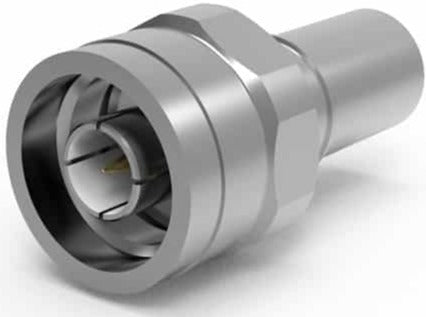

Times Microwave EZ-400 N-Male Connector for Plenum-Rated LMR-400 Cable
Product Info
Product Info
The Type N male (plug), straight, EZ style connector is specifically designed for FBT-400 and LMR®-400-LLPX® type cables, offering an efficient and secure connection. Its standout feature is the crimp-style outer contacts and spring finger inner contacts which simplify the assembly process by eliminating the need for soldering, thus reducing potential assembly errors.
This connector also benefits from a no-braid trim design, which not only prevents foreign object debris but also ensures optimal and consistent termination every time. The beryllium copper (BeCu) pins enhance this by maximizing surface contact, reducing current density, and providing a strong spring force. This makes the EZ-400-NMH-PL-X an excellent choice for environments experiencing extreme cold or high vibrations, where there is a risk of the center conductor contracting.
With its robust, weatherproof build, the Type N connector excels in systems requiring superior RF and mechanical performance. It includes a threaded coupling mechanism for secure connections and meets the MIL-C-39012 specification, ensuring full interchangeability with other N-Type connectors.
Technical Specifications:
- Max Frequency: 6 GHz
- VSWR (Voltage Standing Wave Ratio) at Frequency: <1.30:1 at 2.5 GHz
- Coupling Nut: Hex/Knurl
- Inner Contact Attach: Spring Finger
- Outer Contact Attach: Crimp
- Body Finish: Alballoy
