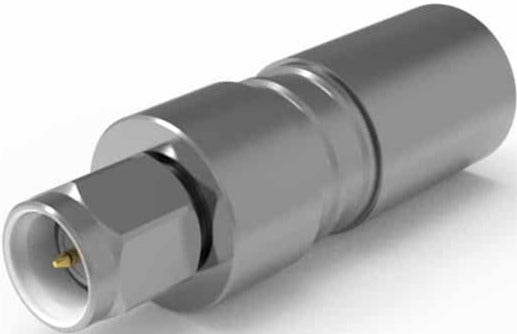

Times Microwave SMA Male Crimp Connector for LMR-400 Cable | TC-400-SM-X [Discontinued]

Enhance your RF connections with the SMA, male (plug), straight, TC style connector, designed specifically for use with FBT-400, TCOM®-400, LMR®-400, and T-RAD®-400-FR cables. The TC-400-SM-X is an excellent option for stranded center conductors, featuring a solder-pin connector for reliable installation.

Product Specifications:

• Part Number: TC-400-SM-X
• Interface: SMA
• Gender: Male (plug)
• Orientation: Straight
• Impedance: 50 ohms
• Maximum Frequency: 8 GHz
• VSWR: <1.25:1 at 8 GHz
• Connection Type: Inner contact attach via solder, outer contact attach via crimp
• Body Finish: Nickel
• Pin Finish: Gold
• Dimensions: 29 mm (1.2 in) length, 12.7 mm (0.5 in) width
• Weight: 14.5 grams (0.032 lb)

SMA connectors are known for their lightweight, compact size, and high-performance capabilities, featuring a threaded coupling for secure connections. This connector ensures a robust and durable link, ideal for various applications requiring high-frequency support and reliable signal integrity.
