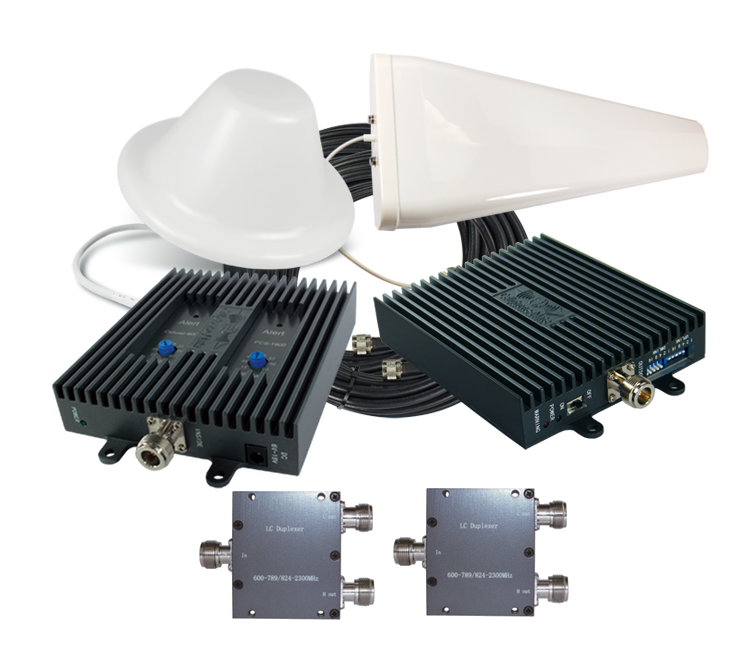

Tri-Band Repeater Kit for 3G & Verizon 4G LTE [Discontinued]

SKU: 5093916

Product Info

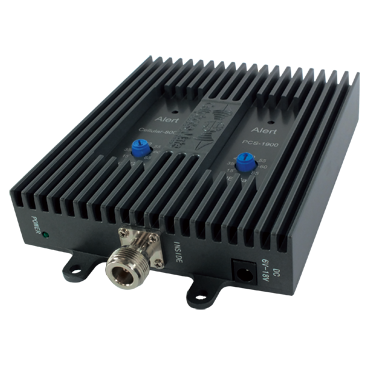

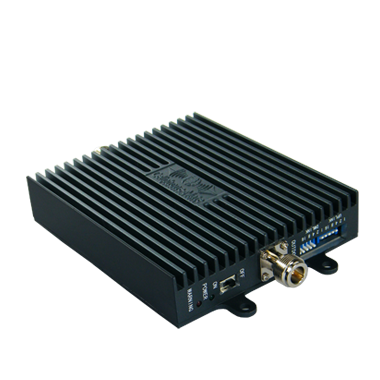

A Newer Kit Is Available!Our New Tri-Flex kits are available that can boost the dual-band frequencies plus Verizon 4G LTE in a single amplifier. Check out the SureCall Tri-Flex-V Kit for 3G & Verizon 4G LTE (CM-TRIFLEX-V-KIT).   The Tri-Band Repeater Kit for 3G & Verizon 4G LTE features a powerful dual-band amplifier that can cover most carrier's 2G and 3G networks combined with a 4G LTE amplifier for boosting the Verizon Wireless 4G LTE network.  Until now, most signal boosters were either dual-band and only boosted 3G and earlier signals or they were LTE specific and only boosted the LTE signal, which is only used for data and not voice calls. This system combines the two and boosts both the dual-band and Verizon LTE frequencies giving you crystal clear phone calls with blazing fast 4G LTE data speeds. This kit features a 65 dB dual-band amplifier and a 70 dB 4G LTE amplifier.  With a strong outside signal, the dual-band amplifier will cover up to 7,500 sq ft while the LTE signal will cover up to 10,000 sq ft.  You can control the gain of each individual frequency allowing the installer to fine tune the system to ensure maximum coverage without any interference. Kit Includes: 1 x CM‐EFLEX‐65 EFlex Pro 65dB Wireless Dual Band Amplifier 1 x CM700V 70dB Verizon 4G LTE Amplifier 1 x CM230W Full Band Yagi Outside Antenna 1 x CM222W Full Band Dome Inside Antenna 1 x CM001‐75 75 ft. CM400 Ultra Low Loss Coax Cable 1 x CM001-30 30 ft. CM400 Ultra Low Loss Coax Cable 4 x CM001-02 2 ft. CM400 Ultra Low Loss Coax Cable 2 x CMDPLX‐01 SureCall Wide-Band Diplexer  Installation To install, start by mounting the yagi antenna as high as possible in a location that receives the best signal and where it won't shoot over the building when aimed at the tower. The Yagi antenna includes hardware for mounting the antenna to a pole of up to 2 in. in diameter. Run one of the coax cables from the antenna, into the building, and connect it to one of the diplexers. Connect a 2 ft. cable to each output port of the diplexer. To the LOW side of the diplexer, attach the Outside Antenna port of the CM700V LTE amplifier. To the HIGH side of the diplexer, attach the Outside Antenna port of the EFlex-65 dual-band amplifier. To the Inside Antenna ports of each amplifier, attach 2 ft. cables, and then connect them to the corresponding ports of the second diplexer (LTE to LOW, Dual-Band to HIGH). Connect the remaining coax cable to the remaining port on the diplexer, and then connect the dome antenna. Mount the dome antenna in the middle of the area to the covered. * except Nextel and T-Mobile

Tri-Band Repeater Kit for 3G & Verizon 4G LTE [Discontinued]

$1,099.95

What You Should Know

N/A

Uplink Frequency Ranges (MHz)

N/A

Downlink Frequency Ranges (MHz)

N/A

Max Gain

N/A

Max Uplink Power

N/A

Impedance

N/A

Cable Type

N/A

Color

N/A

Plenum Rating

N/A

RF Connectors

N/A

Antenna Type

N/A

Power Supply

N/A

Frequency Range

N/A

Includes Connectors

N/A

Output Ports

N/A

Output Voltage

N/A

Outside Antenna Options

N/A

Inside Antenna Options

N/A

Number of Inside Antennas

N/A
View product
