weBoost 311229 Drive OTR Trucker Antenna with Mount


$119.99

60-Day Returns Free Shipping $100+ 2-Year Warranty

Overview

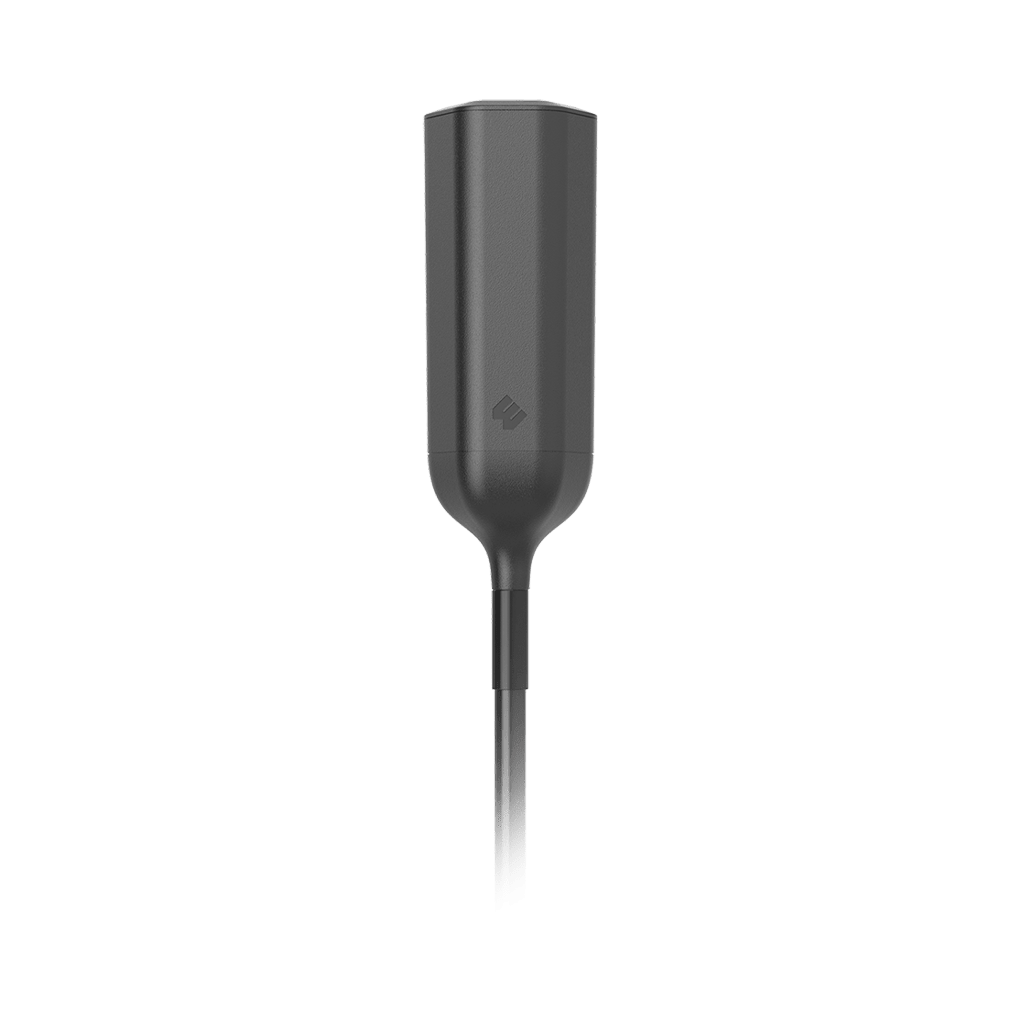

The weBoost Drive OTR Antenna (311229) is the perfect external antenna for your truck or other large vehicle. It supports all of the 2G, 3G and 4G LTE frequencies, including AWS, and is configurable for heights of 7.5" up to 40".

The antenna easily mounts to your vehicle with the included 3-way mount or to an existing CB mount. The attached 14 ft cable with SMA-Female connector (SMA-Male and SMB-Plug adapters also included) should give you plenty of flexibility to run inside the vehicle and connect to your signal boosting amplifier.

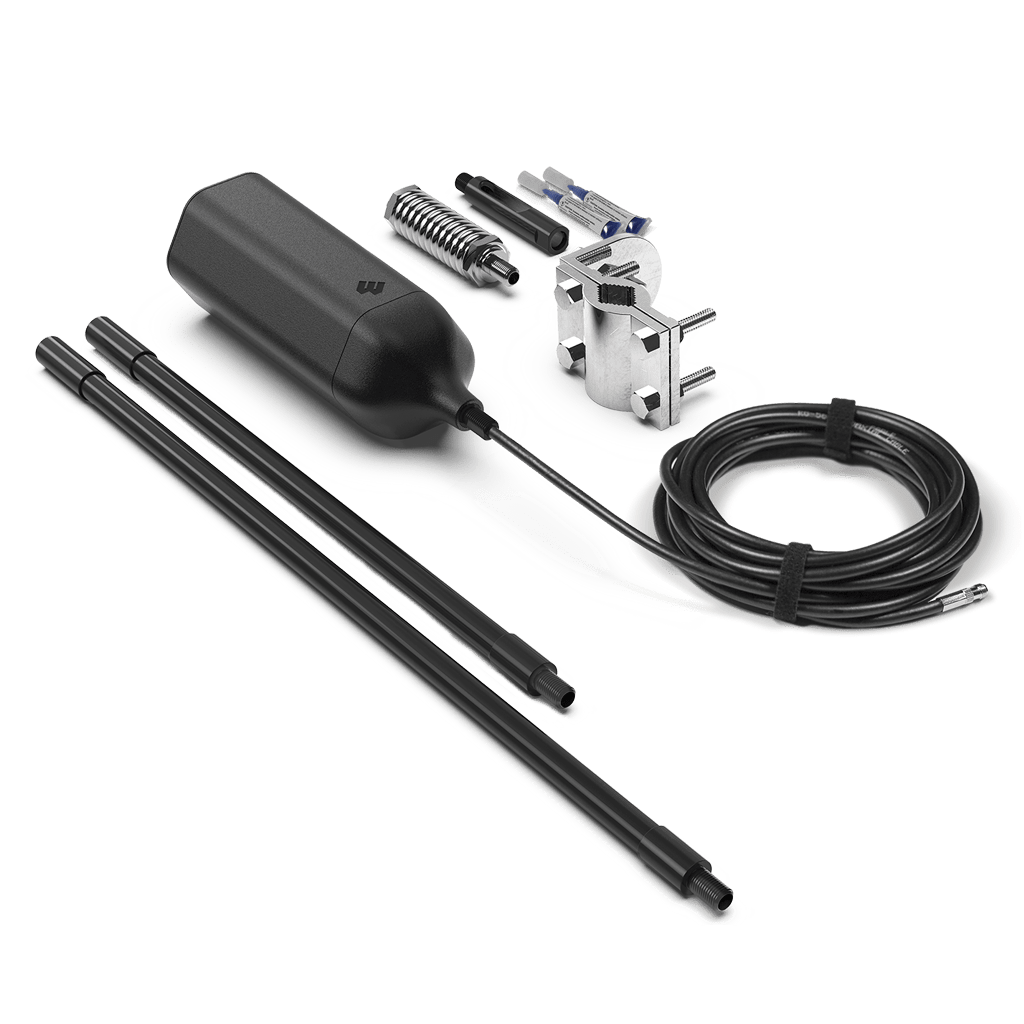

Package Includes:

  • Drive OTR Trucker Antenna with 14 ft cable and SMA-Female Connector
  • SMA-Male to SMA-Male Adapter
  • SMA-Male to SMB-Plug Adapter

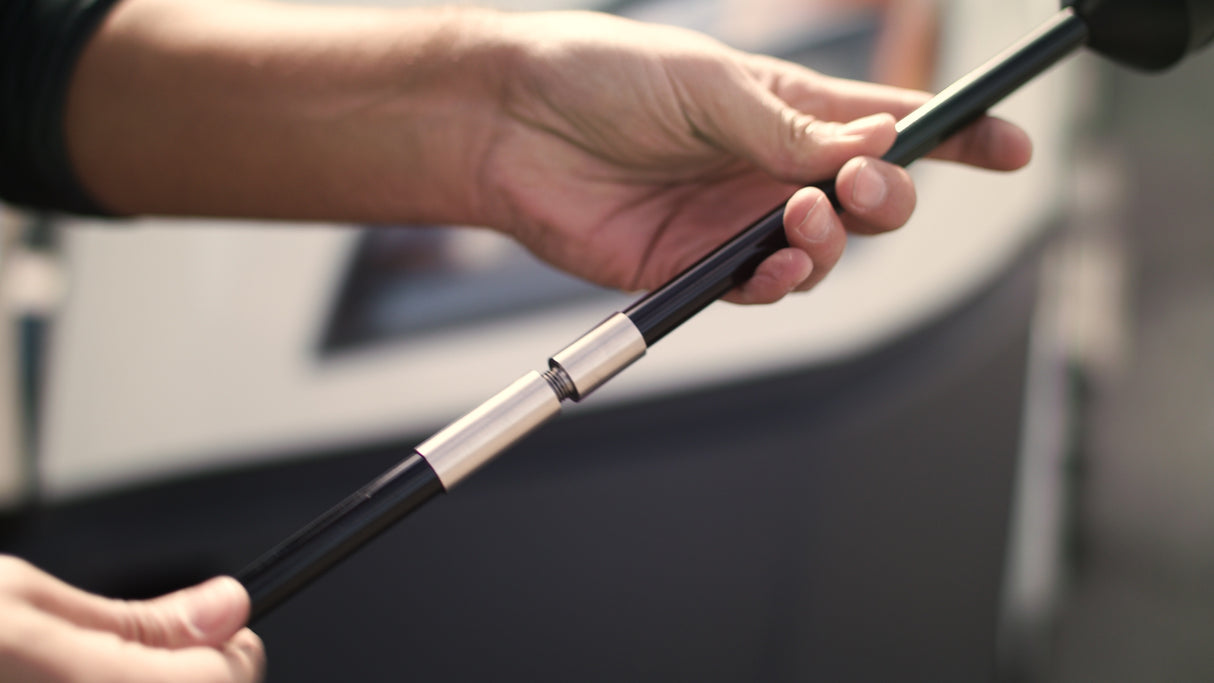

  • Mast Extensions

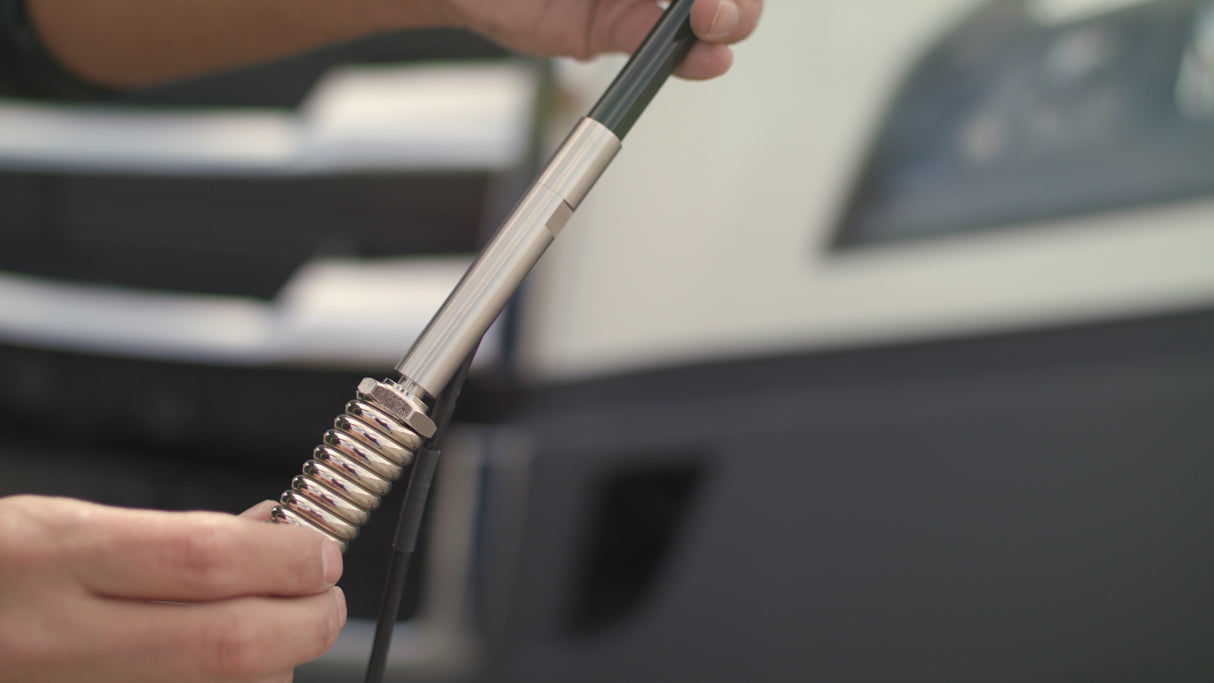

  • Antenna Spring

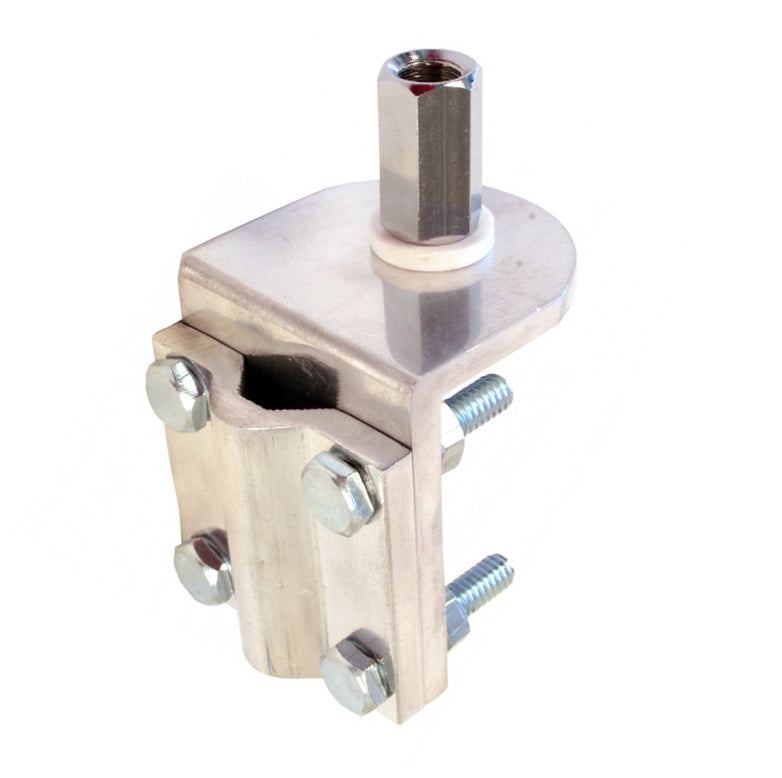

  • 3-Way Mount

Product Documents

Specifications

  • SKU
    311229
  • UPC
    810005961677
  • Condition
    New
  • Impedance
    50 ohm
  • Antenna Connector
    SMA-Male, SMB-Male
  • Antenna Polarization
    Vertical
  • Antenna Beamwidth - Horizontal
    360
  • Antenna Beamwidth - Vertical
    20-30
  • Antenna Coax Cable
    14 ft
  • Antenna Ground Plane
    Built-In Ground Plane
  • Antenna Max Power
    50 watts
  • Antenna Mount
    3-Way Mount
  • Antenna Num Elements
    N/A
  • Antenna VSWR
    1.5:1 Average
  • Material
    Stainless Steel, Fiberglass Epoxy
