The weBoost 472205 Connect 3G Directional Signal Booster Kit is the next version of the Wilson 462205 Dual Band DB PRO Yagi Kit. The weBoost Connect 3G Directional kit is designed to boost the voice and 3G networks for most of the major carriers in the United States and Canada, and will cover a small to medium sized home or office with boosted signal, assuming a strong outside signal. The directional version of the weBoost Connect 3G means that the outside yagi directional antenna will send and receive in one direction, so it can boost the cell signal for one or a few carriers that have towers in the direction that the antenna is located. This means that the signal booster will provide the largest possible coverage area, even for a weak outside signal. The downside of this is that the yagi directional antenna may not boost all of the carriers that you need boosted, in which case you would need to go with the weBoost 472105 Connect 3G Omni kit.
In terms of setup and operation, the weBoost Connect 3G Directional kit uses a yagi directional outside antenna that's typically mounted on a vertical pole on the roof of your home or office to pick up the existing cell signal in your area. That signal is sent over a cable to the weBoost Connect 3G amplifier, which boosts the signal and sends it over another cable to the inside antenna. The inside antenna broadcasts the boosted signal into your home or office giving you a usable indoor cell signal. The weBoost 472205 Connect 3G Directional Signal Booster Kit includes everything you need to quickly and easily install the system and immediately start having great cell signal. If you can't mount an antenna on the roof of your home or office, please contact us to discuss other potential options.
No 4G LTE Support
Many carriers are moving everything quickly to their 4G LTE networks including voice calls. At some point in the near future, we'll start to see 4G-LTE only phones that will no longer be able to take advantage of 2G/3G boosters like this one. To ensure that the signal booster you get will work well for years to come, we generally recommend systems that support 4G LTE in addition to the 2G and 3G networks like the weBoost 470103 Connect 4G Signal Booster Kit. However, if you plan to keep your older phone for the foreseeable future and don't need the faster LTE data speeds, a 2G/3G booster like this one should work out just fine for you.
Coverage Area
The existing outside signal strength that you receive from the roof of your home or office (where you would mount the outside antenna) has a large impact on the amount of coverage area you get from a signal booster. It is important to remember that there are many factors that go into determining the coverage area, so actual results may vary from these estimates.
If you have an existing strong 5-bar outside signal, you may receive up to 5,000 sq ft of boosted signal inside the building.*
If you have an existing 3 to 4-bar (-90 dB) outside signal, you may receive up to 3,500 sq ft of boosted signal inside the building.*
If you have an existing 1 to 2-bar (-100 dB) outside signal, you may receive up to 1,000 sq ft of boosted signal inside the building*.
If you have no existing outside signal, then a signal booster likely will not work in your situation unfortunately.
If you need more coverage than you can get from a single weBoost Connect 3G Directional system, take a look at the more powerful weBoost 470105 Connect 3G-X Extreme Signal Booster Kit.
Supported Carriers
The weBoost 472205 Connect 3G supports the 2G & 3G networks from virtually all carriers in the United States and Canada. For other locations, please consult the frequencies listed below to see if this product will work for you. This kit will not boost the 4G LTE networks from any carrier.
Here is a more detailed breakdown of the carriers, networks and frequencies boosted by this kit:
AT&T 2G, 3G & 4G HSPA+
Verizon 2G & 3G
Sprint 2G & 3G
T-Mobile 2G & 3G
US Cellular 2G & 3G
All other carriers using 800 MHz & 1900 MHz
Please Note: This signal booster kit will not work in most European, Asian, and African countries because the frequencies used there are different than those boosted by this equipment.

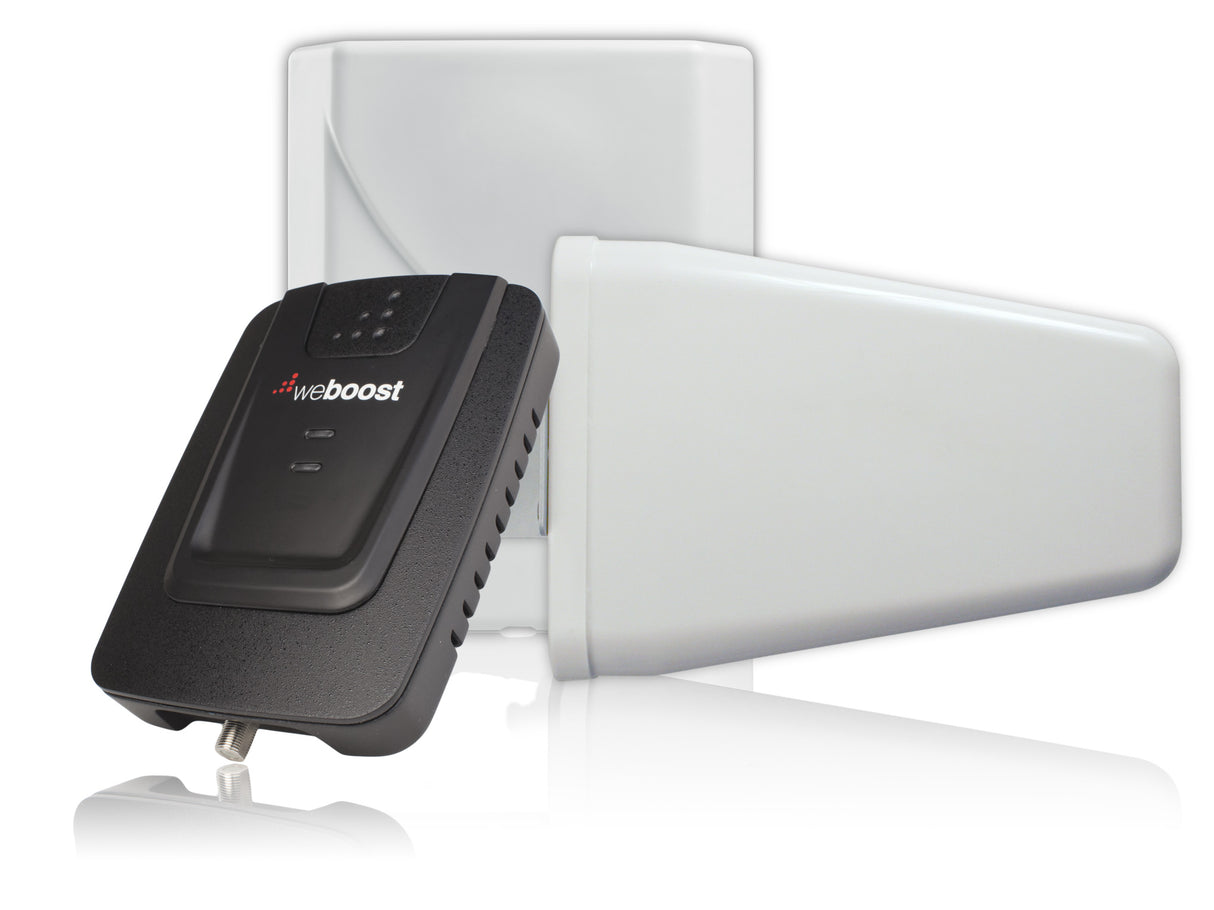

Kit Includes

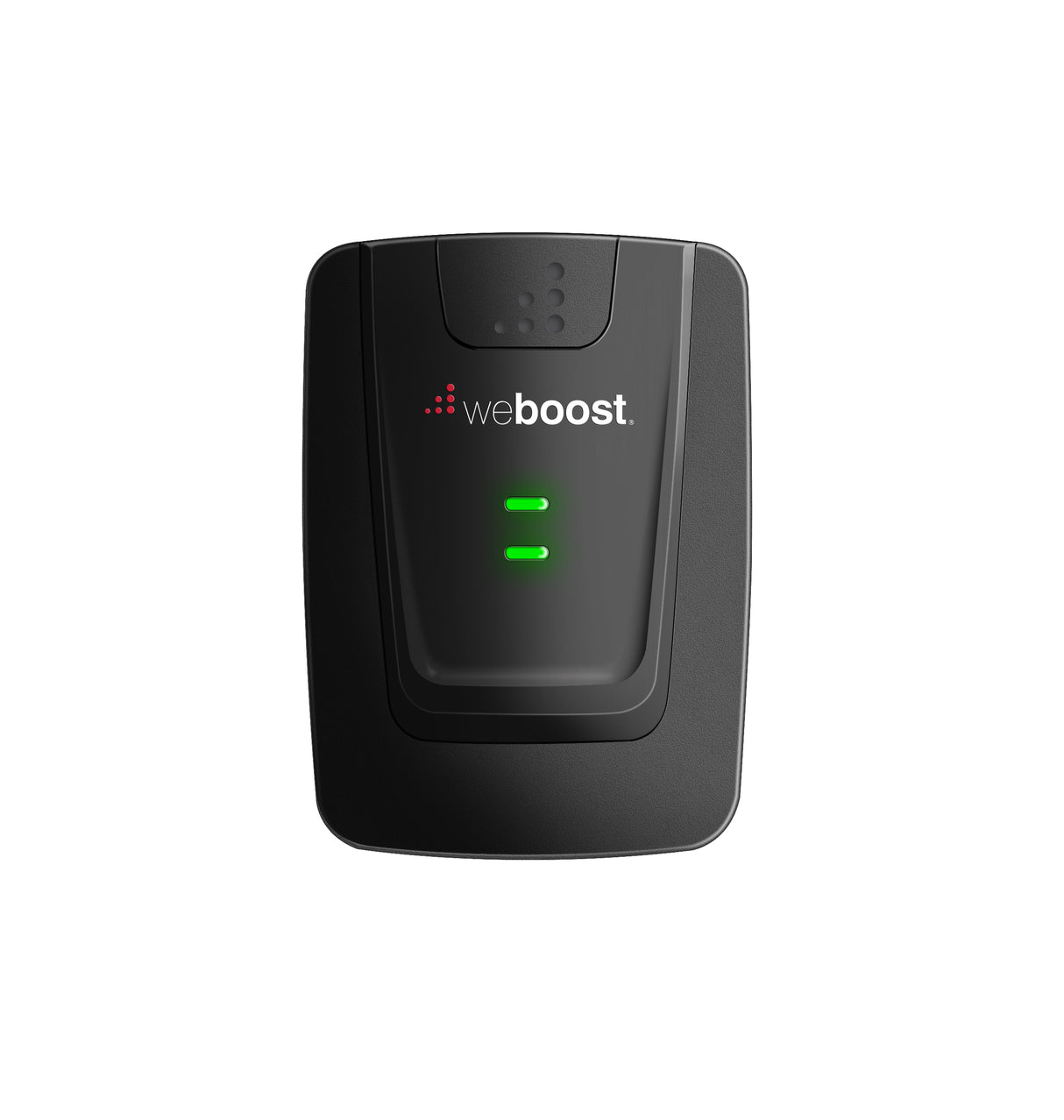

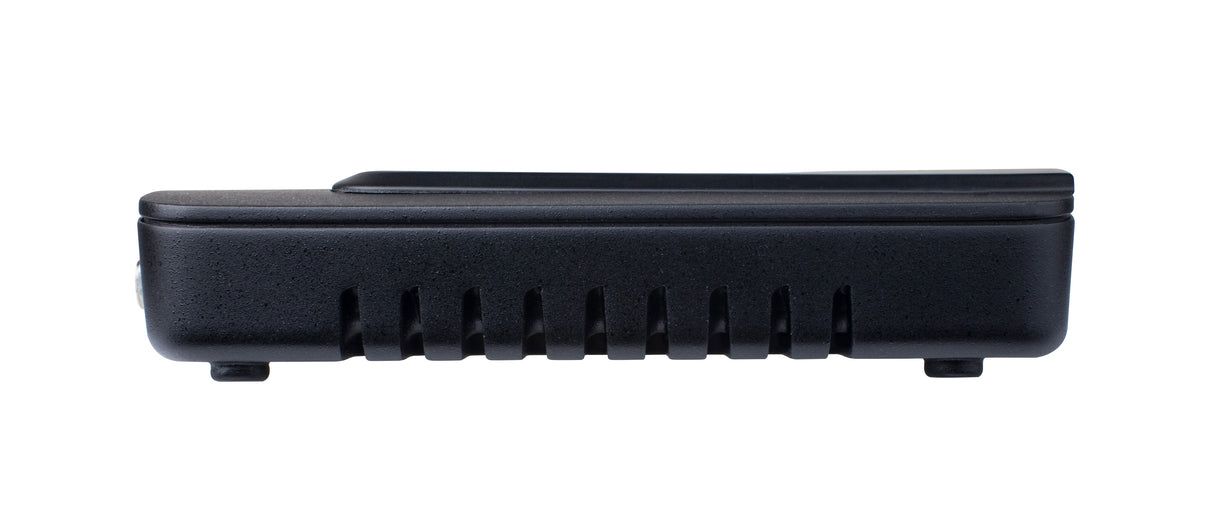

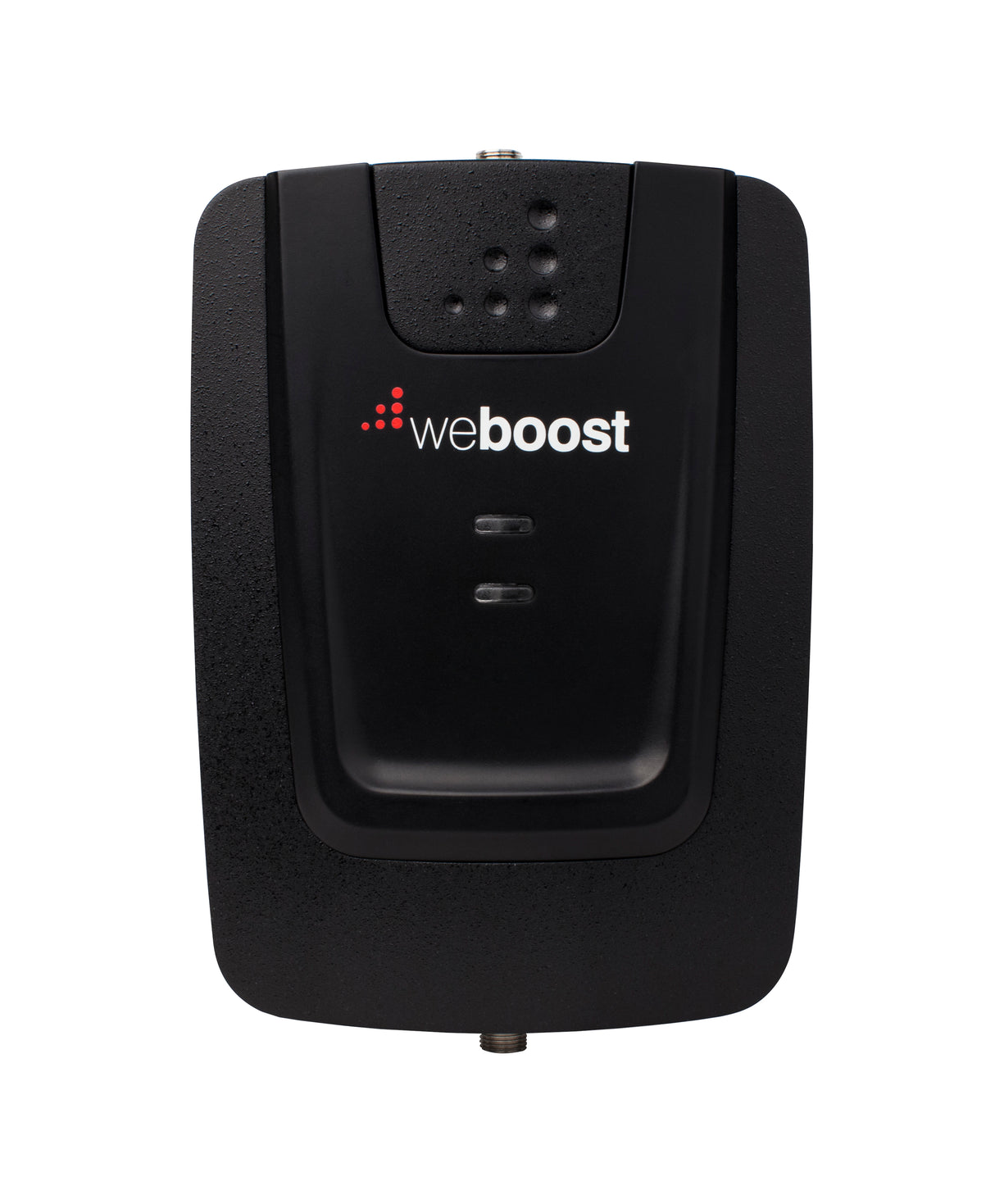

weBoost Connect 3G 65dB amplifier
weBoost Directional Outside Antenna
weBoost Panel Inside Antenna
30' White Low Loss Cable (950630)
2 x 15' White Low Loss Cables with Barrel Connector
8" Flat Coax Cable
AC Power Supply
Installation Guide
AccessoriesThe weBoost 470103 Connect 3G Directional comes with everything that you need for immediate installation, however, there are a few of additional items you may want to consider.
For locations that receive thunderstorms and lightning, a lightning surge protector kit will protect against nearby lightning strikes that cause surges in static electricity that can damage the amplifier. It contains a gas discharge that will automatically cut the connection between the amplifier and the outside antenna when a surge is detected.
The included directional outside antenna is designed to be mounted to a pole that is 2 inches in diameter or less. If you do not have an existing tv antenna or other pole you plan to use, a Pole Mount Kit is a convenient and low cost option. It simply attaches to a flat vertical surface and provides with with a foot of vertical pole to attach the antenna and rotate into place.
Installation Overview
Installing the weBoost 470103 Connect 3G Directional Signal Booster Kit system is fairly straightforward, but will require running cable from the roof or elevated location into the building, as well as potentially drilling and screwing in components. If you feel comfortable with this level of installation, then feel free to proceed, otherwise you may want to consider hiring a general contractor, electrician, satellite TV installer, or handyman to assist in the installation.
Additionally, before you begin, we recommend that you start with a soft installation, where you don't permanently mount components, drill holes or finalize cable runs until you're sure that the system is performing to the level that you would like. Once you've tested out antenna and component locations, and are satisfied with the results, then you can go ahead and permanently install everything. Finally, read through the entire set of installation instructions both here and in the included manual before beginning, and feel free to call us with any questions before you proceed.
We'll start the installation from the roof and work our way into the house. First, start by determining the part of the roof that receives the best signal, as we'll want to locate the directional antenna there and ideally aim it away from the house (and not back over the roof). Once you've identified the portion of the roof which is best, install the vertical pole which you'll be mounting the yagi directional antenna as high up on the roof as possible. Attach the directional antenna and temporarily aim it away from the house. Run one of the 30 ft. cables from the antenna into the attic of the house, if possible through a vent or soffit, but you may need to drill a hole at this step.

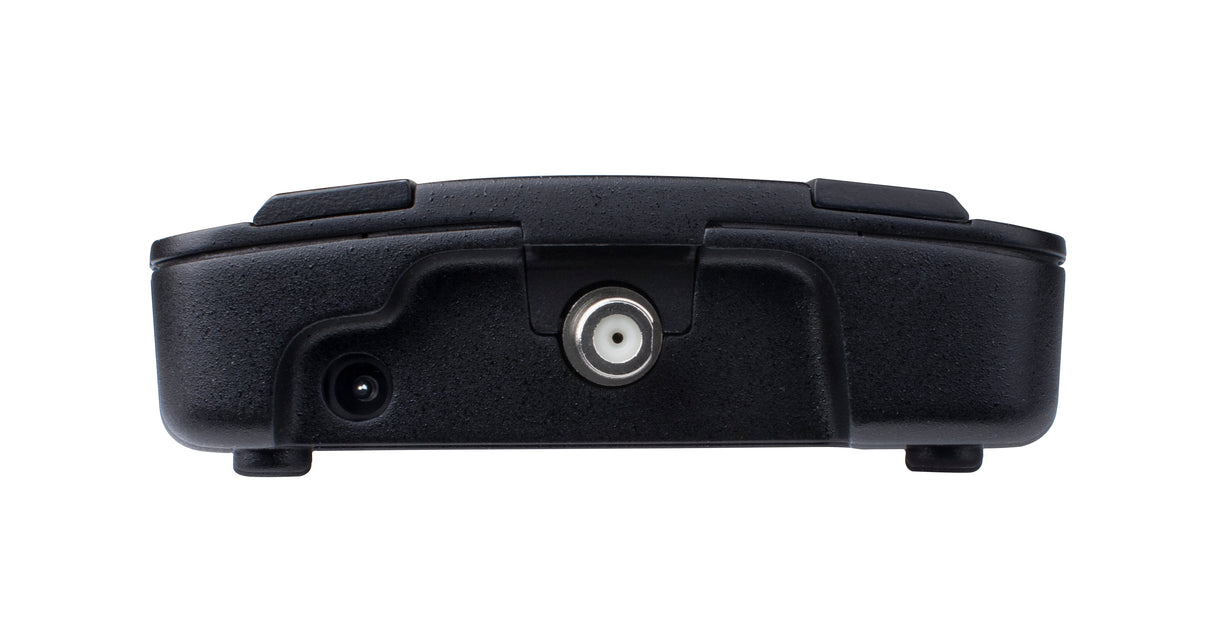

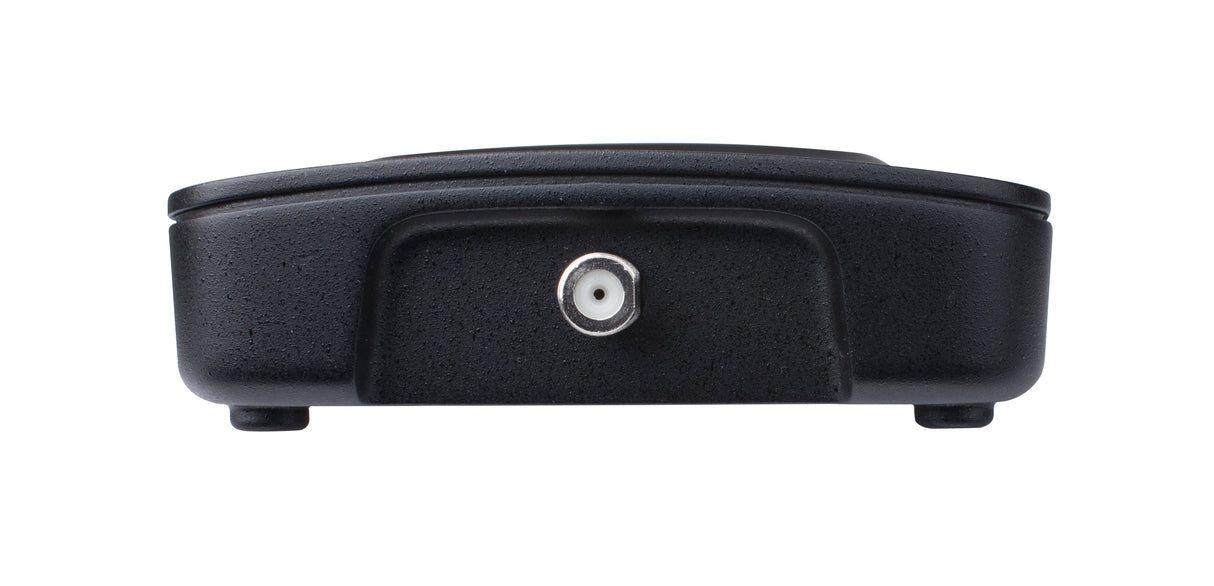

Once the cable is inside the house, we recommend running the cables and locating the inside antenna in the attic of the house (If this is not possible, please call us to discuss other installation locations). The amplifier can either be located in the attic if there is an area with AC power, or down in the living space for easier access. Once the cable is in the home or office, run the cable to the area where you plan to locate the amplifier. If you've purchased a lighting surge protector, attach that now, and then connect the 2ft cable to the "Outside Antenna" port of the amplifier. Otherwise directly connect the outside cable to the "Outside Antenna" port. Connect the second 30 ft cable to the "Inside Port" on the other side of the amplifier, and run it to the center of the attic. Connect the panel antenna and lay it face down on the floor of the attic.
Once all of the components are connected, power on the amplifier by plugging it in. As it's powering up, you should see the lights flashing, and then check to see that they turn solid green. If the lights are not solid green, check out the portion of the owners manual that discusses the indicator lights to find out what they mean. Of, you can always contact us for help.
Directional antennas must be aimed fin order to operate properly. When aiming and when mounting the antenna, make sure that it is parallel with the ground, do not aim it up at the sky or down at the ground. Start with the antenna high on the roof pointed in one direction. Turn on the system and have a person inside stand 10 ft in front of the inside antenna and take a signal reading with their phone in field test mode. Rotate the outside antenna 45 degrees (1/8th of the way around) and then pause for 60 seconds. After the pause, the person inside should take another signal reading from exactly the same spot, and then you can repeat the process. After you've gone all the way around, mount the antenna facing in the direction with the strongest signal (decibel signal reading will be closest to 0). If possible, also mount the antenna on that side of the home or office so that it's pointing away from the building and not over the building.
The included manual is very helpful and we recommend reading through it before beginning the installation. If you run into any issues, feel free to contact us for help.
* The actual coverage area of a signal booster is dependent on many factors including existing outside signal strength, obstructions between you and the cell tower, the materials used in your home or office, the layout of the area you need to cover with a boosted signal, and other factors. The approximate coverage areas listed above are estimates. Actual coverage area will vary based on these and other factors. If you're not sure if a system will be powerful enough for your needs, contact us to find out.
