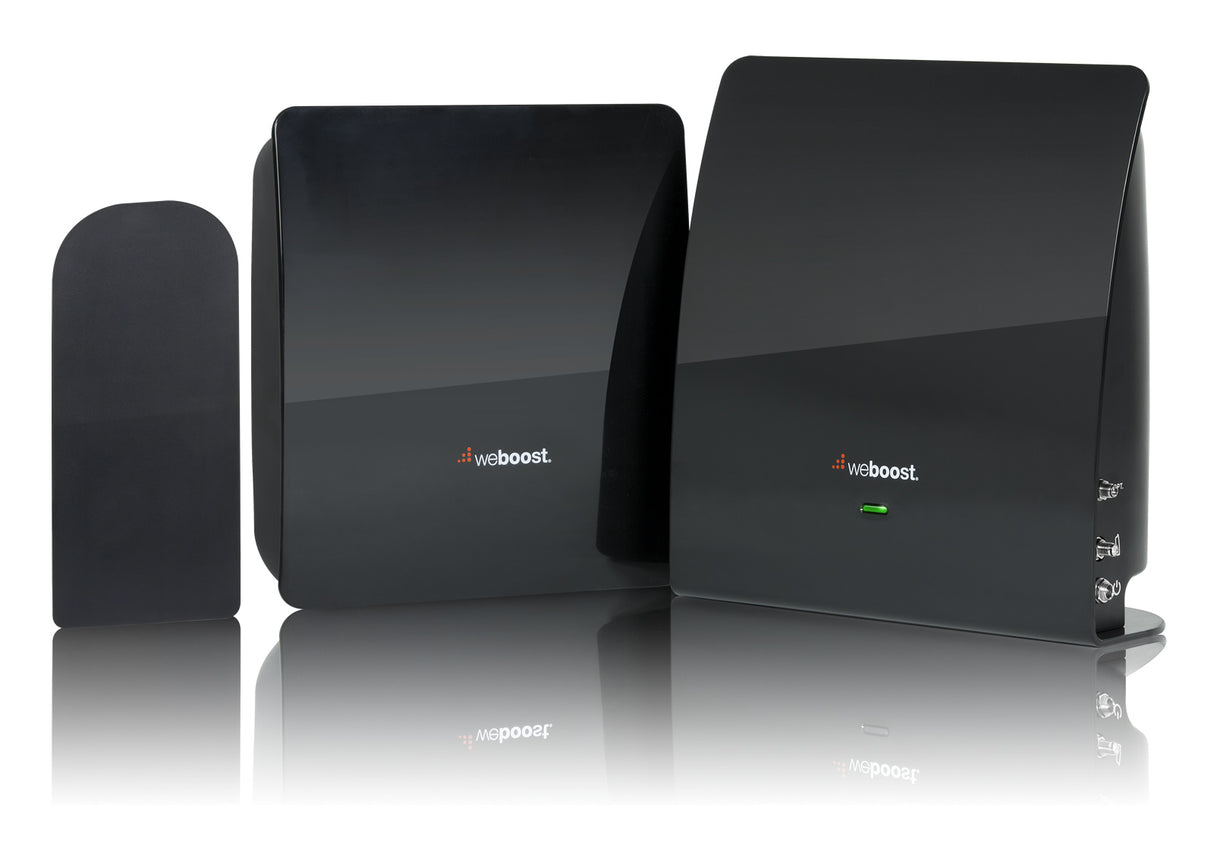

weBoost 474120 eqo 4G Signal Booster Kit [Discontinued]

SKU: 474120

Description

The weBoost 474120 eqo 4G Signal Booster Kit is an easy to install, plug and play signal booster designed for situations where you're not able to mount an antenna outside of the building. Setup takes less than five minutes and once the system is powered on, it will evaluate the setup and adjust itself for optimal coverage inside of the home or office, so a truly plug and play experience.

The weBoost 474120 eqo 4G signal booster replaces the 473120 eqo signal booster and includes a new, in-window antenna and better cable for increased overall coverage.

Why the weBoost eqo 4G?

  • Easy plug and play setup. No outside antenna required.
  • Works wirelessly. No physical connection to your phone required.
  • Supports multiple phones and all carriers at the same time.
  • Everything you need is included in the kit. Get setup in minutes.
  • Fewer dropped calls
  • Faster Internet data speeds
  • Better voice quality
  • Texts that send quickly
  • Longer battery life

Your purchase is covered by our 30-day money back guarantee, so you can try it risk free, and our friendly, US-based technical support team is standing by to assist with anything you need. Your equipment is also covered by a 2-year manufacturer warranty, for extra peace of mind.

Recommended For

The weBoost eqo 4G is an ideal solution for situations where you're not able to mount an antenna outside of the building and only need to boost signal in a small area inside, such as at a desk, table, or other similar area. Depending on the outside signal strength, the eqo 4G can fill up to a room with boosted signal inside of the home or office.

How it Works

How the weboost eqo 4G works

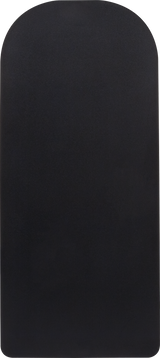

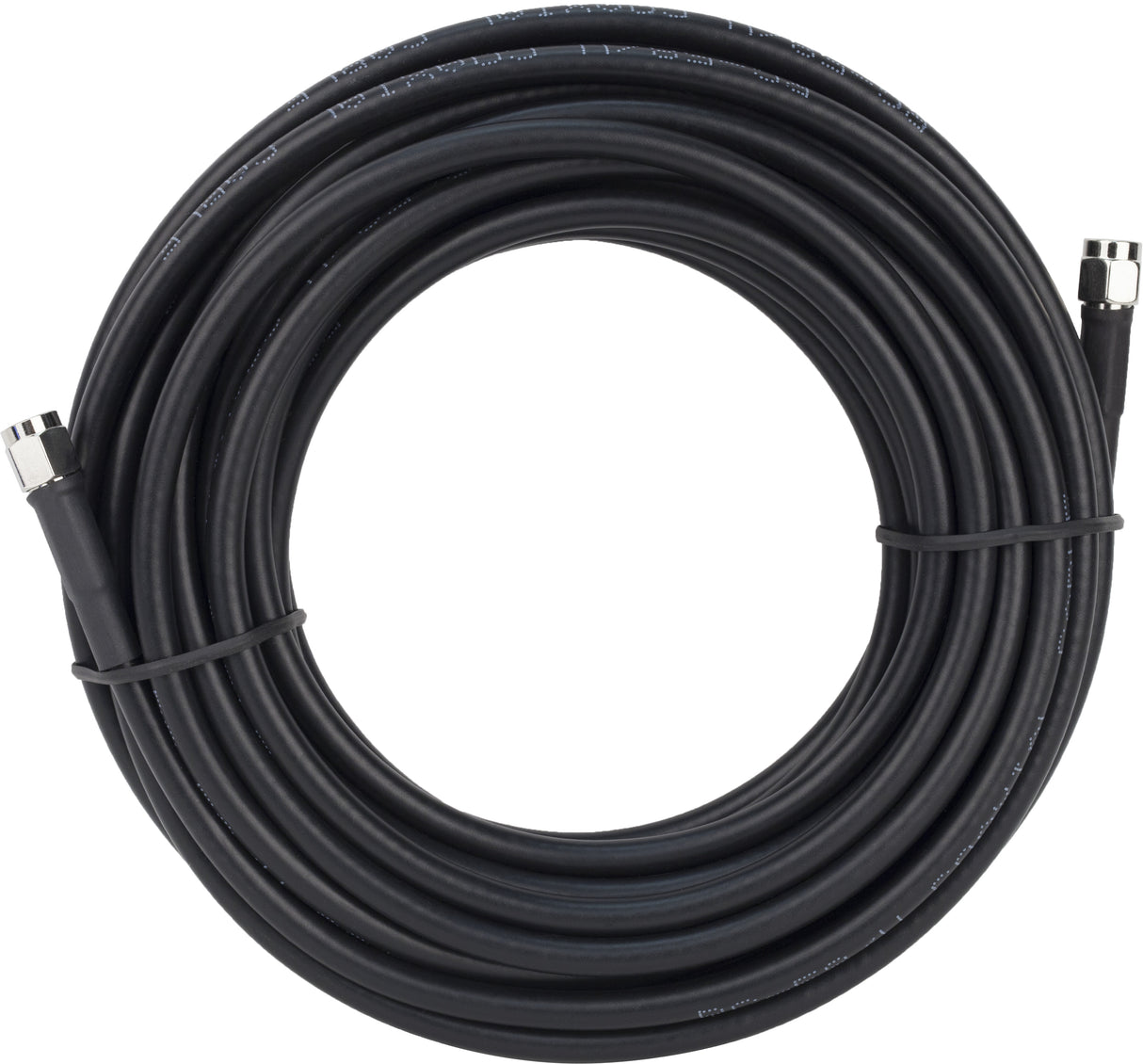

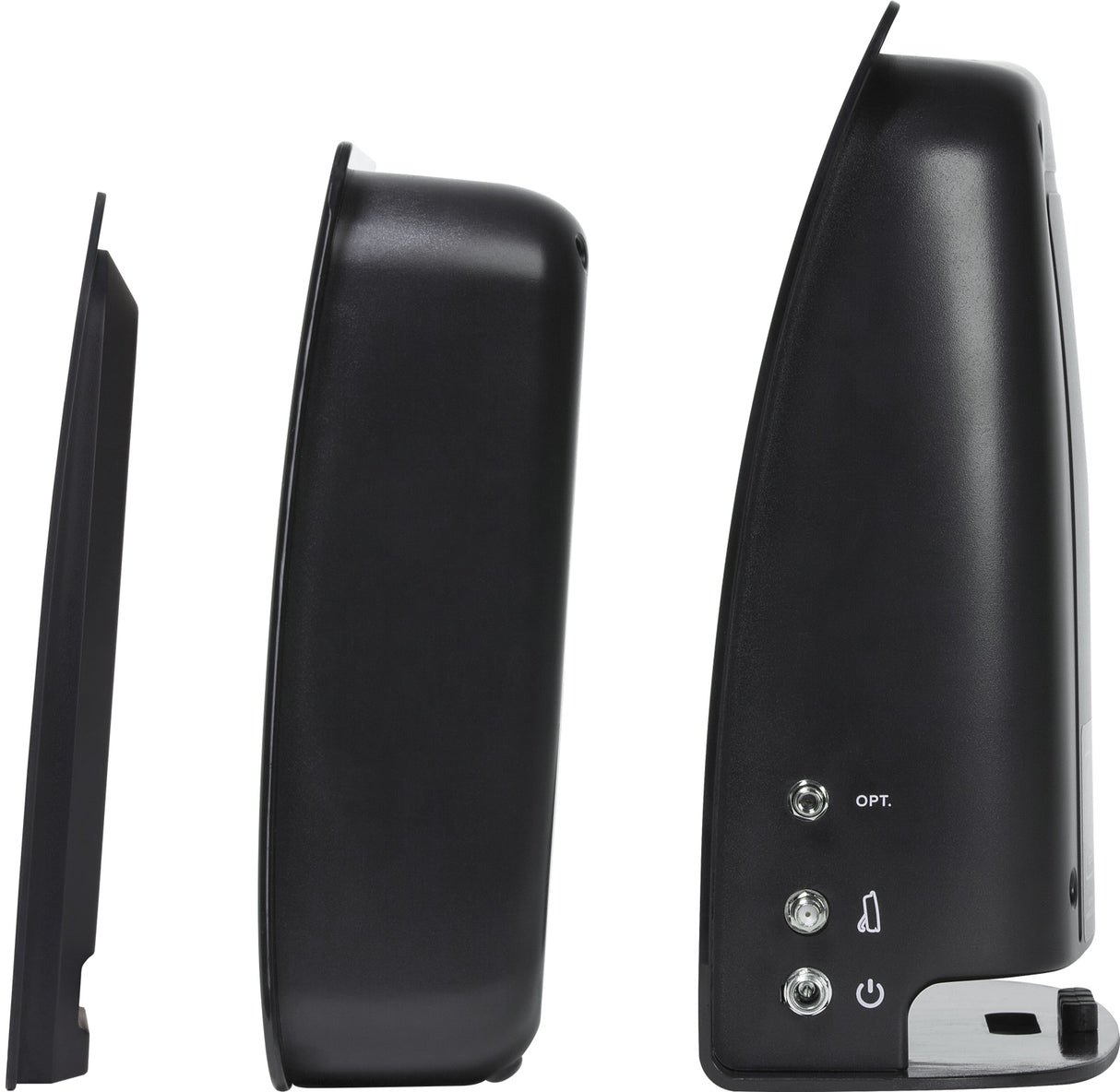

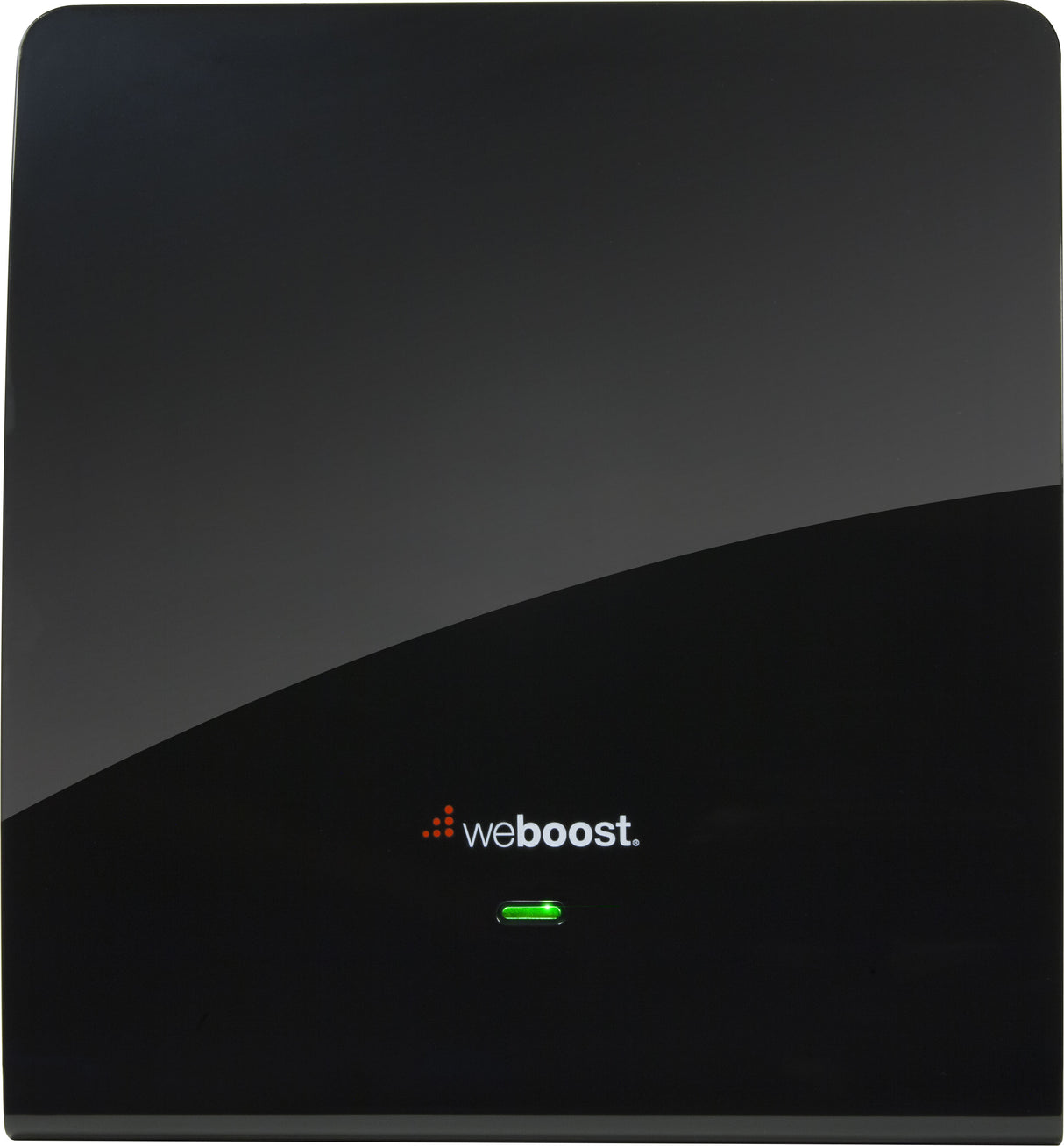

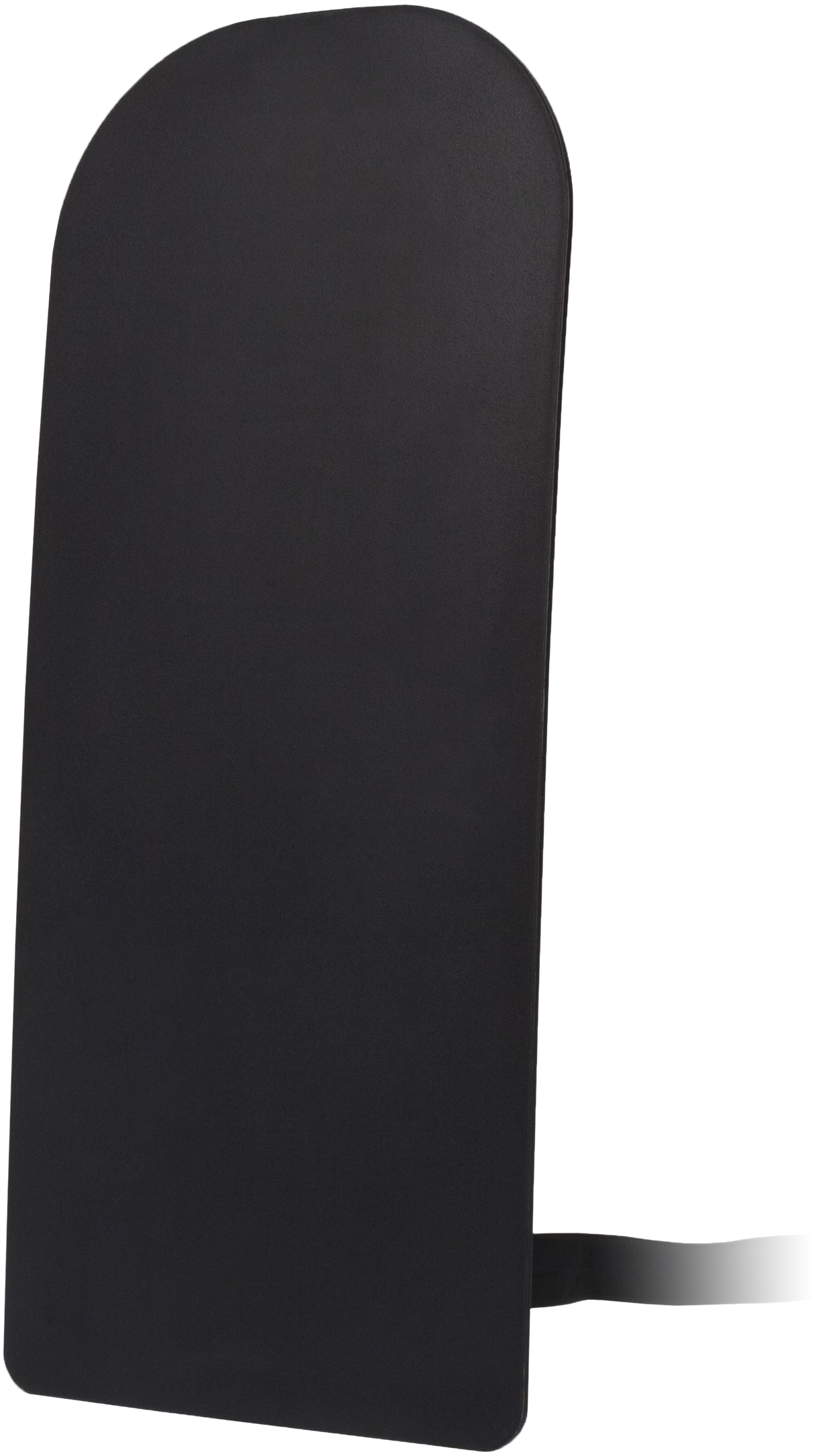

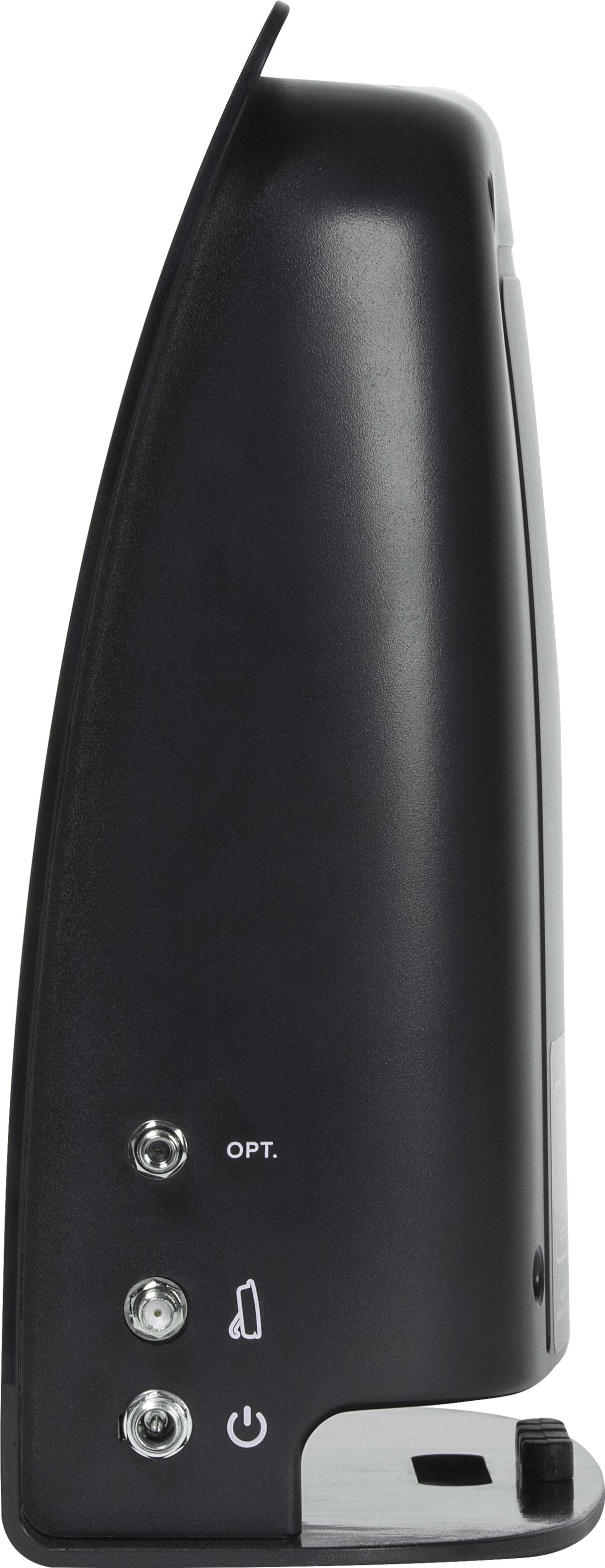

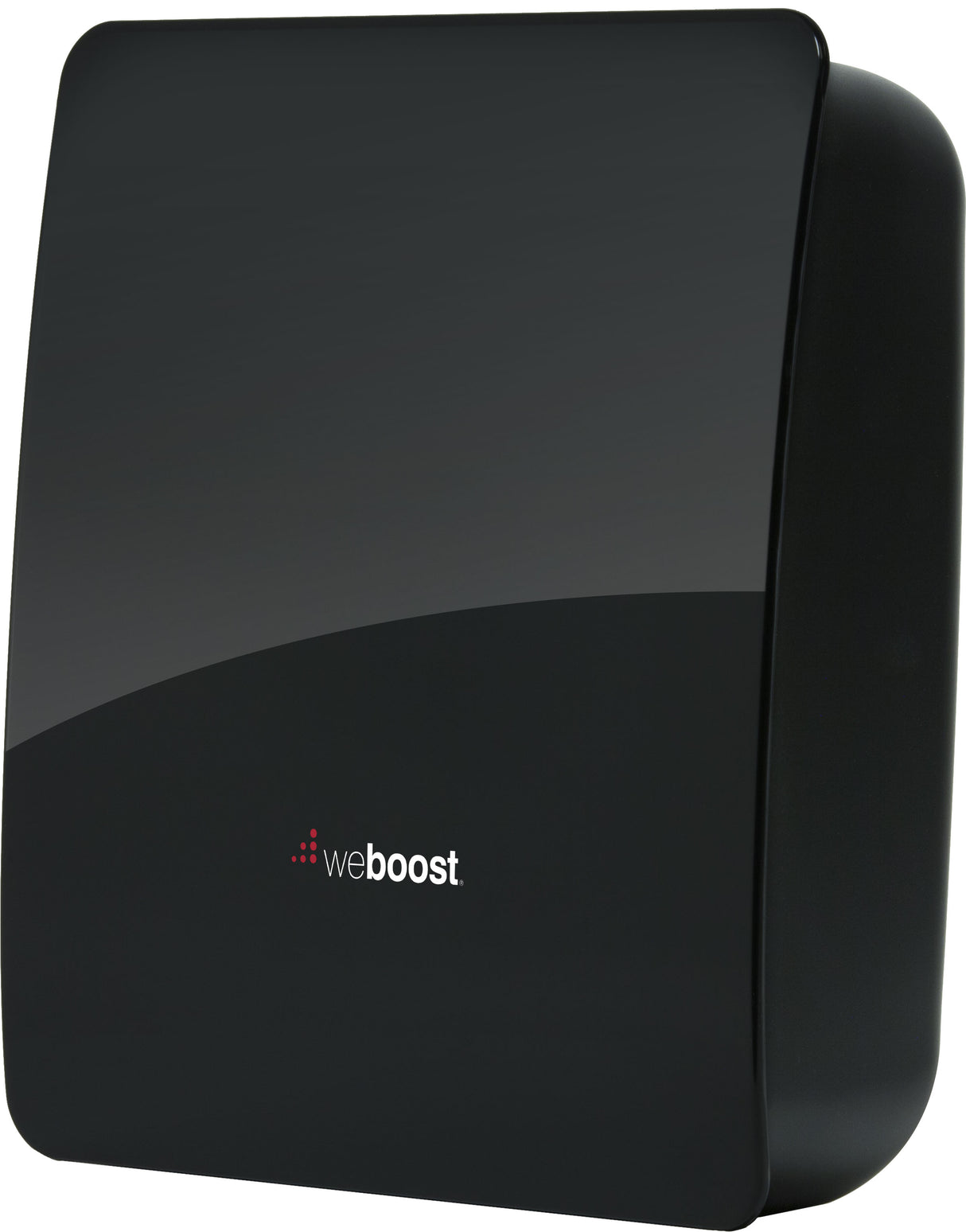

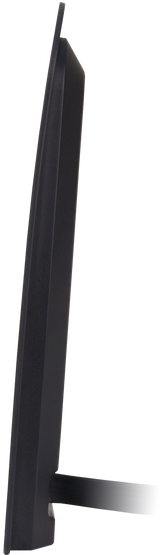

The weBoost eqo 4G uses a small, in-window antenna that sits between the screen and outside of the window to receive the best possible signal. The window antenna has a flat cable attached, so that it can enter the building under the closed window, and is connected to the eqo 4G amplifier. The amplifier boosts the cell signal and then sends it over the included 25 ft cable to the inside coverage unit, which broadcasts the boosted cell signal to the area that you need it most.

The entire process also works in reverse, so you get a strong and reliable connection back to your carrier.

Estimated Inside Coverage

The strength of your existing outside signal, measured in the location where you plan to mount the outside antenna, has a direct impact on the amount of inside coverage you'll get from a signal booster. The table below shows how much coverage you may get depending on your outside signal strength:

Existing Outside Signal Strength Estimated Inside Coverage
Strong (5 Bars) Up to 1,500 sq ft
Medium (3-4 Bars) Up to 750 sq ft
Weak (1-2 Bars) Up to 100 sq ft
None (0 Bars) No Coverage

Please Note: It is important to remember that there are many factors that impact the size of the inside coverage area, so actual results may vary from these estimates.

Additional Coverage

If you need more coverage than one system will provide due to a weak outside signal, you can install multiple weBoost eqo 4G systems in your home or business. Please contact us for assistance with mapping out the ideal location for each system.

If you need more coverage than the weBoost eqo 4G will provide due to a weak outside signal, and you're able to figure out a way to mount an antenna outside on the roof, then the weBoost Connect 4G is going to be a better choice for you. It has a more powerful amplifier and higher grade cable to provide more inside coverage with the same strength outdoor signal. Please contact us if you have any questions or would like more information about this system.

Will this Work for my Phone and Carrier?

The weBoost eqo 4G has been designed to work with all cell phones and all carriers in the United States, Canada and Mexico, as well as carriers from some other countries in Latin America, South America and Australia.

Supported Phones All Cell Phones, Hotspots, and any Devices that use Cellular Data
Networks 2G, 3G, 4G & 4G LTE
Frequencies 700, 800, 1900, 1700/2100 MHz
Carriers Works for all Carriers in North America, including:

Please Note: This signal booster will not work in most European, Asian, and African countries, as the frequencies used there are different than those boosted by this equipment.

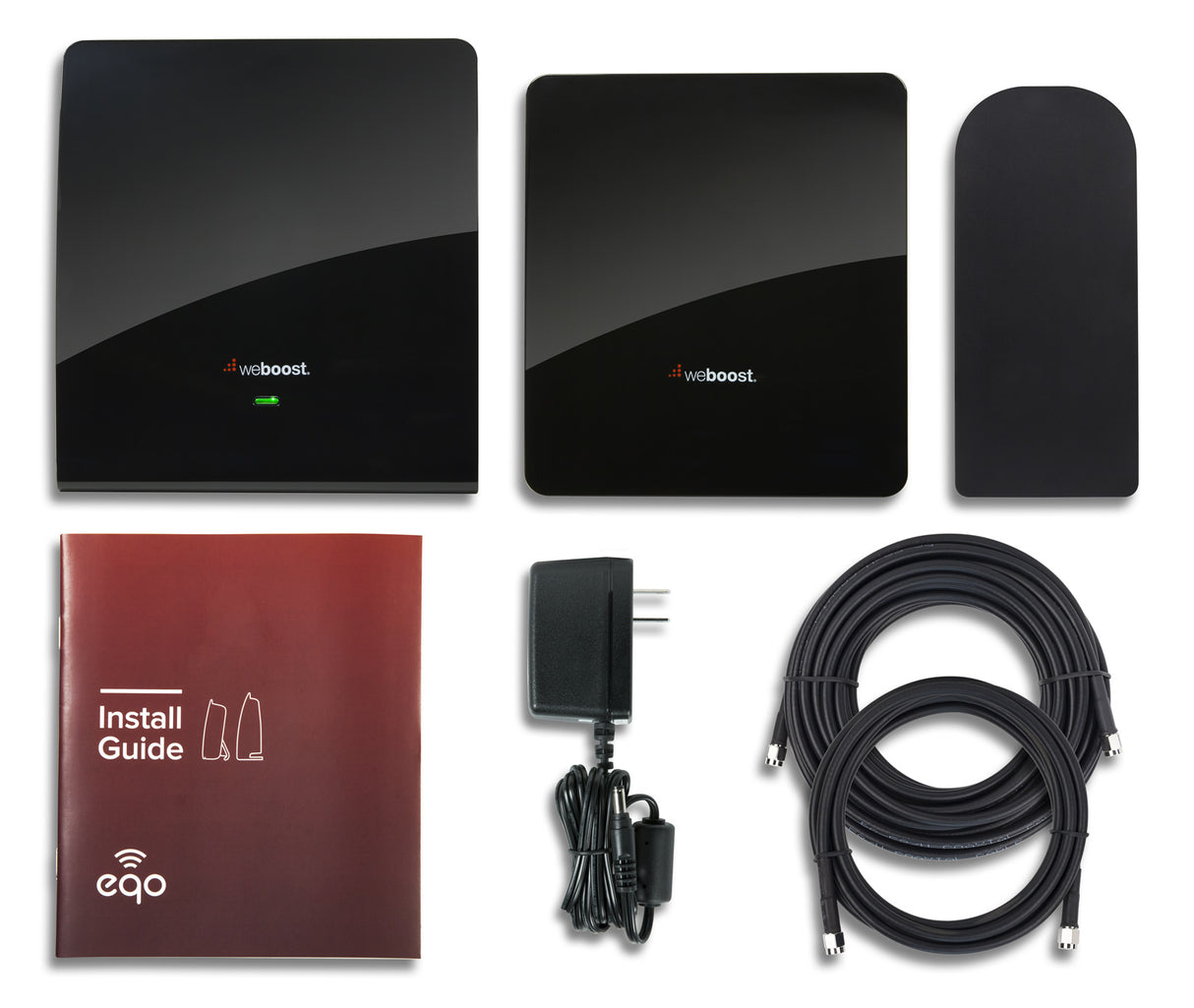

Kit Includes

The following components are included with the weBoost eqo 4G kit:

Recommended Accessories

While the weBoost 474120 eqo 4G Signal Booster Kit includes everything you need to install the system and start having great cell signal, the following recommended recommended accessory may help extend the amount of coverage you can receive from this system:
