weBoost Dash Car Cell Booster with Magnetic Wireless Charger | 471082

Product Highlights

• Built-in magnetic Qi2 wireless charger for charging while you boost convenience. Phones with MagSafe or Qi2 auto-align. A thin metal ring is included for phones that need alignment help.
• Priority boosting for a single device to deliver clearer calls, faster data, and fewer dropped connections.
• Up to 23 dB of system gain across common US and Canadian cellular bands.
• Works with all US and Canadian cellular devices and network carriers.
• Magnetic outside antenna mounts and removes quickly with no drilling. An adhesive disk is included for aluminum roofs.
• Clamp free magnetic cradle can sit on the dash or in a cupholder, or pair with an aftermarket magnetic mount.
• Simple 12V power using the vehicle port.

Top Benefits

• Stay connected and charged in the same spot. The integrated magnetic charger keeps power flowing while the booster focuses all gain on your phone.
• Cleaner daily use for commuters, gig drivers, and families. Snap on and go with no clamps and no loose cables.
• Fast setup and easy vehicle swaps. The roof antenna is magnetic, and the system runs from a 12V port, so moving between cars is straightforward.
• Clear status at a glance. A solid white LED on the charger confirms the booster is operating at maximum gain.
• Practical power use. If your 12V port is always on, toggle the supply off when parked to avoid draining the battery.

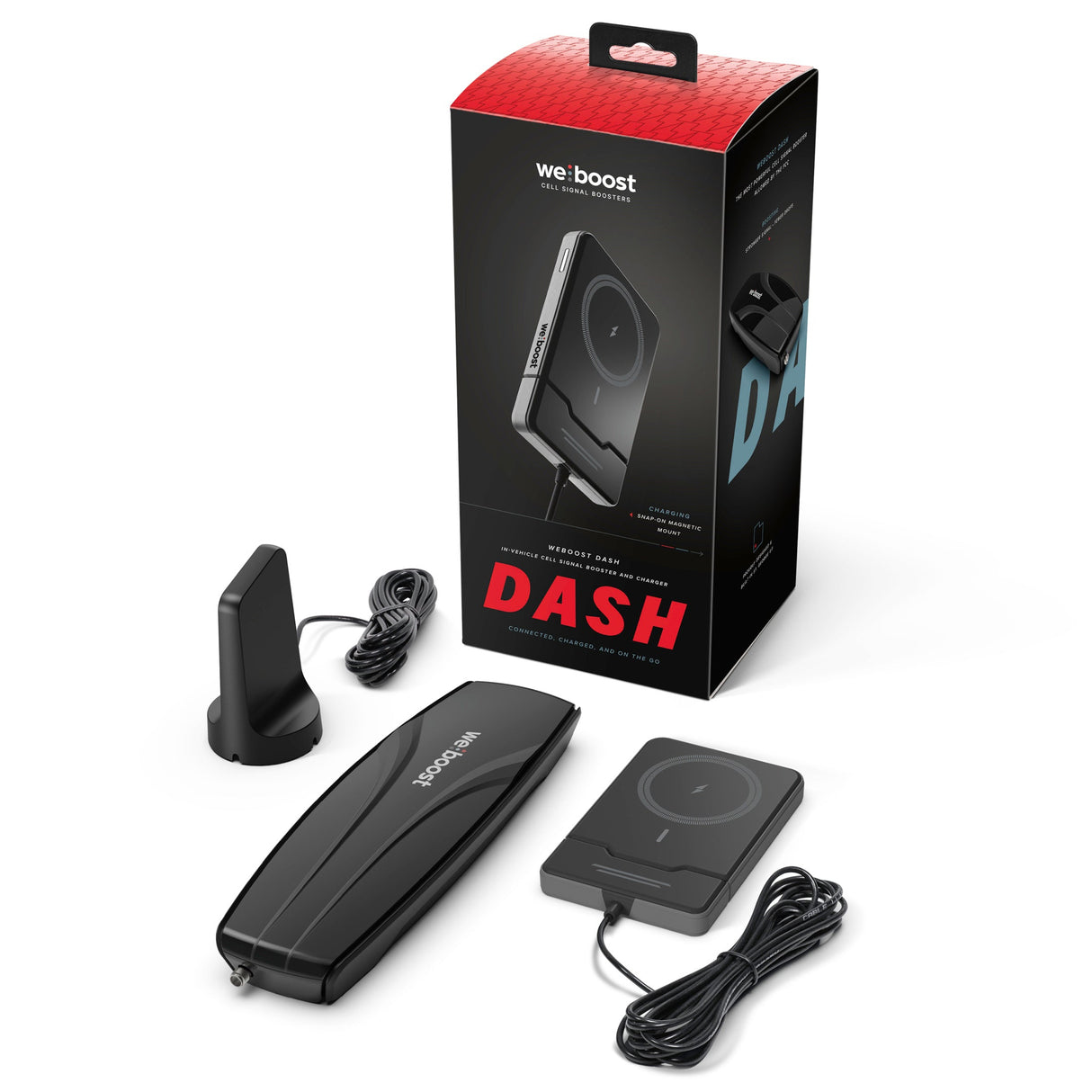

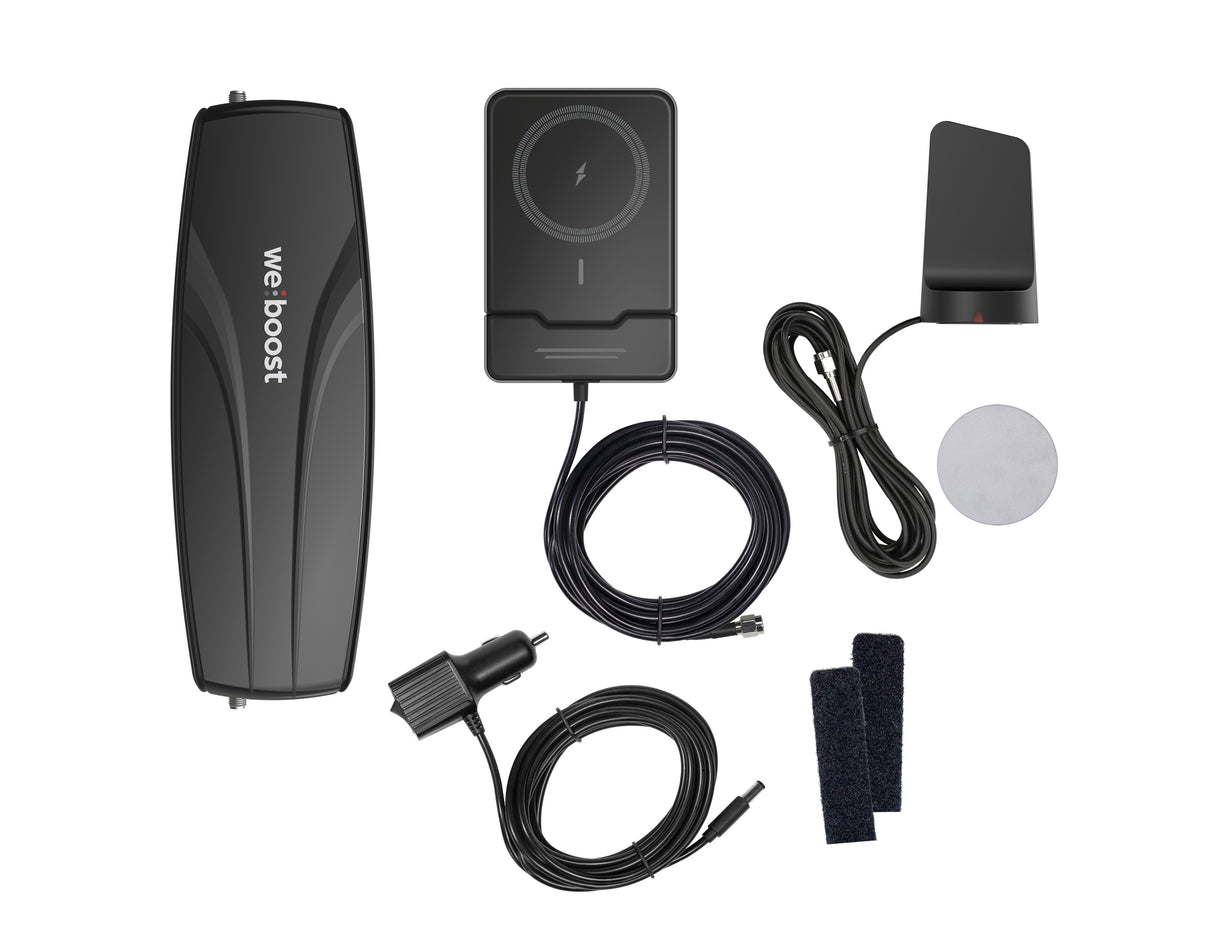

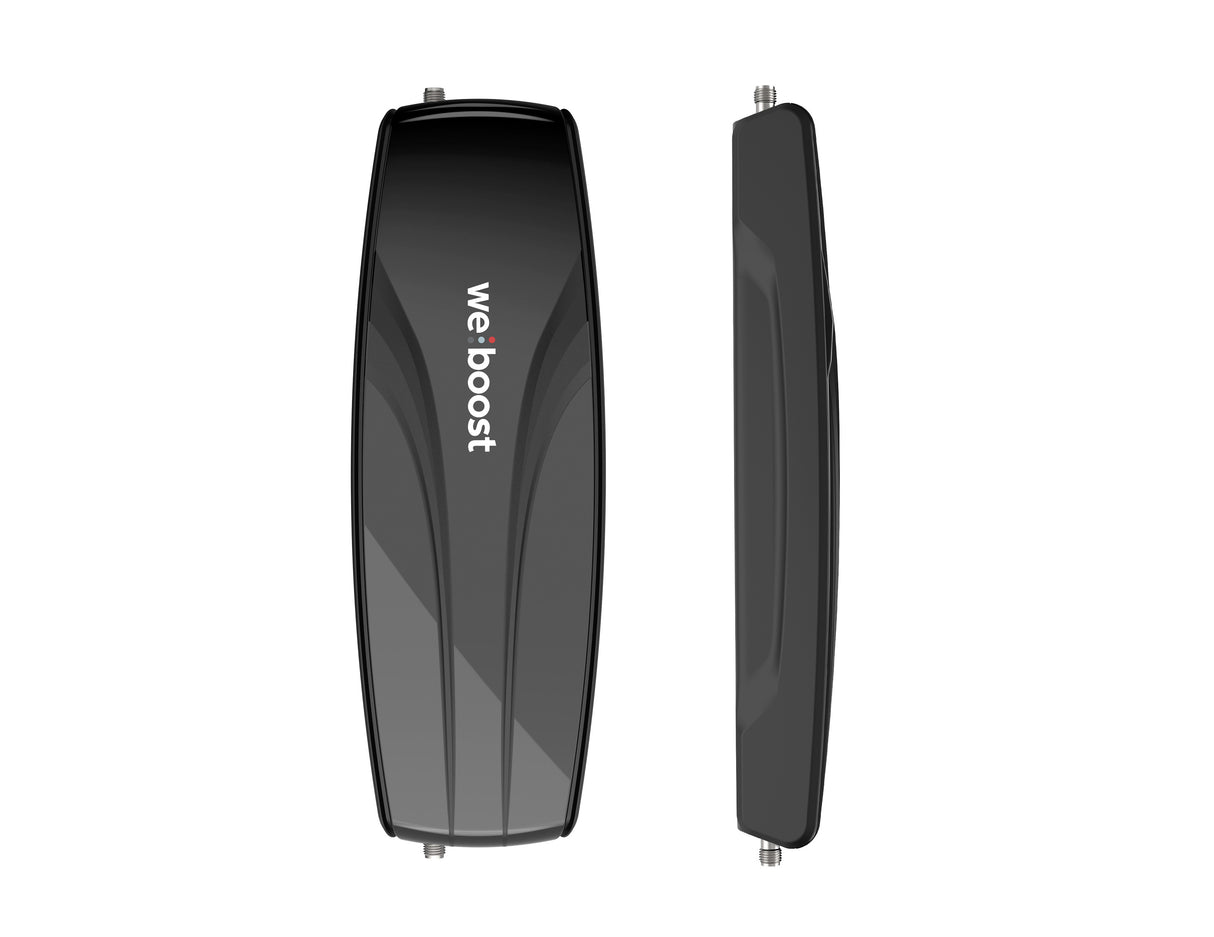

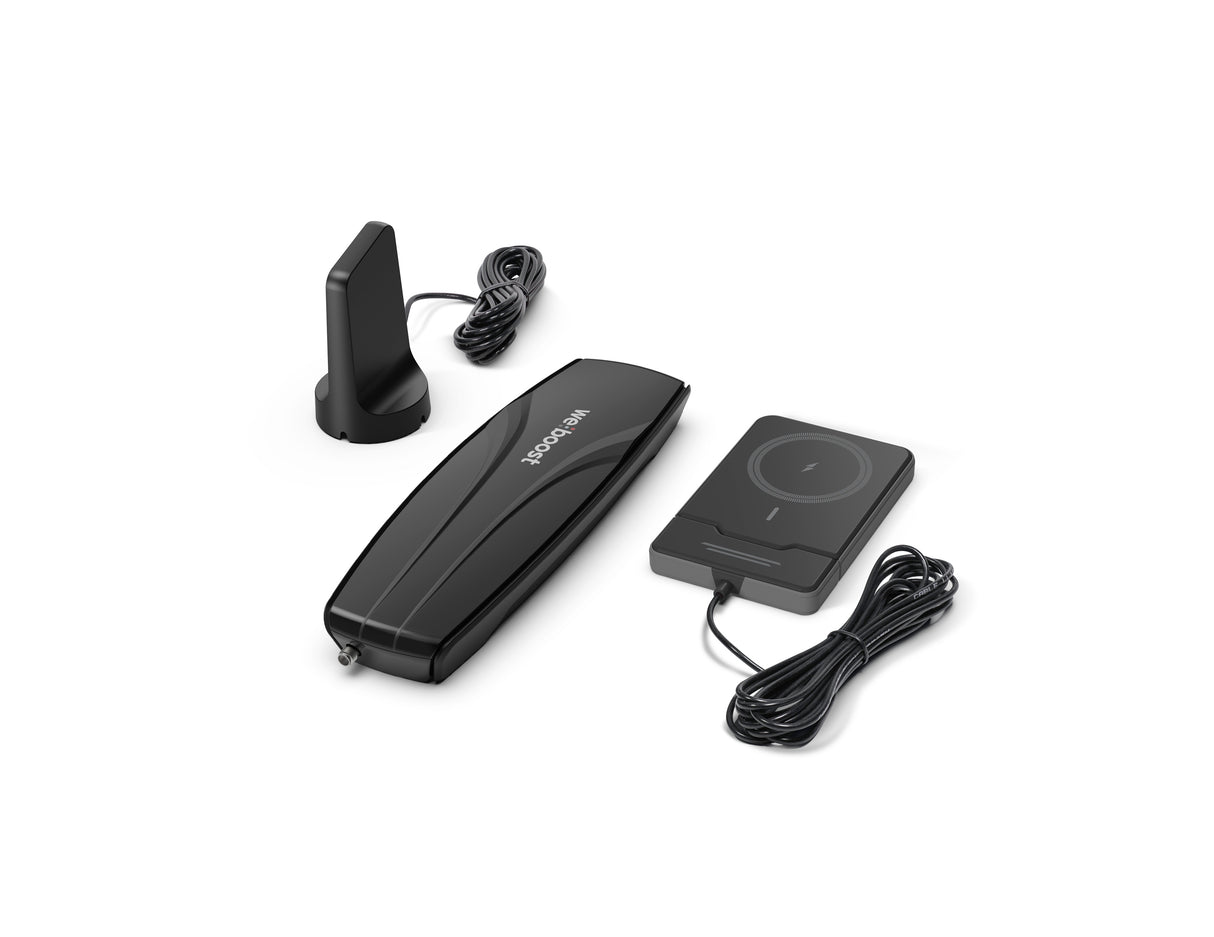

• The Dash signal amplifier

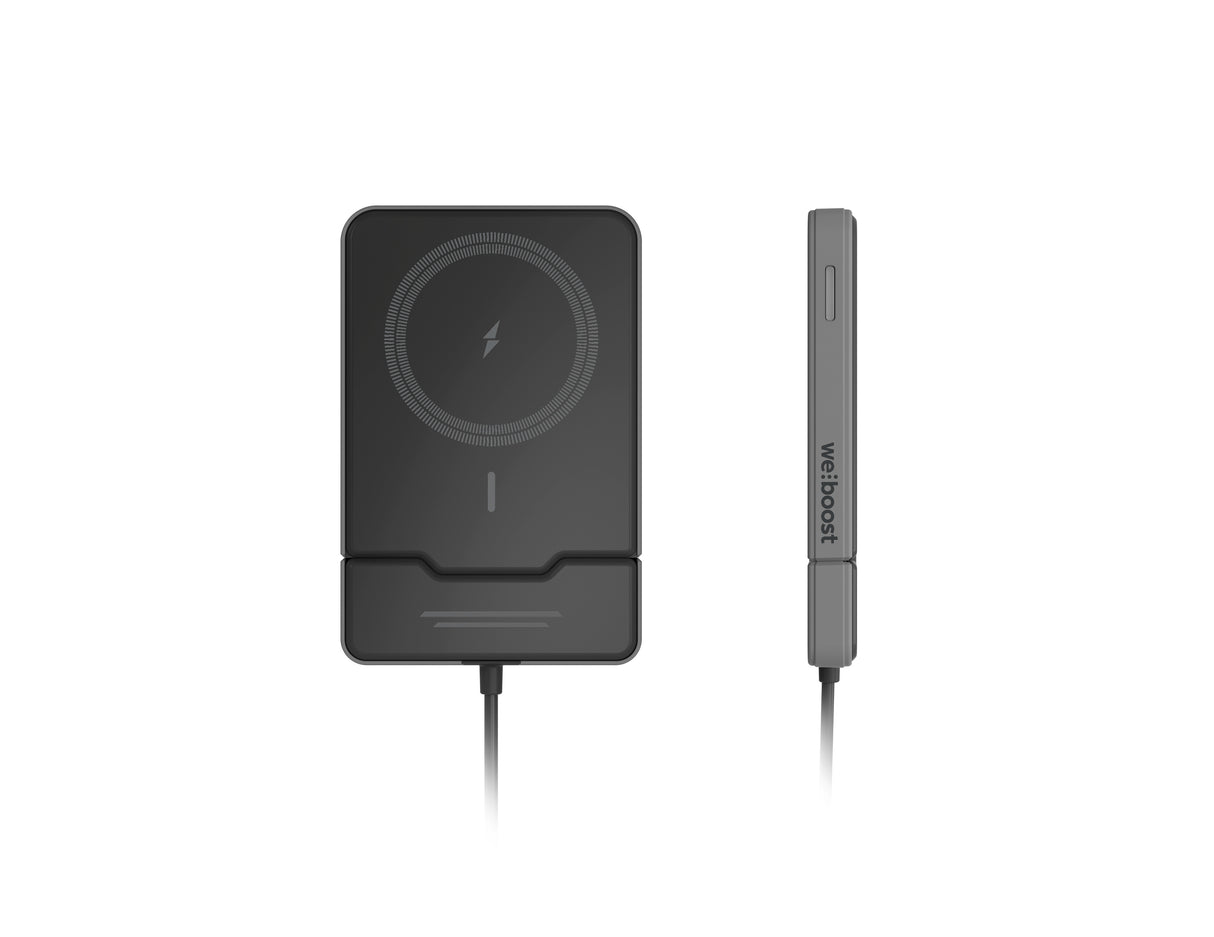

• Magnetic signal boosting wireless charger
• Metal adhesive ring (for phones without Qi2 or MagSafe)
• Outside antenna
• Adhesive disk (for use on aluminum vehicle roofs)
• Power supply (12V vehicle adapter)
• Velcro adhesive strips for mounting

This system is designed for the phone to rest on the Magnetic Phone Charger in order to receive the amplified signal. The inside antenna is built into the charger, so keeping the phone on that mount places it in the boosted field. If your phone supports MagSafe or Qi2 it will snap into alignment. If it does not, use the included thin metal ring to ensure proper alignment on the charger.

Supported Devices: All phones, hotspots, and cellular data devices.

Supported Networks: 4G LTE and 5G on supported bands.

Frequencies Boosted: 700 MHz Band 12 and 17, 700 MHz Band 13, 850 MHz Band 5, 1700 and 2100 MHz Band 4, and 1900 MHz Band 25 and 2.

Carriers: Works with major United States and Canada carriers including Verizon, AT&T, T Mobile, and UScellular. Also supports smaller carriers and MVNOs.

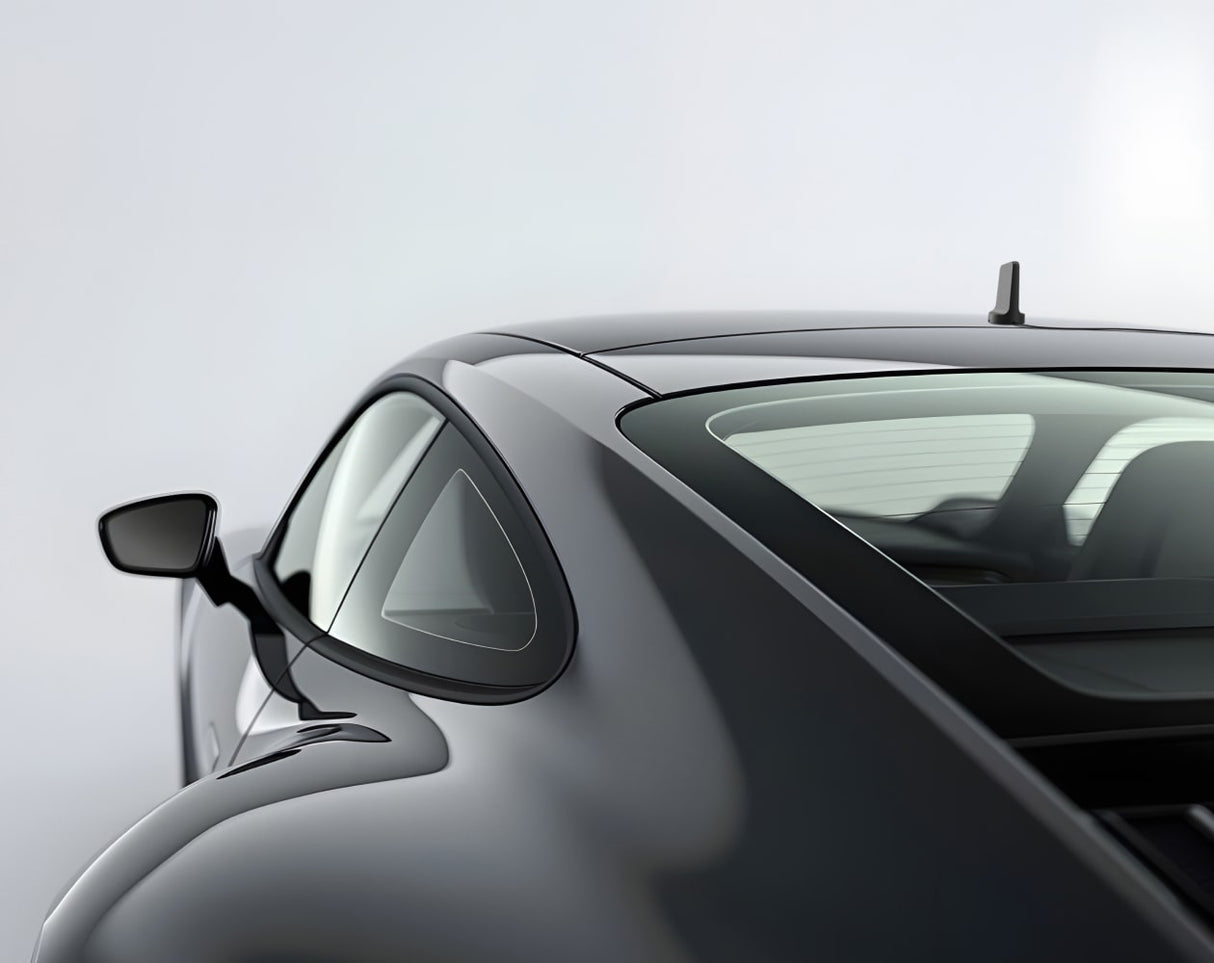

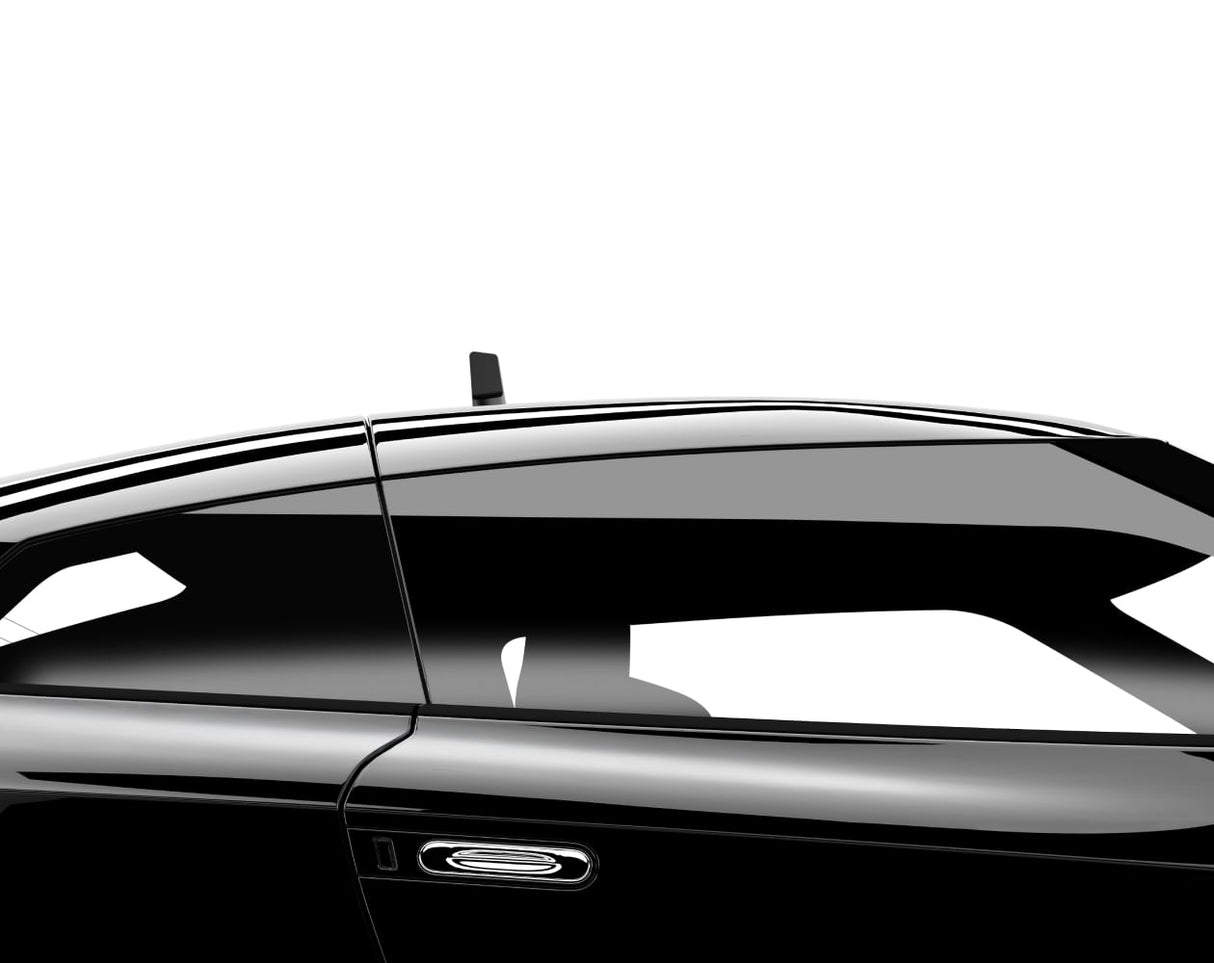

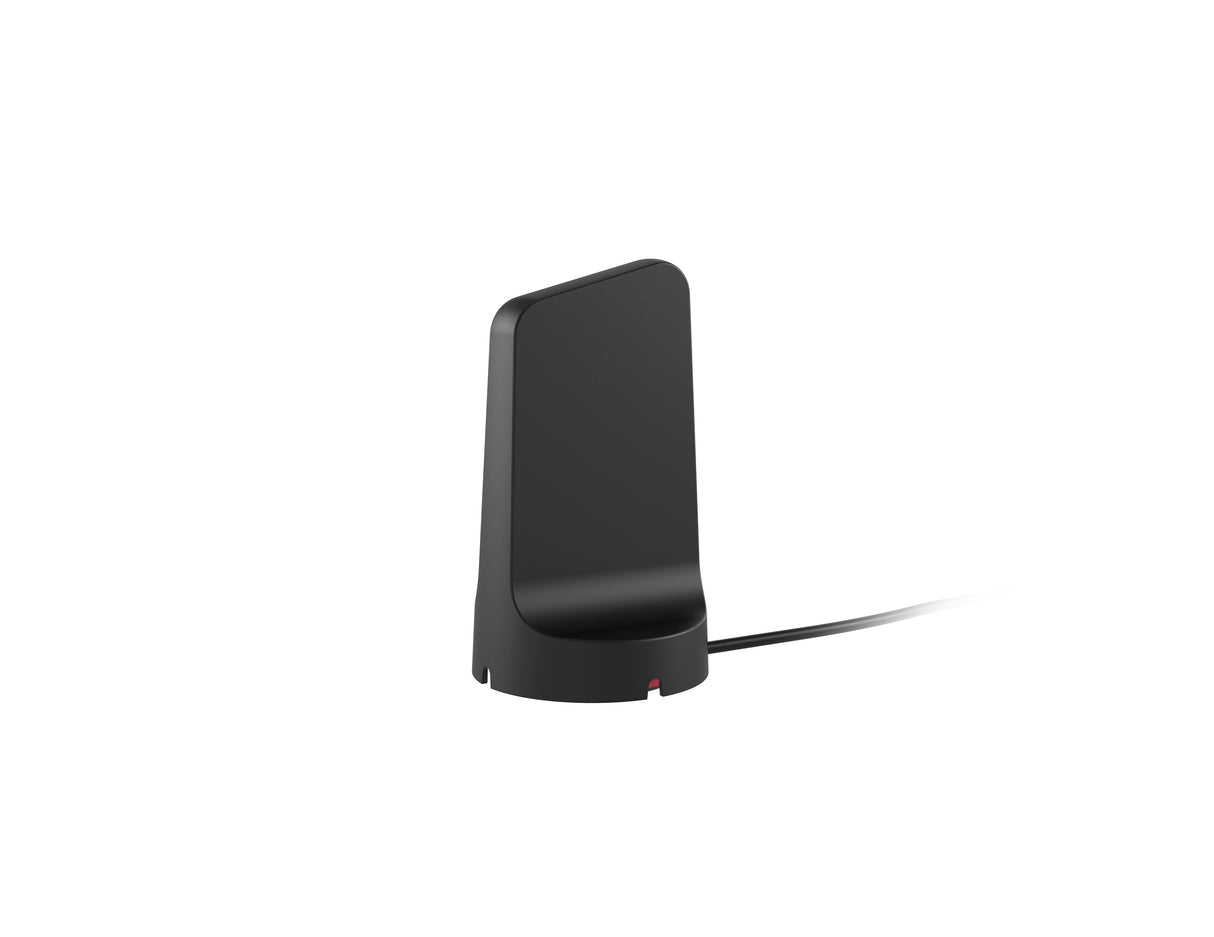

Plan on a simple DIY setup. Start by placing the outside antenna on the roof. Choose a spot near the center and keep it at least twelve inches from any other antenna and at least twelve inches from windows including a sunroof. Clean the surface first so the magnet seats well. For aluminum roofs use the included adhesive disk.

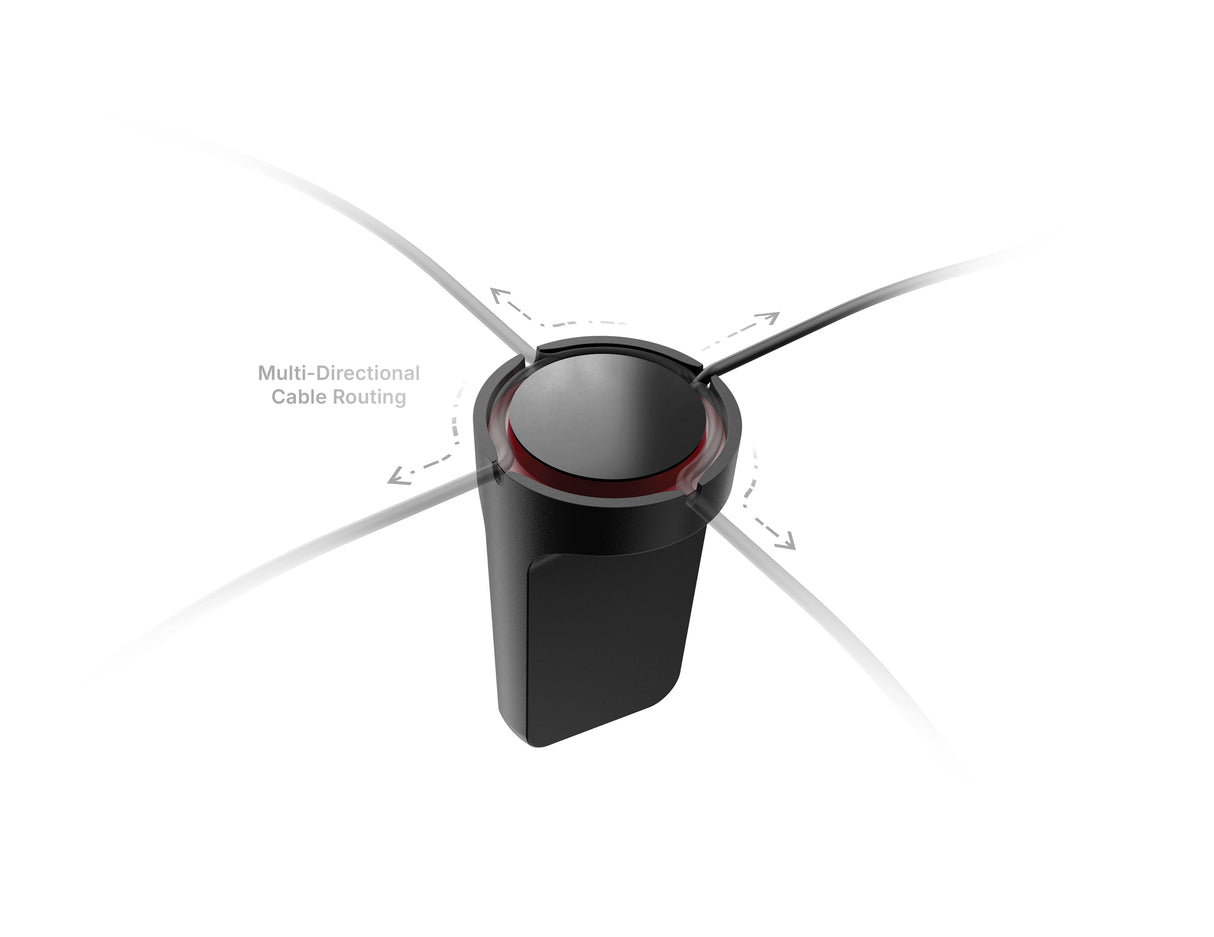

Route the antenna cable into the vehicle. The cable can enter from any side and is tough enough to shut in most doors without damage. Common paths are a rear side door on a sedan, the top of the hatch on an SUV or van, or a side door on a truck. Remove the outside antenna before a car wash.

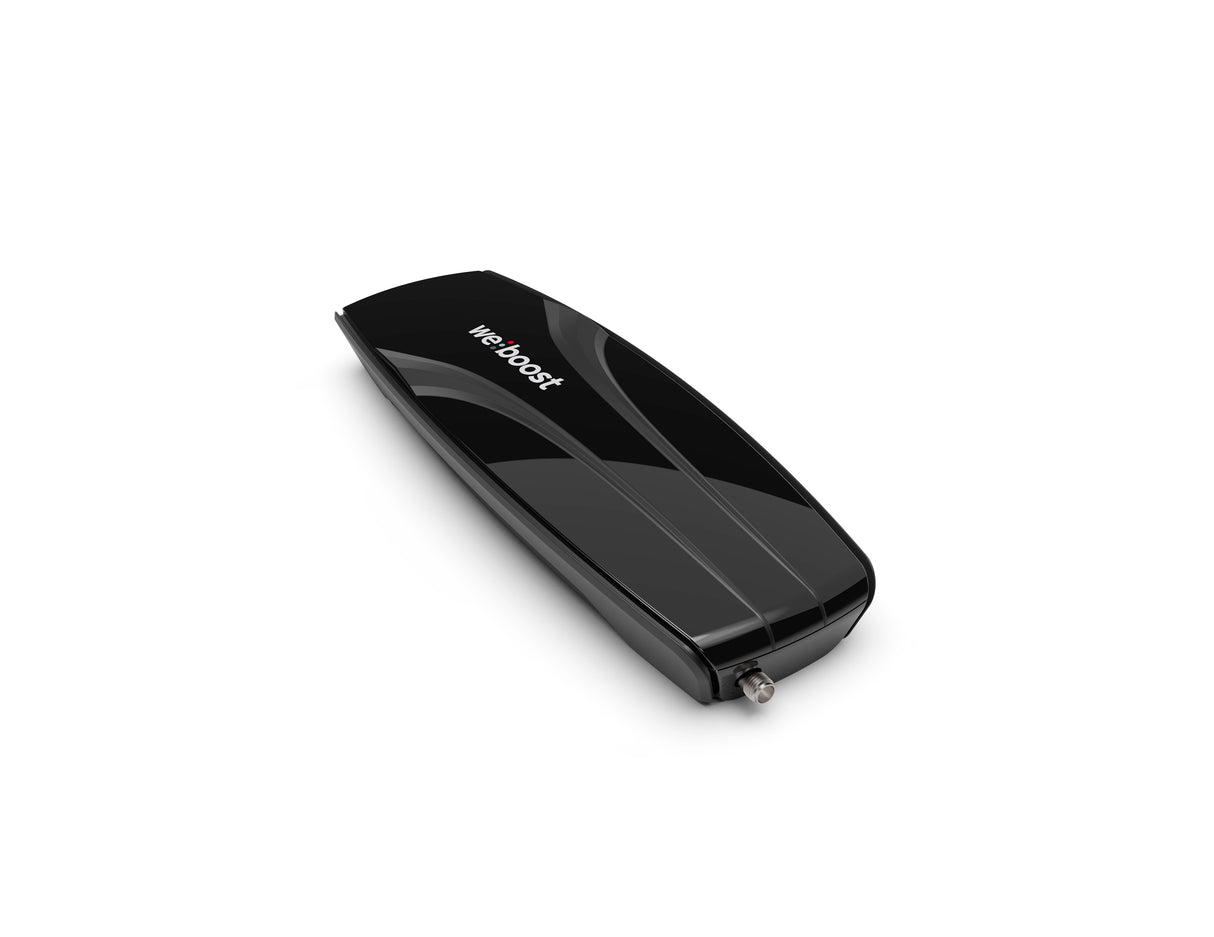

Connect the outside antenna cable to the end of the booster without the power port. Hand tighten only. Place the booster under a seat or in the trunk where cables will not be stepped on or snagged.

Connect the charger cable to the booster end with the power port. Hand tighten only. Then plug the power supply into the vehicle 12V port and connect it to the booster. If your 12V port is always on, switch the power supply off when parked to avoid draining the battery. Only 12V ports are supported.

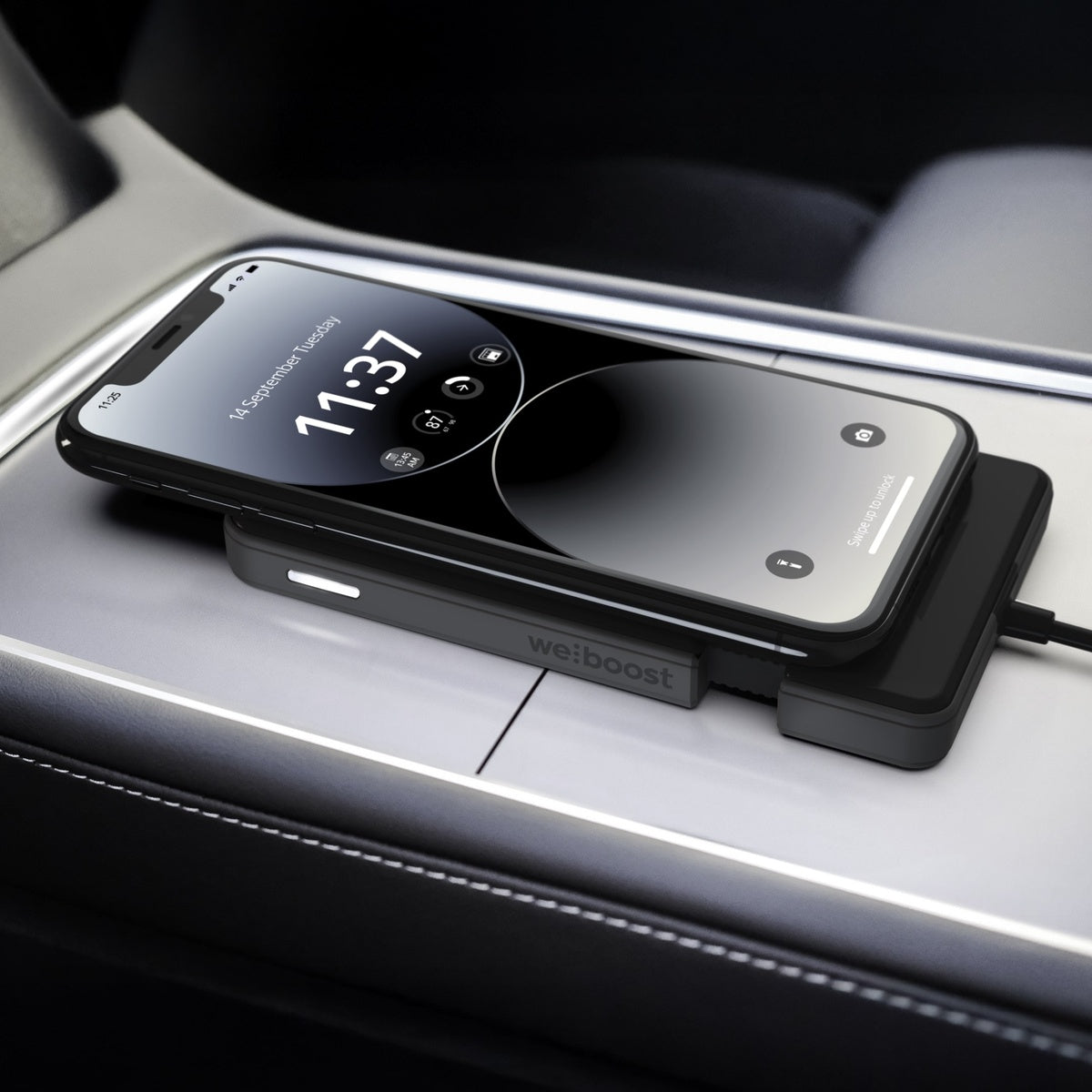

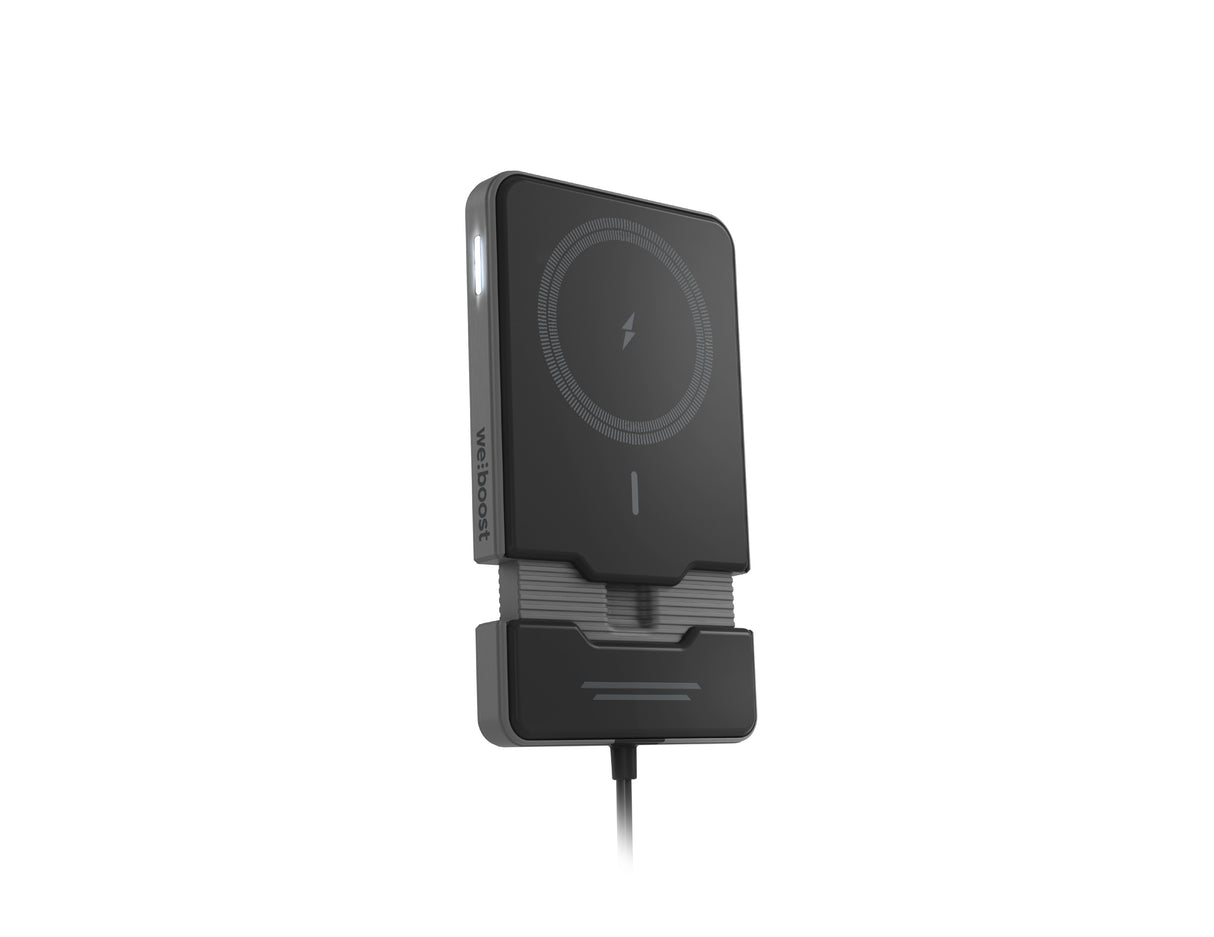

Attach your phone to the Magnetic Phone Charger. Extend the charger so the bottom edge of the phone sits between the two reference lines on the pad for best coupling and performance. If your phone supports MagSafe or Qi2 it will snap into place. If it does not, use the included thin metal ring to line it up. This system is designed for the phone to rest on the charger to receive the amplified signal.

Check status. A solid white LED on the charger means the booster is on and operating at maximum gain. If the phone is not charging, check power to the CLA, the booster, and the charger, then reseat the plug.
