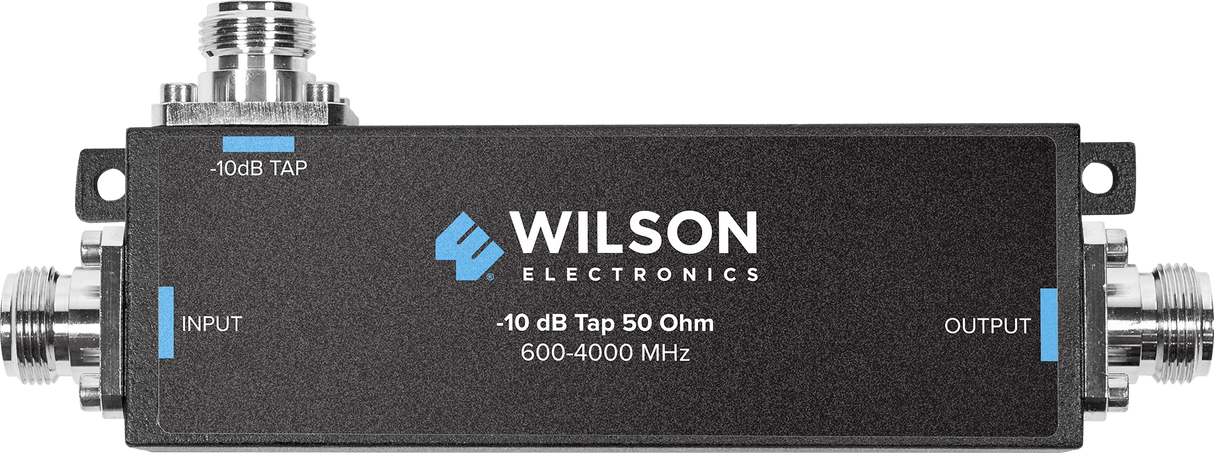

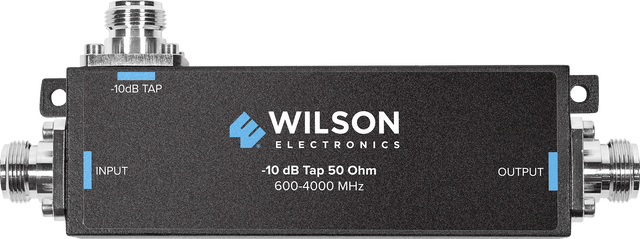

Wilson -10 dB Tap 600-4000 MHz 50 Ohm | 859119

The Wilson -10 dB Tap splits a 600-4000 MHz signal into two unequal paths without amplifying it. The through port carries most of the power to the antenna at the far end, while the tap port sends about a tenth to the antenna nearer the amplifier. Both end up at similar levels despite uneven cable runs. It fits commercial in-building installations that need an unequal split rather than an even one.

Key Features:

• Frequency Range: 600-4000 MHz, including C-Band and T-Mobile band 71.
• Impedance: 50 Ohm.
• Tap Coupling: -10 dB, about one tenth of the signal to the tap port.
• Passthru Loss: 0.5 dB on the through port, 1.1 dB maximum.
• VSWR: 1.30 maximum (600-2700 MHz), 1.35 maximum above 2700 MHz.
• Connectors: N-Female.
• Power Handling: 200 W per port.
• Environmental Rating: IP65, indoor or outdoor use, -30 to +65 C.
• Compatible With: WilsonPro 1337 C-Band products, the WilsonPro 710i, and Wilson C-Band antennas (311245, 311243, 311242).

It replaces the earlier 859907 tap, whose 700-2500 MHz range misses both T-Mobile band 71 and C-Band. The tap carries a two-year Wilson warranty.
