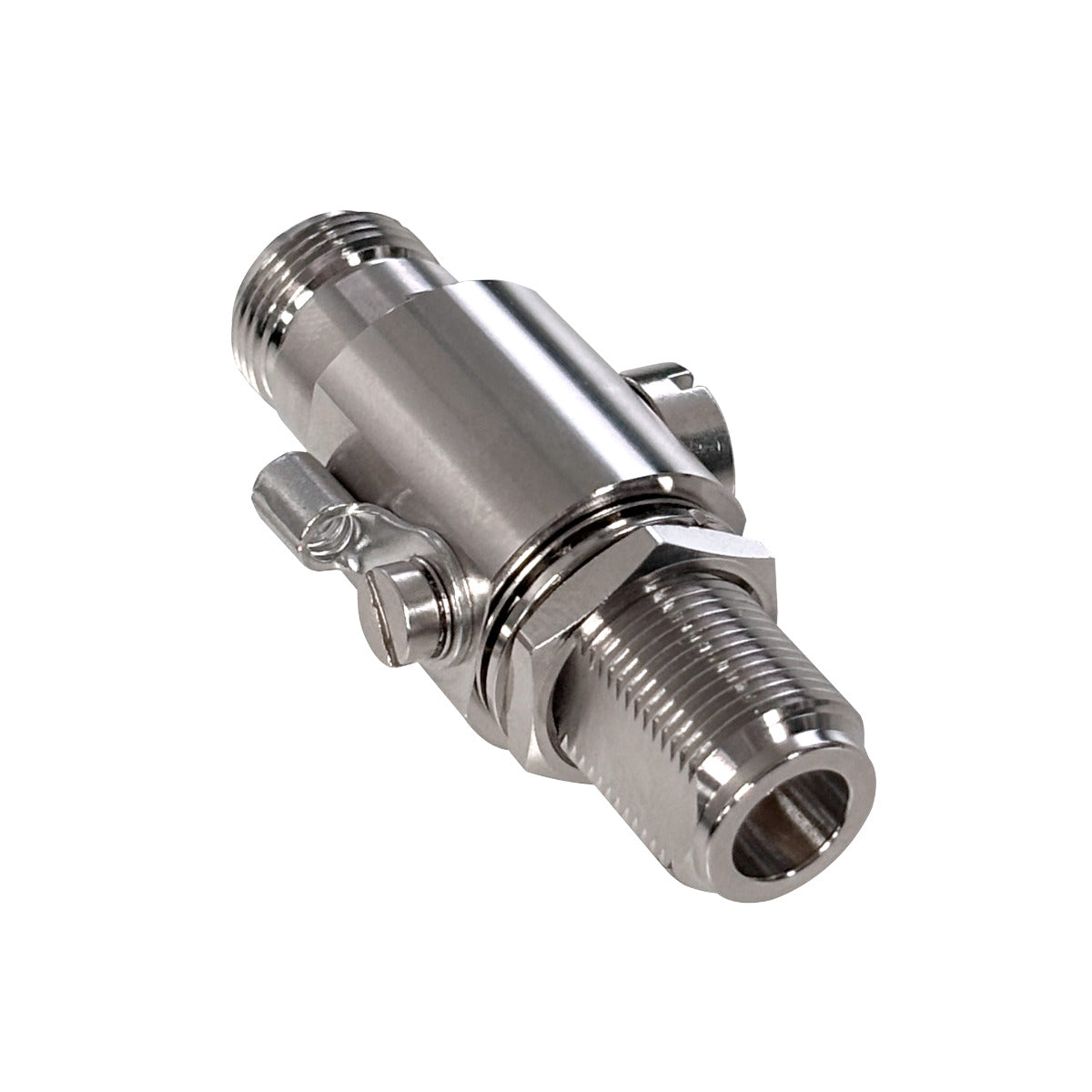

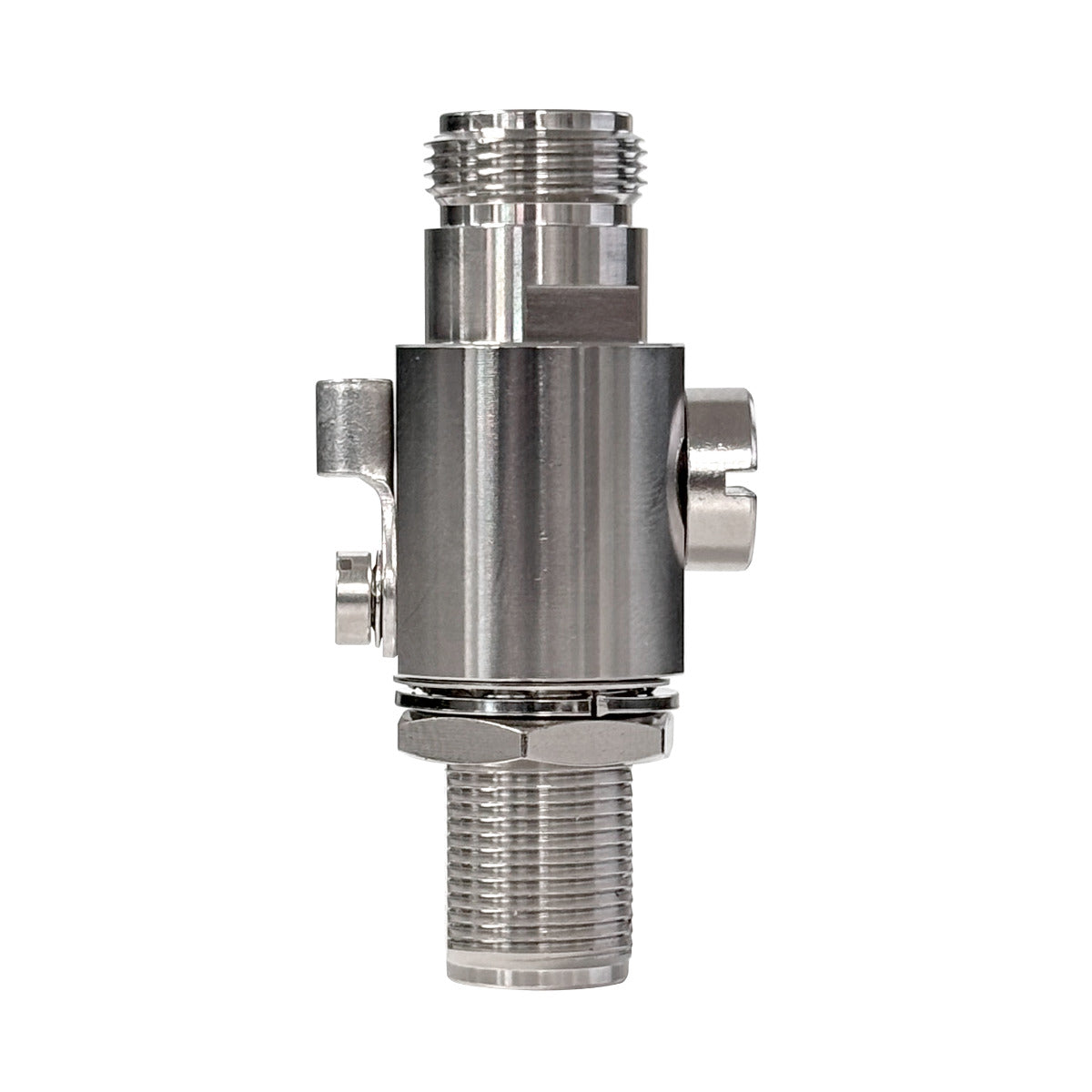

Wilson 6GHz 50 Ohm Lightning Surge Protector | 850050

Product Highlights

• Designed for 50 ohm signal booster systems
• Installs in-line between outdoor antenna and amplifier
• Covers frequencies from DC to 5.8 GHz
• N-Female connectors on both ends
• Bi-directional surge protection
• Replaceable 90 volt gas discharge tube
• Built-in grounding screw for optional ground wire
• Weather-resistant housing for indoor or outdoor use

Top Benefits

• Diverts lightning surges away from your booster equipment
• Protects the coax line, not just the power supply
• Works with all major 4G and 5G booster systems
• Compact, durable, and easy to install
• Helps prevent costly damage during storms

Install the lightning protector in-line on the coaxial cable that runs between your outdoor antenna and your amplifier. It should be placed as close as possible to the point where the cable enters the building. This allows the protector to intercept surges before they reach your indoor equipment.

Step-by-step

1. Power down your system before installation
2. Connect the coax cable from the outdoor antenna to one end of the lightning protector
3. Use a separate jumper cable to connect the other end of the protector to your amplifier
4. If grounding is required, attach a ground wire to the built-in grounding screw and run it to an appropriate ground source
5. Tighten all connections by hand. Do not overtighten
6. Power the system back on and confirm signal

Installer tips

• Always ground the protector if installed outdoors
• Use a short jumper cable between the protector and amplifier
• Avoid sharp bends or coiled cable near the protector
• Mount it in a weather-protected spot when possible

Most installs take just a few minutes and require only basic tools.
