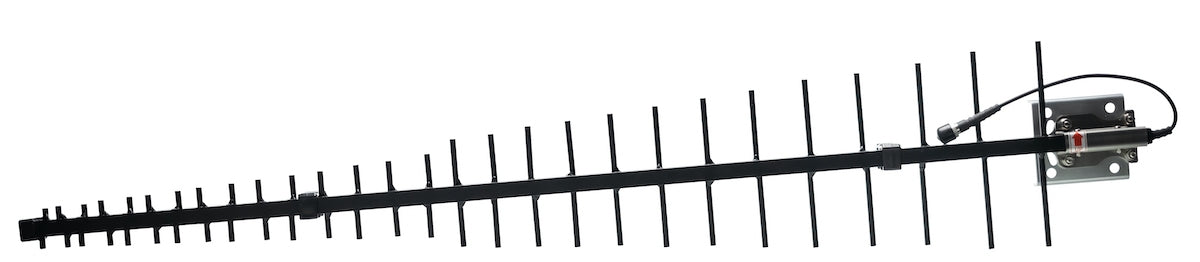

Wilson High-Gain LPDA Antenna | 311228

Wilson Electronics  |  SKU: 311228 |
$249.99

Do You Have a Question?
Our friendly signal experts are ready to help you.
Call us: 1-800-590-3564 or send us a message.

Description

The Wilson High-Gain LPDA Antenna, model 311228, is designed for superior directional outdoor reception and transmission of signal frequencies across a wide band from 698 to 2700 MHz. This makes it ideal for all worldwide cellular bands for voice and 4G/5G data applications.

Key Features:

  • Frequency Range: 698-806, 806-960, 1710-1880, 1900-2200, 2200-2700 MHz, catering to a broad spectrum of cellular, PCS, AWS, and LTE frequencies.
  • Peak Gain: Ranges from 11.2 to 13.1 dBi, enhancing signal strength and coverage.
  • Polarization: Linear, which helps reduce the complexity of antenna design and simplifies signal reception.
  • Beamwidth: Offers focused energy distribution with half-power azimuth beamwidths between 38° and 60°, and elevation beamwidths between 30° and 46°.
  • Impedance: Standard 50 Ohms, compatible with most commercial RF equipment.
  • Maximum Power: Can handle up to 50 Watts, allowing it to support a high level of signal transmission.

Physical Characteristics:

  • Material: Built from durable aluminum with a radiator for enhanced weather resistance.
  • Size: Measures 44 inches in length, making it compact yet powerful for outdoor installations.
  • Weight: Weighs 3.5 pounds, sturdy enough for stable outdoor mounting.

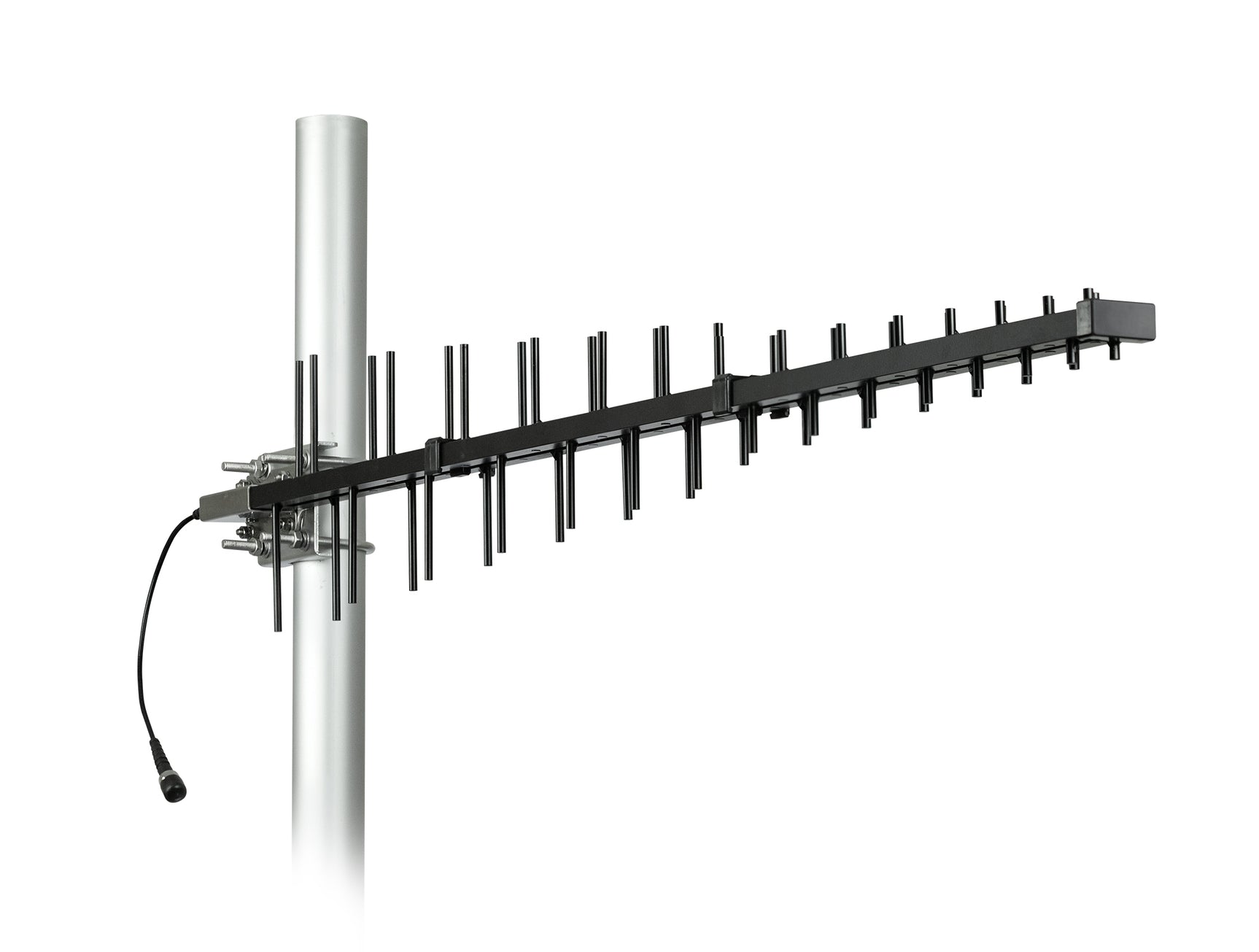

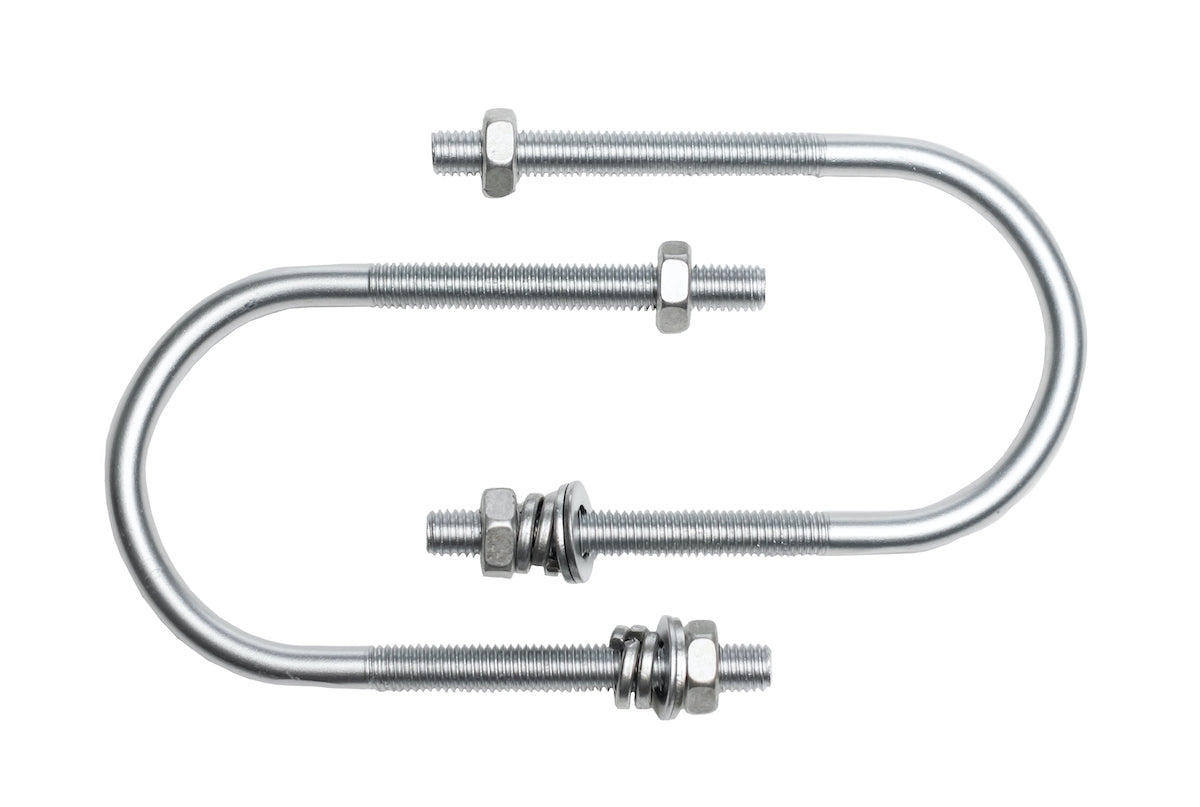

  • Mount Type: Comes with hardware for mounting on a 1.5 to 2.0 inch diameter pole.

Installation:

  • Simple Installation: Includes a tilt/swivel bracket for easy orientation and mounting on various pole sizes.

This antenna is designed for building exterior installation, aiming directly at cell towers for the best signal. It is rugged and waterproof for all-weather operation. Ideal for enhancing cellular communications, especially in rural or low-signal areas.
