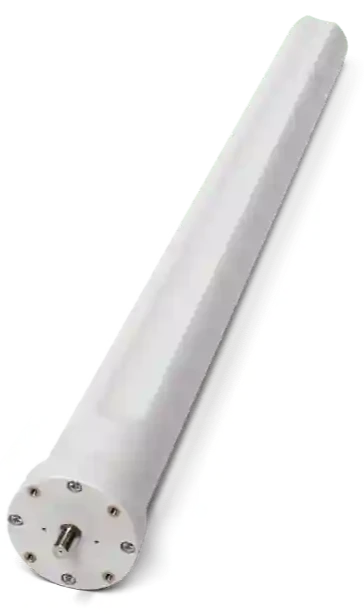

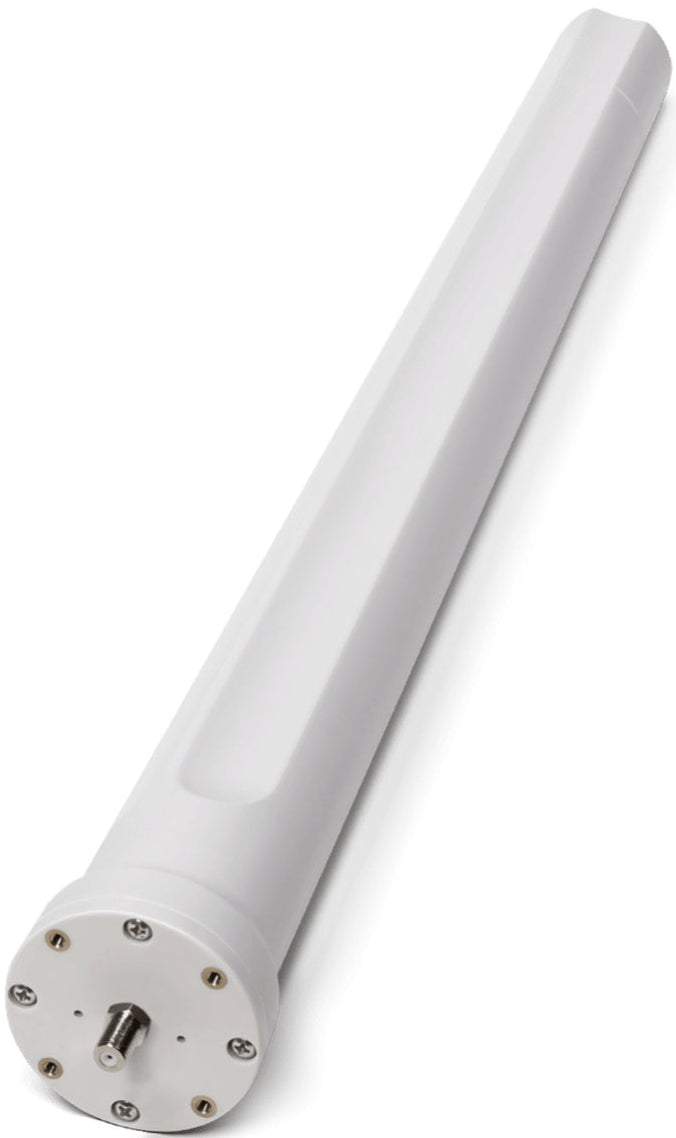

Wilson High-Gain Omni Antenna | 310001

Product Highlights

• High-gain omnidirectional design pulls in signals from all directions
• Supports a wide frequency range from 617 MHz up to 3800 MHz
• Works with 4G LTE and mid-band 5G, including the 3.5 GHz range
• Vertical polarization with up to 9 dBi peak gain depending on band
• Weather-resistant ABS housing with IP65 rating
• Operates in extreme temperatures from -40°F to 176°F
• N-type female connector for secure, low-loss connections
• Includes mounting hardware for outdoor pole or wall installation

Top Benefits

• Brings in usable signal where smaller antennas fail, especially in rural or low-signal areas
• Simplifies installation by covering multiple bands and directions with one antenna
• Keeps equipment online in harsh outdoor environments
• Supports data performance for LTE routers, signal boosters, and industrial gateways
• Helps avoid the hassle of aiming a directional antenna at a specific tower

• Wilson High-Gain Omni Antenna | Model 310001
• Mounting hardware (pole mount bracket and U-bolts)

Supported Devices: All phones, cellular routers, hotspots, modems, and IoT hardware with compatible ports

Supported Networks: 4G LTE and 5G (on FCC-approved bands)

Frequencies Boosted: 617–960 MHz, 1427–1517 MHz, 1710–2700 MHz, and 3400–3800 MHz

Carriers: Verizon, AT&T, T-Mobile, and UScellular. Also compatible with MVNOs that use these networks

Note: This antenna is designed for North American bands. It may not function properly with carriers outside this region due to frequency differences.

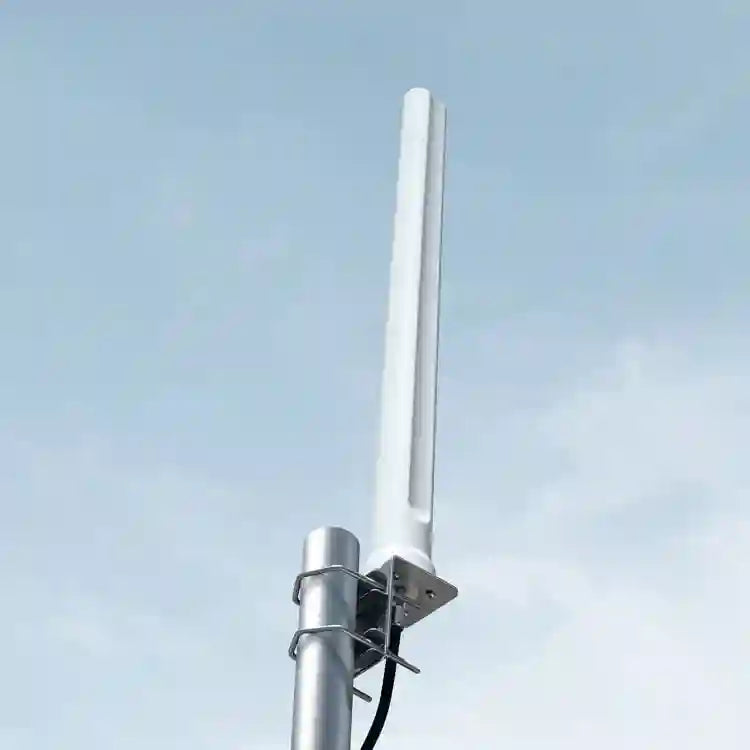

The Wilson High-Gain Omni Antenna | 310001 antenna is designed for permanent outdoor mounting and installs best on a rooftop, pole, or exterior wall. It includes a mounting bracket and U-bolts to secure it to a vertical or horizontal mast.

Because it’s omnidirectional, you don’t need to aim it at a specific tower. That makes setup easier and more forgiving than a directional antenna. Just try a few mounting spots around your building to find the strongest incoming signal, ideally on the side facing the nearest tower or with the clearest line of sight.

Installer Tips:

• Mount the antenna as high as possible and clear of obstructions
• Use low-loss coaxial cable to minimize signal loss over long runs
• Avoid coiling excess cable near the antenna or booster
• Make sure the antenna is vertically oriented as designed
• Keep cables and connections protected from weather exposure

This antenna uses an N-type female connector, which fits directly into many signal boosters or industrial routers. If your device uses a different connector (like SMA or FME), an adapter may be required.

While it’s built for outdoor use, some users have mounted it indoors in industrial or commercial settings where coverage is poor and outdoor access is limited. Just keep in mind that walls and structures can reduce its effectiveness.
