The WilsonPro 1050 Enterprise Signal Booster with Inline Amplifier (460230) is the first and only signal booster system with an inline amplifier that has been approved under the new FCC rules. The WilsonPro 1050 is an ideal solution for situations that require very long cable runs, such as equipment rooms, lower floors of highrise buildings, and basements, where you need an inline amplifier to compensate for the signal loss over a very long cable run.
In addition, the system is designed to handle any strength of outside signal without overloading, and has the maximum output power (+15dBm) of any amplifier, so it can transform a strong outside signal into a very large inside coverage area.
Why the WilsonPro 1050 Enterprise Signal Booster with Inline Amplifier?
- First signal booster system to include an inline amplifier to compensate for very long cable runs.
- Able to handle a very strong outside signal (+15 dBm) and turn that into a significant amount of coverage inside.
- Strongest gain (boosting power) allowed by the FCC.

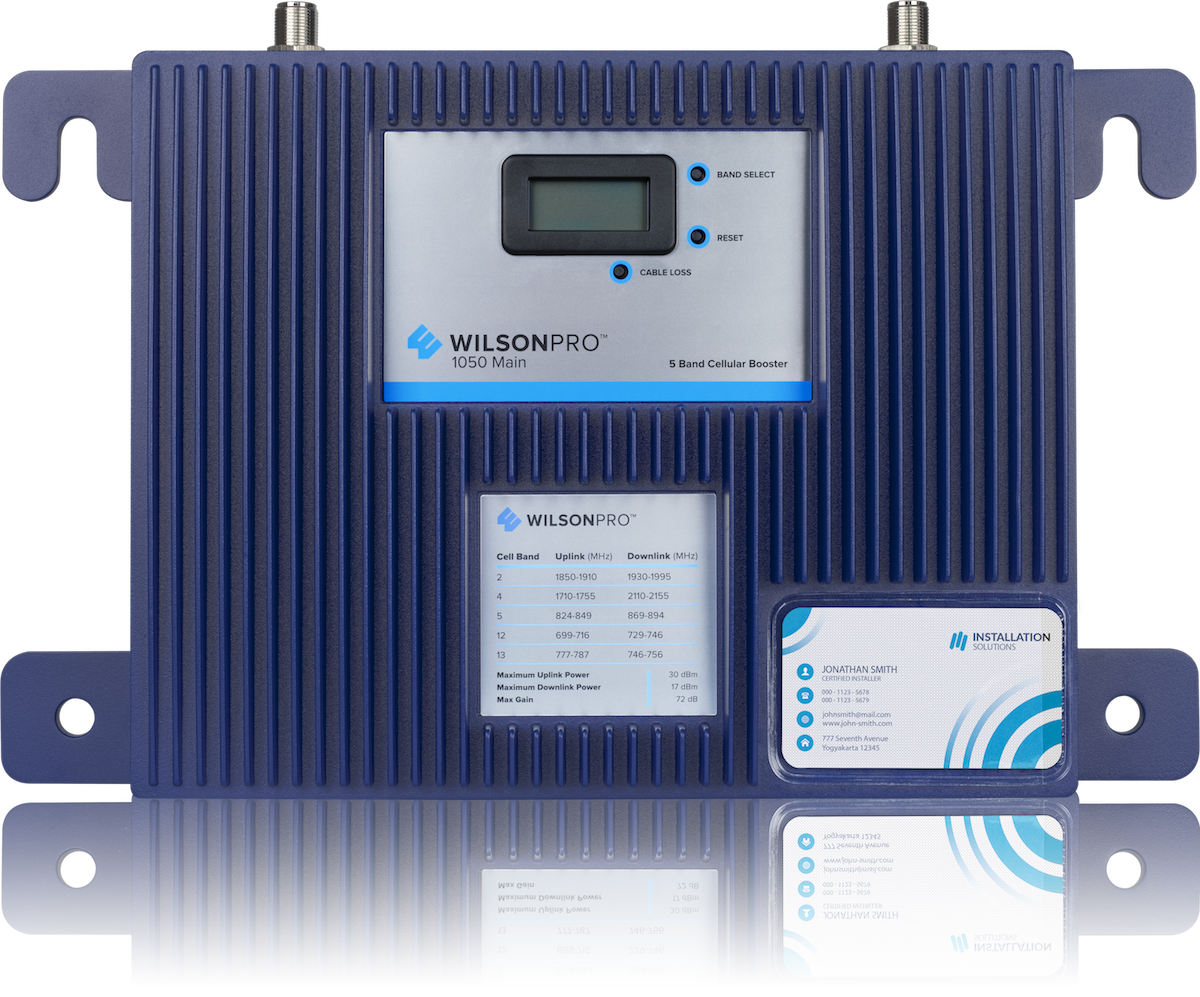

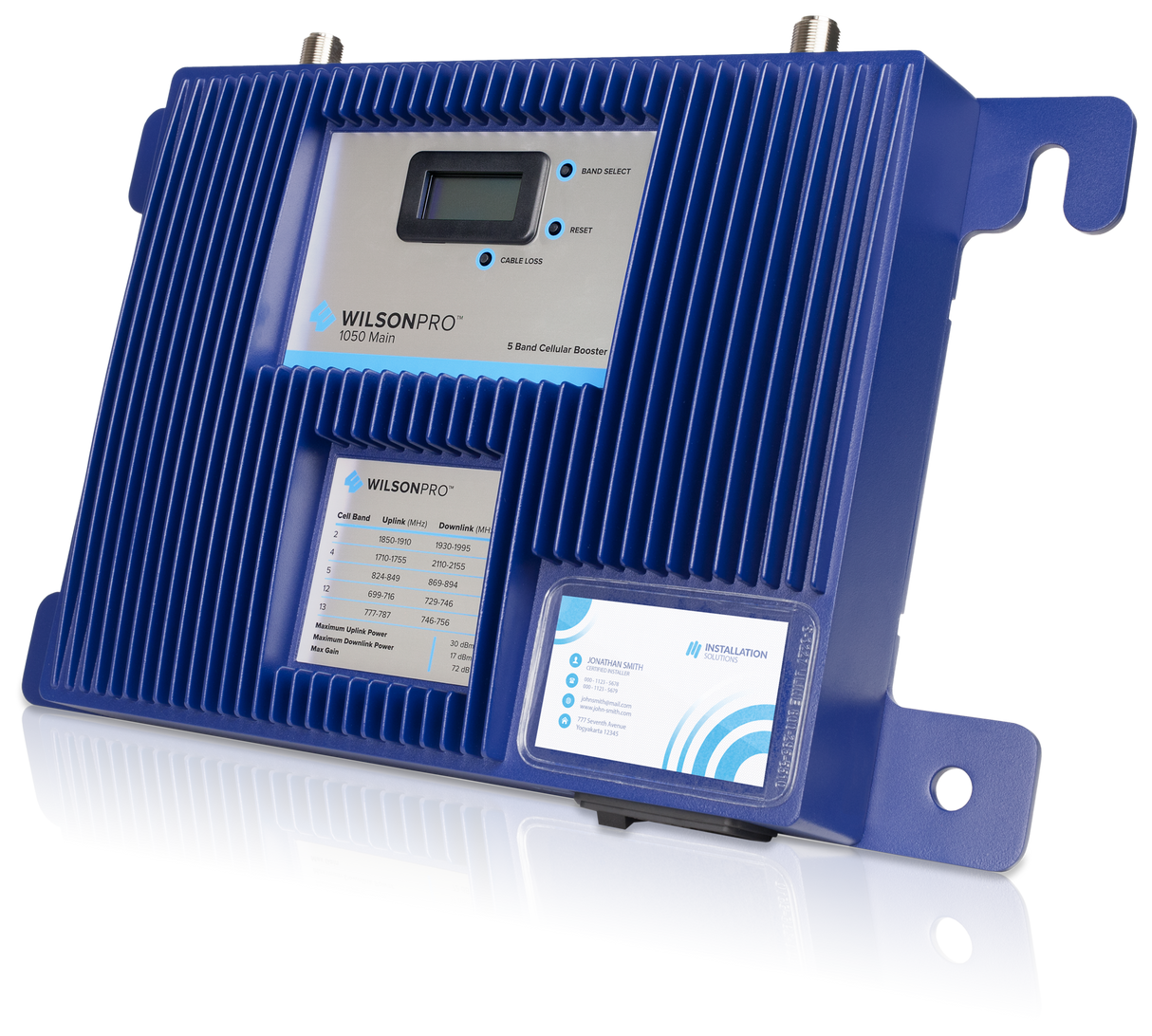

- Amplifier LCD display allows for system monitoring and easy troubleshooting.
- Works wirelessly. No physical connection to your phone required.
- Supports multiple phones and all carriers at the same time.

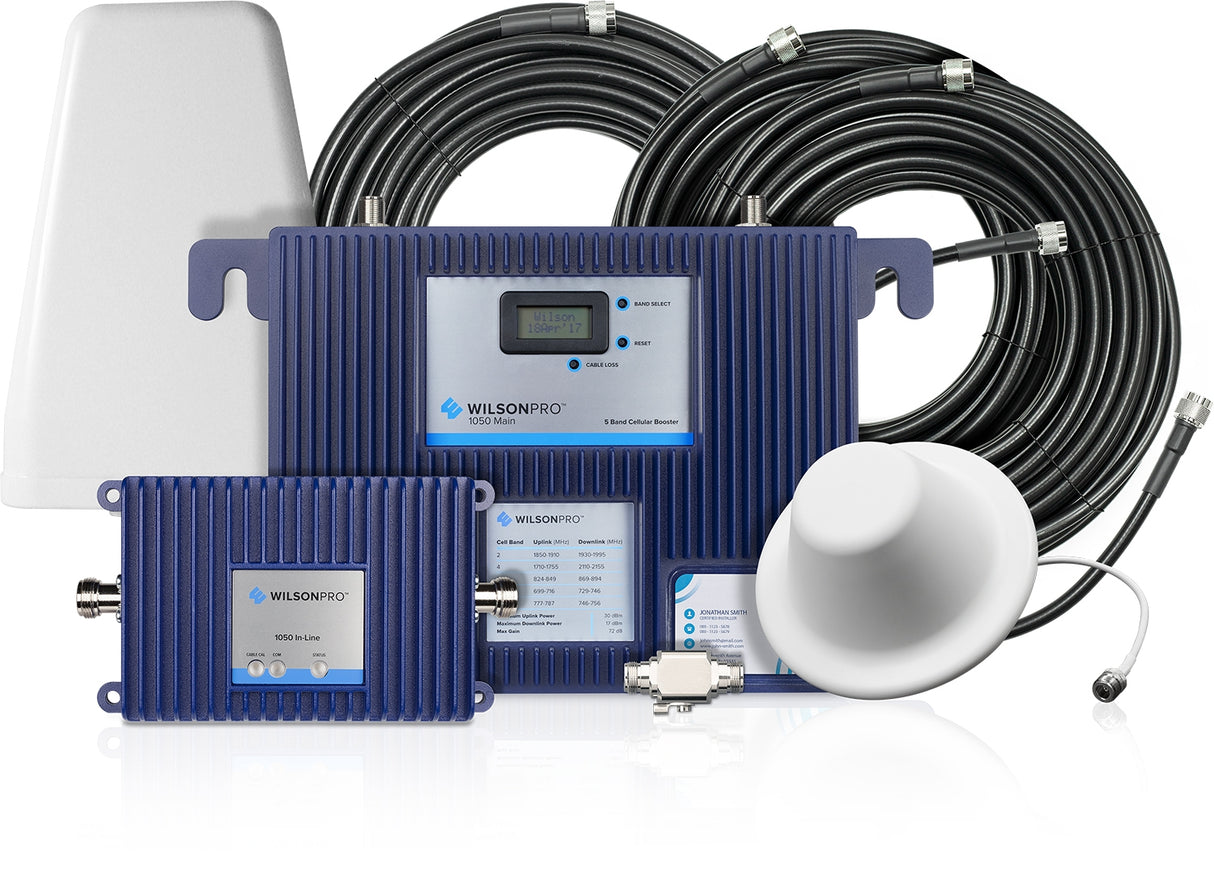

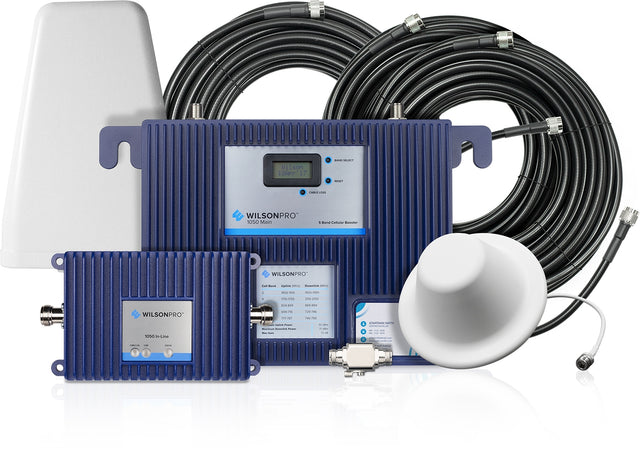

- Kit includes all components for a basic installation.
- Fewer dropped calls
- Faster Internet data speeds
- Better voice quality
- Texts that send quickly
- Longer battery life
- Bonus: lightning protector kit
Your purchase is covered by our 60-day money-back guarantee, so you can try it risk-free, and our friendly, US-based technical support team is standing by to assist with anything you need. Your equipment is also covered by a 3-year manufacturer warranty, for extra peace of mind.
Recommended For
The WilsonPro 1050 Enterprise Signal Booster with Inline Amplifier is an ideal solution for professional installations that require long cable runs to one, or multiple, internal antennas. The inline amplifier is designed to communicate with the main amplifier and compensate for the signal loss that occurs during a long cable run. If you need an enterprise solution that can handle any type of outside signal, as well as long cable runs, then the WilsonPro 1050 is going to be the best option for you.
How it Works
The WilsonPro 1050 Enterprise Signal Booster with Inline Amplifier (460230) includes a yagi directional donor outside antenna, which is typically mounted on a pole or mast on the roof of the building that requires better cell reception. A cable is run from the yagi antenna into the building, where the lighting protector is attached to prevent static electricity surges, and then a 2 ft jumper cable connects the lightning protector to the main 1050 amplifier.

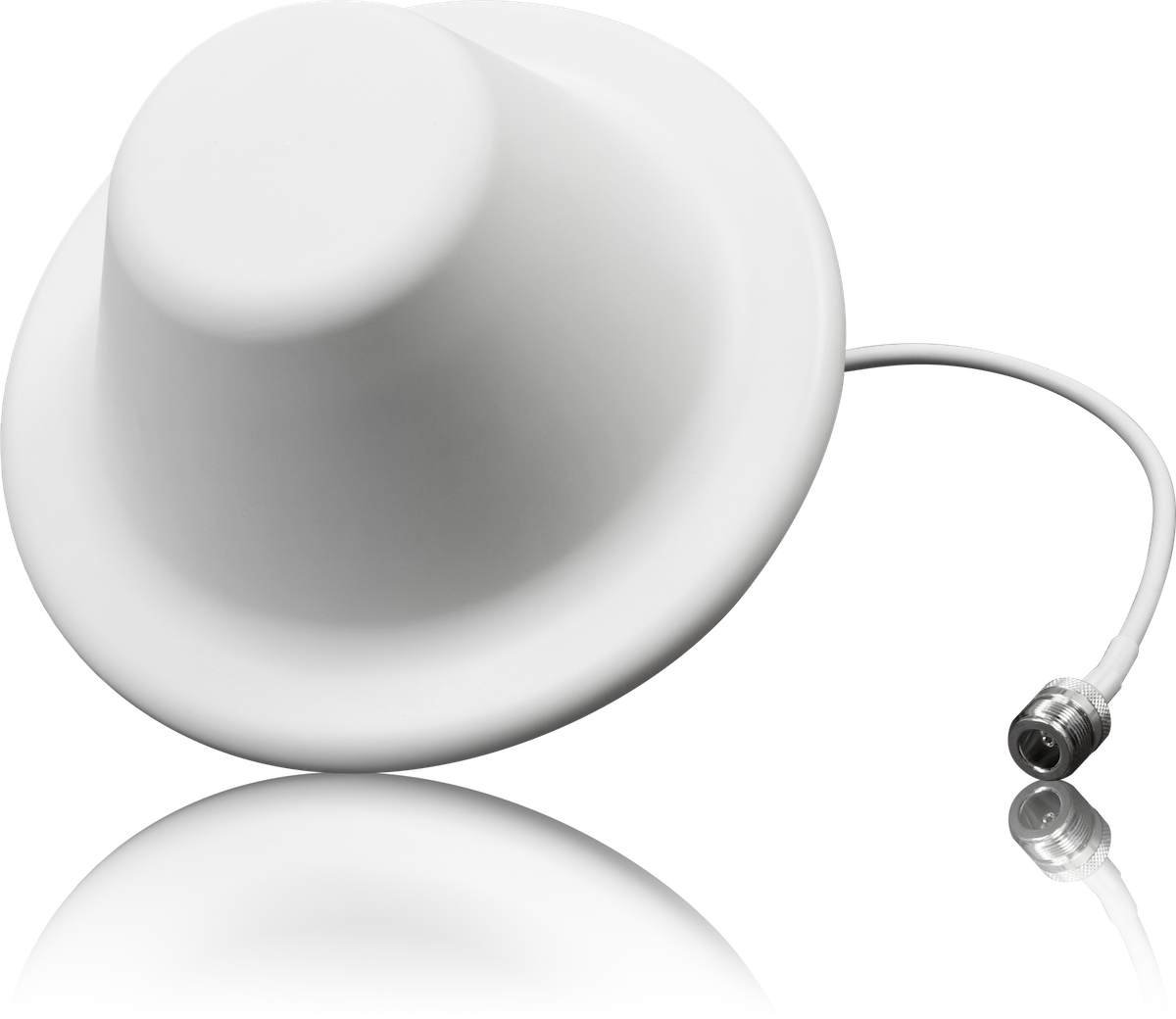

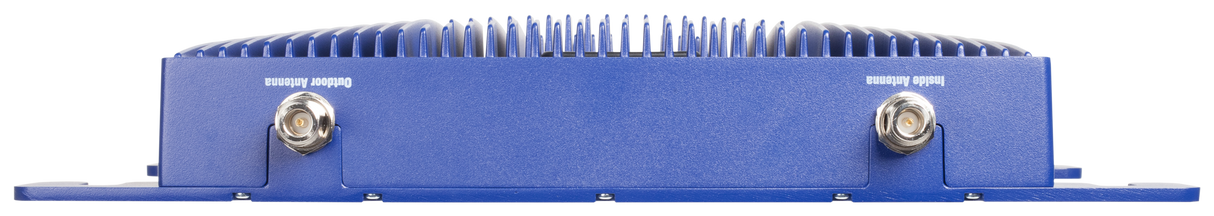

Another cable is attached to the inside antenna port on the main amplifier. This will be the cable that makes the long run to the inline amplifier, and the loss on the cable used must be the equivalent of between 100 and 300 ft of LMR400 (the length can be longer if a lower loss cable is used, or shorter if a higher loss cable is used). If the loss from the cable is less than the equivalent of 100 ft of LMR400 or more than the equivalent of 300 ft of LMR400, then the system will not work. At the other end of this cable run, the inline amplifier is attached, and then another cable is run from there to one, or many, inside antennas.
The inline amplifier communicates directly with the main amplifier via the connected cable, so the inline amplifier will only work with the 1050 main amplifier, and vice versa (the main amplifier will not work without the inline amplifier). The inline amplifier is able to determine exactly how much loss has been experienced over the cable run and boosts the signal back up to compensate for that loss.
Things to Know About the Inline Amplifier
-

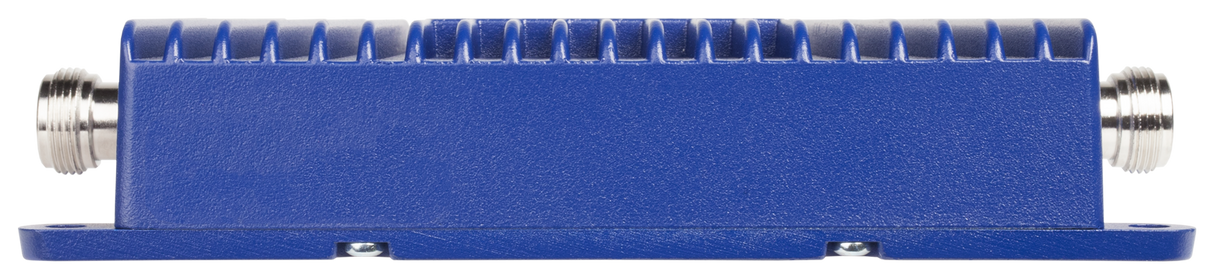

The inline amplifier will provide an added gain of between 4 to 25 dB, which equates to between 100 to 300 feet of LMR400. Lower loss cable can be used for longer cable runs, and the inline amplifier will automatically calculate the loss and boost accordingly.
Please Note: If the loss from the cable used for the run between the main amplifier and inline amplifier is less than the equivalent of 100 ft of LMR400 or more than the equivalent of 300 ft of LMR400, then the system will not function. - The inline amplifier and main amplifier must be used together. You cannot use the inline amplifier with any other amplifier, and you cannot use the main amplifier without the inline amplifier.
- You cannot use a splitter or another device between the main amplifier and the inline amplifier. It must be a direct cable connection, otherwise, the units will not be able to communicate properly and stop working.
Estimates of Cable Types & Lengths that can be used between the Main and Inline Amplifiers
- RG-6 Cable: 50 ft to 140 ft of cable
- 400 Series: 100 ft to 300 ft of cable
- 600 Series: 175 ft to 475 ft of cable
- 900 Series: 250 ft to 700 ft of cable
Custom System Design
In order to receive the maximum coverage and effectiveness from the WilsonPro 1050 Enterprise Signal Booster with Inline Amplifier, a professional system design is highly recommended. We offer a free professional system design consultation where our experts can design a system using the WilsonPro 1050 system and add on additional components to create the best possible solution for you. You can find out more on the Professional Design & Installation Services page or contact us at 800-590-3564 for more details.
Estimated Inside Coverage
The strength of your existing outside signal, measured in the location where you plan to mount the outside antenna, has a direct impact on the amount of inside coverage you'll get from a signal booster. The table below shows how much coverage you may get depending on your outside signal strength:
| Existing Outside Signal Strength | Estimated Inside Coverage |
|---|---|
| Strong (5 Bars) | Up to 25,000 sq ft |
| Medium (3-4 Bars) | Up to 12,000 sq ft |
| Weak (1-2 Bars) | Up to 2,000 sq ft |
| None (0 Bars) | No Coverage |
Please Note: It is important to remember that there are many factors that impact the size of the inside coverage area, so actual results may vary from these estimates.
Additional Coverage
If you need more coverage than one system will provide due to a weak outside signal, you can install multiple WilsonPro 1050 Enterprise Signal Booster with Inline Amplifier (460230) systems. Please contact us for assistance with designing a system using the WilsonPro 1050.
Will this Work for my Phone and Carrier?
The WilsonPro 1050 Enterprise Signal Booster with Inline Amplifier (460230) has been designed to work with all cell phones and all carriers in the United States, Canada, and Mexico, as well as carriers from some other countries in Latin America, South America, and Australia.
| Supported Phones | All Cell Phones, Hotspots, and any Devices that use Cellular Data |
|---|---|
| Networks | 2G, 3G, 4G LTE & 5G |
| Frequencies | 700, 800, 1900, 1700/2100 MHz |
| Carriers | Works for all Carriers in North America, including: AT&T, Verizon, Sprint, T-Mobile, US Cellular, Bell, Telus, Rogers, Freedom Mobile |
Please Note: This signal booster will not work in most European, Asian, and African countries, as the frequencies used there are different than those boosted by this equipment.
