The wall mountable WilsonPro 1100 Signal Booster (460147) is an enterprise grade passive DAS system with the FCC maximum uplink and downlink boosting capabilities to provide excellent cellular coverage in a space of up to 25,000 sq ft. It features a downlink power of +15 dBM and an uplink of +25 dBM, for maximum inside coverage with a strong outside signal while also ensuring that the cell signal will make it back to the outside cell towers.
The Wilson Pro 1100 also has Extended Dynamic Range (XDR) technology, which allows the amplifier to automatically adjust the boosting power to handle any type of outside signal environment without ever overloading from too much signal. This makes for a significantly easier installation with minimal troubleshooting afterwards. The WilsonPro 1100 passive DAS system will work with all of the networks (2G, 3G and 4G LTE) from all of the major carriers in North America.
The WilsonPro 1100 is currently available in 50 ohm (SKU 460147) and 75 ohm (SKU 461147) versions. Please contact us to purchase either one of these boosters, or to have a custom 50 ohm or 75 ohm system designed for you.
Why the WilsonPro 1100?
Able to handle a very strong outside signal (+15 dBm) and turn that into a significant amount of coverage inside.
FCC maximum uplink power (+25 dBm) to ensure that the cell signal gets back to the towers.
The state of the art XDR technology, which enables the booster to operate no matter how the strong the outside signal.
Strongest gain (boosting power) allowed by the FCC, for the most coverage inside with a weak to moderate outside signal.
Amplifier Color LCD display allows for system monitoring, amplifier tuning and easy troubleshooting.
Works wirelessly. No physical connection to your phone required.
Supports multiple phones and all carriers at the same time.
Fewer dropped calls
Faster Internet data speeds
Better voice quality
Texts that send quickly
Longer battery life
Bonus: lightning protector kit.
Your purchase is covered by our 60-day money back guarantee, so you can try it risk free, and our friendly, US-based technical support team is standing by to assist with anything you need. Your equipment is also covered by a 3-year manufacturer warranty, for extra peace of mind.
Recommended For
The WilsonPro 1100 is an enterprise grade signal amplifier that is ideal for use in any large building that requires better cell signal while not breaking the bank on cost.
How to Maximize Coverage
The WilsonPro 1100 comes with a yagi directional outside antenna and a dome inside antenna as the FCC mandates that all signal amplifiers must be sold as a full kit, but in order to realize the full potential of the 1100, a professional system design is highly encouraged.
We offer free professional system design where our experts can design a system using the WilsonPro 1100 Enterprise Signal Booster Kit at no cost to you, and add on additional components to create the best possible solution for your situation. You can find out more on the Professional Design & Installation Services page or contact us at 800-590-3564 for more details.
Estimated Inside Coverage
The strength of your existing outside signal, measured in the location where you plan to mount the outside antenna, has a direct impact on the amount of inside coverage you'll get from a signal booster. The table below shows how much coverage you may get depending on your outside signal strength:
Existing Outside Signal Strength
Estimated Inside Coverage
Strong (5 Bars)
Up to 25,000 sq ft
Medium (3-4 Bars)
Up to 12,000 sq ft
Weak (1-2 Bars)
Up to 2,000 sq ft
None (0 Bars)
No Coverage
Please Note: It is important to remember that there are many factors that impact the size of the inside coverage area, so actual results may vary from these estimates.
Additional Coverage
If you need more coverage than one system will provide, then a professional system design will utilize multiple WilsonPro 1100 systems to provide the necessary coverage, no matter the size of the space. Please contact us to get started with a custom system design.
Will this Work for my Phone and Carrier?
The WilsonPro 1100 has been designed to work with all cell phones and all carriers in the United States, Canada and Mexico, as well as carriers from some other countries in Latin America, South America and Australia.
Supported Phones
All Cell Phones, Hotspots, and any Devices that use Cellular Data
Networks
2G, 3G, 4G & 4G LTE
Frequencies
700, 800, 1900, 1700/2100 MHz
Carriers
Works for all Carriers in North America, including:
Please Note: This signal booster will not work in most European, Asian, and African countries, as the frequencies used there are different than those boosted by this equipment.
Kit Includes
The following components are included with the WilsonPro 1100:
WilsonPro 1100 Amplifier w/ Power Supply

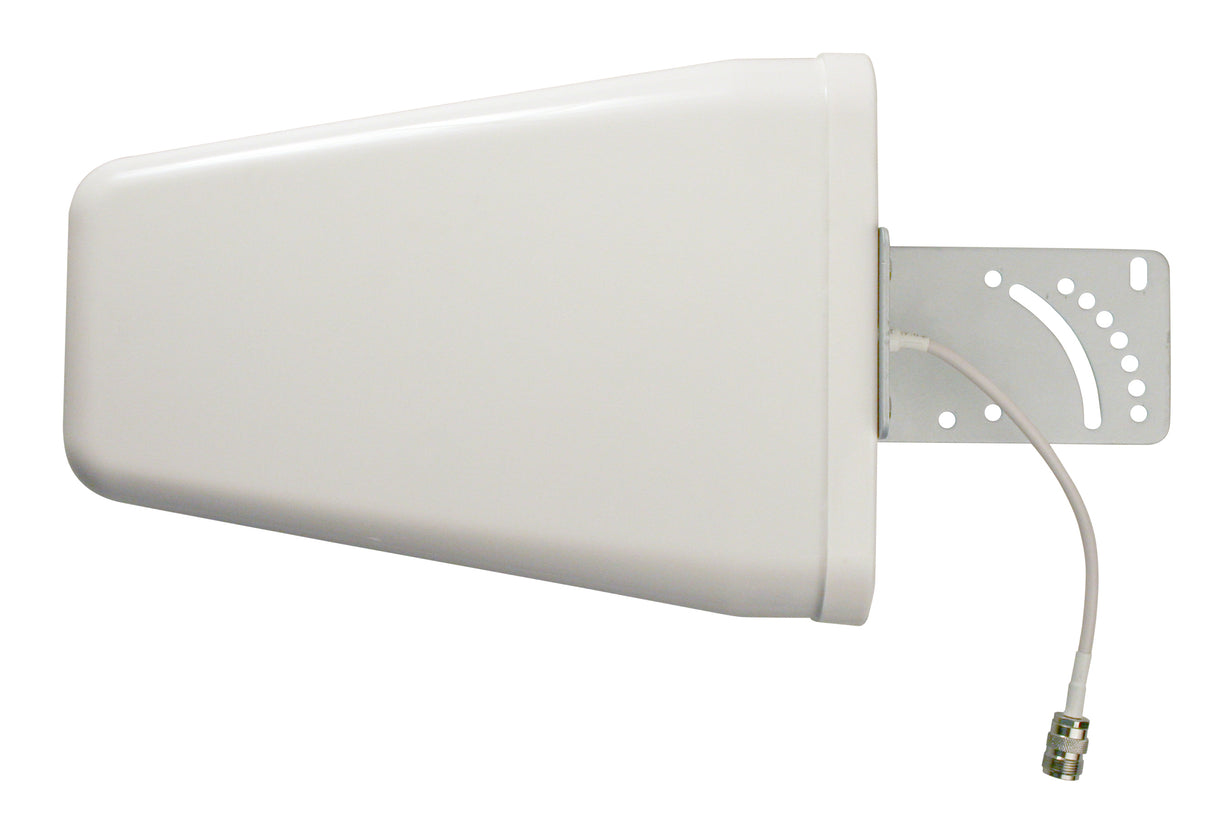

Wilson Yagi Outside Antenna

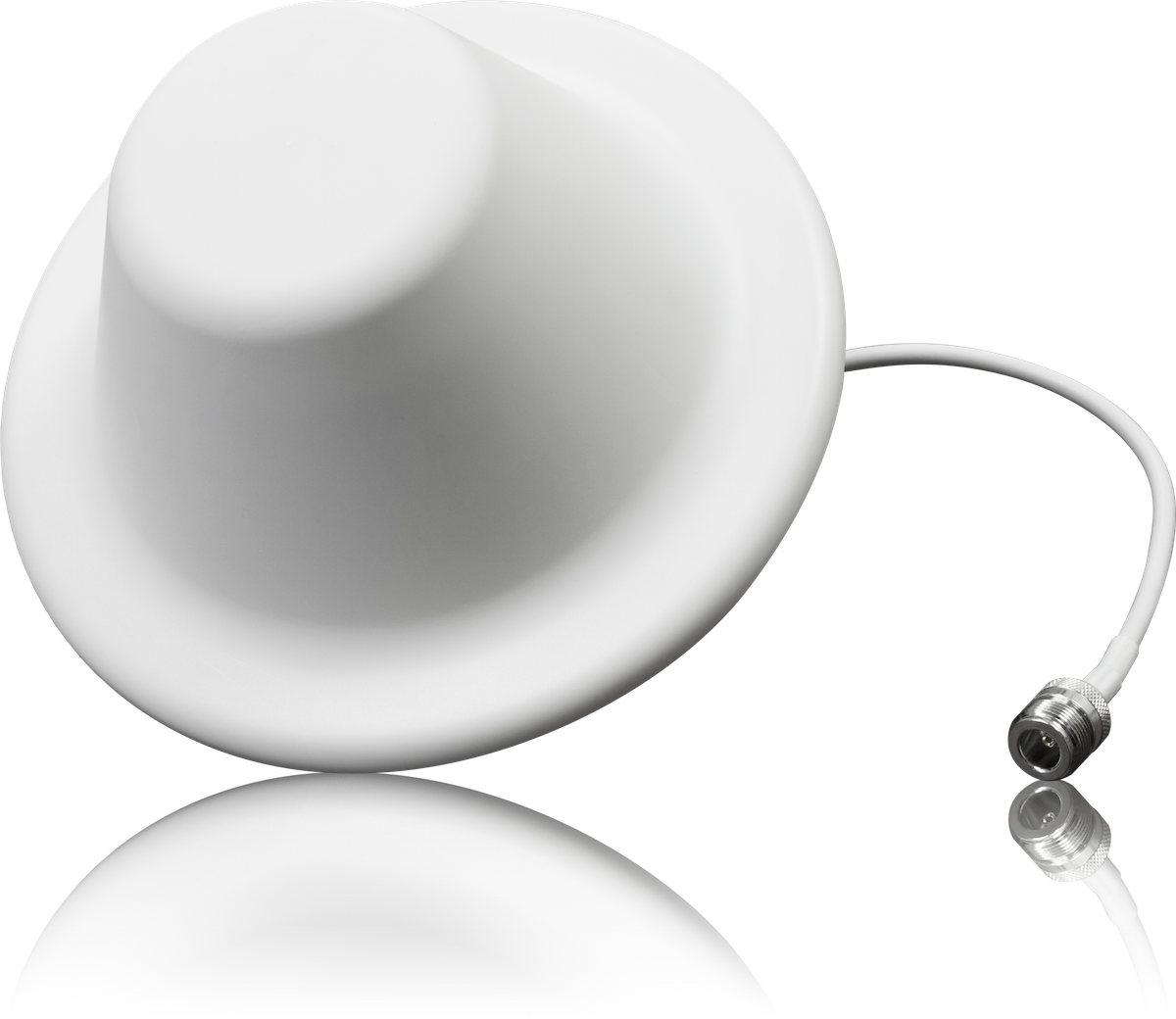

Wilson Dome Inside Antenna

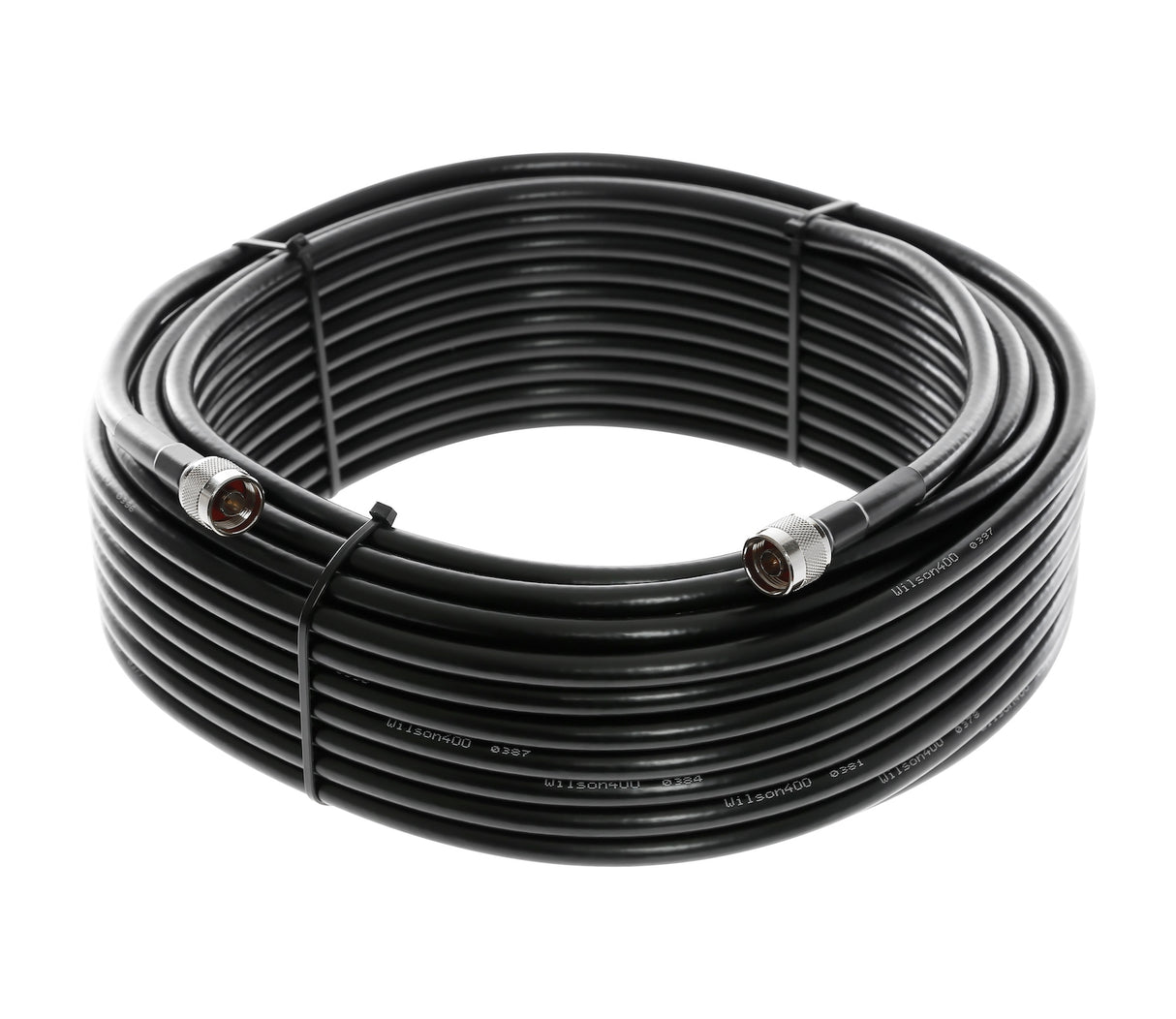

75 ft of Wilson400 Cable
60 ft of Wilson400 Cable

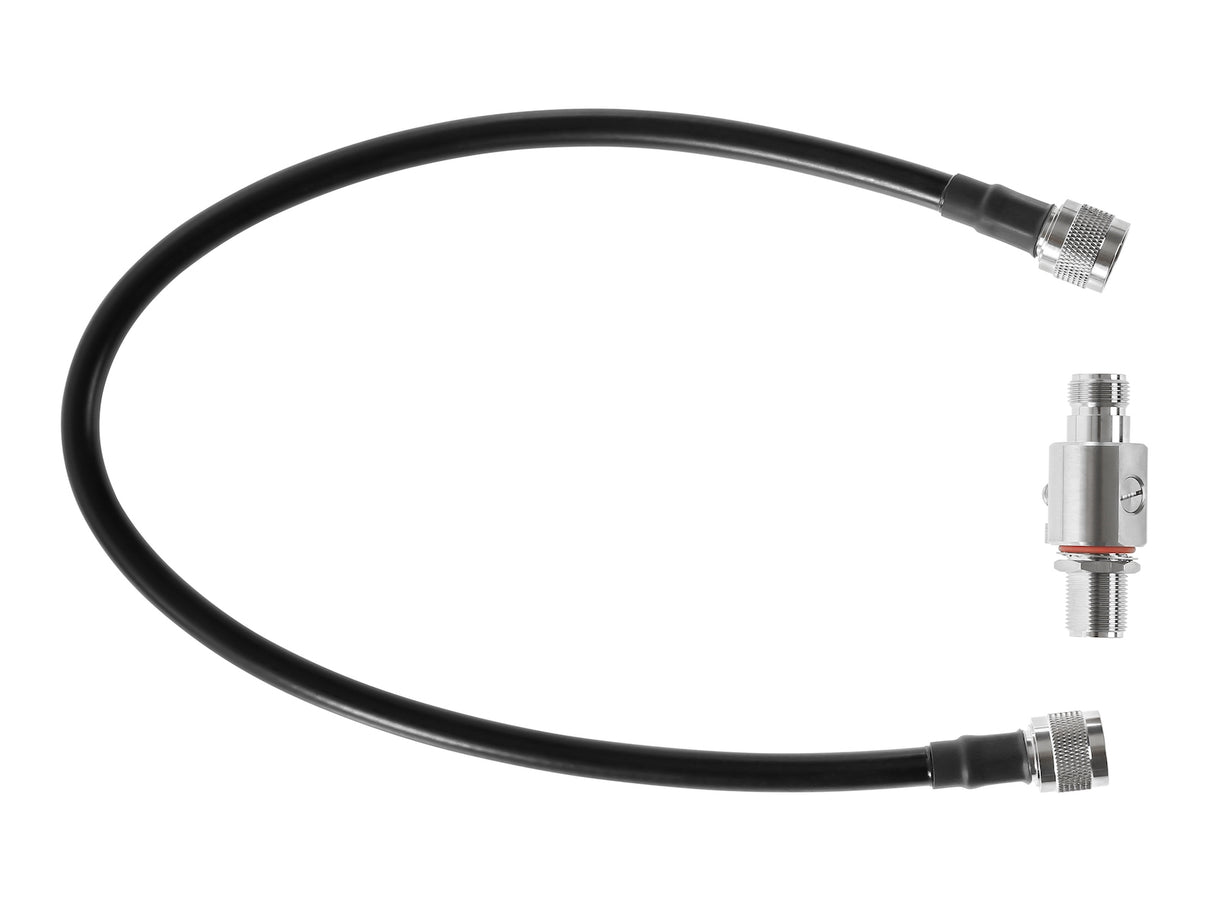

Wilson Lightning Protector
Installation Manual
Spec Sheet
Recommended Accessories
While the WilsonPro 1100 Signal Booster Kit includes everything you need to install the system and start having great cell signal, the following recommended accessories may simplify the installation and help protect the system going forward:
Wilson Pole Mount
