The wall mountable WilsonPro 4000 Enterprise Signal Booster (460223) is a full passive DAS system designed to provide great cell coverage to a space of up to 100,000 sq ft, depending on the strength of the outside signal and internal obstructions. It features the brand new Extended Dynamic Range (XDR) technology, which allows the amplifier to adjust the boosting power all the way from full power down to 0, to account for complex outside signal strengths. This means that the amplifier will never be overloaded by a powerful outside signal, so installation and troubleshooting should be significantly easier. The WilsonPro 4000 will amplify all of the frequencies used by the major carriers in North America for their 2G, 3G and 4G LTE networks.
The WilsonPro 4000 features:
- The amplification power of 4 individual amplifiers in a single, wall mountable housing that contains an integrated internal power supply.
- The state of the art XDR technology, which enables the booster to operate, no matter how the strong the outside signal is. The booster will never overload with too much signal and shutdown.
- The maximum amplification allowed by the FCC on the downlink into the building, which results in the most coverage possible with a strong outside signal.
- An integrated signal meter to assist in aiming the included yagi directional antenna and troubleshooting, in case the need arises.
- A color digital display that allows the installer to see the current state of the AGC, read the signal meter, and tune the downlink and uplink power for the different frequency bands.
- Everything you need to install and start boosting signal throughout a large indoor space. Additionally, includes a lightning surge suppressor to protect the amplifier from electrical surges running down the outside antenna cable.
Custom System Design
In order to received the maximum coverage and effectiveness from the WilsonPro 4000 Signal Booster kit, a professional system design is highly recommended. We offer a free system design service that uses the WilsonPro 4000 Enterprise Signal Booster Kit and adds on additional components to create the best possible system for you. You can find out more on the Custom Kit System Design page or contact us at 800-590-3564 for more details.
Coverage Area
The total coverage area that any signal booster system can provide is directly related to the initial signal strength that the outside antenna is receiving from its location on the roof of the building. The stronger the outside signal, the more coverage you'll get from the system, especially in the case of the WilsonPro 4000 Enterprise Signal Booster Kit.
It is also important to remember that there are many factors that go into determining the total coverage area, so actual results may vary from these estimates. A professionally designed network of internal antennas is required to cover the largest possible area with boosted signal.
- If you have an existing strong 5-bar outside signal, you may receive up to 100,000 sq ft of boosted signal inside the building (requires multiple internal antennas).*
- If you have an existing 3 to 4-bar (-80 dB) outside signal, you may receive up to 37,500 sq ft of boosted signal inside the building.*
- If you have an existing 1 to 2-bar (-95 dB) outside signal, you may receive up to 10,000 sq ft of boosted signal inside the building*.
- If you have no existing outside signal, then a signal booster likely will unfortunately not work in your situation.
Additional Coverage
If you require more coverage than you can get from a single WilsonPro 4000 Enterprise Signal Booster system, it is possible to use multiple kits within the same building. If you would like help designing a system for your larger building , please fill out our Custom Kit Request Form and we can help you design a custom solution.
Supported Carriers
The WilsonPro 4000 Enterprise Signal Booster Kit supports the 2G, 3G, and 4G LTE networks from virtually all carriers in the United States and Canada. For other locations, please consult the frequencies outlined below to see if this product will work for you.
Here is a more detailed breakdown of the carriers, networks and frequencies boosted by this kit:
- AT&T 2G, 3G, 4G HSPA+ & 4G LTE
- Verizon 2G, 3G, 4G LTE & XLTE
- Sprint 2G, 3G
- T-Mobile 2G, 3G, 4G HSPA+ & 4G LTE
- US Cellular 2G, 3G & 4G LTE
- All other carriers using 700 MHz, 800 MHz, 1900 MHz, and AWS 1700/2100 MHz frequencies
Please Note: This signal booster kit will not work in most European, Asian, and African countries because the frequencies used there are different than those boosted by this equipment.
Kit Includes
- WilsonPro 4000 Wall Mountable Amplifier

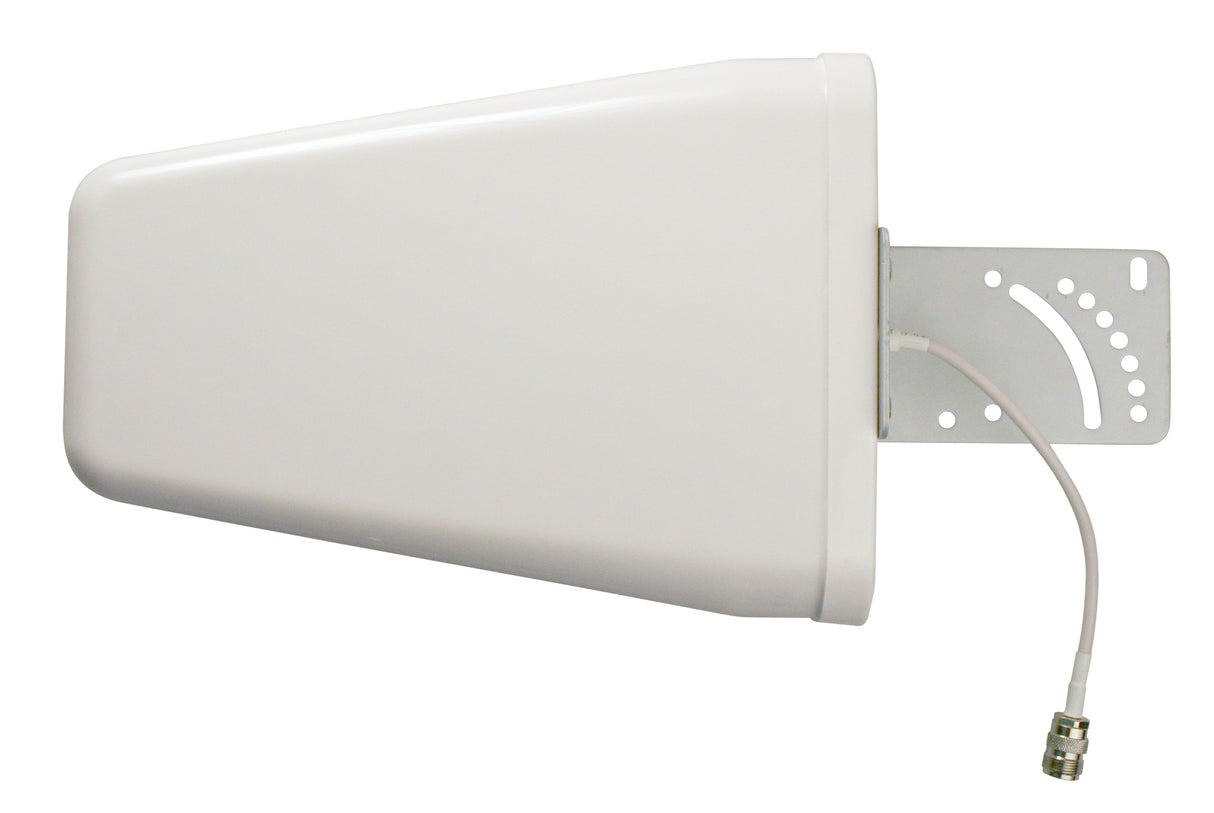

- Wilson Yagi Directional Outside Antenna (314411)
- 4 x Wilson Dome Inside Antennas
- 75' Black Ultra Low Loss Cable (952375)
- 4 x 100' Black Ultra Low Loss Cable (952300)
- Wilson Lightning Surge Protector with 2' Black Ultra Low Loss Cable (952302)
- AC Power Supply
- Installation Guide
Accessories
While the WilsonPro 4000 Enterprise Signal Booster kit comes with all of the components necessary to install and immediately start boosting signal, the following accessory may be worth considering.
The yagi directional external antenna that is included with the kit is meant to be mounted to a vertical pole that is 2 inches in diameter or less on the roof of the building. Many times there may be an existing pole that can be used, but if not, the Pole Mount Assembly will provide you with a 1 foot pole to mount the antenna to.
* The actual coverage area of a signal booster is dependent on many factors including existing outside signal strength, obstructions between you and the cell tower, the materials used in your home or office, the layout of the area you need to cover with a boosted signal, and other factors. The approximate coverage areas listed above are estimates. Actual coverage area will vary based on these and other factors. If you're not sure if a system will be powerful enough for your needs, contact us to find out.
