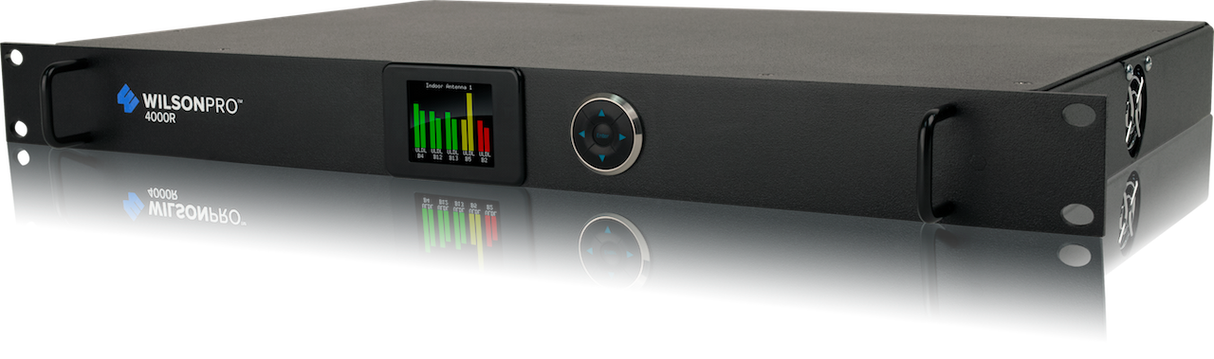

WilsonPro 4000R Enterprise Signal Booster for Voice, 3G and 4G LTE | 460231 [Discontinued]

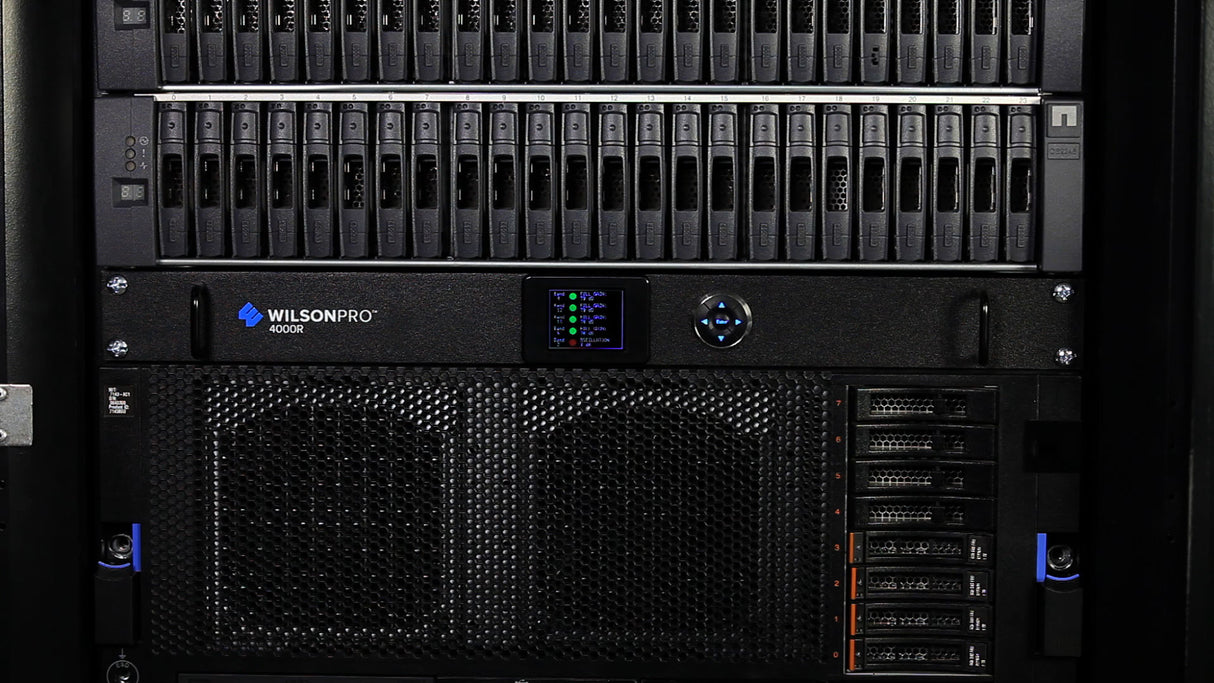

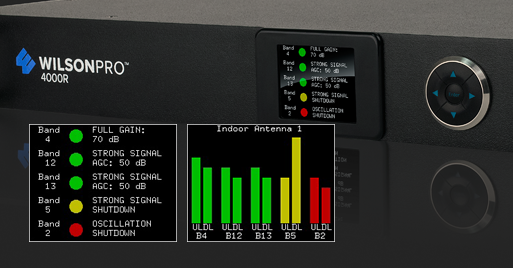

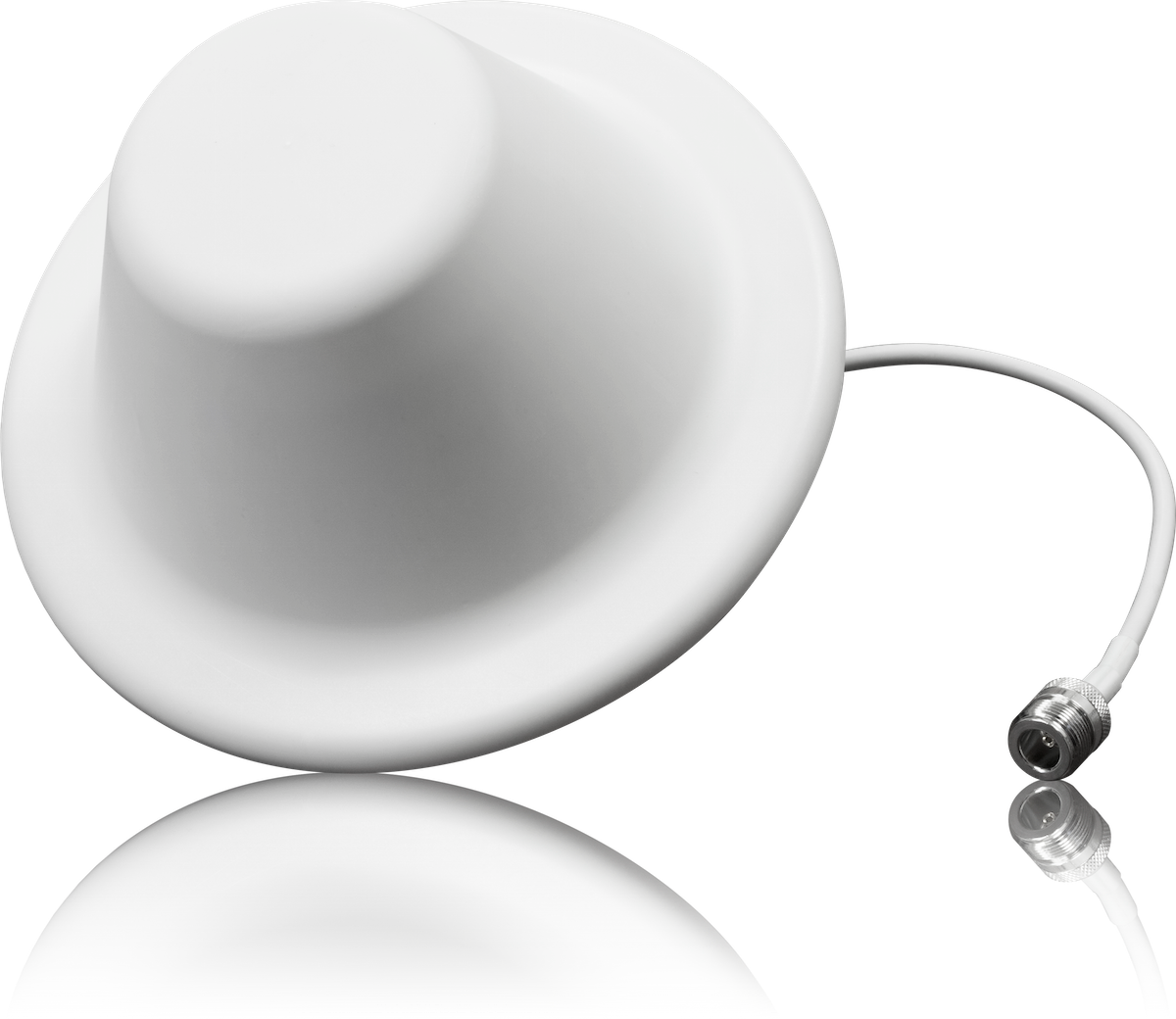

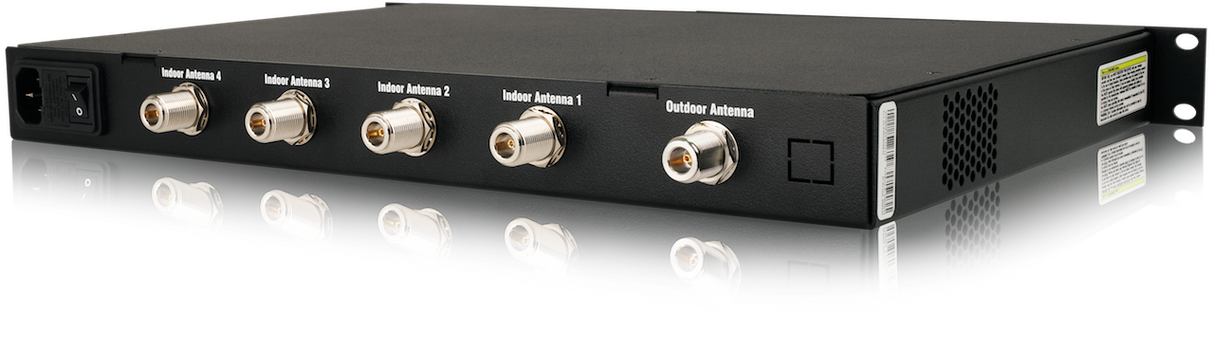

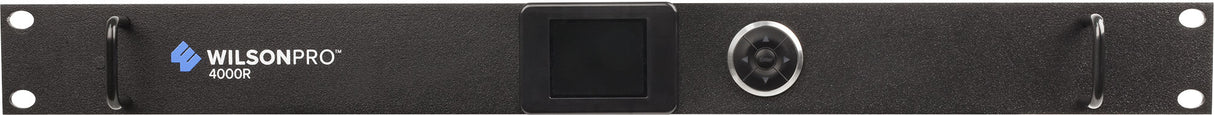

Downloads Product Specs The WilsonPro 4000R Enterprise Signal Booster for Voice, 3G and 4G LTE is a commercial grade signal booster system from the Wilson Electronics Professional line of boosters. It will boost the 2G, 3G and 4G LTE networks from the major carriers in North America and can cover a space up to 100,000 sq ft with a strong outside signal and professionally designed network of internal antennas. If the outside signal is weaker, then the total coverage area will be much smaller. The WilsonPro 4000R features: The equivalent of 4 Wilson Pro 70 Select amplifiers housed in a centralized, rack mountable case with integrated internal power supply. The most advanced gain control system on the market that uses the brand new state of the art Extended Dynamic Range (XDR) Technology to allow the gain control to automatically adjust as far down as needed to prevent oscillation and overload from nearby towers. No matter how strong the outside signal, the booster will never overpower and shutdown. The maximum downlink power permitted by the FCC. This allows the WilsonPro 4000R to receive an outside signal up to 10 decibels stronger than other consumer level signal boosters, which translates into a maximum coverage area of up to 100,000 sq ft (with a strong outside signal and network of internal antennas). A built in signal meter for aiming the directional antenna and troubleshooting the booster installation. A digital display that allows the installer to view the current state of the automatic gain control, adjust the uplink and downlink power of the frequency bands, and view signal meter readings. All of the components that you need to start boosting signal, including ultra low loss cables and a bonus lightning protector kit for maximum amplifier protection. Custom System Design In order to received the maximum coverage and effectiveness from the WilsonPro 4000R Signal Booster kit, a professional system design is highly recommended. We offer a free system design service that uses the WilsonPro 4000R Enterprise Signal Booster Kit and adds on additional components to create the best possible system for you. You can find out more on the Custom Kit System Design page or contact us at 800-590-3564 for more details. Coverage Area The total coverage area that any signal booster system can provide is directly related to the initial signal strength that the outside antenna is receiving from its location on the roof of the building. The stronger the outside signal, the more coverage you'll get from the system, especially in the case of the WilsonPro 4000R Enterprise Signal Booster Kit. It is also important to remember that there are many factors that go into determining the total coverage area, so actual results may vary from these estimates. A professionally designed network of internal antennas is required to cover the largest possible area with boosted signal. If you have an existing strong 5-bar outside signal, you may receive up to 100,000 sq ft of boosted signal inside the building (requires multiple internal antennas).* If you have an existing 3 to 4-bar (-80 dB) outside signal, you may receive up to 37,500 sq ft of boosted signal inside the building.* If you have an existing 1 to 2-bar (-95 dB) outside signal, you may receive up to 10,000 sq ft of boosted signal inside the building*. If you have no existing outside signal, then a signal booster likely will unfortunately not work in your situation. Additional Coverage If you require more coverage than you can get from a single WilsonPro 4000R Enterprise Signal Booster system, it is possible to use multiple kits within the same building. If you would like help designing a system for your larger building , please fill out our Custom Kit Request Form and we can help you design a custom solution. Supported Carriers The WilsonPro 4000R Enterprise Signal Booster Kit supports the 2G, 3G, and 4G LTE networks from virtually all carriers in the United States and Canada. For other locations, please consult the frequencies outlined below to see if this product will work for you. Here is a more detailed breakdown of the carriers, networks and frequencies boosted by this kit: AT&T 2G, 3G, 4G HSPA+ & 4G LTE Verizon 2G, 3G, 4G LTE & XLTE Sprint 2G, 3G T-Mobile 2G, 3G, 4G HSPA+ & 4G LTE US Cellular 2G, 3G & 4G LTE All other carriers using 700 MHz, 800 MHz, 1900 MHz, and AWS 1700/2100 MHz frequencies Please Note: This signal booster kit will not work in most European, Asian, and African countries because the frequencies used there are different than those boosted by this equipment. Kit Includes WilsonPro 4000R Rack Mountable Amplifier Wilson Yagi Directional Outside Antenna (314411) 4 x Wilson Dome Inside Antennas 75' Black Ultra Low Loss Cable (952375) 4 x 100' Black Ultra Low Loss Cable (952300) Wilson Lightning Surge Protector with 2' Black Ultra Low Loss Cable (952302) AC Power Supply Installation Guide Accessories While the WilsonPro 4000R Enterprise Signal Booster kit comes with all of the components necessary to install and immediately start boosting signal, the following accessory may be worth considering. The yagi directional external antenna that is included with the kit is meant to be mounted to a vertical pole that is 2 inches in diameter or less on the roof of the building. Many times there may be an existing pole that can be used, but if not, the Pole Mount Assembly will provide you with a 1 foot pole to mount the antenna to. * The actual coverage area of a signal booster is dependent on many factors including existing outside signal strength, obstructions between you and the cell tower, the materials used in your home or office, the layout of the area you need to cover with a boosted signal, and other factors. The approximate coverage areas listed above are estimates. Actual coverage area will vary based on these and other factors. If you're not sure if a system will be powerful enough for your needs, contact us to find out.
