WilsonPro 4G Low-Profile Dome Antenna with Reflector | 314406


$179.99

60-Day Returns Free Shipping $100+ 2-Year Warranty

Overview

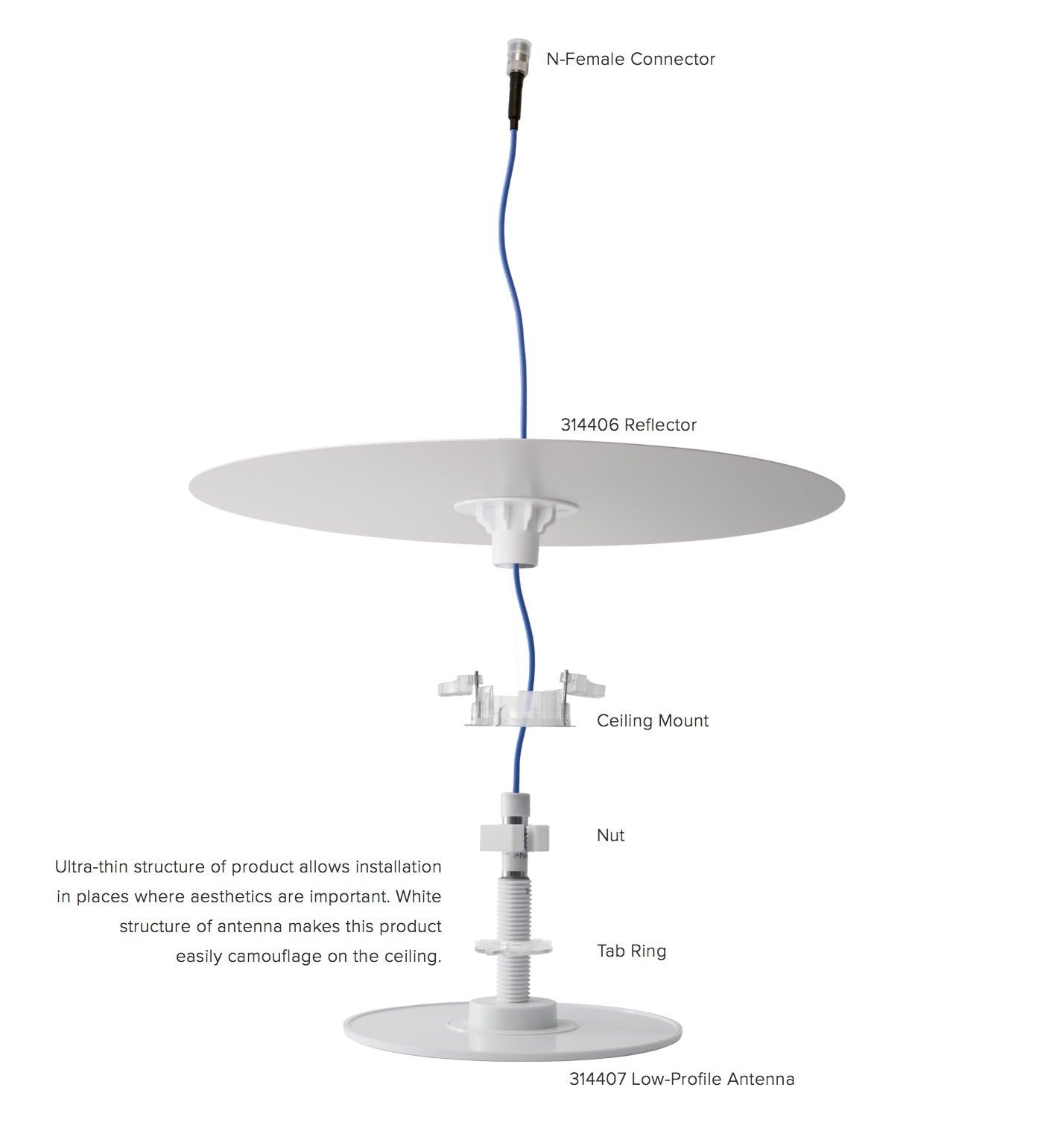

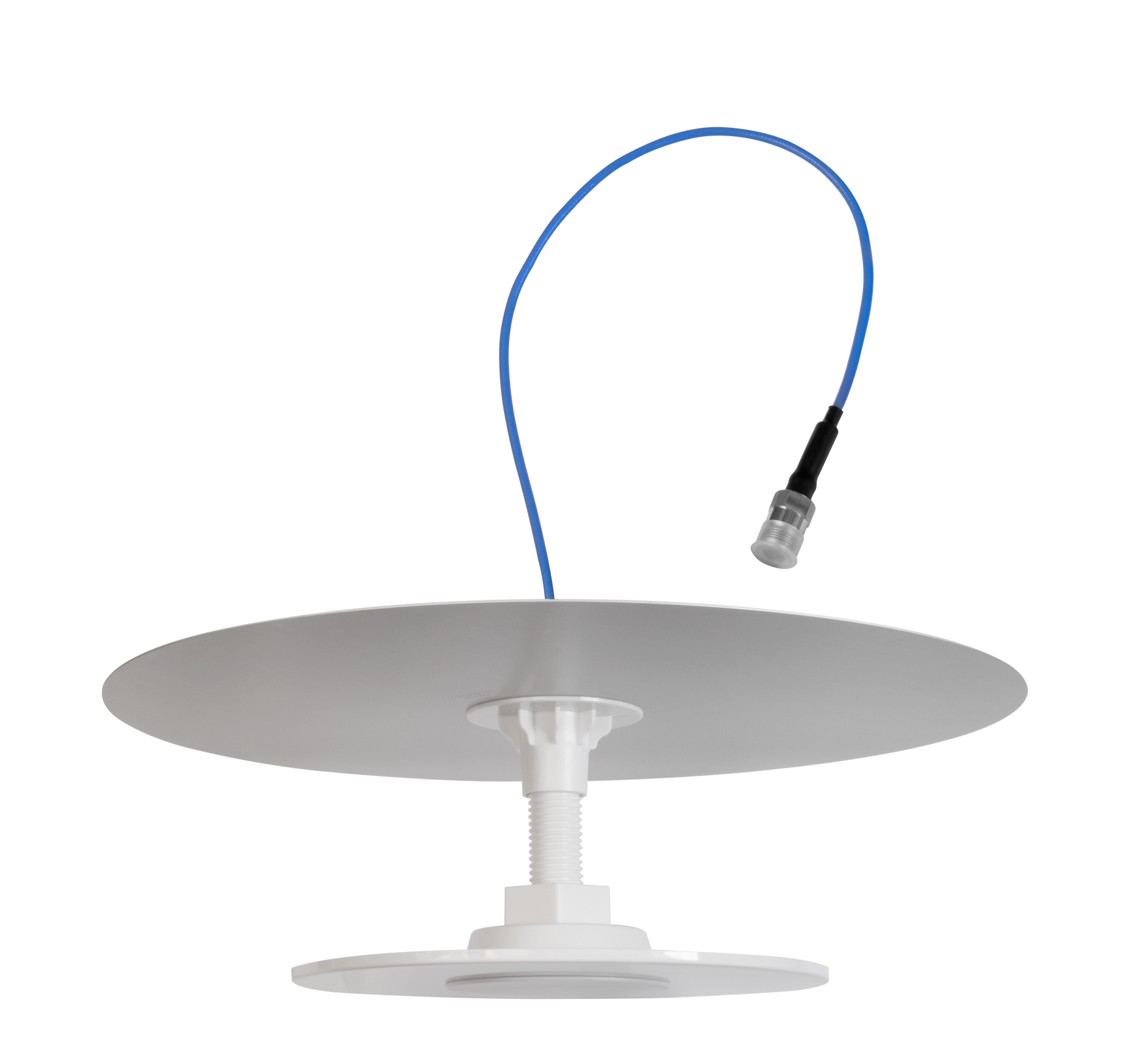

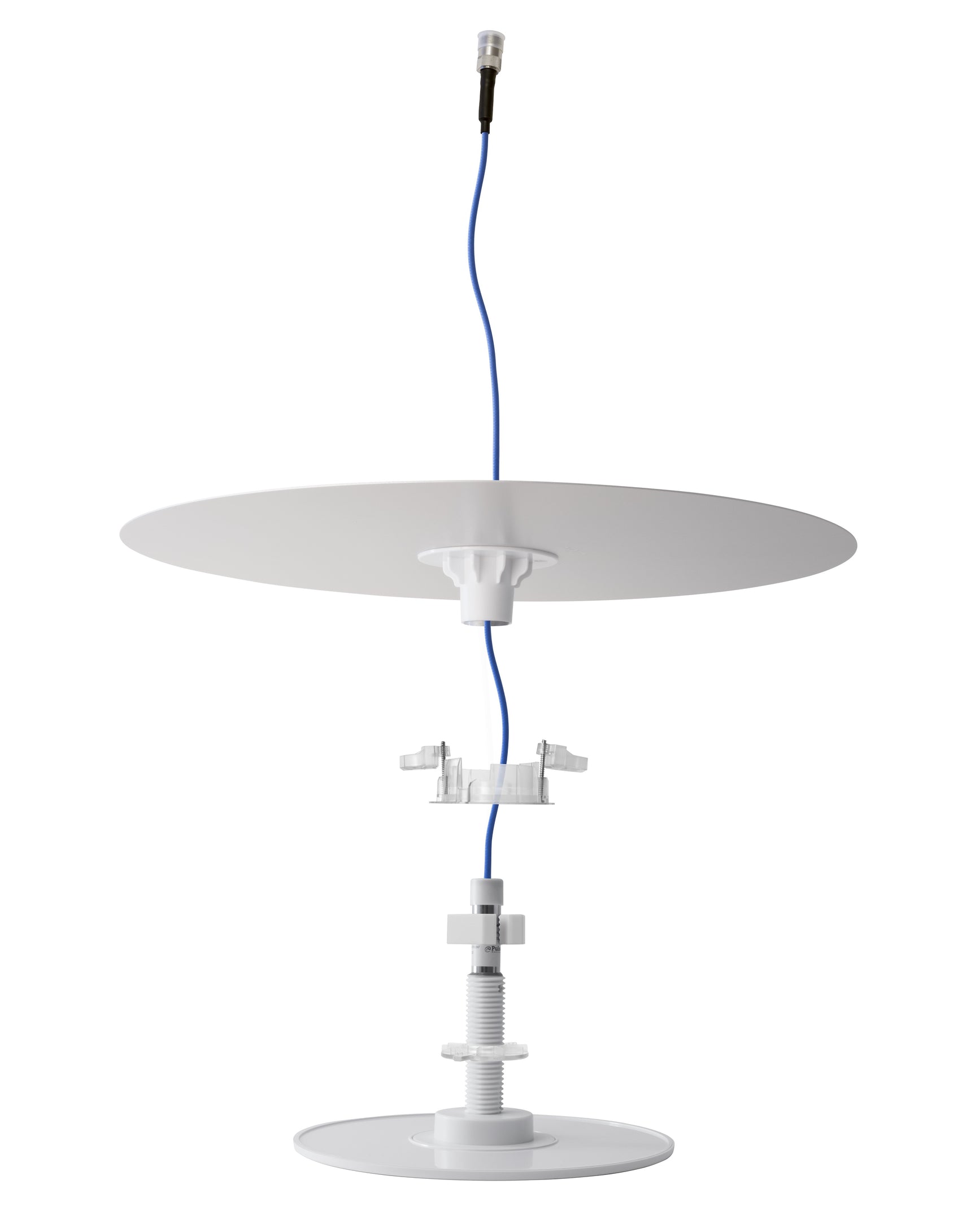

The WilsonPro 4G Low-Profile Dome Antenna with Reflector (314406) is a high-performance antenna developed in partnership with PulseLarsen. It is designed for installation in areas requiring a lower profile than the standard Wilson dome antenna. The included reflector redirects excess signal downwards, resulting in a larger coverage area. For installation, the antenna requires the space to accommodate the 16.56" reflector above the ceiling. If space is limited, the WilsonPro 314407 4G Low-Profile Dome Antenna is recommended instead. This model also includes a plenum-rated pigtail for use in plenum spaces.

  • Frequency Band: Covers 608-960 MHz, 1695-2200 MHz, and 2300-2700 MHz, supporting a wide range of cellular bands and WiFi frequencies.
  • High Gain: Average peak gain of 7 dBi for 608-960 MHz and 1695-2200 MHz, and 5 dBi for 2300-2700 MHz, ensuring strong signal reception.
  • Efficiency: High efficiency with 70% for 608-960 MHz, 65% for 1695-2200 MHz, and 60% for 2300-2700 MHz.
  • Reflector Inclusion: The reflector ensures that excess signal is redirected downwards, enhancing coverage area.
  • Plenum Rated: Includes a plenum-rated pigtail cable, making it suitable for installation in plenum spaces.
  • Connector Type: Equipped with an N-Female connector for secure and reliable connections.
  • Durable Construction: Built with high-quality materials to ensure long-lasting performance.
  • Compact Design: Ultra-thin structure and white radome allow for discreet installation, blending seamlessly with the ceiling.

The WilsonPro 4G Low-Profile Dome Antenna with Reflector is a versatile and high-performance solution for enhancing indoor signal coverage. Its efficient design and robust construction make it an excellent choice for various applications, ensuring optimal performance and reliability.

Product Documents

Specifications

  • SKU
    314406
  • UPC
    811815028093
  • Condition
    New
  • Impedance
    50 ohm
  • Antenna Connector
    N-Female
  • Antenna Beamwidth - Horizontal
    360 degrees
  • Antenna Beamwidth - Vertical
    25-90 degrees
  • Antenna Coax Cable
    Diameter 0.16 in. Low Loss, Plenum Rated
  • Antenna Ground Plane
    Built-In Ground Plane
  • Antenna Max Power
    40 watts
  • Antenna Mount

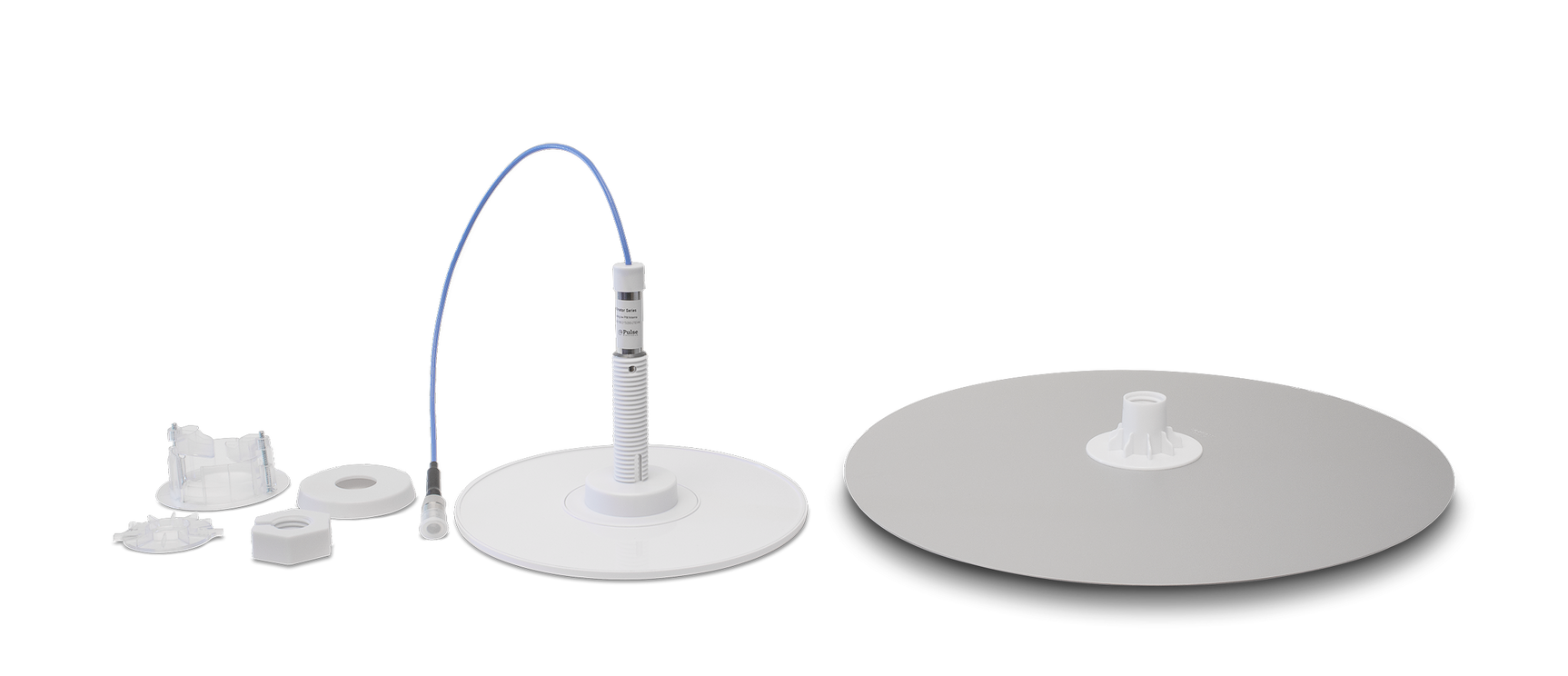

    Includes hardware for tile and hard ceiling mounting
  • Antenna Num Elements
    N/A
  • Antenna Signal Pattern
    Omni
  • Antenna VSWR
    2:1
  • Material
    White Radome
