zBoost SOHO Xtreme ZB545X Cellular Signal Booster [Discontinued]


$499.95

60-Day Returns Free Shipping $100+

Overview

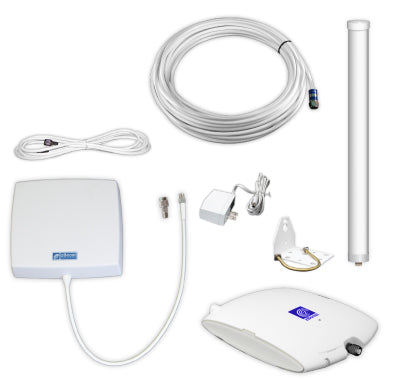

Designed for large homes and small businesses, the zBoost SOHO Xtreme ZB545X cell phone signal booster improves coverage and boosts signal up to 5,500 square feet for multiple users and all mobile devices operating on 800 MHz and 1900 MHz frequencies. The package includes everything you need to start boosting cell signal. Kit Includes zBoost SOHO Xtreme ZB545X amplifier base unit External omnidirectional industrial signal antenna Directional wall mount panel antenna 35 ft of RG6 cable 15 ft of RG6 cable (2) AC Power Adapter (110V - 240V AC) Window-entry cable Installation instructions

Specifications

  • SKU
    ZB545X
  • Impedance
    75 ohm
  • Max Coverage
    Up to 5,000 sq ft
  • Frequencies Supported
    800MHz, 1900MHz
  • Supported Carriers
    AT&T, Sprint, T-Mobile, U.S. Cellular, Verizon, Boost Mobile, Consumer Cellular, Cricket Wireless, Dish Wireless, Google Fi, Metro By T-Mobile, Mint Mobile, Net10 Wireless, Spectrum Mobile, Straight Talk, Xfinity Mobile
  • Specific Frequencies Supported
    824 - 849 MHz / 869 - 894 MHz, 1850 - 1910 MHz / 1930 - 1990 MHz

Regulatory Advisories

This is a CONSUMER device.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider's consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider. WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device.

Please note, the four largest carriers - AT&T, T-Mobile, Verizon and Sprint - and more than 90 regional carriers have given blanket consent for use of all boosters certified to the new FCC standards.
