SureCall Fusion4Home Yagi Signal Booster Kit

SureCall  |  SKU: SC-PolyH-72-YP-Kit |
$499.99
Inside Antenna

Do You Have a Question?
Our friendly signal experts are ready to help you.
Call us: 1-800-590-3564 or send us a message.

Product Info

The SureCall Fusion4Home Signal Booster kit will amplify the 2G, 3G, 4G LTE & 5G networks from the major carriers in North America. The different inside antenna combinations allow the SureCall Fusion4Home to be able to handle a wide variety boosting situations. If you need an affordable and flexible building booster system, the Fusion4Home is going to be a great option for you.

Why the SureCall Fusion4Home?

  • Powerful outside antenna. Multiple inside antenna options.
  • Works wirelessly. No physical connection to your phone required.
  • Supports multiple phones and all carriers at the same time.
  • Everything you need is included in the kit.
  • Fewer dropped calls
  • Faster Internet data speeds
  • Better voice quality
  • Texts that send quickly
  • Longer battery life

Your purchase is covered by our 60-day money-back guarantee, so you can try it risk-free, and our friendly, US-based technical support team is standing by to assist with anything you need. Your equipment is also covered by a 3-year manufacturer warranty, for extra peace of mind.

Recommended For

The SureCall Fusion4Home is an ideal solution for small to medium-sized buildings, as well as mobile homes with a weak outside signal, cabins, cottages, and more. The different antenna options allow you to customize the system for your specific situation, so you can maximize the effectiveness and minimize installation issues.

How it Works

SureCall Fusion4Home Signal Booster Kit - Voice, 3G & 4G LTE - Installation Diagram

The SureCall Fusion4Home signal booster offers the options of either a panel or whip inside antenna, so while the operation of the booster system is the same, there will be slight differences in the installation based on the type of antennas that you choose.

A signal booster system typically works by having the outside antenna mounted at or above the roofline of the building that requires better signal, in a location where the antenna can pick up the strongest existing outside cell signal. The signal is received by the antenna and is sent over a cable into the building, where it is received by the Fusion4Home amplifier. The amplifier boosts the cellular signal, and then either broadcasts it to the local area (if using the whip inside antenna) or sends it over another cable to the inside antenna, which broadcasts the improved signal to the area where it's located (if using the panel inside antenna).

The entire process also works in reverse, so you get a strong and reliable connection back to your carrier.

Inside Antenna Options

  • Whip Inside Antenna: This antenna has 3 dB of gain and is connected directly to the amplifier, where it radiates signal outwards in all directions. If you're planning to locate the amplifier in the area that needs better signal, and want to broadcast boosted signal outwards in all directions, then the whip antenna is going to be a good option for you.
  • Panel Inside Antenna: This antenna has 10 dB of gain and is generally mounted on the ceiling aimed downwards in the center of the space that needs boosted signal, but can also be laid face down on the floor of an attic or space above the ceiling, again in the center of the space that needs boosted signal, and it will broadcast boosted signal through the floor to the space below. Finally, panel antennas can be mounted on a wall and broadcast boosted signal across a space.

Estimated Inside Coverage

The strength of your existing outside signal, measured in the location where you plan to mount the outside antenna, has a direct impact on the amount of inside coverage you'll get from a signal booster. The tables below show how much coverage you may get depending on your outside signal strength and the antenna combinations that you choose:

Yagi Outside Antenna and Whip Inside Antenna

Existing Outside Signal Strength Estimated Inside Coverage
Strong (5 Bars) Up to 3,000 sq ft
Medium (3-4 Bars) Up to 2,000 sq ft
Weak (1-2 Bars) Up to 500 sq ft
None (0 Bars) No Coverage

Yagi Outside Antenna and Panel Inside Antenna

Existing Outside Signal Strength Estimated Inside Coverage
Strong (5 Bars) Up to 4,000 sq ft
Medium (3-4 Bars) Up to 3,500 sq ft
Weak (1-2 Bars) Up to 1,000 sq ft
None (0 Bars) No Coverage

Please Note: It is important to remember that there are many factors that impact the size of the inside coverage area, so actual results may vary from these estimates.

Additional Coverage

If you need more coverage than the SureCall Fusion4Home Signal Booster will provide due to a weak outside signal, then the SureCall Fusion5s is going to be a better choice for you. It has a more powerful amplifier and higher-grade cable to provide more inside coverage with the same strength outdoor signal. Please contact us if you have any questions or would like more information about either of these systems.

If you have a strong existing outside signal and need more inside coverage than the SureCall Fusion4Home provides, then the SureCall Fusion5X Signal Booster is going to be a better option for you. The Fusion5X has a greater threshold for handling a strong outside signal, so it’s able to convert that into significantly more coverage inside of the building. Please contact us if you have any questions or would like more information about this system.

Will this Work for my Phone and Carrier?

The SureCall Fusion4Home has been designed to work with all cell phones and all carriers in the United States, Canada, and Mexico, as well as carriers from some other countries in Latin America, South America, and Australia.

Supported Phones All Cell Phones, Hotspots, and any Devices that use Cellular Data
Networks 2G, 3G, 4G LTE & 5G
Frequencies 700, 800, 1900, 1700/2100 MHz
Carriers Works for all Carriers in North America, including: AT&T, Verizon, Sprint, T-Mobile, US Cellular, Bell, Telus, Rogers, Freedom Mobile

Please Note: This signal booster will not work in most European,

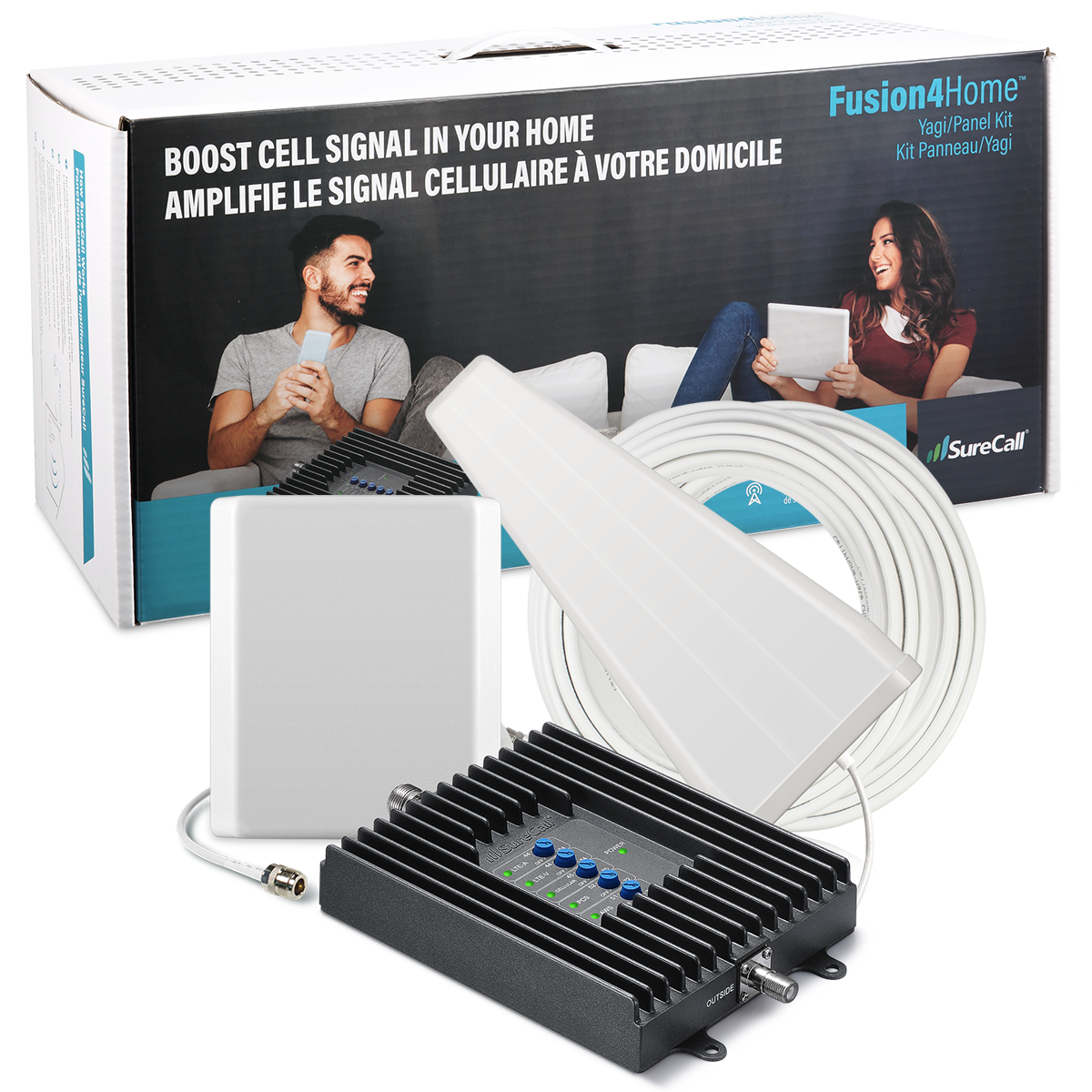

What's In the Box

  • SureCall Fusion4Home Amplifier
  • SureCall Power Supply
  • SureCall Yagi Outside Antenna
  • SureCall Whip Inside Antenna Option
  • SureCall Panel Inside Antenna Option
  • 50 ft of SureCall RG6 Cable
  • 20 ft SC240 Cable (If Panel Antenna is Chosen)

Specifications

  • Warranty Length
    3 Years

Regulatory Advisories

This is a CONSUMER device.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider's consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider. WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device.

Please note, the four largest carriers - AT&T, T-Mobile, Verizon and Sprint - and more than 90 regional carriers have given blanket consent for use of all boosters certified to the new FCC standards.
