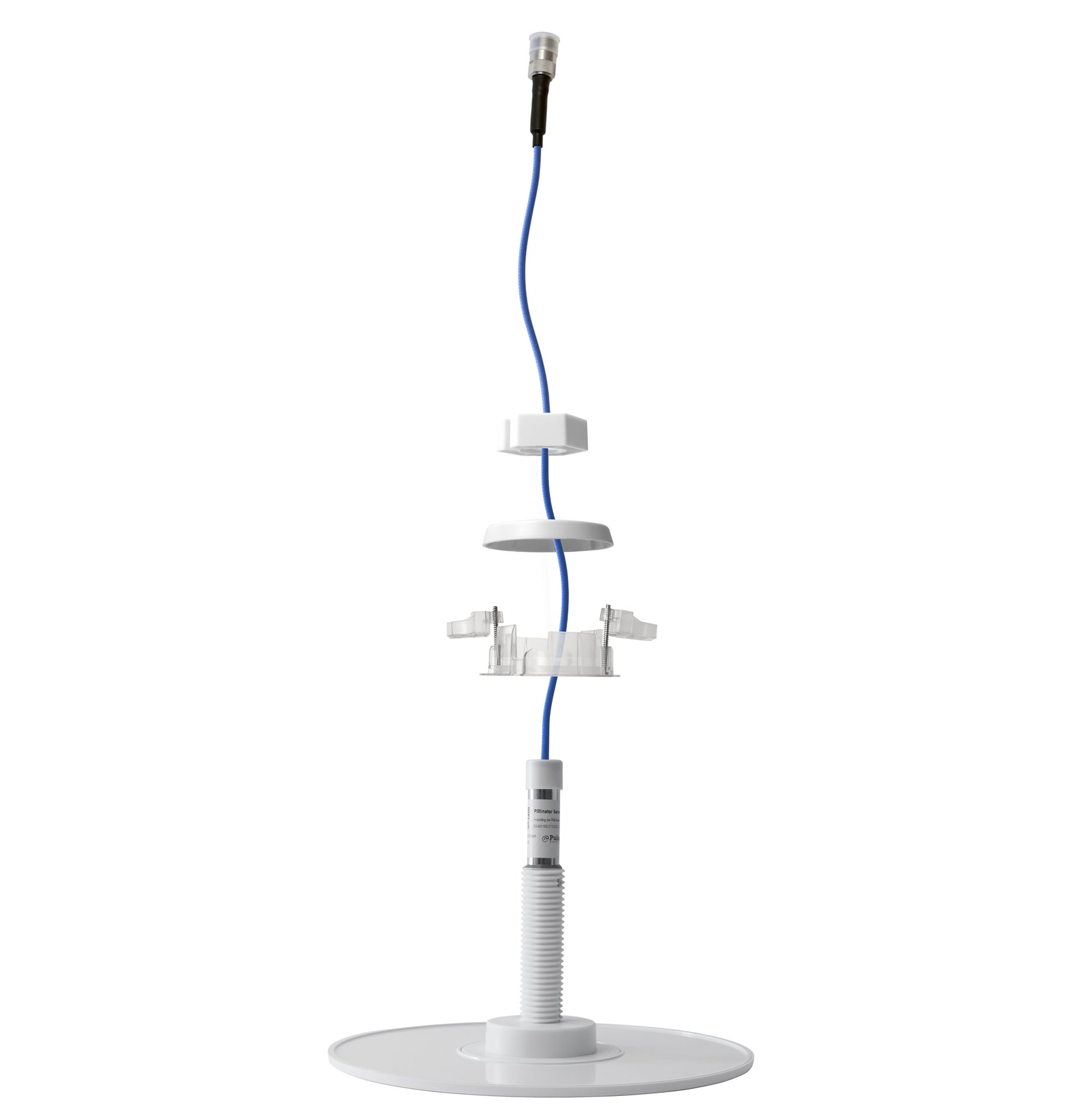

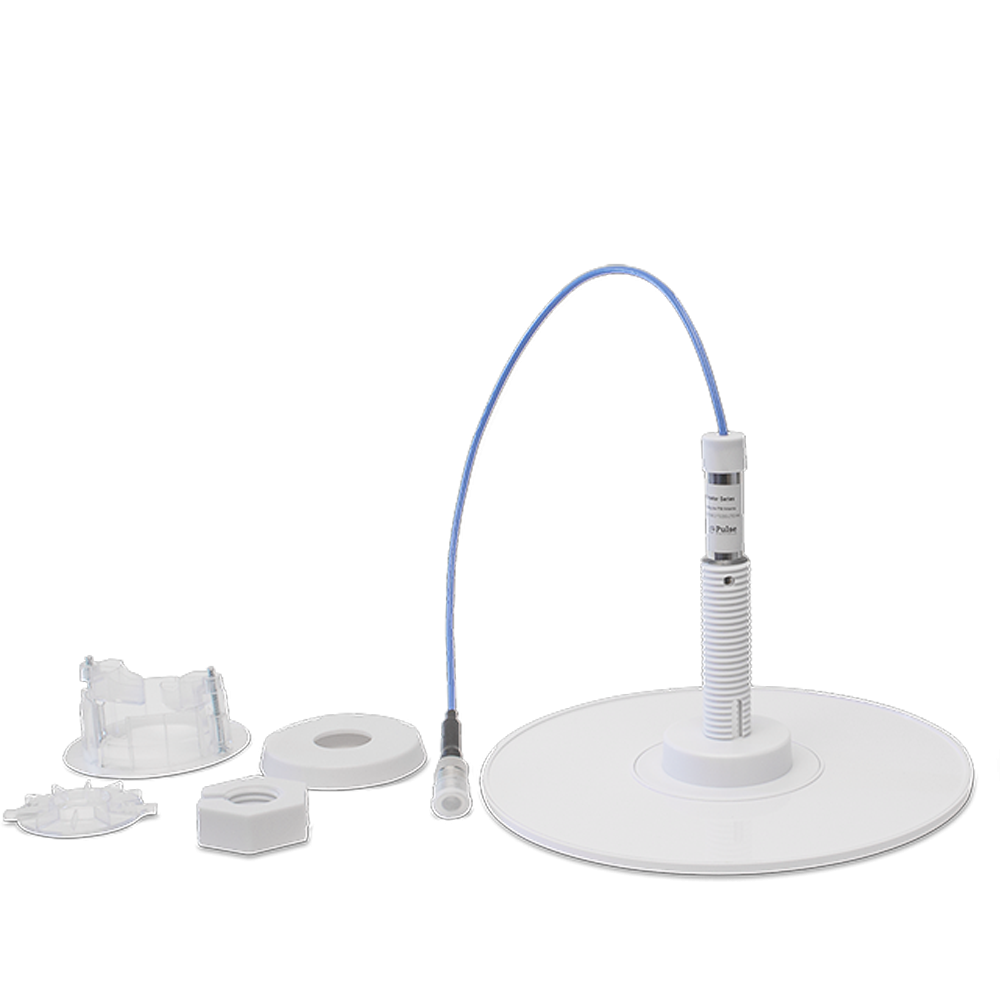

The WilsonPro Low-Profile Dome Antenna (314407) is a high performance dome antenna developed in partnership with PulseLarsen that is designed to be installed in areas that require a much lower profile than the standard Wilson dome antenna.
The WilsonPro 314407 Dome Antenna model does not include a signal reflector, so it can fit into tighter spaces or in locations where a signal reflector cannot be installed above the ceiling space. If you are able to use a signal reflector, then the WilsonPro 314406 Dome Antenna with Reflector model is highly recommended.
The WilsonPro 314407 Dome Antenna includes a plenum pigtail, so it can be used in plenum spaces.
Specs for the WilsonPro 314407 Low-Profile Dome Antenna
| Frequency Band (MHz) | 608-960 / 1695-2200 / 2300-2700 |
| Nominal Impedance | 50 |
| VSWR (698-960 MHz) | 2:1 |
| VSWR (1695-2200 MHz) | 2:1 |
| Average Peak Gain (608-960 MHz) | 4 dBi |
| Average Peak Gain (1695-2200 MHz) | 6 dBi |
| Average Peak Gain (2300-2700 MHz) | 6 dBi |
| Efficiency (608-960 MHz) | 70% |
| Efficiency (1695-2200 MHz) | 65% |
| Efficiency (2300-2700 MHz) | 60% |
| Horizontal Plane (th=45deg) | Omni |
| HPBW Vertical Plane (608-960 MHz) | 100° Typ |
| HPBW Vertical Plane (1695-2200 MHz) | 130° Typ |
| HPBW Vertical Plane (2300-2700 MHz) | 130° Typ |
| Maximum Power Input | 40 W |
| Cable Type | Diameter 0.16 in. Low Loss, Plenum Rated |
| Cable Length | 10 in. / 254mm |
| Connector Type | N-Female |
| Dimensions | Diameter: 9.4", Height: 6.36" |
